Plan 23751JD
Luxury Modern Home Plan with Spacious Media Room
Heated S.F.
4,998
Beds
5 - 6
Baths
5
Stories
2
Cars
3
Floor Plan

Plan 23751JD

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 23751JD

1-800-854-7852

1-262-521-4596

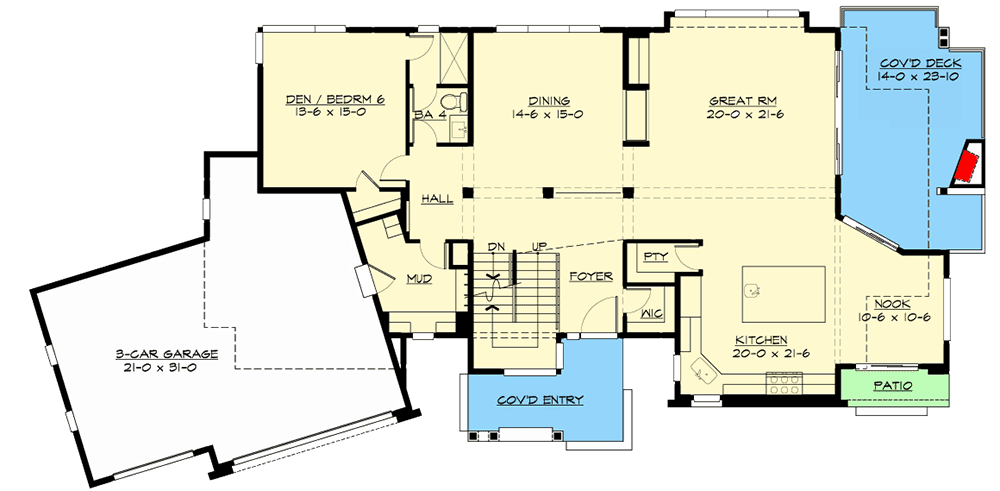

Main Level
floor plan image Main Level

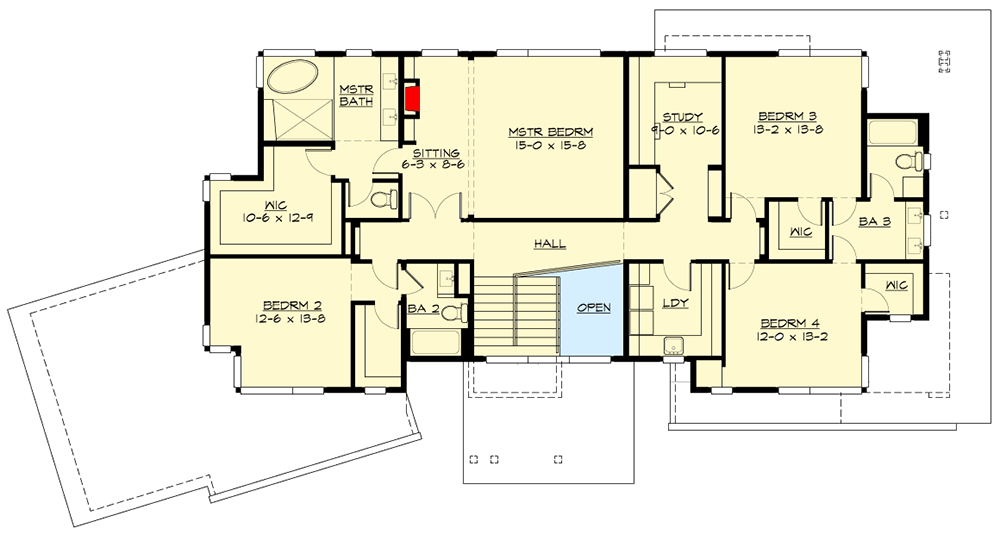

2nd Floor
floor plan image 2nd Floor

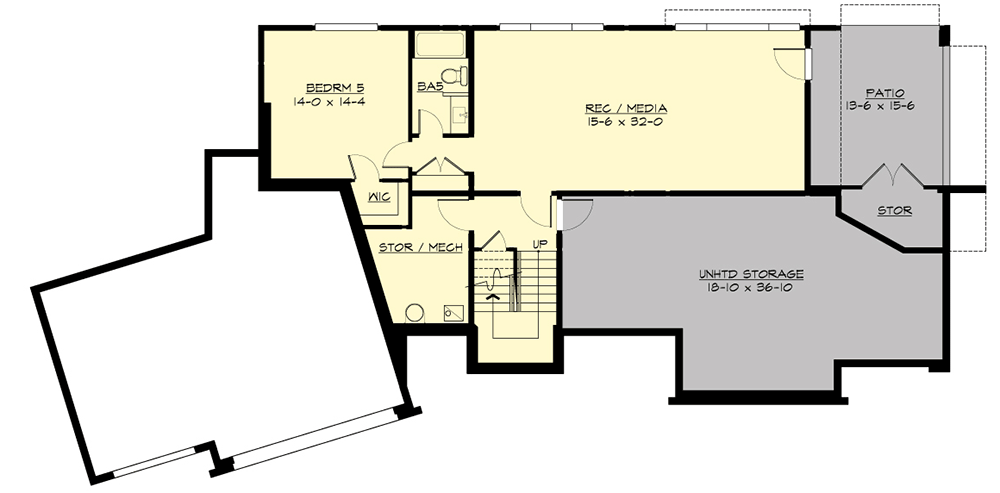

Lower Level
floor plan image Lower Level
Plan Details

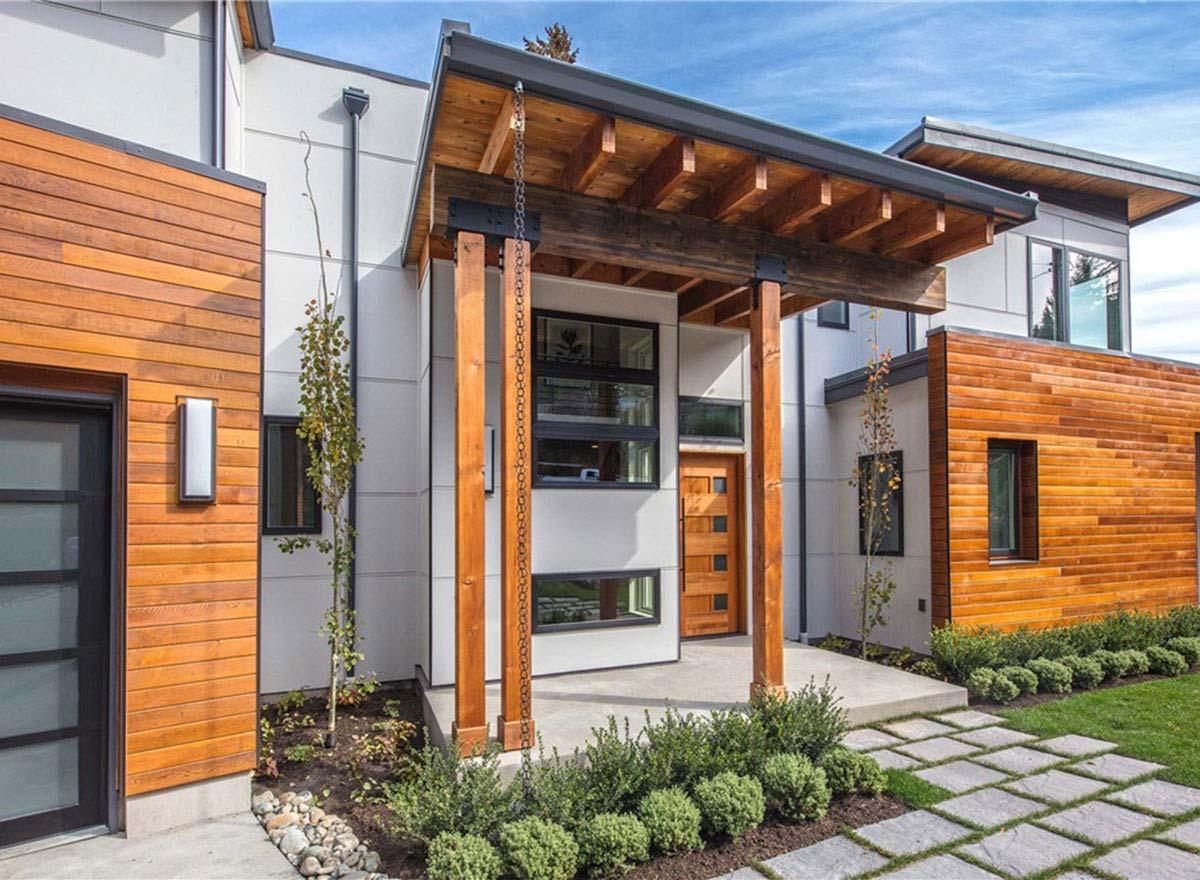

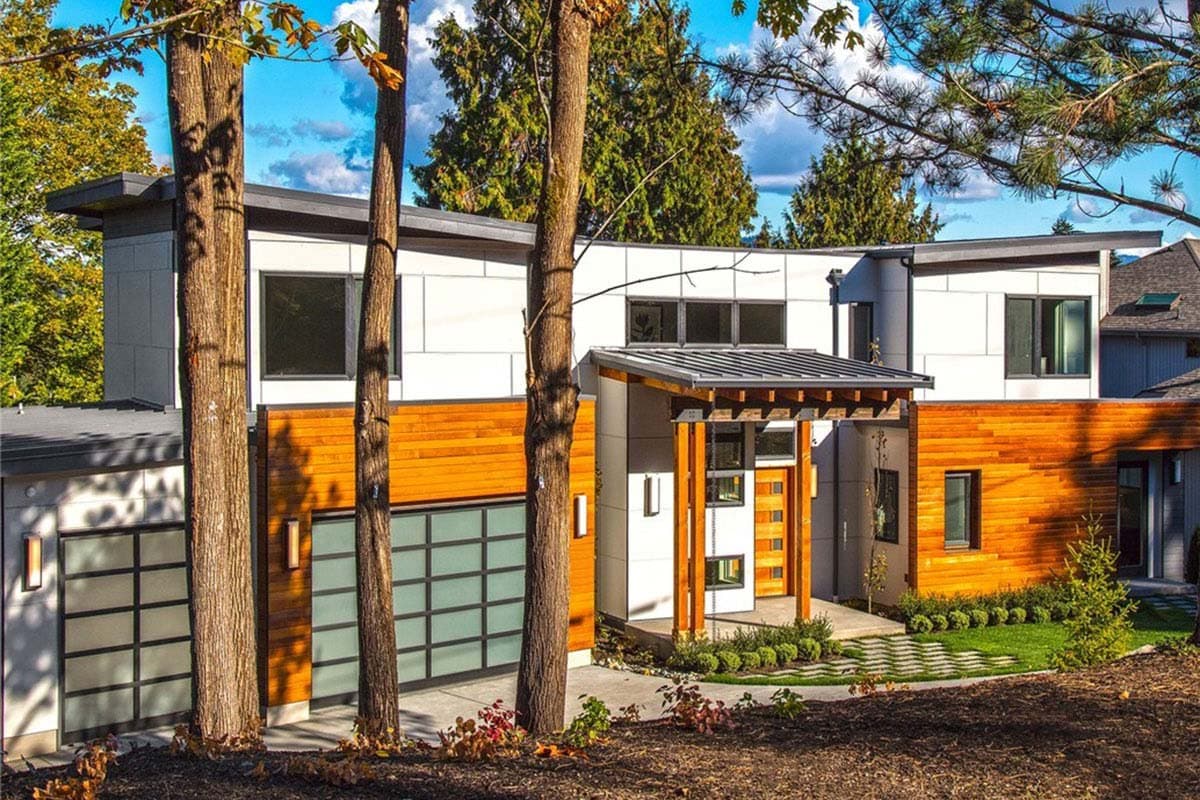

  • A bit of rustic wood offsets the modern slanted roof lines of this luxurious Modern house plan.

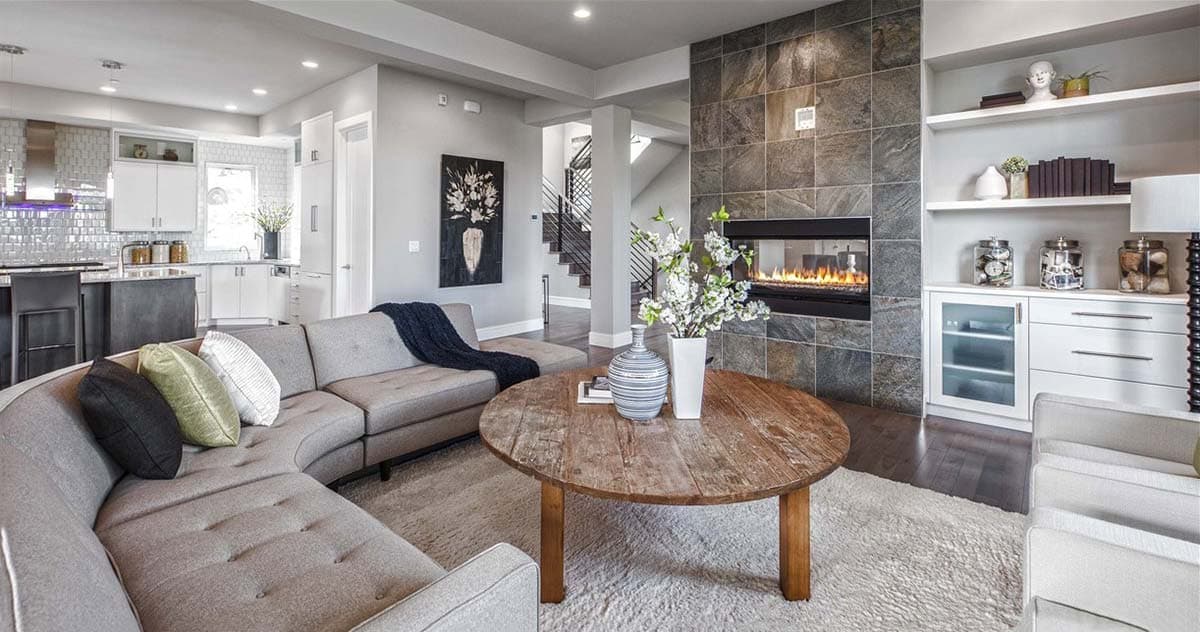

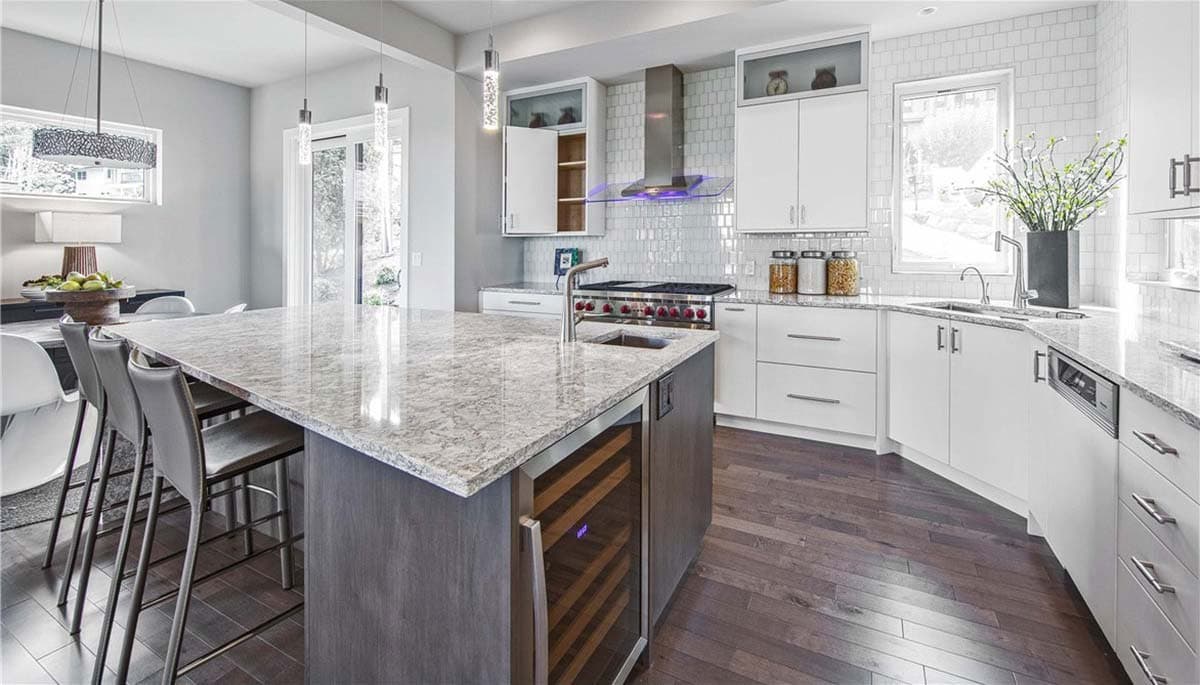

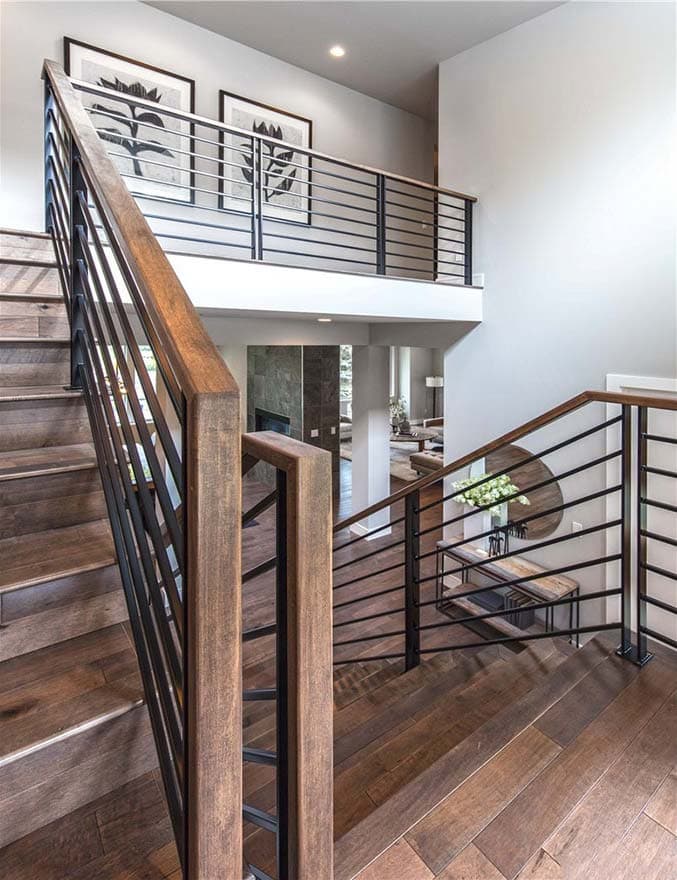

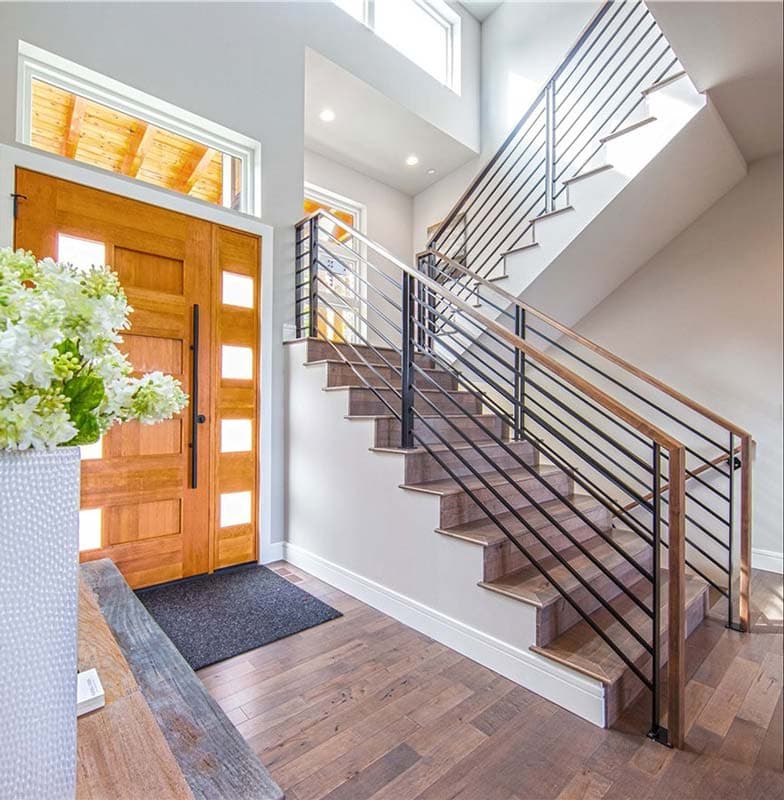

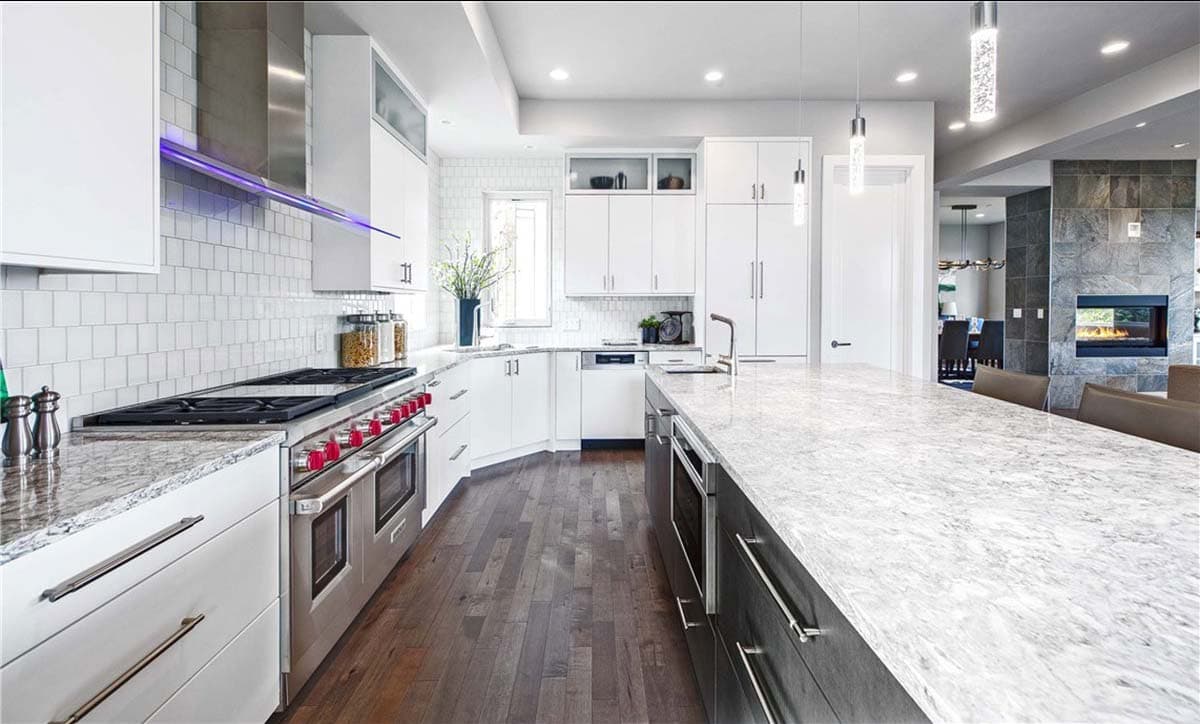

  • The open layout inside is designed to enhance the sight lines from room to room.

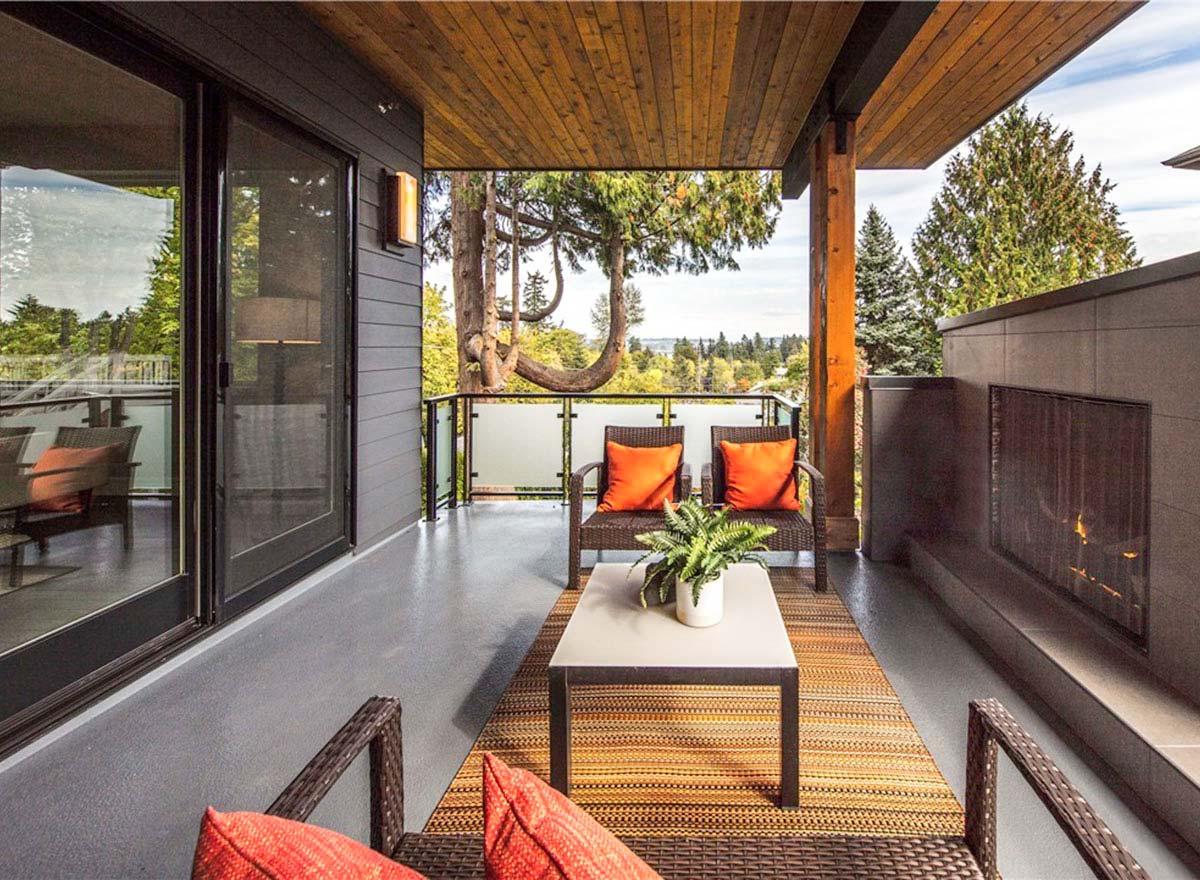

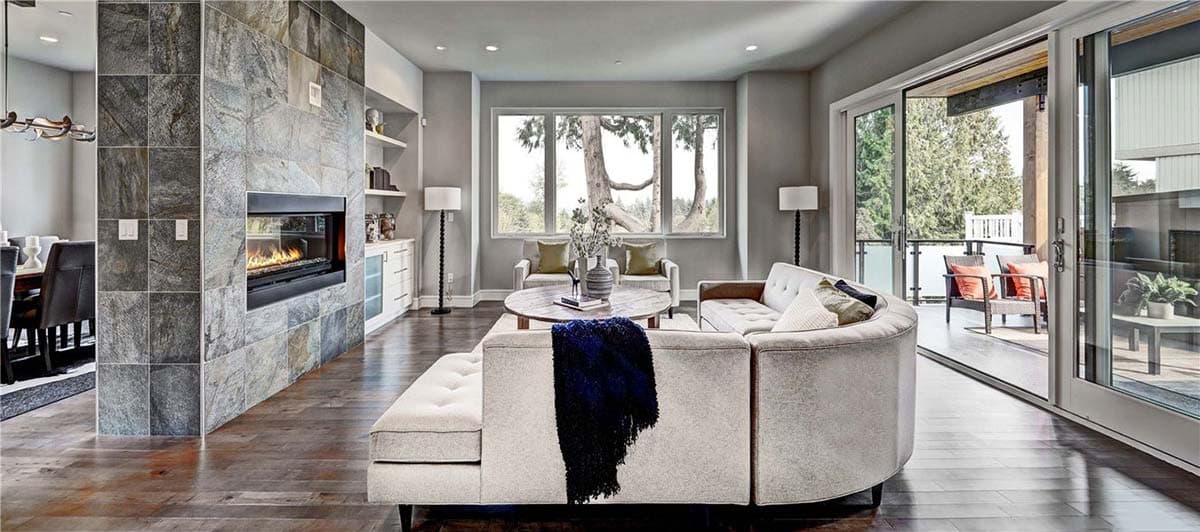

  • Sliding glass doors on two walls get you outside quickly so you can enjoy the shade on the covered deck and the outdoor fireplace.
  • Use the first floor den as the sixth bedroom if desired.

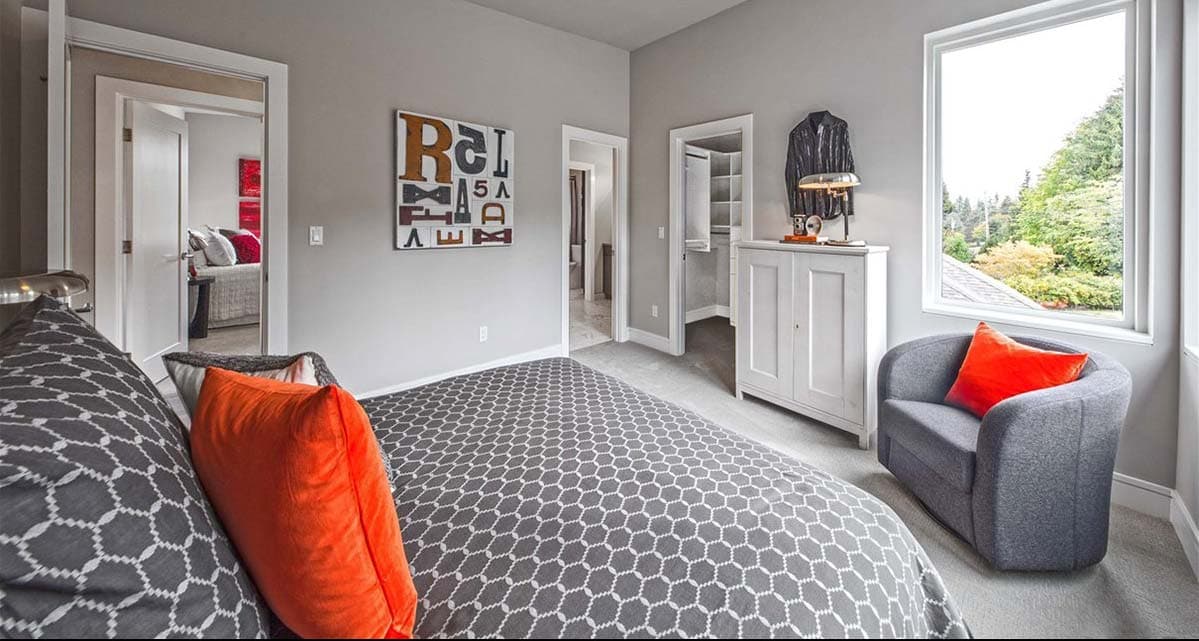

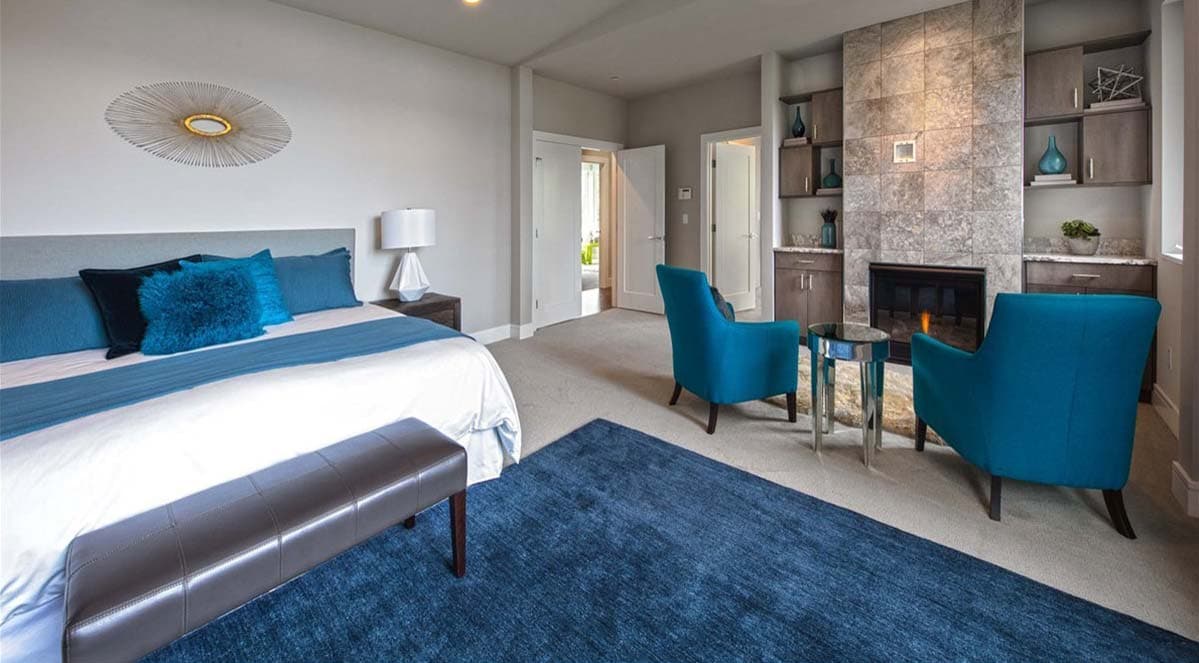

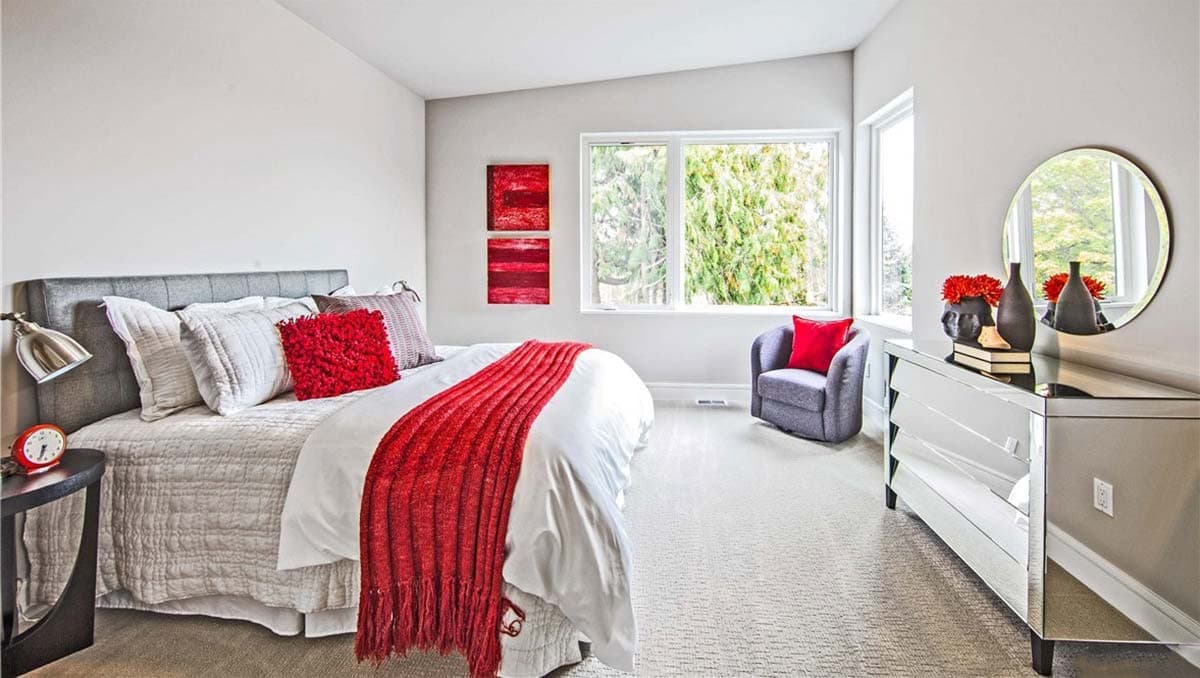

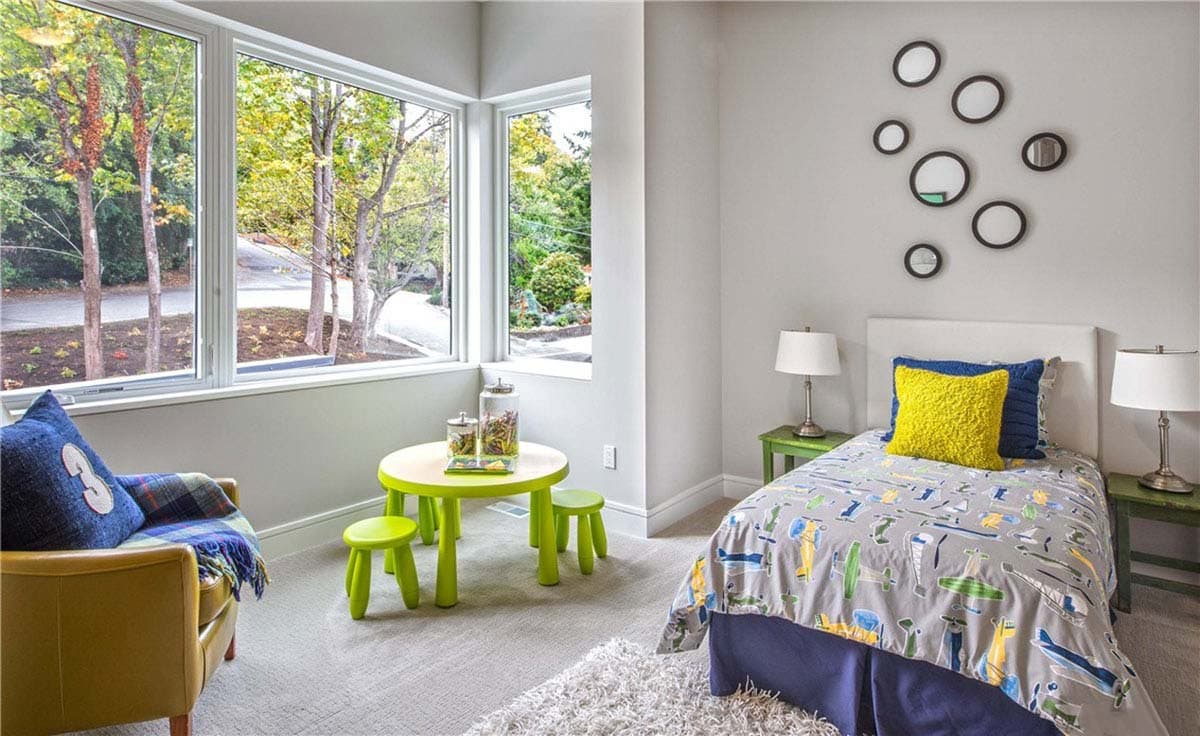

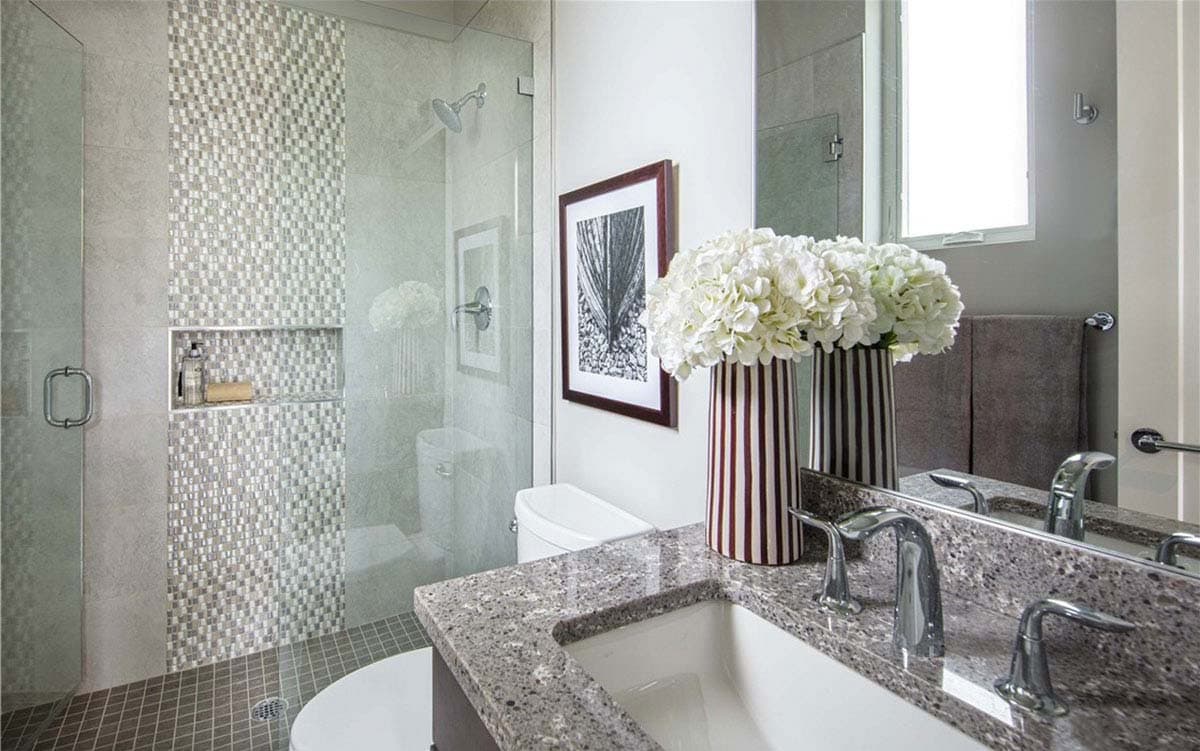

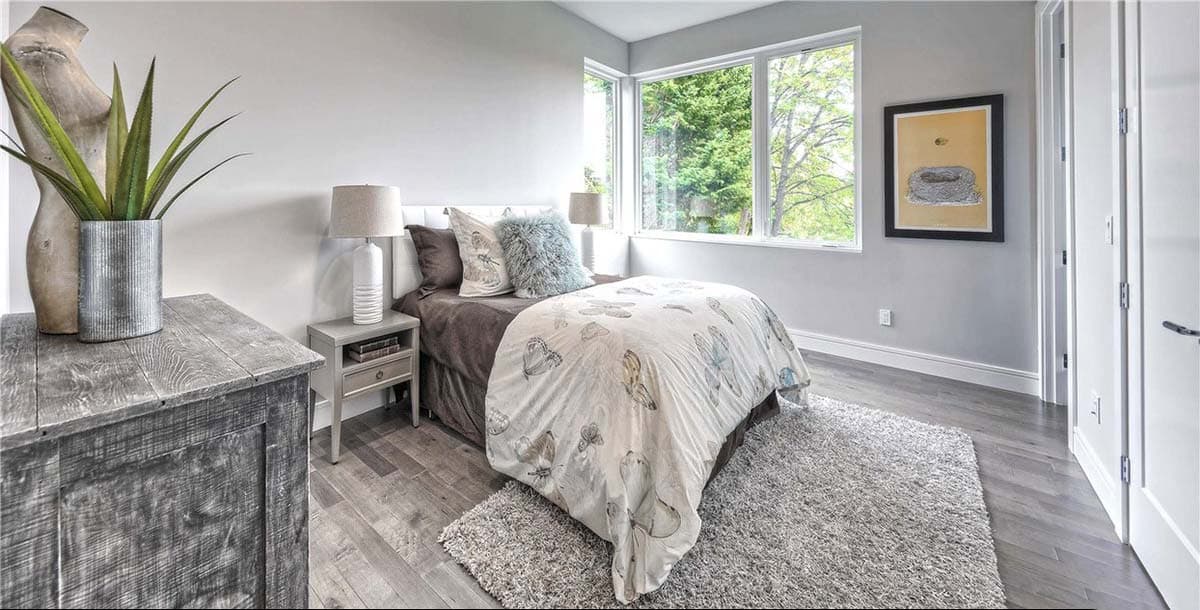

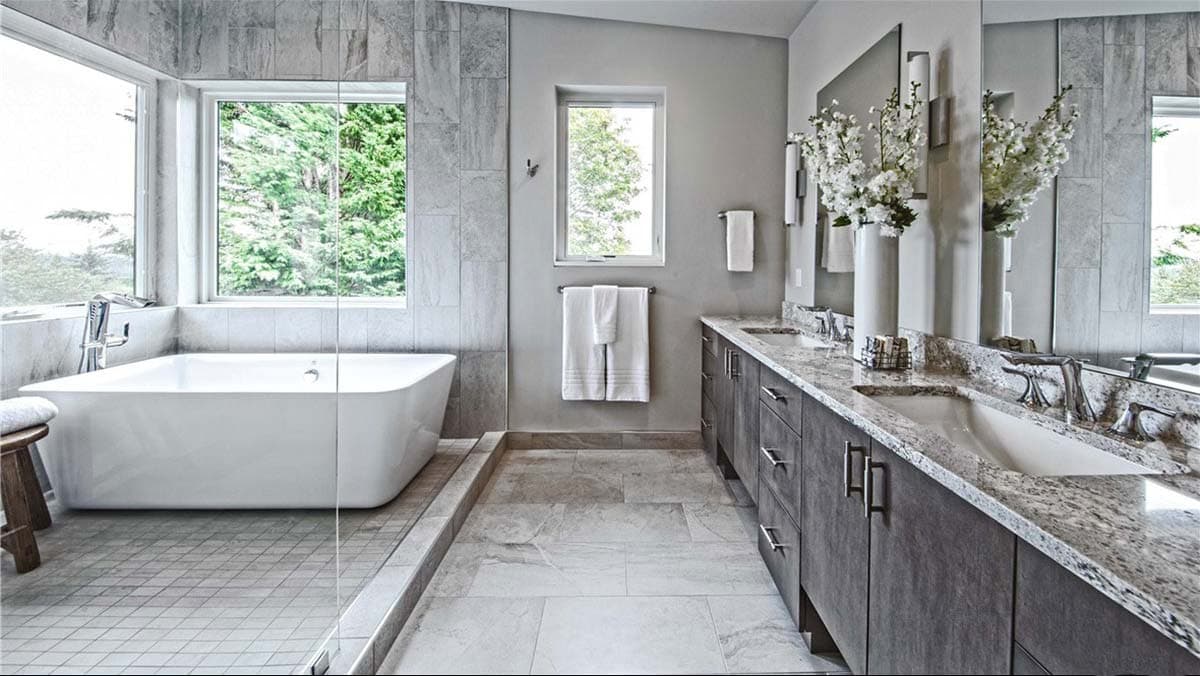

  • Topside, four big bedrooms include the gorgeous master suite with its sitting area and fireplace.

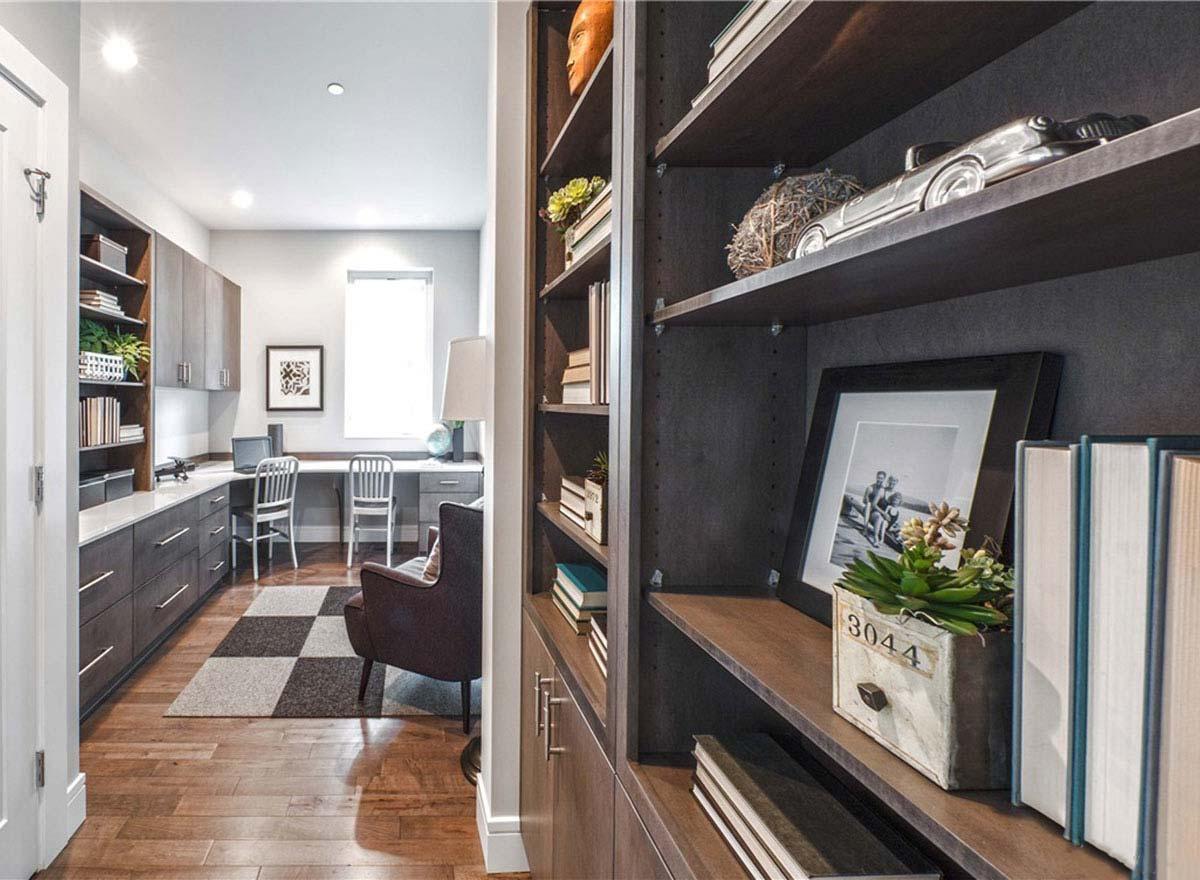

  • There's a second floor laundry room and  a study nook with built-in desk.

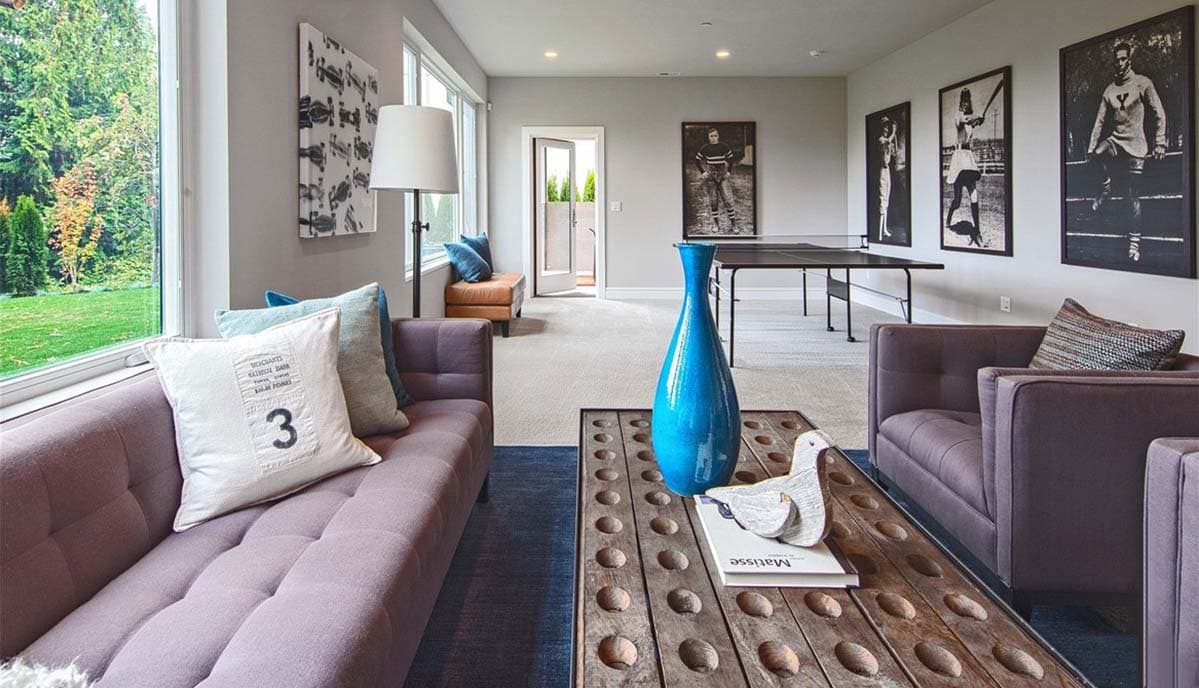

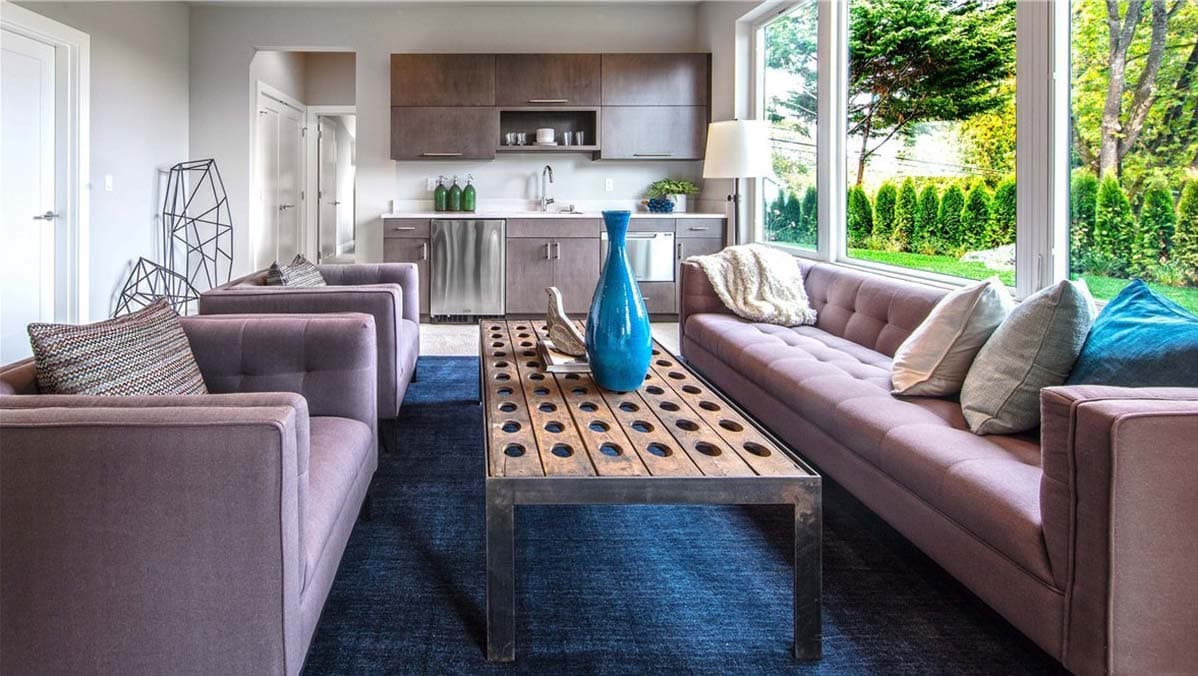

  • The finished lower level has a huge media room where you can create a state-of-the-art movie theater experience.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

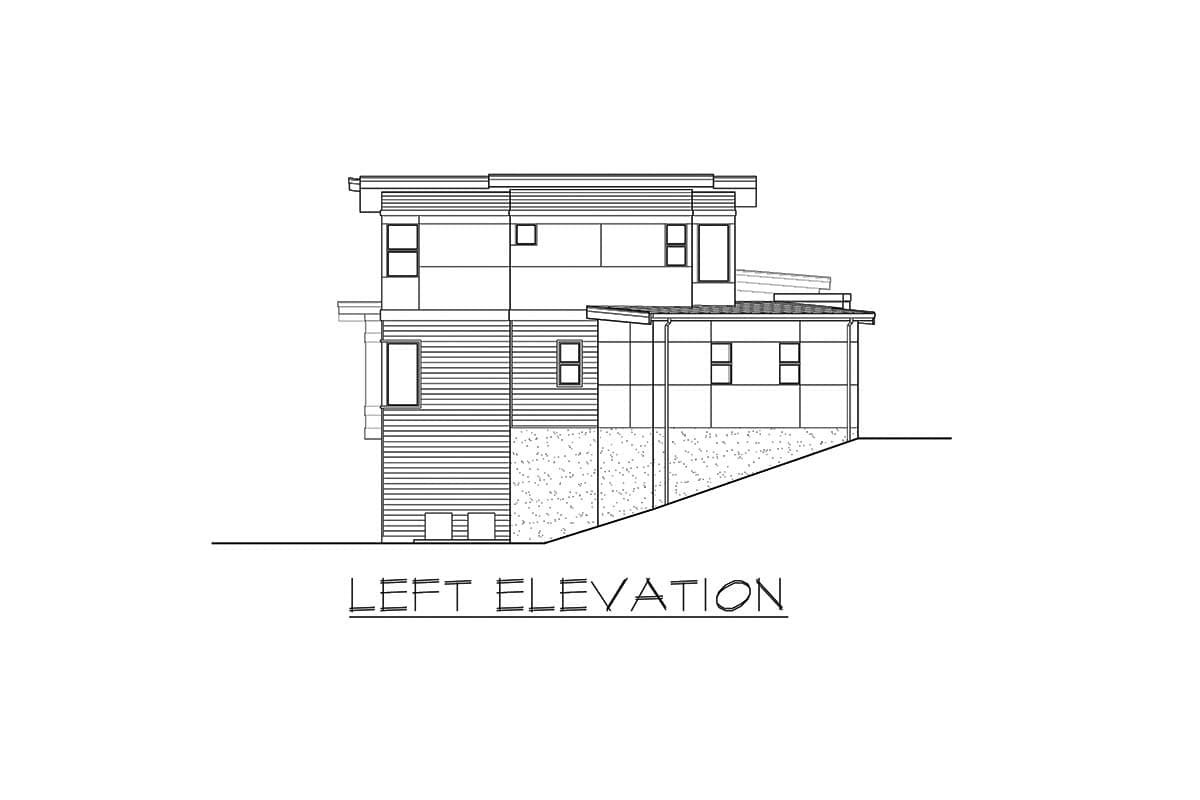

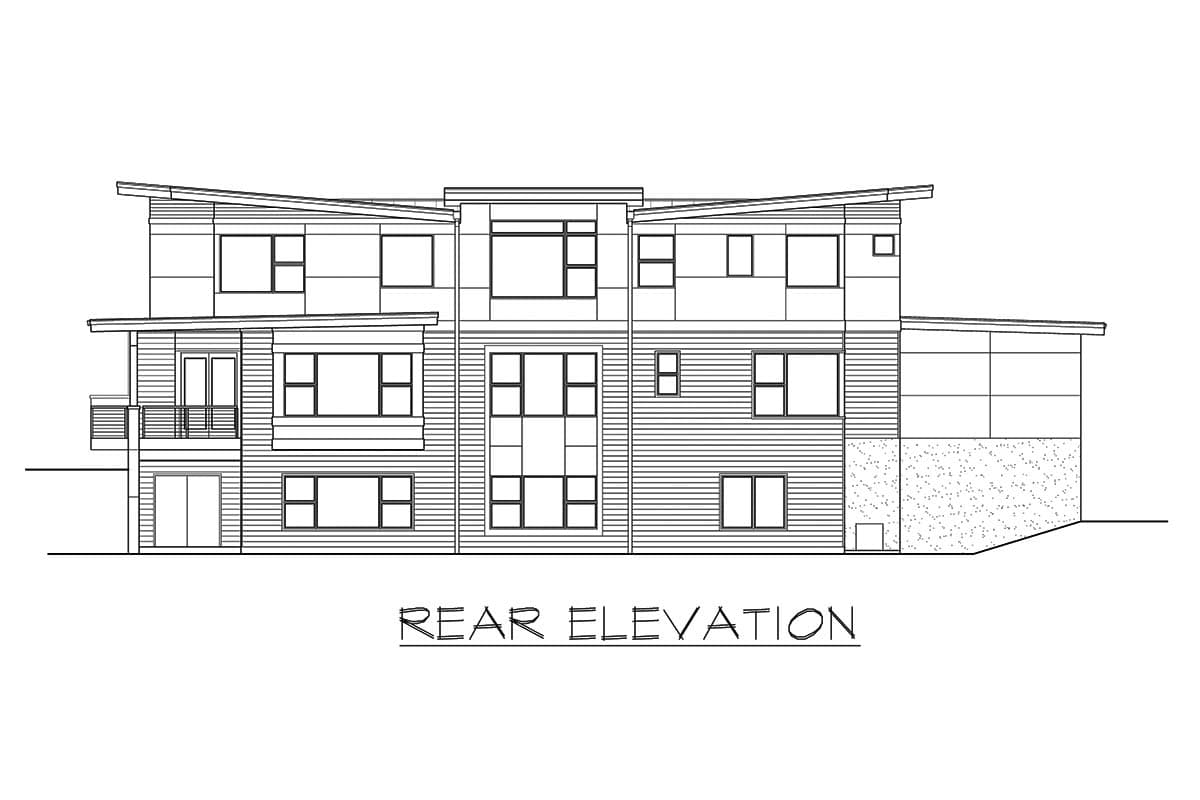

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,998 sq. ft.

Lower Level

1,186 sq. ft.

1st Floor

1,862 sq. ft.

2nd Floor

1,950 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

5

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

92' 5"

Depth

44' 6"

Max Ridge Height

24' 0"

Garage

Type

Attached

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

1 on 12

Secondary Pitch

2 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Square Footage Breakdown

Total Heated Area

4,998 sq. ft.

Lower Level

1,186 sq. ft.

1st Floor

1,862 sq. ft.

2nd Floor

1,950 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

5

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

92' 5"

Depth

44' 6"

Max Ridge Height

24' 0"

Garage

Type

Attached

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

1 on 12

Secondary Pitch

2 on 12

Framing Type

Stick And Truss

Architectural Style
