Plan 31843DN

Luxury Transitional House Plan with 5 Bedrooms and a 5 Car Garage - 8786 Sq Ft

Heated S.F.

8,786

Beds

5

Baths

7.5+

Stories

2

Cars

5

Floor Plan

Main Level

floor plan image Main Level

2nd Floor

floor plan image 2nd Floor

Plan Details

This Transitional House Plan gives you 8,786 square feet of luxurious living spread across its two floors with 5 beds, 6.5 baths and a 1,725 square foot 5-car garage.

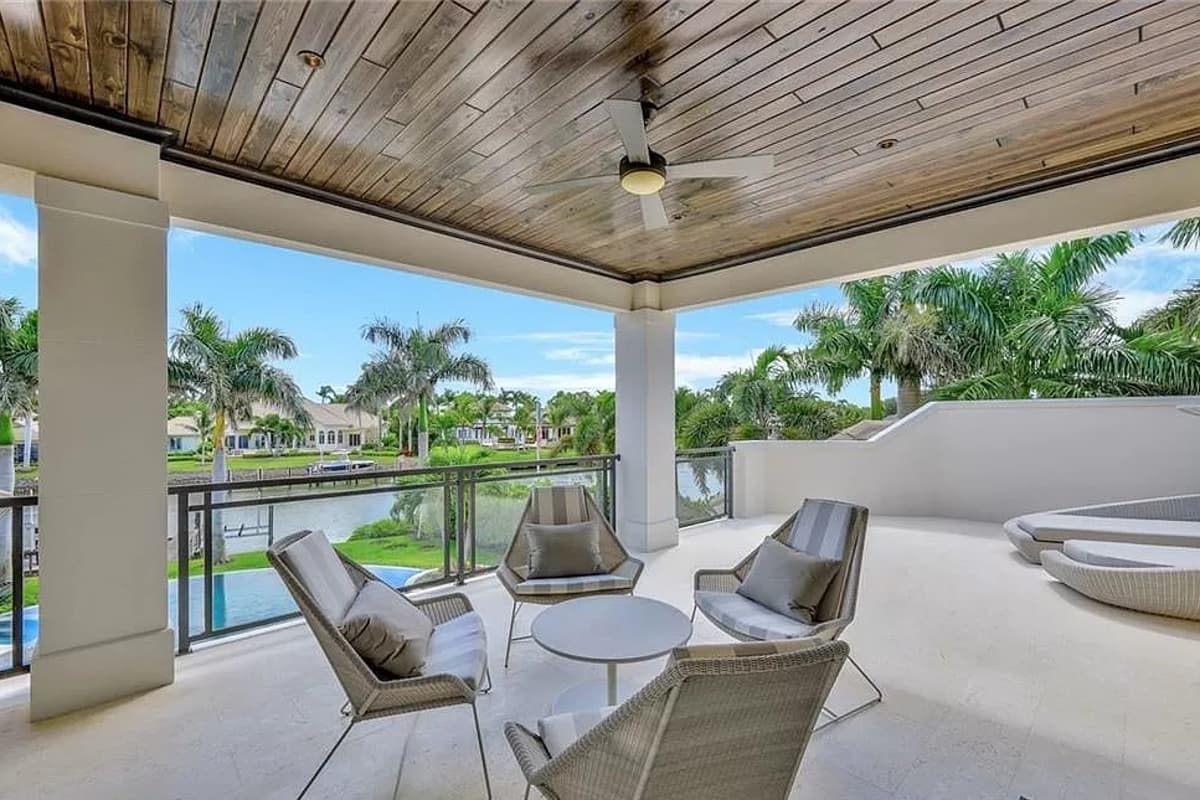

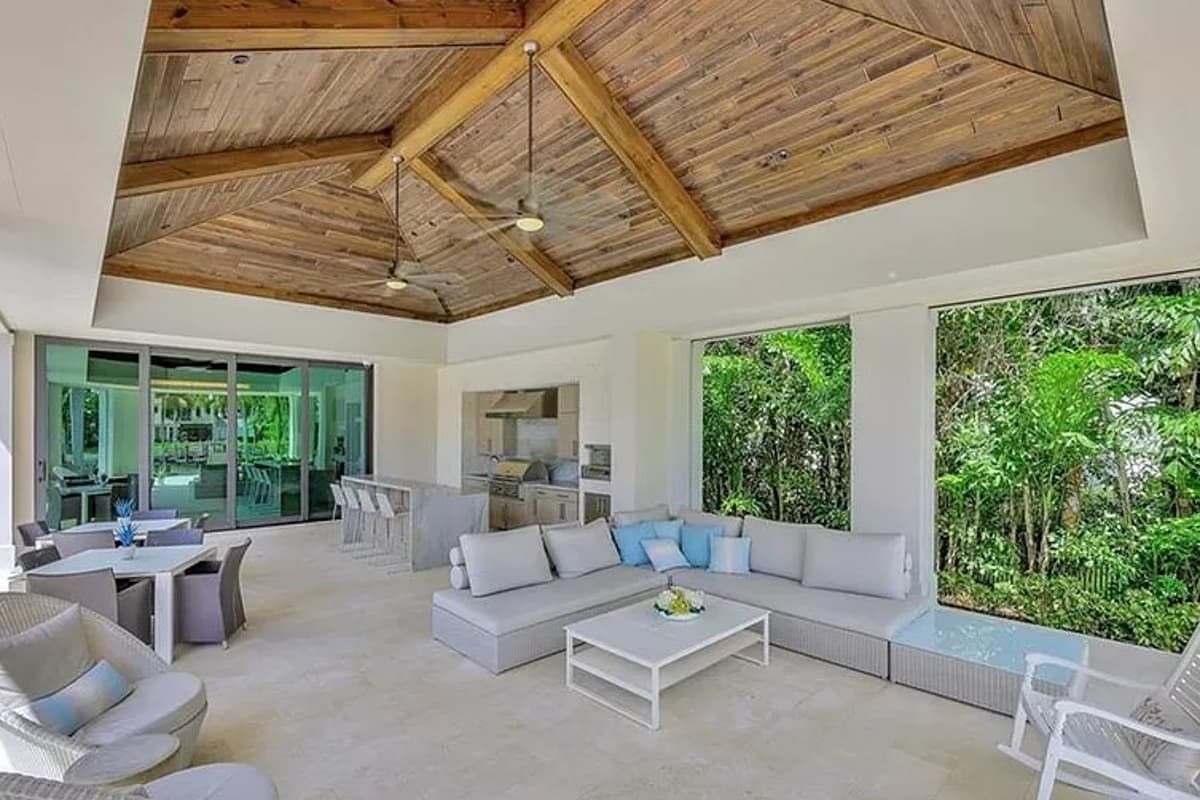

Enjoy outdoor entertaining with over 2,200 square feet of outdoor space between the lanais and balconies.
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

Slab Plan
Floor Plans with Notes and Dimensions
Door and Window Schedules
Electrical Plans
Ceiling Plans
Elevations of All Sides
Roof Plans
Building Sections
Wall Sections
Fastener Requirements

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

8,786 sq. ft.

1st Floor

5,238 sq. ft.

2nd Floor

3,548 sq. ft.

Entry

71 sq. ft.

Balcony / Veranda

634 sq. ft.

Lanai

1,588 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

7

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

77' 2"

Depth

185' 10"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

1725 sq. ft.

Count

5 Cars

Entry Location

Side, Courtyard

Roof Details

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Handicapped Accessible

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Fireplace

Outdoor Kitchen

Plan Collections

Premium Collection

Square Footage Breakdown

Total Heated Area

8,786 sq. ft.

1st Floor

5,238 sq. ft.

2nd Floor

3,548 sq. ft.

Entry

71 sq. ft.

Balcony / Veranda

634 sq. ft.

Lanai

1,588 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

7

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

77' 2"

Depth

185' 10"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

1725 sq. ft.

Count

5 Cars

Entry Location

Side, Courtyard

Roof Details

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Handicapped Accessible

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Fireplace

Outdoor Kitchen

Plan Collections

Premium Collection
