Plan 290118IY
Luxury Transitional House Plan with Home Office and Music Room
Heated S.F.
8,355
Beds
4 - 5
Baths
3.5 - 4.5
Stories
2
Cars
4
Floor Plan

Plan 290118IY

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 290118IY

1-800-854-7852

1-262-521-4596

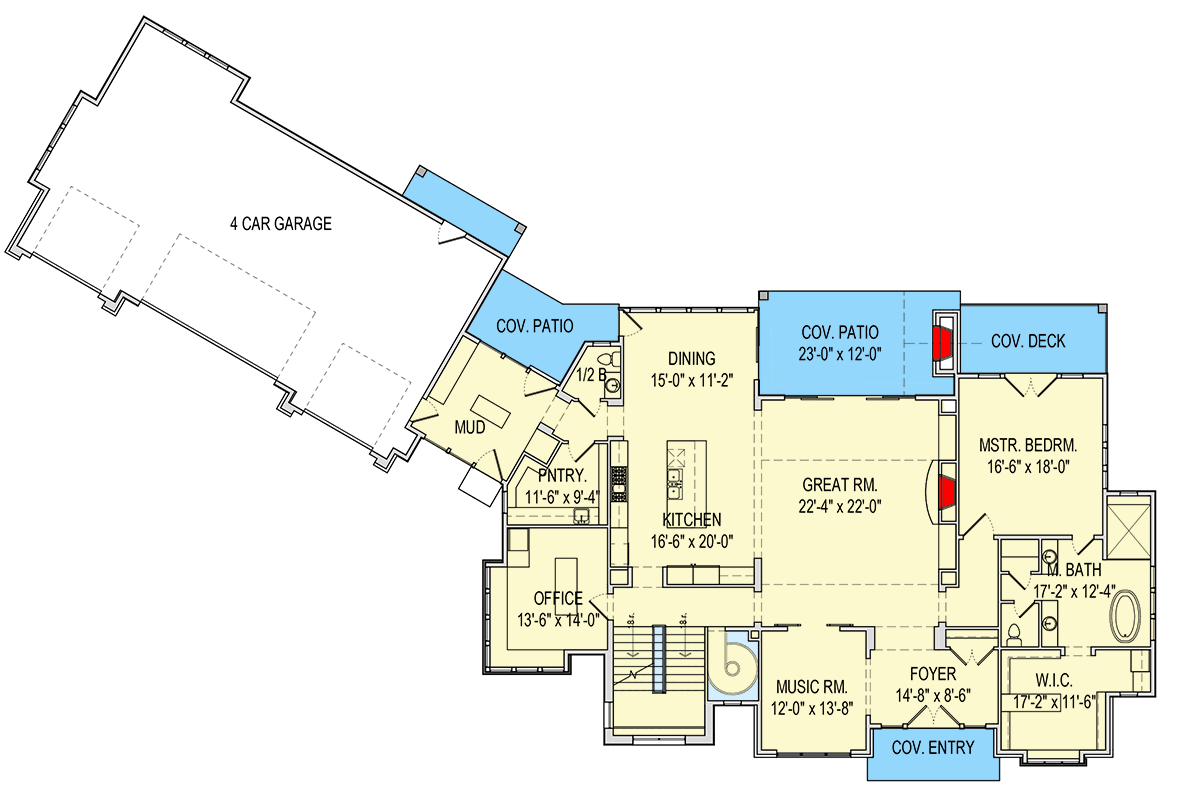

Main Level
floor plan image Main Level

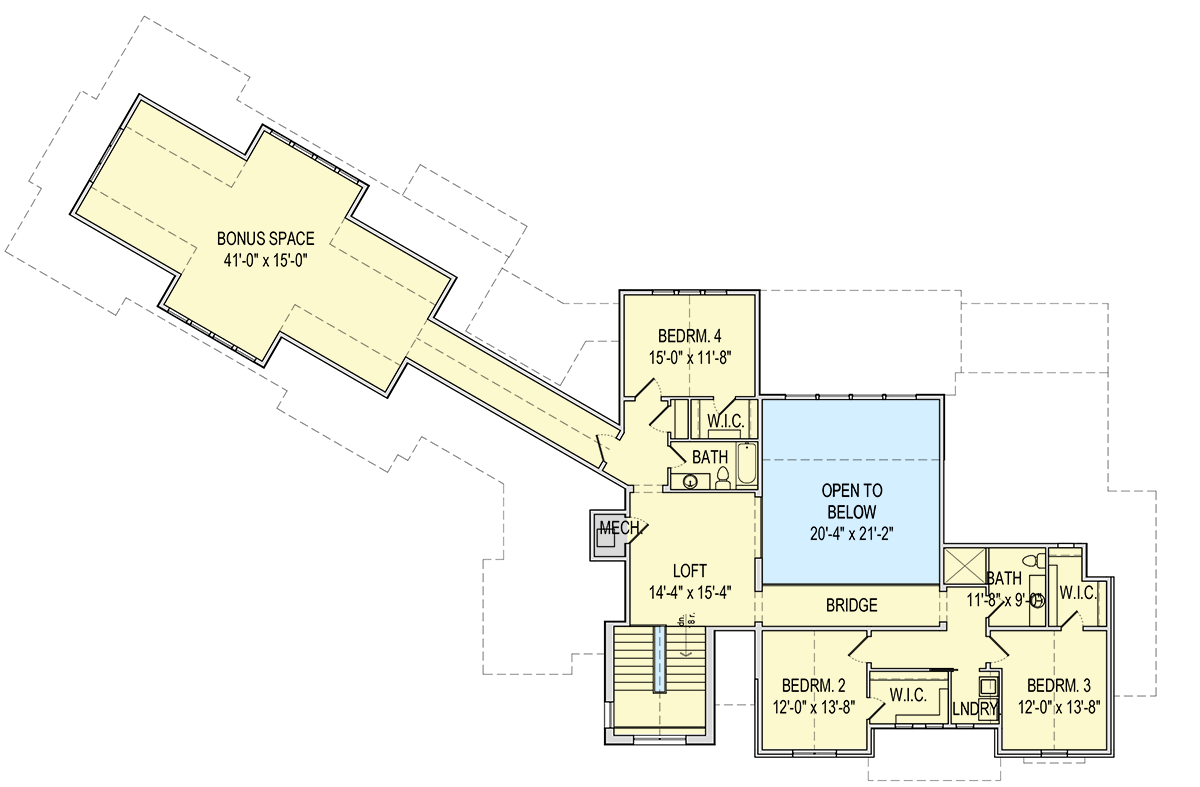

2nd Floor
floor plan image 2nd Floor

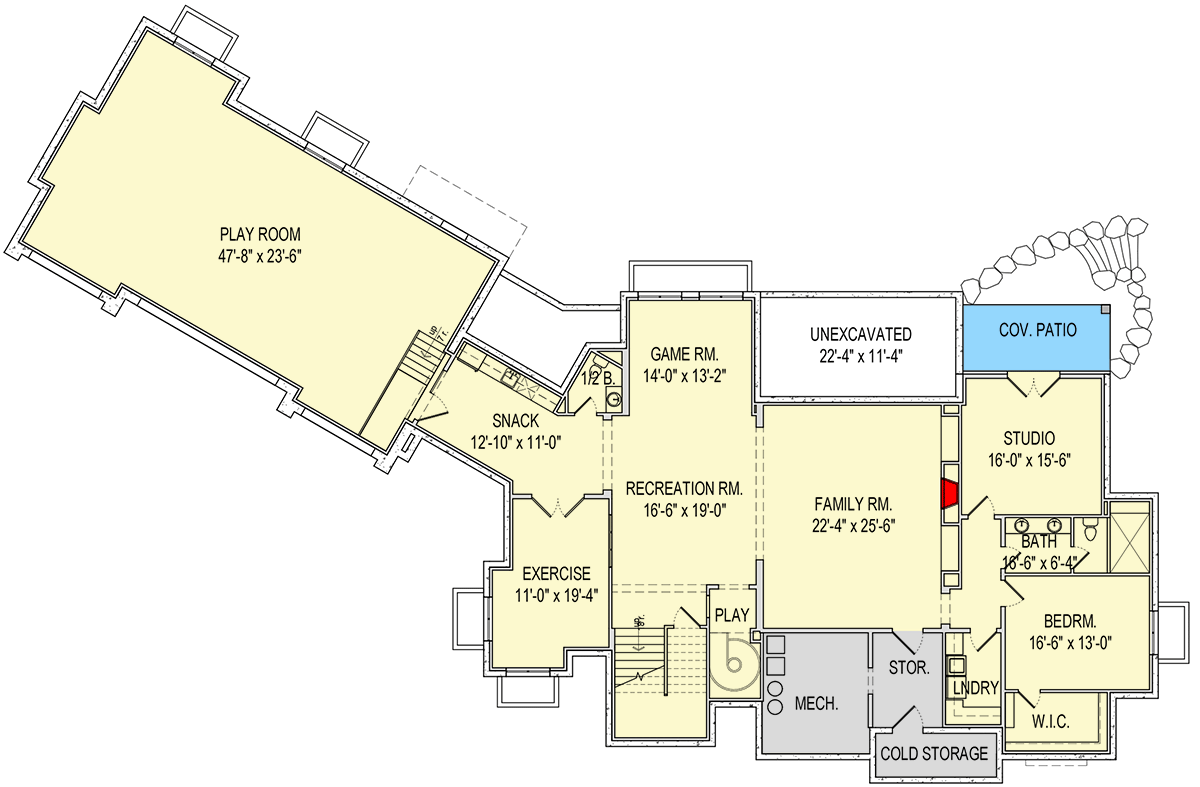

Lower Level
floor plan image Lower Level
Plan Details

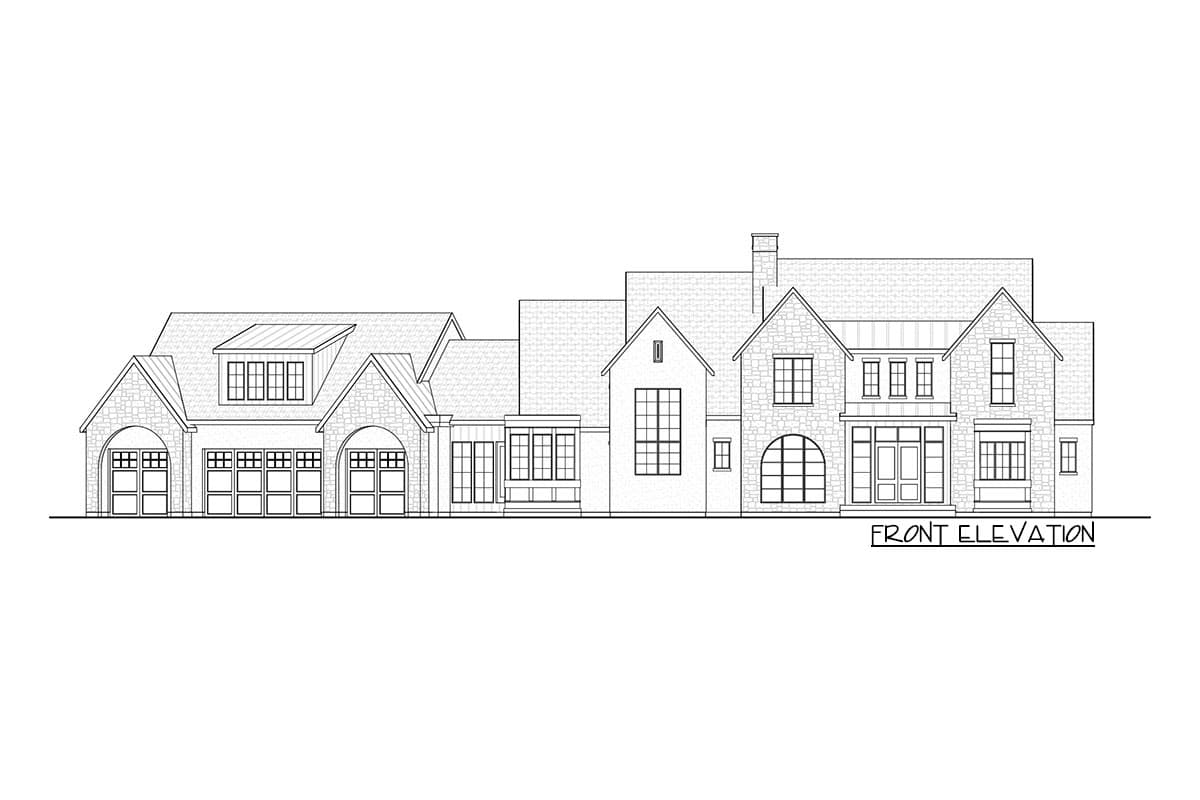

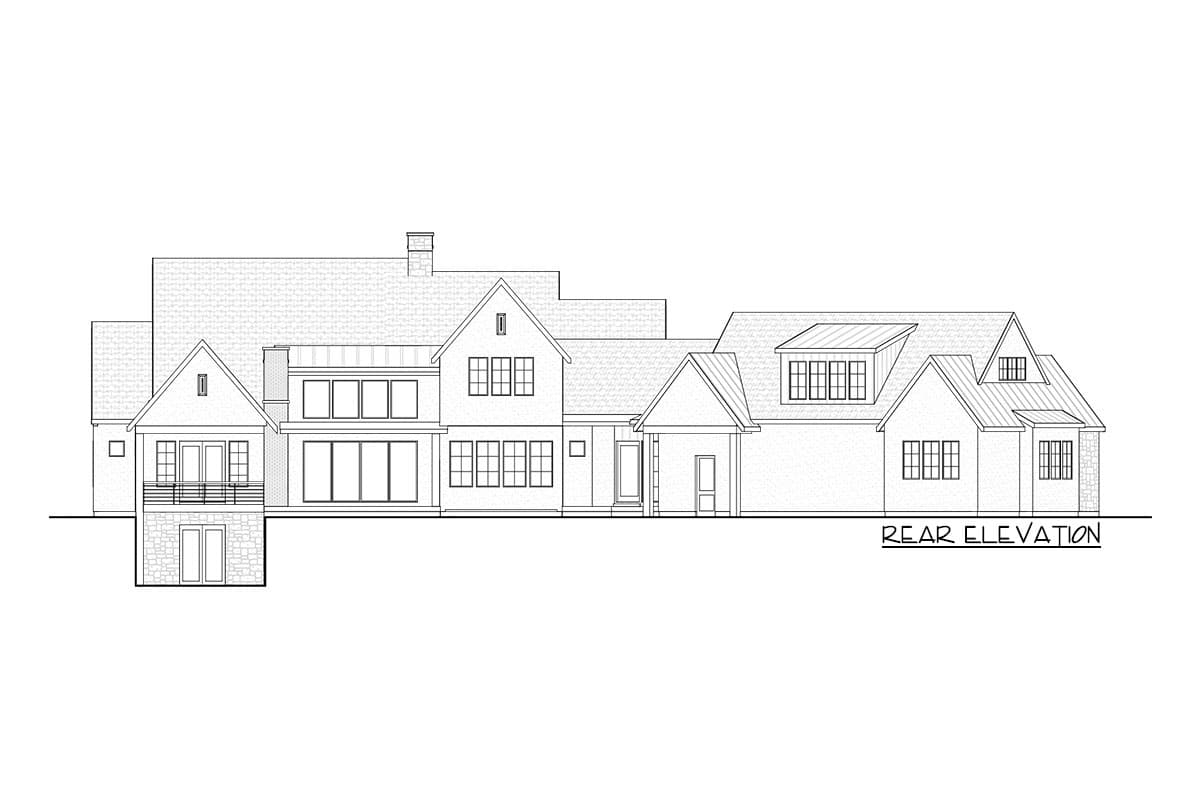

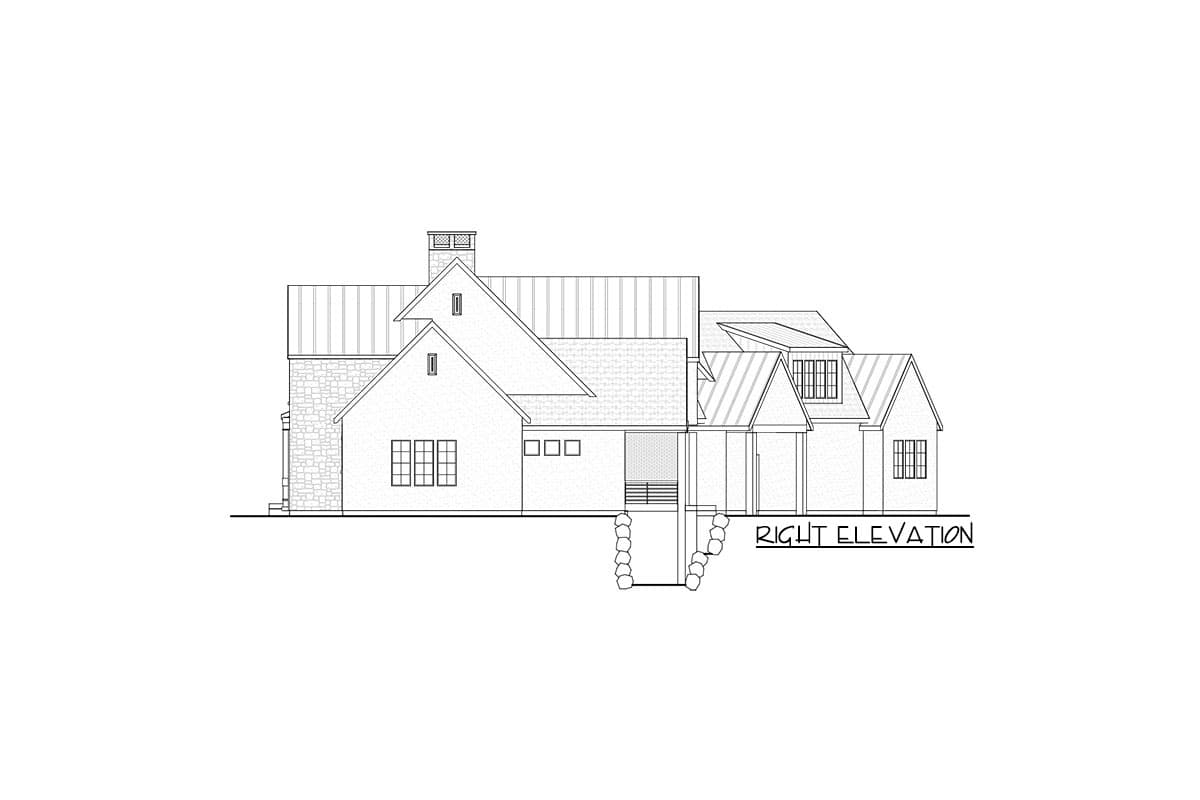

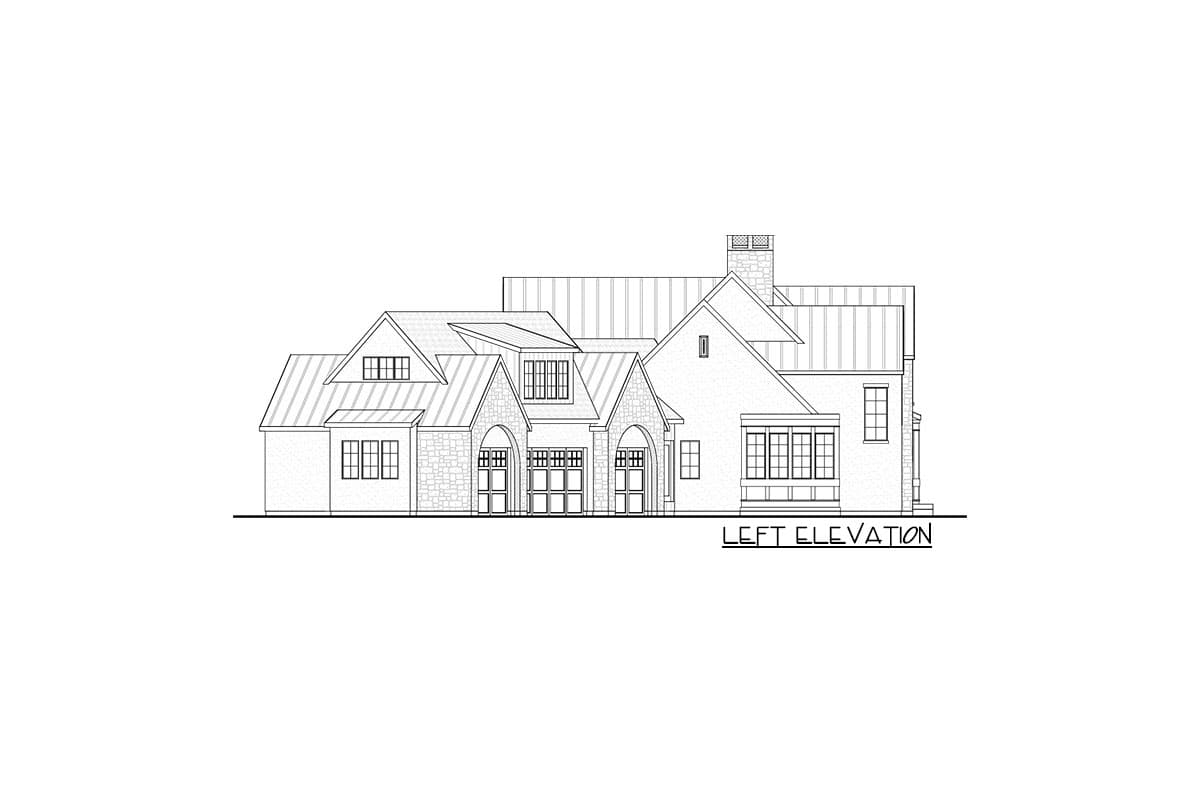

  • This luxury, transitional house plan with Tudor-style influences features large modern windows, an angled 4-car garage, and a sizable lower level for all to enjoy.
  • The main level consists of an open and airy shared living space with a gourmet kitchen and easy access to the rear covered patios.
  • Tickle the ivories in the music room when taking a break from the home office, or retreat to the main-level master bedroom for a power nap. The master suite is paired with a 5-fixture ensuite and walk-in closet.
  • Three family bedrooms are located upstairs, along with a shared loft and enormous bonus room above the garage.
  • The fun continues downstairs, which boasts a recreation / game room with a snack bar, exercise room, studio, fifth bedroom, and generous play room.
What's Included
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

8,355 sq. ft.

Lower Level

2,784 sq. ft.

1st Floor

3,188 sq. ft.

2nd Floor

2,383 sq. ft.

Storage

331 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

131' 6"

Depth

85' 6"

Max Ridge Height

33' 11"

Garage

Type

Attached

Area

1421 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Architectural Style

European

Transitional

Tudor

Special Features

Angled Garage

Bedrooms - Split

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Den

Flex Room

Game/Rec Room

Home Office

Laundry - Lower Level

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Media Room

Mudroom

Outdoor Fireplace

Playroom

Two Story Great Room

Wet Bar

Workshop

Plan Collections

Luxury

Square Footage Breakdown

Total Heated Area

8,355 sq. ft.

Lower Level

2,784 sq. ft.

1st Floor

3,188 sq. ft.

2nd Floor

2,383 sq. ft.

Storage

331 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

131' 6"

Depth

85' 6"

Max Ridge Height

33' 11"

Garage

Type

Attached

Area

1421 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Architectural Style

European

Transitional

Tudor

Special Features

Angled Garage

Bedrooms - Split

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Den

Flex Room

Game/Rec Room

Home Office

Laundry - Lower Level

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Media Room

Mudroom

Outdoor Fireplace

Playroom

Two Story Great Room

Wet Bar

Workshop

Plan Collections

Luxury
