Plan 9533RW

Magnificent Bungalow Charm

Heated S.F.

3,339

Beds

4

Baths

3.5

Stories

2

Cars

3

Floor Plan

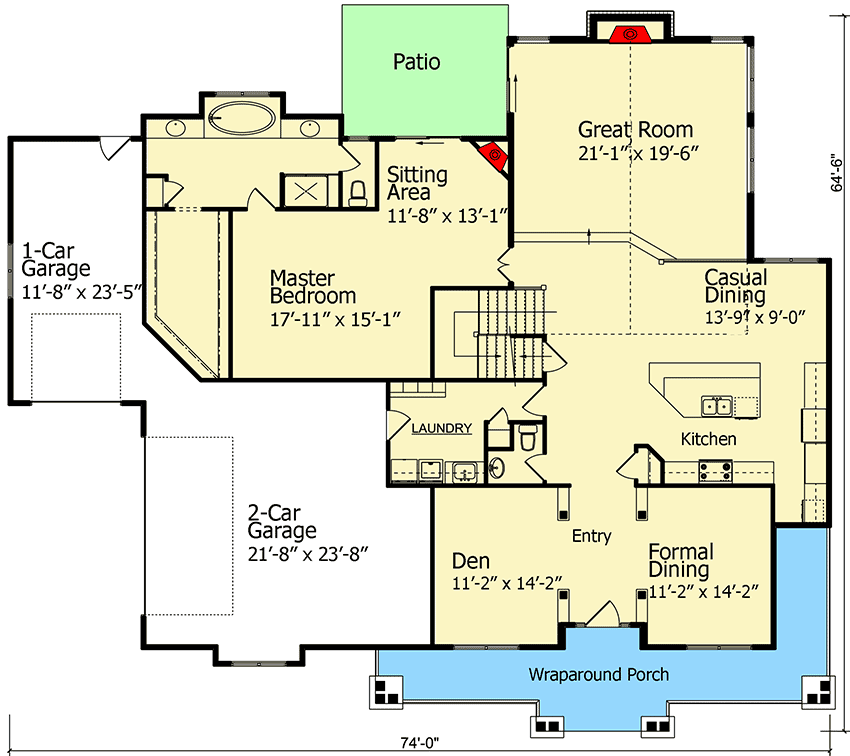

Main Level

floor plan image Main Level

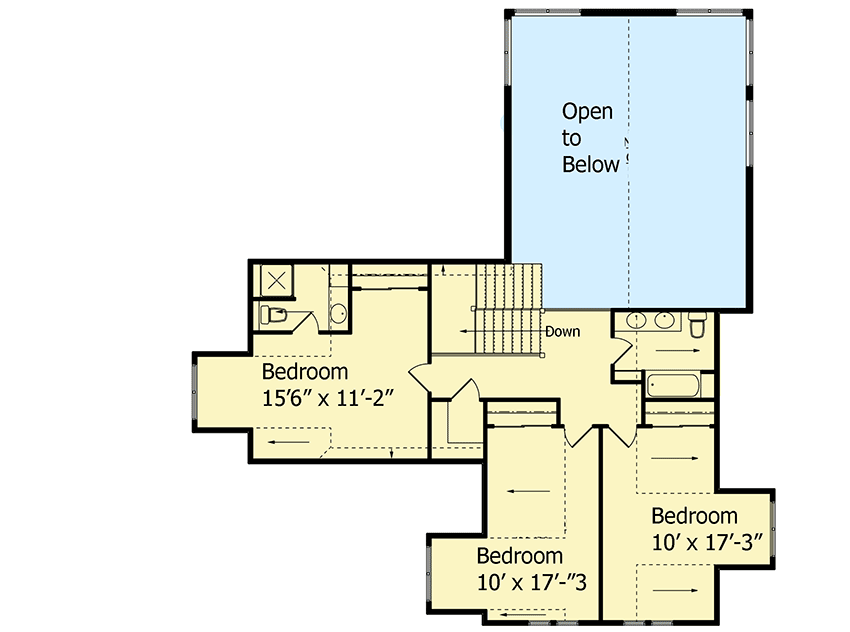

2nd Floor

floor plan image 2nd Floor

Plan Details

A wrap-around porch with columns set on tapered stone bases sets the mood for this charming Craftsman home plan.
Formal den and dining rooms flank the foyer with interior columns to mark the spaces.
In the rear of the home, a magnificent vaulted ceiling highlights the sunken great room with a fireplace as the focal point.
Both the casual breakfast nook and kitchen get to share views of this room with only a railing separating the dining room from the great room.
A first floor master suite boasts a sitting area with its own fireplace and access to the rear patio.
No boring square bedrooms in this house! Sloped ceilings and unusual shapes will charm your family or overnight guests.
A hall bath and walk-in linen closet complete the home plan.

What's Included

Cover Page
4 Elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,339 sq. ft.

1st Floor

2,369 sq. ft.

2nd Floor

970 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

74' 0"

Depth

64' 6"

Max Ridge Height

26' 9"

Garage

Type

Attached

Area

1800 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Two Story Great Room

Wrap Around Porch

Plan Collections

Square Footage Breakdown

Total Heated Area

3,339 sq. ft.

1st Floor

2,369 sq. ft.

2nd Floor

970 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

74' 0"

Depth

64' 6"

Max Ridge Height

26' 9"

Garage

Type

Attached

Area

1800 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Two Story Great Room

Wrap Around Porch

Plan Collections
