Plan 9537RW

Majestic Luxury

Heated S.F.

3,979

Beds

5

Baths

2.5+

Stories

2

Cars

3

Floor Plan

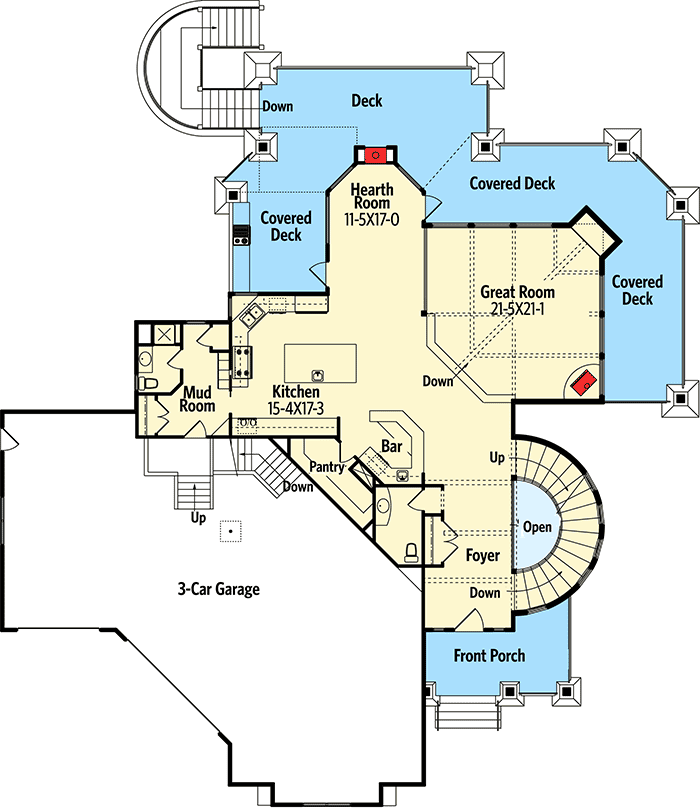

Main Level

floor plan image Main Level

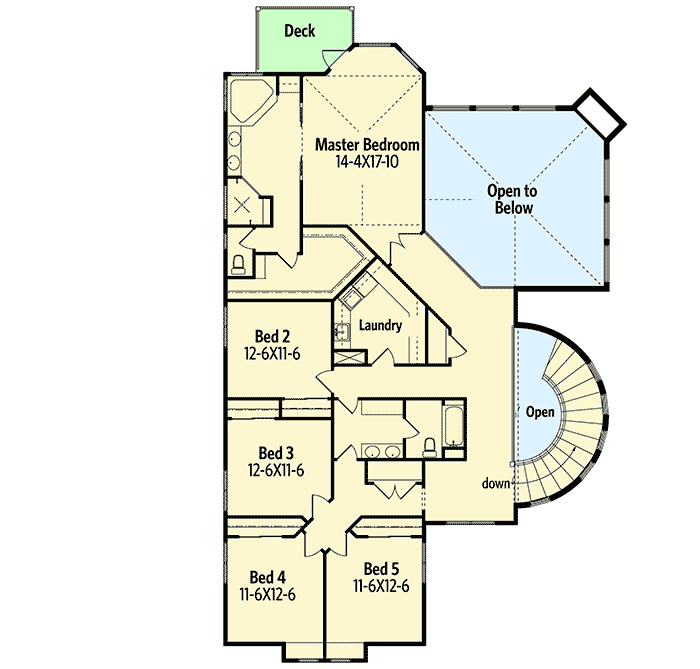

2nd Floor

floor plan image 2nd Floor

Plan Details

Four decks on the rear of this spectacular luxury home plan encourage plenty of outdoor activities.
Designed for entertaining on a grand scale, a large wet bar lies close to the formal dining room with tray ceiling.
Step down into the two-story great room with a magnificent fireplace as the focal point.
Enjoy your informal meals in the hearth room with fireplace and access to the rear deck.
The gourmet kitchen is enormous with a huge island that gives you plenty of room to spread out while you cook.
On the second floor, an open rail overlooks the great room below.
Boasting its own deck and a bayed sitting area, the master suite will make a welcome retreat at the end of the day. Laundry and four bedrooms complete the home.
Expand below and create your own luxurious space.
Related Plan: Gain a finishede lower level with house plan 9520RW (6,963 sq. ft.).

What's Included

Cover Page

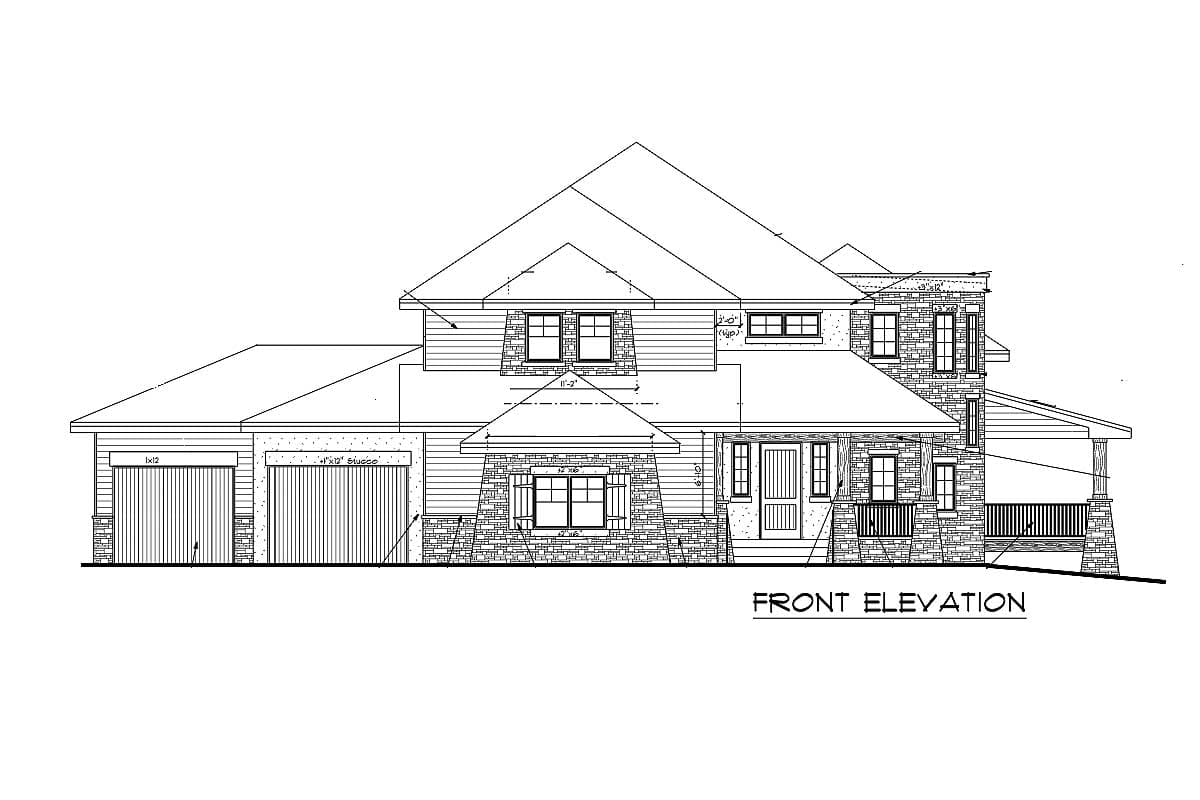

4 Elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,979 sq. ft.

1st Floor

1,963 sq. ft.

2nd Floor

2,016 sq. ft.

Porch, Combined

978 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

85' 9"

Depth

99' 0"

Max Ridge Height

34' 6"

Garage

Type

Attached

Area

3390 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Outdoor Fireplace

Outdoor Kitchen

Two Story Great Room

Plan Collections

Premium Collection
