Plan 80451PM
Manor Style House Plan
Heated S.F.
2,911
Beds
4
Baths
2.5+
Stories
2
Cars
2
Floor Plan

Plan 80451PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80451PM

1-800-854-7852

1-262-521-4596

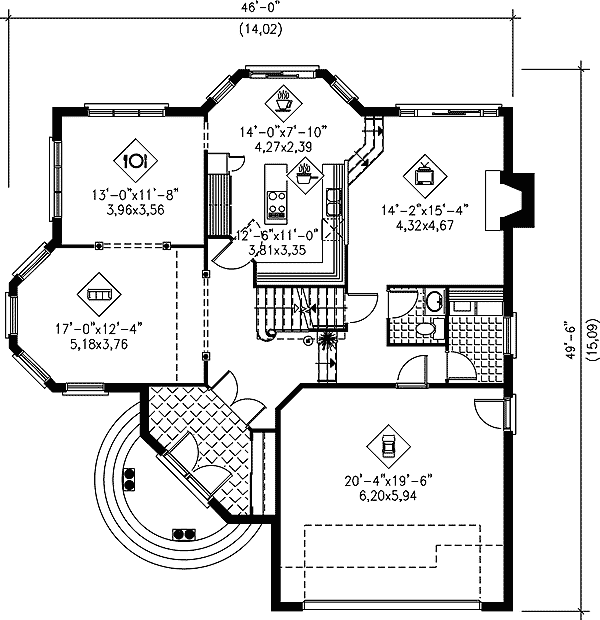

Main Level
floor plan image Main Level

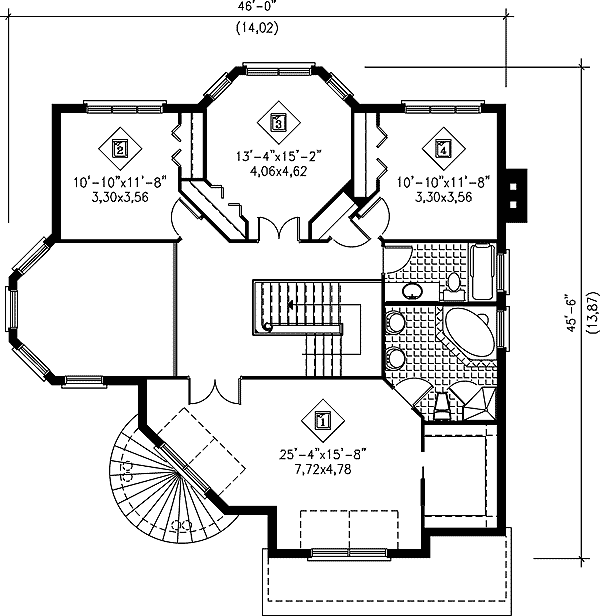

2nd Floor
floor plan image 2nd Floor
Plan Details
  • With its brick facing and huge arched windows, this large 2,911 square feet manor-style house plan still manages to look inviting despite being 46 feet wide by 49 feet 6 inches deep.
  • The ground floor covers 1,289 square feet and includes a huge entrance hall, a powder room, a laundry room, a den with a fireplace, a kitchen with a breakfast nook, a dining room, a living room and a 435 square feet two-car garage.
  • The upper floor, with 1,622 square feet of living area, includes a large bathroom and four bedrooms, two of which are identical. The spacious master bedroom, located at the front of the house, includes a roomy walk-in closet and a private bathroom.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,911 sq. ft.

1st Floor

1,289 sq. ft.

2nd Floor

1,622 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

49' 6"

Max Ridge Height

41' 6"

Garage

Type

Attached

Area

435 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

European

Southern

Traditional

Special Features

Breakfast Nook

Den

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,911 sq. ft.

1st Floor

1,289 sq. ft.

2nd Floor

1,622 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

49' 6"

Max Ridge Height

41' 6"

Garage

Type

Attached

Area

435 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

European

Southern

Traditional

Special Features

Breakfast Nook

Den

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric

Photo Gallery
