Plan 710188BTZ
Mast-Down House Plan with Optional Upstairs Children's Retreat
Heated S.F.
3,301
Beds
4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 710188BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710188BTZ

1-800-854-7852

1-262-521-4596

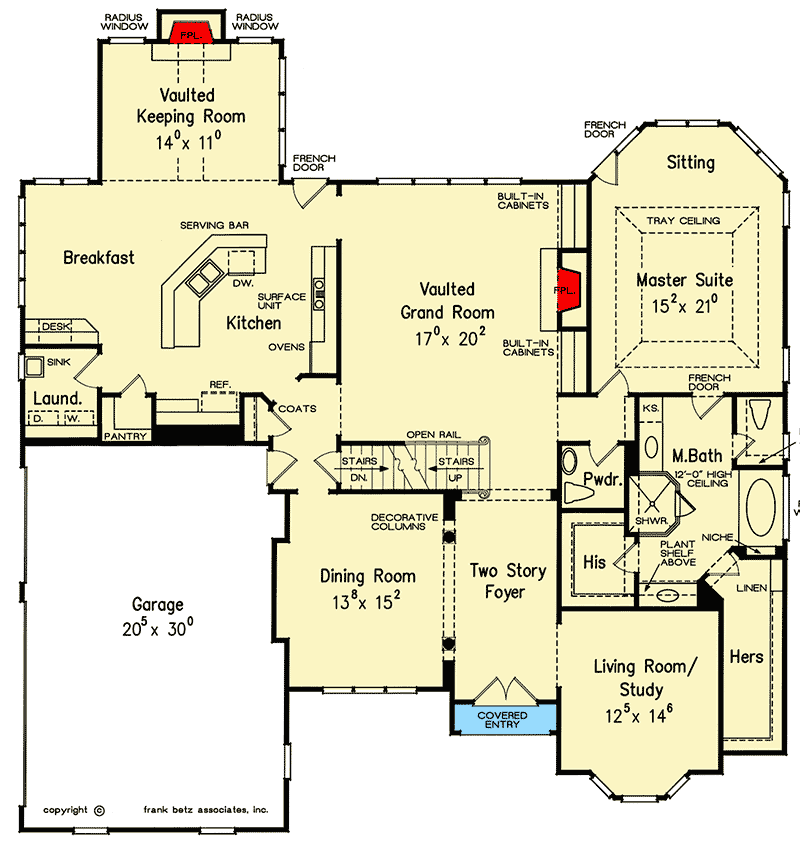

Main Level
floor plan image Main Level

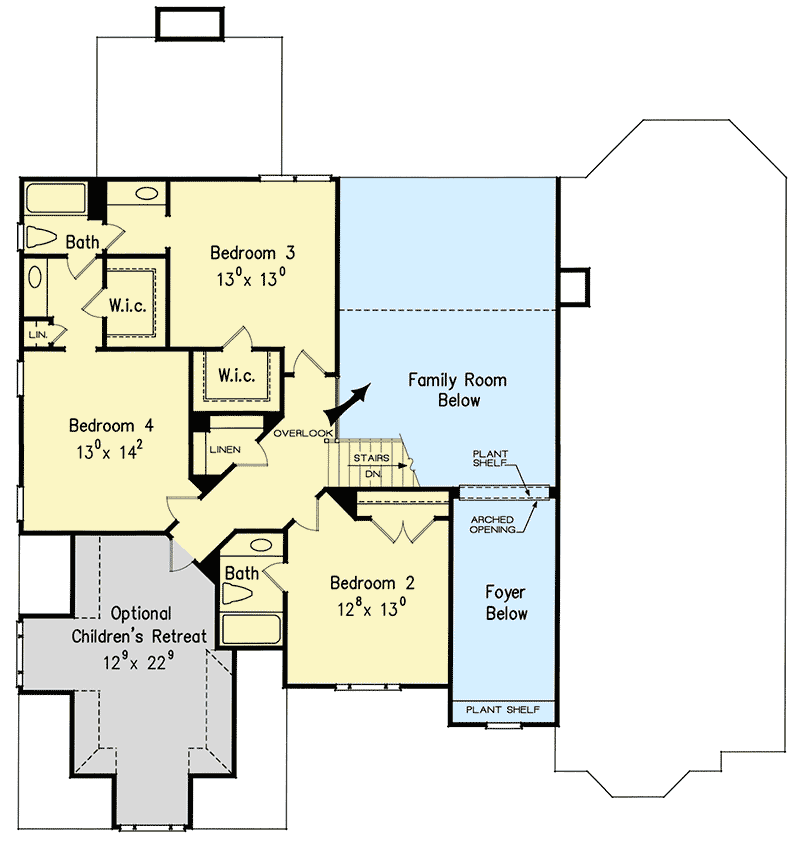

2nd Floor
floor plan image 2nd Floor
Plan Details
  • The multi-faceted façade of this master-down 4-bed house plan will pique the interest of passers-by. Multiple gables, a cheery dormer, and the classic combination of brick and siding make an impressive statement.
  • Inside, an equally exciting floor plan awaits. The two-story foyer gives the perfect introduction to a vaulted grand room with built-in cabinetry and a wall of windows. Just beyond the kitchen is a vaulted keeping room with radius windows and a fireplace.
  • The master bedroom includes a secluded lounging area that overlooks the backyard.
  • Upstairs, the optional children's retreat is helps control clutter while providing the kids a place to hang out with friends.
  • Related Plans: Get an alternate exterior with house plans 710099BTZ, 710134BTZ and 710296BTZ.
What's Included

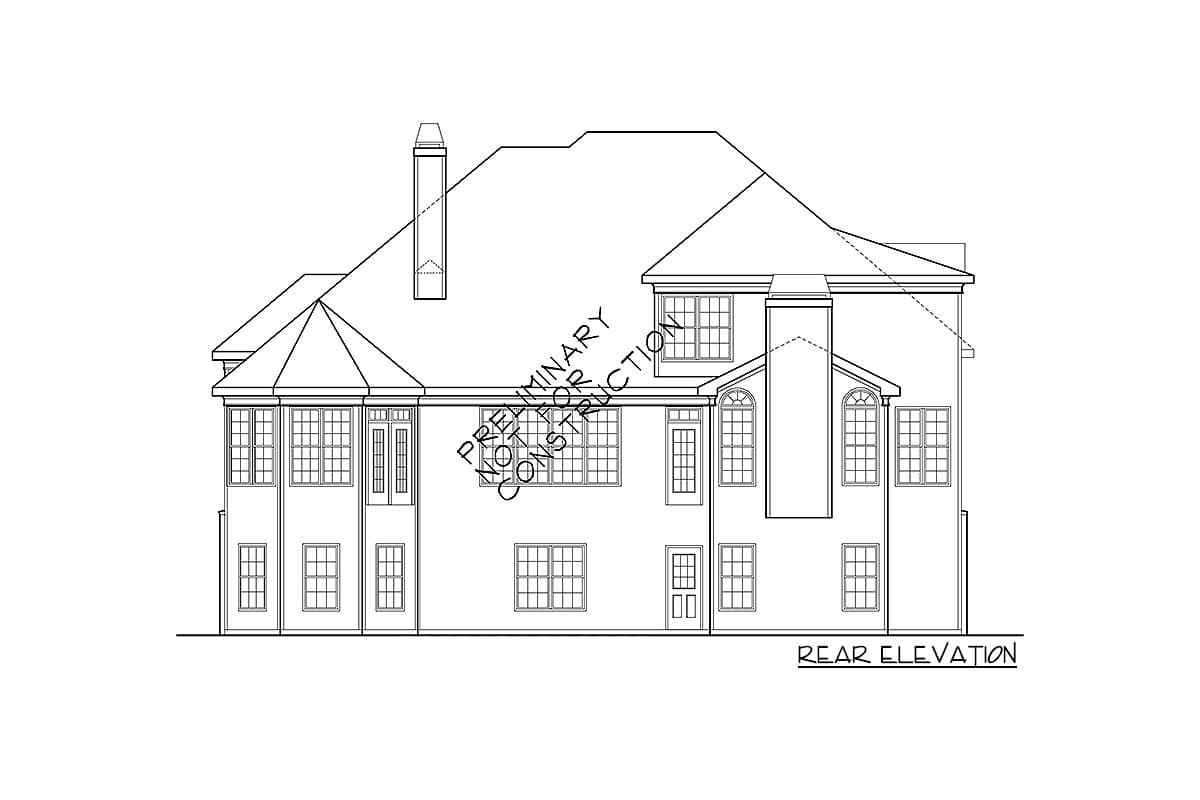

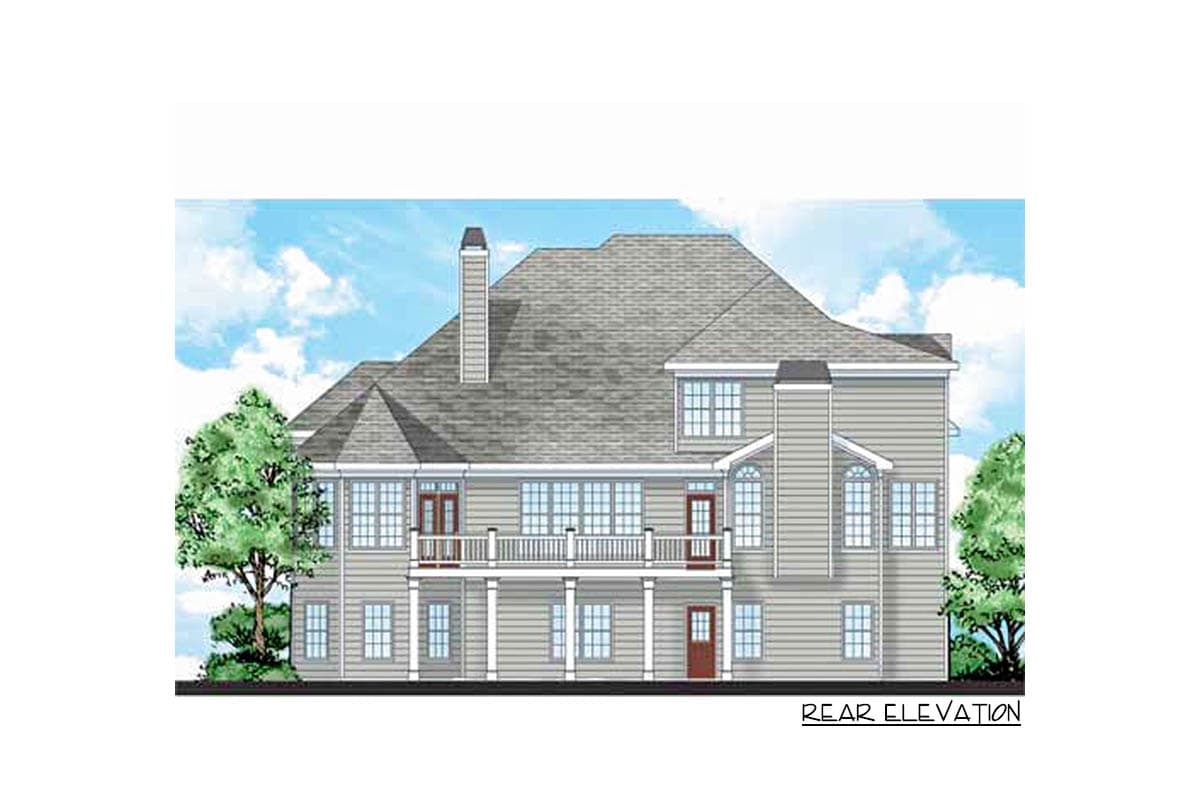

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,301 sq. ft.

1st Floor

2,355 sq. ft.

2nd Floor

946 sq. ft.

Basement Unfinished

2,355 sq. ft.

Bonus

275 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

64' 4"

Max Ridge Height

30' 3"

Garage

Type

Attached

Area

617 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bonus Room

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,301 sq. ft.

1st Floor

2,355 sq. ft.

2nd Floor

946 sq. ft.

Basement Unfinished

2,355 sq. ft.

Bonus

275 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

64' 4"

Max Ridge Height

30' 3"

Garage

Type

Attached

Area

617 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bonus Room

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Photo Gallery
