Plan 24332TW
Master Down Masterpiece
Heated S.F.
2,903
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 24332TW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 24332TW

1-800-854-7852

1-262-521-4596

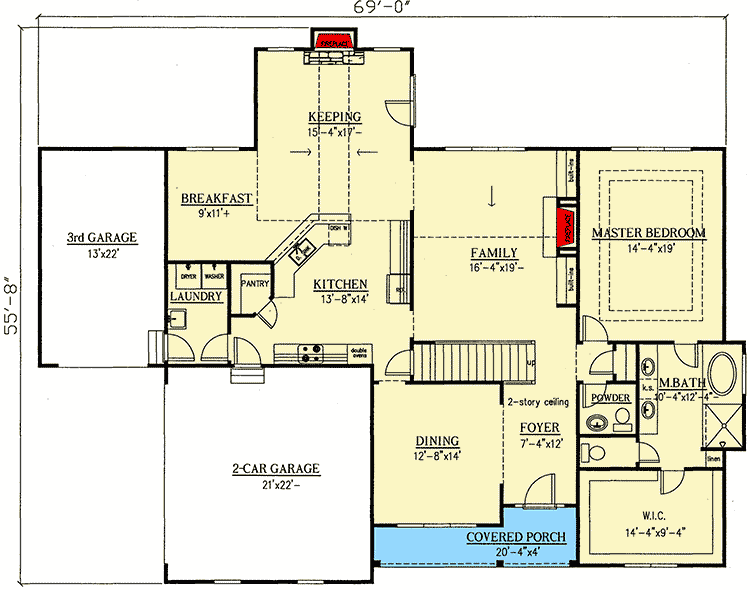

Main Level
floor plan image Main Level

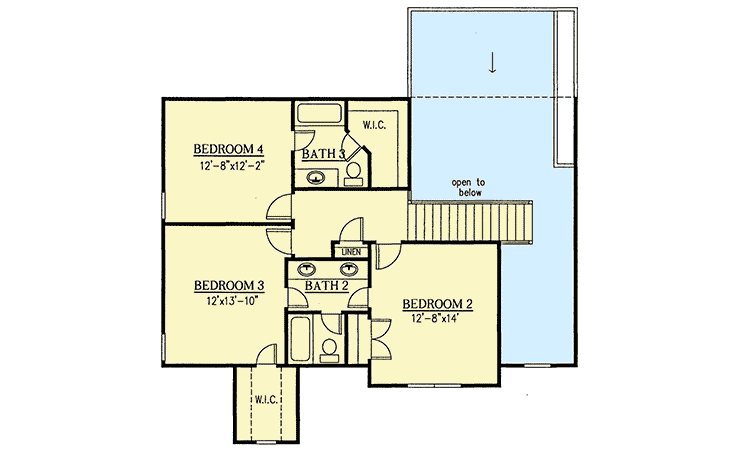

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Every room in this stunning design is spacious and welcoming, allowing you to live and entertain in style.

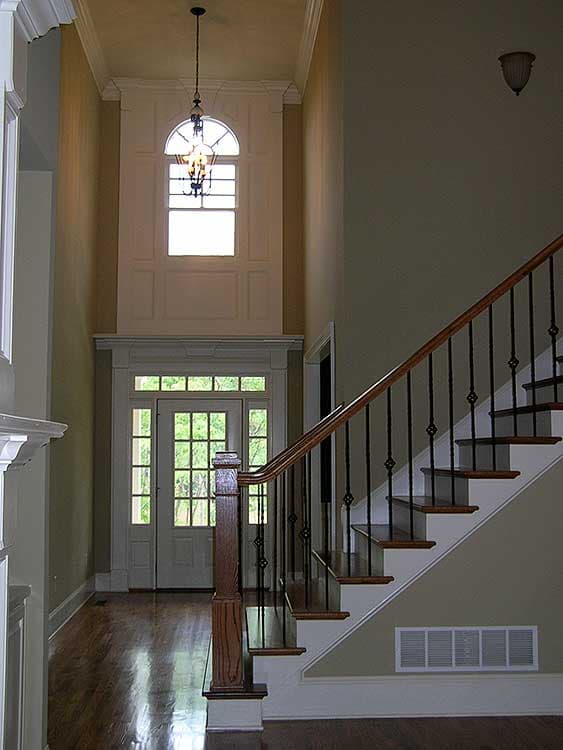

  • An elegant foyer with two-story ceiling greets your guests upon entering the home.
  • With a fireplace flanked by built-ins and French doors leading to the covered porch, the two-story vaulted great room makes a dramatic impression.
  • No worries about anyone bumping into each other in the spacious kitchen that is open to the breakfast nook and the vaulted keeping room with fireplace. Take informal meals at the bar seating. Also note the walk-in pantry.
  • Serving guests is a breeze with the dining room steps away from the kitchen yet secluded from the noise and clutter of food prep.
  • Much in demand, master suite lies on the first floor to save steps, with a walk-in closet that is room-sized.
  • Upstairs, three bedrooms share two baths. Bedroom 3 and 4 have walk-in closets.
  • Loft space overlooks the great room below.
  • NOTE: The crawlspace version comes with the same elevations as the basement version.
What's Included
  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,903 sq. ft.

1st Floor

2,037 sq. ft.

2nd Floor

866 sq. ft.

Basement Unfinished

2,037 sq. ft.

Entry

96 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

69' 0"

Depth

55' 8"

Max Ridge Height

32' 0"

Garage

Type

Attached

Area

728 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Breakfast Nook

Butler Walk-in Pantry

Jack & Jill Bath

Keeping Room

Loft

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Sloping Lot
