Plan 17572LV
Master Suite with Curved Lounge
Heated S.F.
5,219
Beds
4
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 17572LV

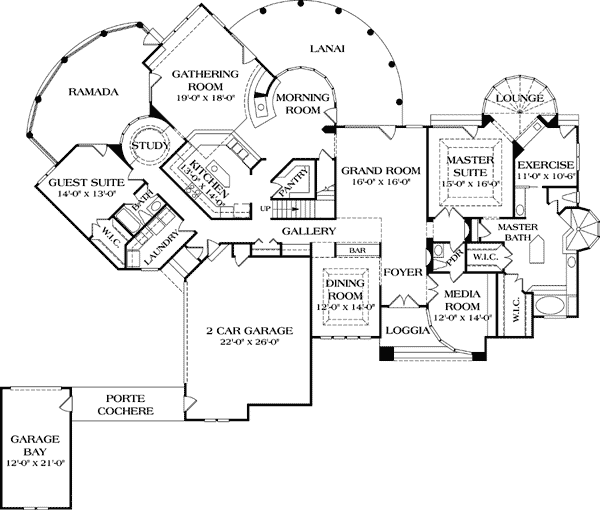

Main Level
slide image 0

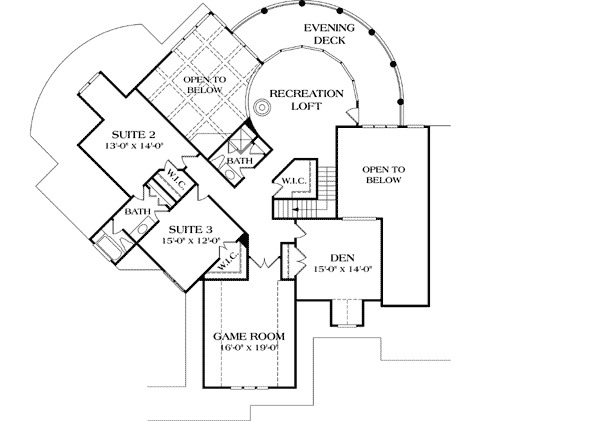

2nd Floor
slide image 1

Plan 17572LV

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This home features a covered drive, media room, ramada, and 4 bedroom suites with private baths.
  • In addition the master suite includes an exercise room and a curved lounge bay.
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans

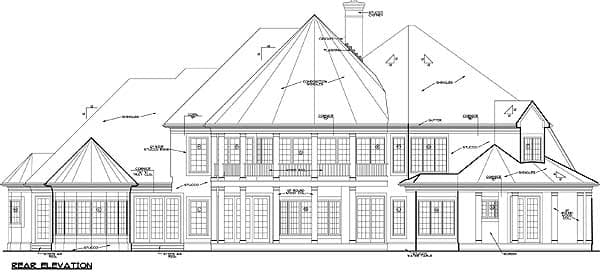

  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,219 sq. ft.

1st Floor

3,322 sq. ft.

2nd Floor

1,897 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

106' 6"

Depth

89' 10"

Garage

Type

Attached

Area

905 sq. ft.

Count

3 Cars

Entry Location

Side, Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

European

Traditional

Special Features

Angled Garage

Butler Walk-in Pantry

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Media Room

Porte Cochere

Plan Collections

Luxury

Photo Gallery

Square Footage Breakdown

Total Heated Area

5,219 sq. ft.

1st Floor

3,322 sq. ft.

2nd Floor

1,897 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

106' 6"

Depth

89' 10"

Garage

Type

Attached

Area

905 sq. ft.

Count

3 Cars

Entry Location

Side, Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

European

Traditional

Special Features

Angled Garage

Butler Walk-in Pantry

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Media Room

Porte Cochere

Plan Collections

Luxury

Photo Gallery
