Plan 95018RW

Master Up Contemporary With Angled Den

Heated S.F.

2,602

Beds

3

Baths

3.5

Stories

2

Cars

3

Floor Plan

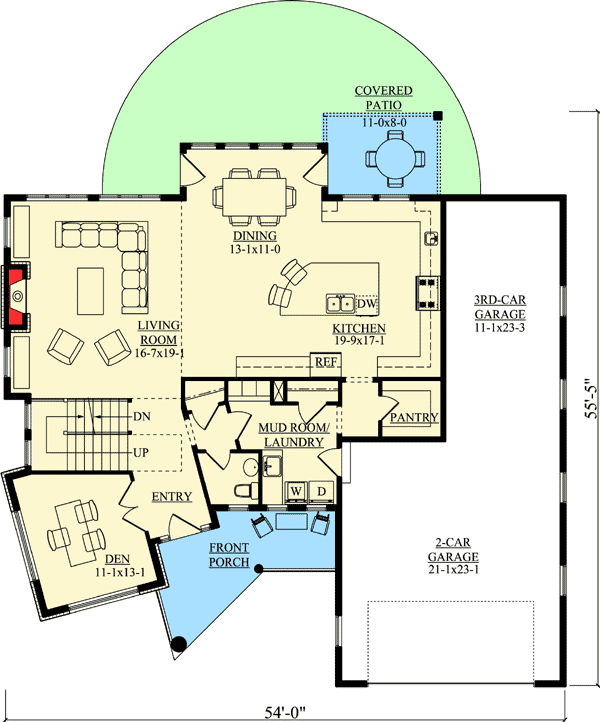

Main Level

floor plan image Main Level

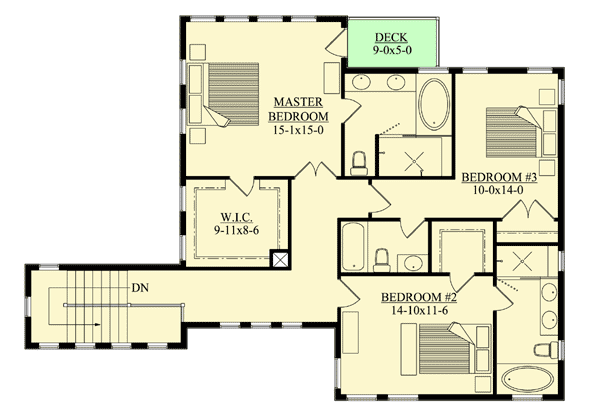

2nd Floor

floor plan image 2nd Floor

Plan Details

The beautiful angled den and front porch add an element of interest to this Contemporary house plan.
Inside, the T-shaped main living area is all open concept, giving you sweeping views from room to room.
Walls of glass along the back bring light streaming in and offers views of the back yard and covered patio.
The three car garage has a tandem bay that is over 23' deep.
Each bedroom on the second floor has a private bathroom and two of them have walk-in closets.
Homeowners are sure to enjoy their private deck.
The roof has a 4:12 pitch.

What's Included

Cover Page

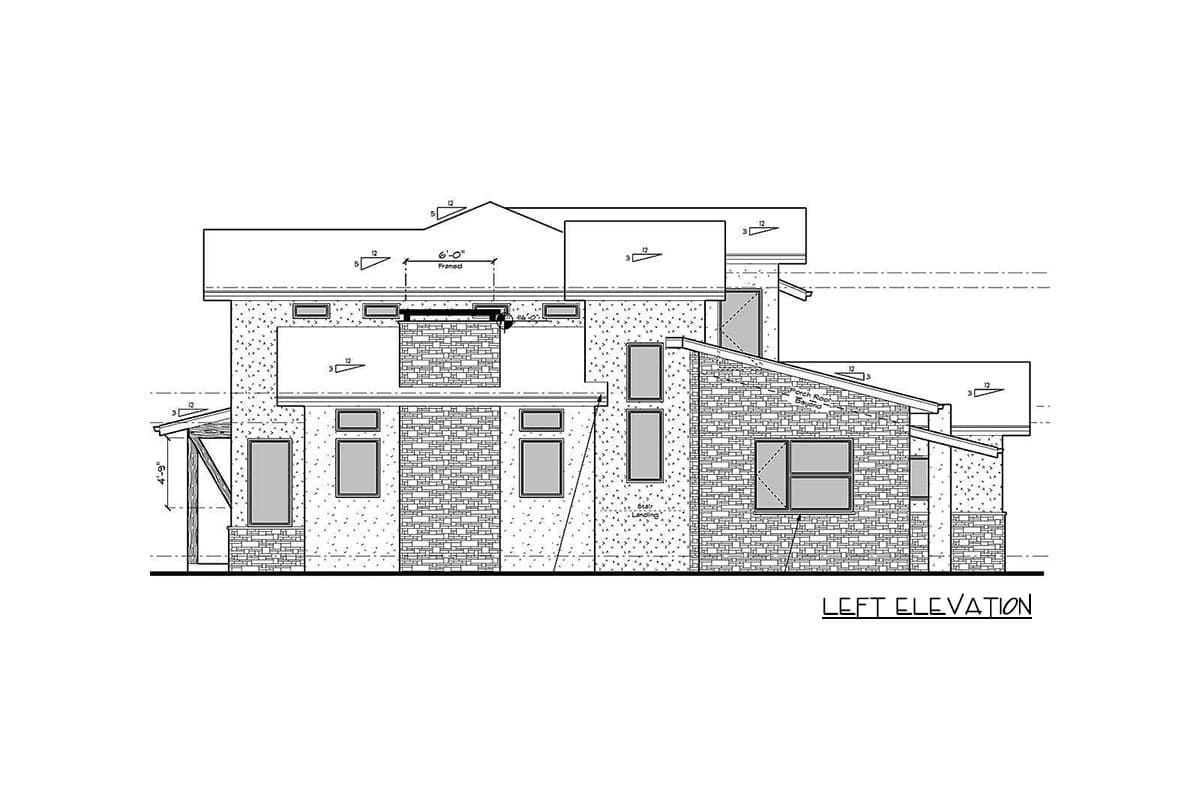

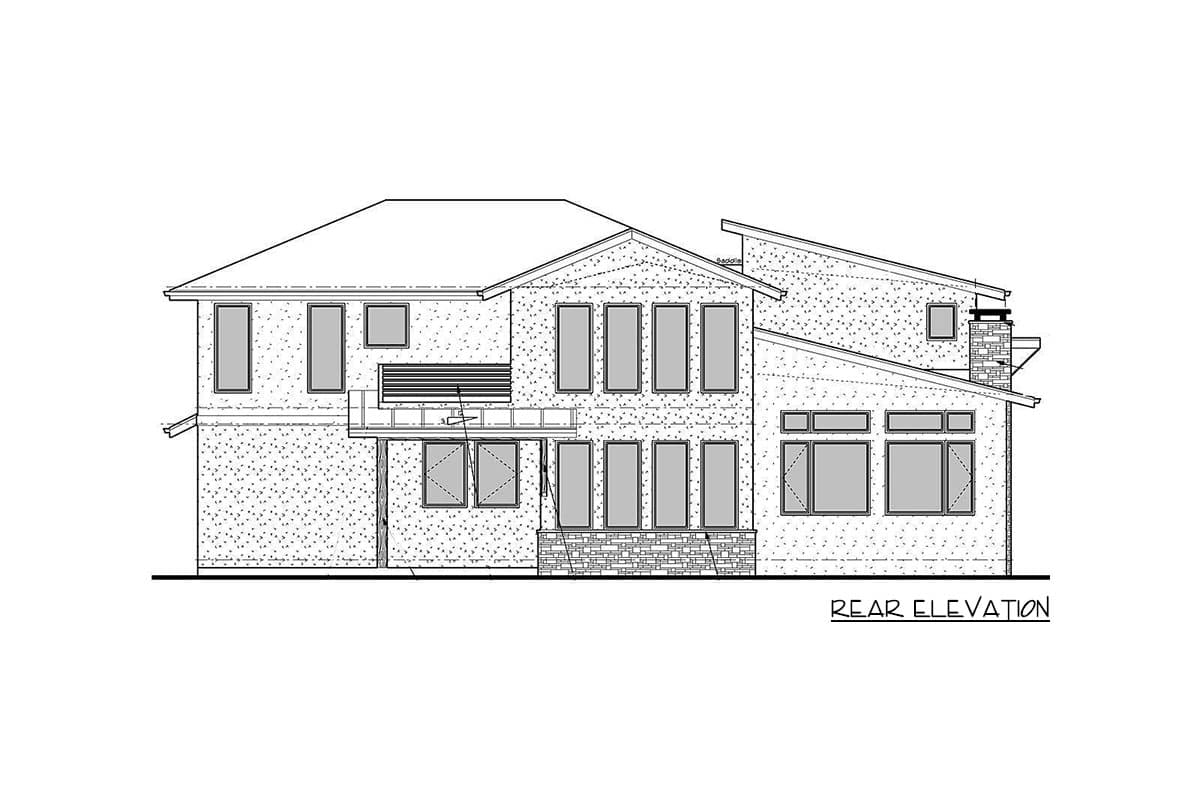

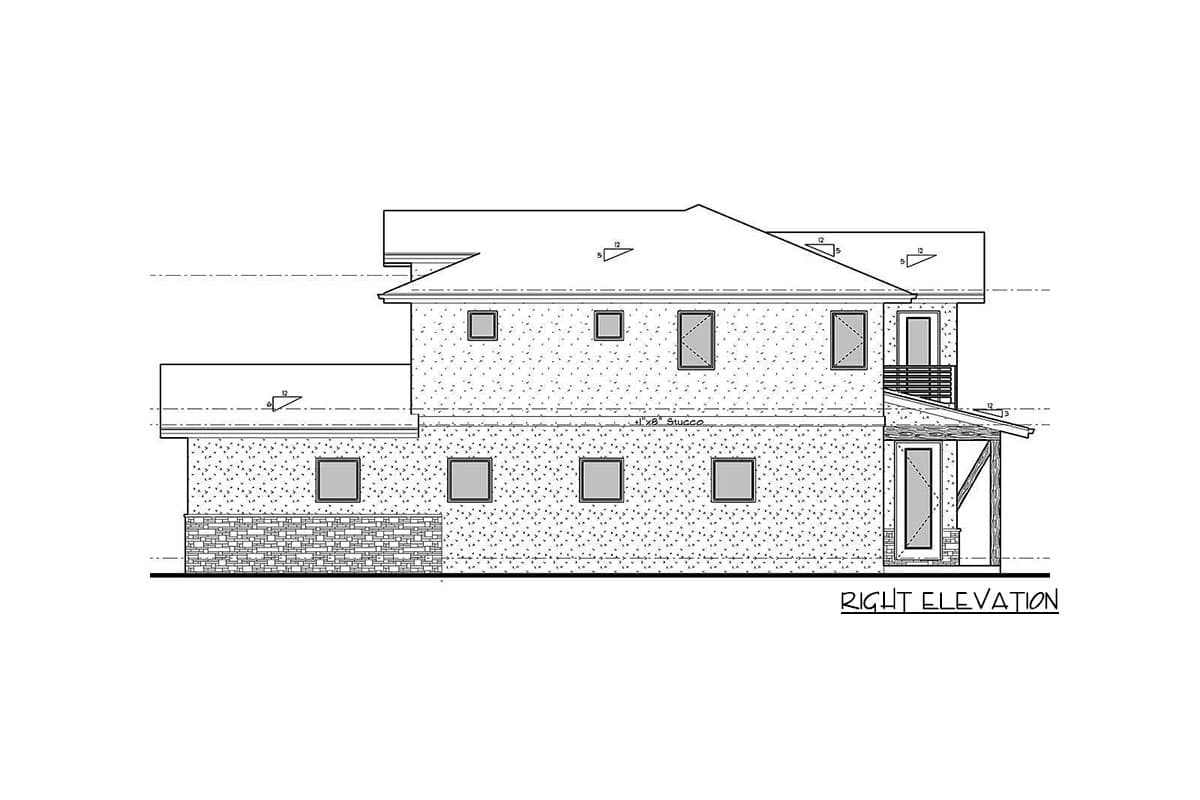

4 Elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,602 sq. ft.

1st Floor

1,400 sq. ft.

2nd Floor

1,202 sq. ft.

Porch, Combined

688 sq. ft.

Deck

45 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

55' 5"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

788 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 2nd Floor

Plan Collections

Square Footage Breakdown

Total Heated Area

2,602 sq. ft.

1st Floor

1,400 sq. ft.

2nd Floor

1,202 sq. ft.

Porch, Combined

688 sq. ft.

Deck

45 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

55' 5"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

788 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 2nd Floor

Plan Collections
