Plan 24006BG

Mediterranean Design

Heated S.F.

3,831

Beds

3

Baths

3.5

Stories

2

Cars

3

Floor Plan

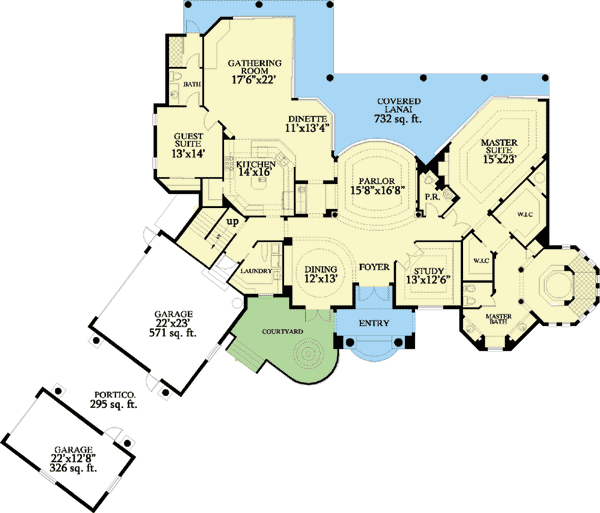

Main Level

floor plan image Main Level

2nd Floor

floor plan image 2nd Floor

Plan Details

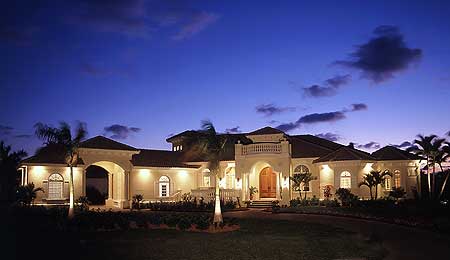

Part of the Premium Collection, this gorgeous Florida-Mediterranean design is filled with imaginative and luxurious touches.

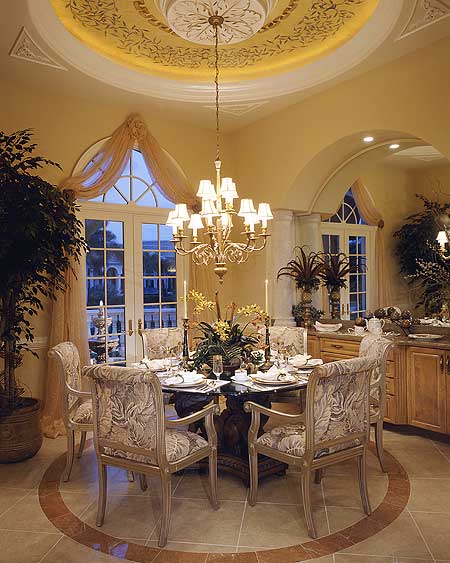

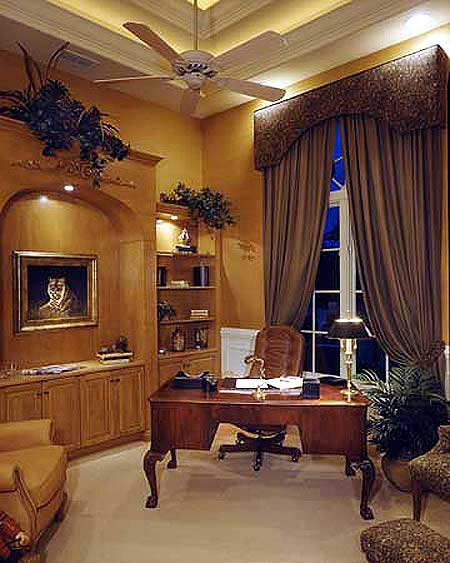

A charming courtyard leads guests to the entry porch and the foyer. From here, they see the formal dining room, the parlor and the study, all with distinctive ceiling treatments.

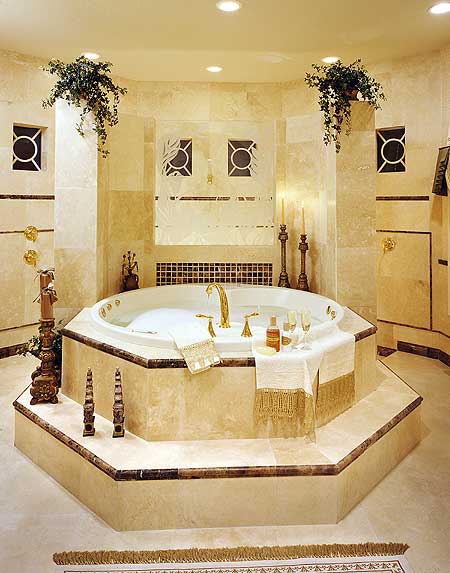

To one side, the master suite has it all: his and her walk-in closets and vanities and a magnificent spa tub introduced by columns.

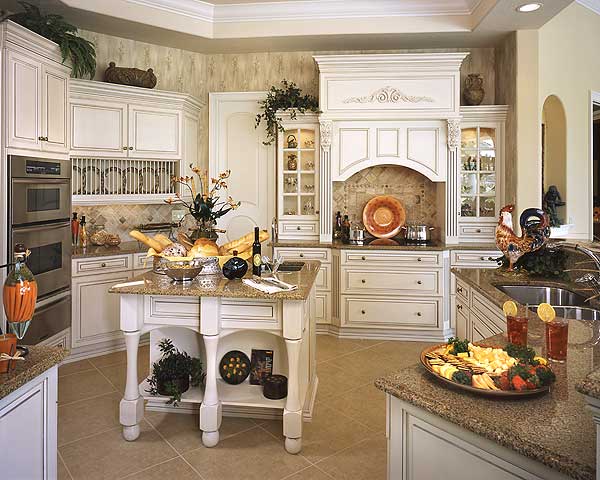

The kitchen is convenient to the formal dining room, informal dinette and gathering room.
There are two guest suites, one off the gathering room and the other on the second floor.

What's Included

Cover page showing front elevation, contents and notes
Fully dimensioned floor plans including ceiling heights
Roof plan
All four exterior elevations
Typical cross section
Suggested electrical schematic

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Framing - layouts with beam sizes and locations
Energy calculations - handled locally when required
Roof truss design - to be created by the truss manufacturer in accordance with local code requirements

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,831 sq. ft.

1st Floor

3,380 sq. ft.

2nd Floor

451 sq. ft.

Entry

181 sq. ft.

Balcony / Veranda

285 sq. ft.

Lanai

732 sq. ft.

Courtyard

258 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

119' 8"

Depth

102' 6"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

897 sq. ft.

Count

3 Cars

Entry Location

Side, Courtyard

Ceiling Heights

First Floor

12'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Premium Collection
