Name: Plan 36478TX: Mediterranean Dream Home Plan - 3529 Sq Ft
SKU: 36478TX
Price: 1250.0 USD
Availability: InStock

Plan 36478TX

Mediterranean Dream Home Plan - 3529 Sq Ft

Heated S.F.

3,529

Beds

Baths

3 - 4

Stories

Cars

Floor Plan

Main Level

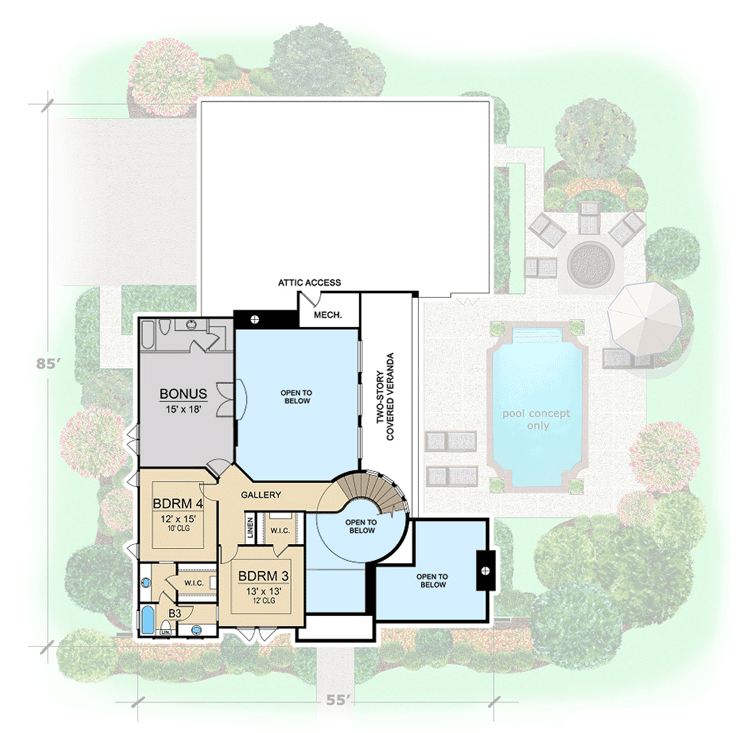

2nd Floor

Plan Details

A grand 2-story arched entry porch has a huge transom over the front door that brings lots of light into the foyer of this Mediterranean dream home.
The lovely curved staircase is the first thing you see when you enter the home.
The large formal dining room has a nearby wet bar and butler's pantry to aid in entertaining.
A private guest suite on this floor has its own bathroom with two sinks.
Double doors in the spacious family room open to a side veranda that gives you a shady spot to relax outside.
The heavenly secluded master suite is the epitome of luxury with its cozy fireplace, tray ceiling and a huge L-shaped walk-in closet that opens directly into the laundry room.
Two additional bedrooms, each with an elegant tray ceiling, lie on the second floor.
The bonus room adds an additional 343 square feet of living space and has a juliette balcony that overlooks the family room below.

What's Included

Cover sheet
Foundation Plan - schematic only

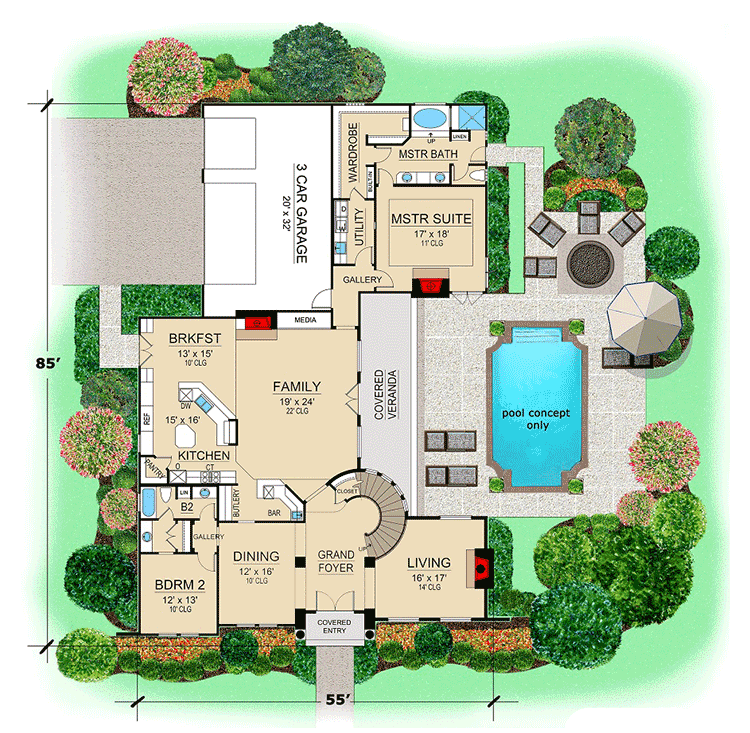

First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

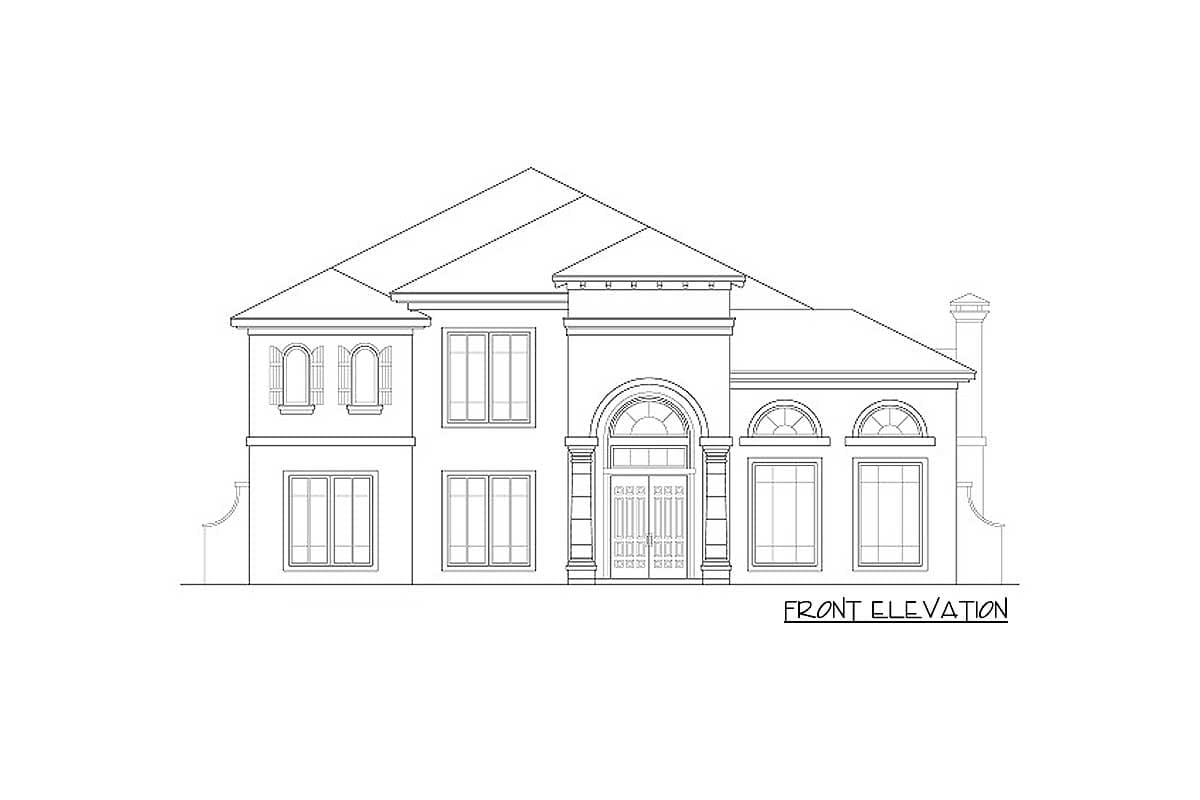

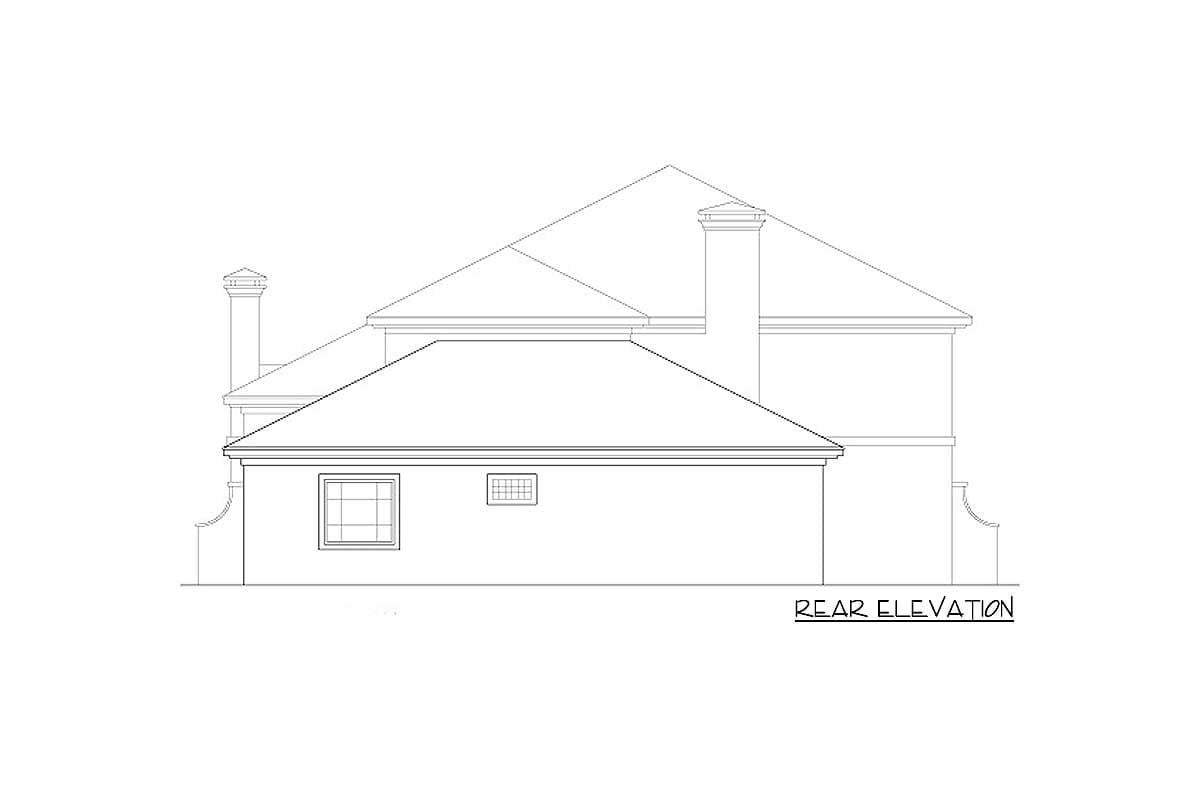

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

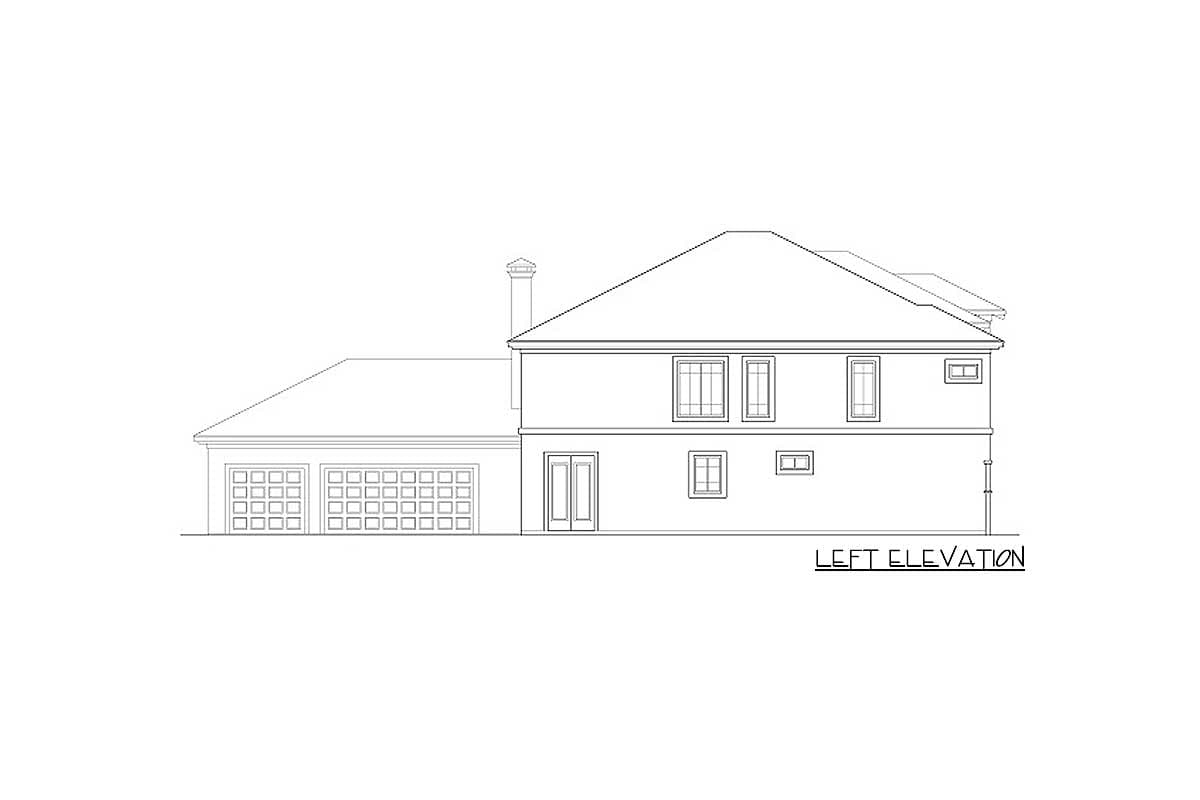

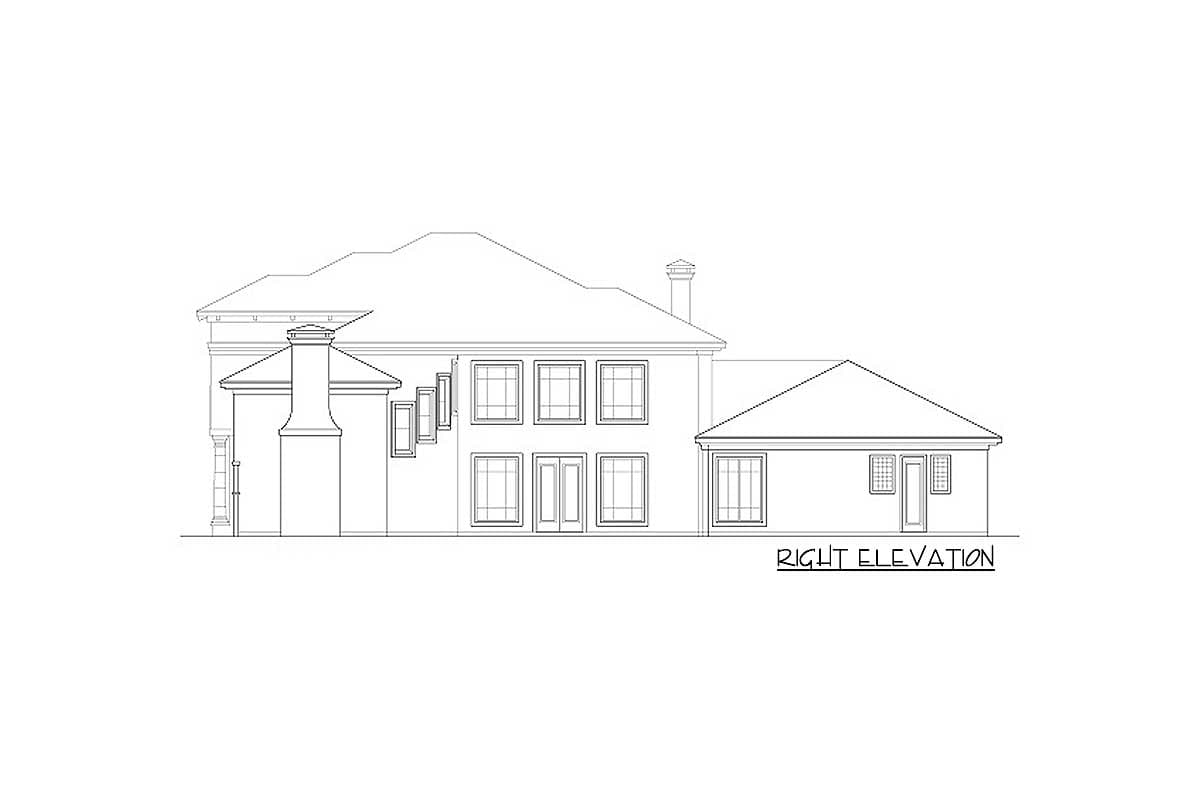

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
