Plan 340011STR
Mediterranean Home Plan with Home Office Potential
Heated S.F.
1,920
Beds
3 - 4
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 340011STR

Main Level
slide image 0

Plan 340011STR

1-800-854-7852

1-262-521-4596

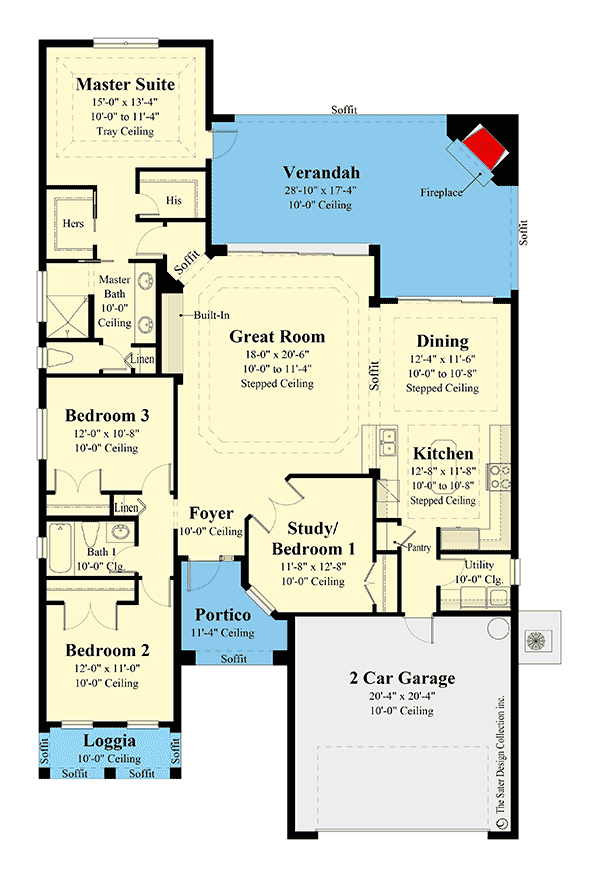

Main Level
floor plan image Main Level
Plan Details
  • A Mediterranean exterior with a triple arch entry, corbels and large windows give this house plan a coastal Florida vibe. A stucco finish and a barrel concrete tile roof finish the picture.
  • Designed with entertaining in mind, the generous great room opens to the dining area and kitchen. The kitchen is complete with a pantry and center island. Sliding glass doors lead to the home’s verandah. The verandah is a covered outdoor area that features a stunning fireplace.
  • Access to the 3 guest bedrooms is located in the front. A little hallway creates privacy for bedrooms 2 and 3. Bedroom 1 could also perfectly be utilized as a home office.
  • The back left is dedicated to the master suite which gives you two walk-in closets, a dual vanity, and a large walk-in shower. A French door provides access to the verandah.
  • A 2-car garage and a separate utility room - along with specialty ceiling treatments in the kitchen, dining and great room - all with beautiful stepped ceilings - and the master bedroom with an elevated tray ceiling - complete the home.
  • Related Plans: Get alternate versions with house plan 340037STR and 340022STR.
What's Included
  • Cover Sheet, Index
  • Wall Sections & Notes
  • Typical Detail & Notes
  • Foundation Plan
  • Floor Plans
  • Reflected Ceiling Plan showing ceiling heights and treatments
  • Floor Framing Plan (basement, crawlspace or 2-story homes only)
  • Birds Eye Roof Plan

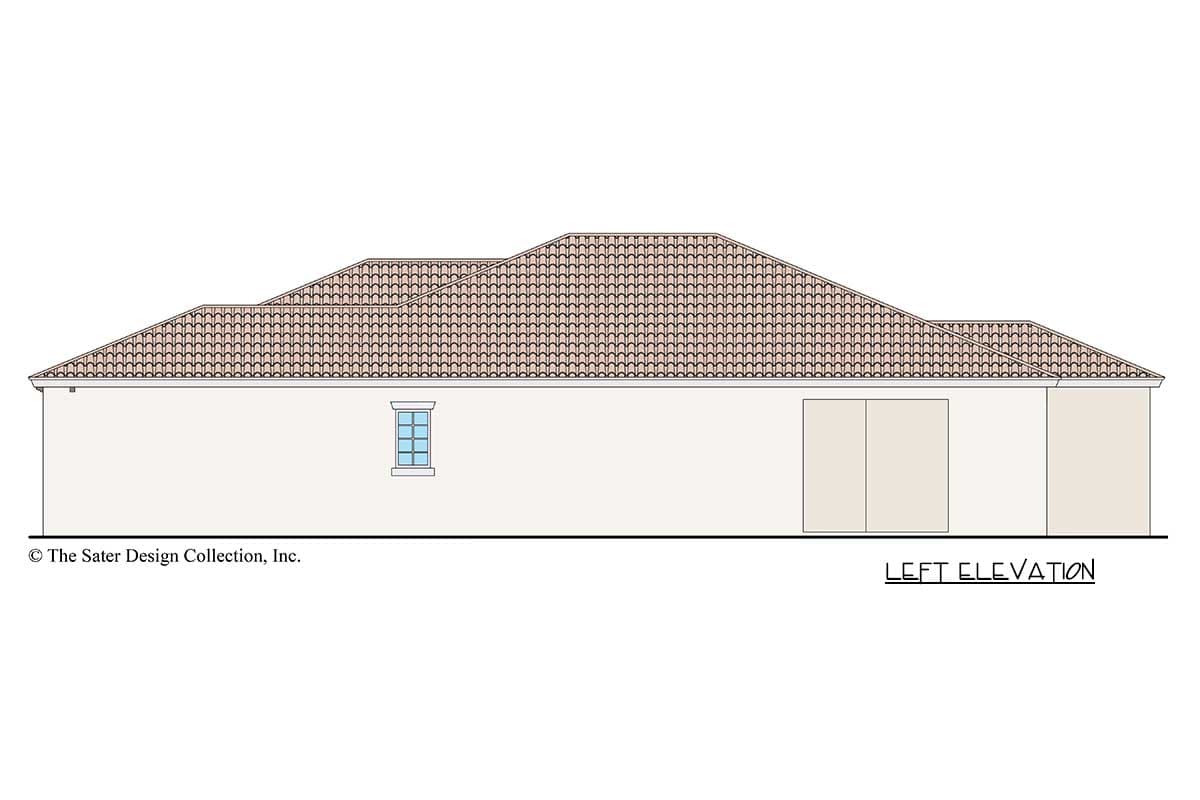

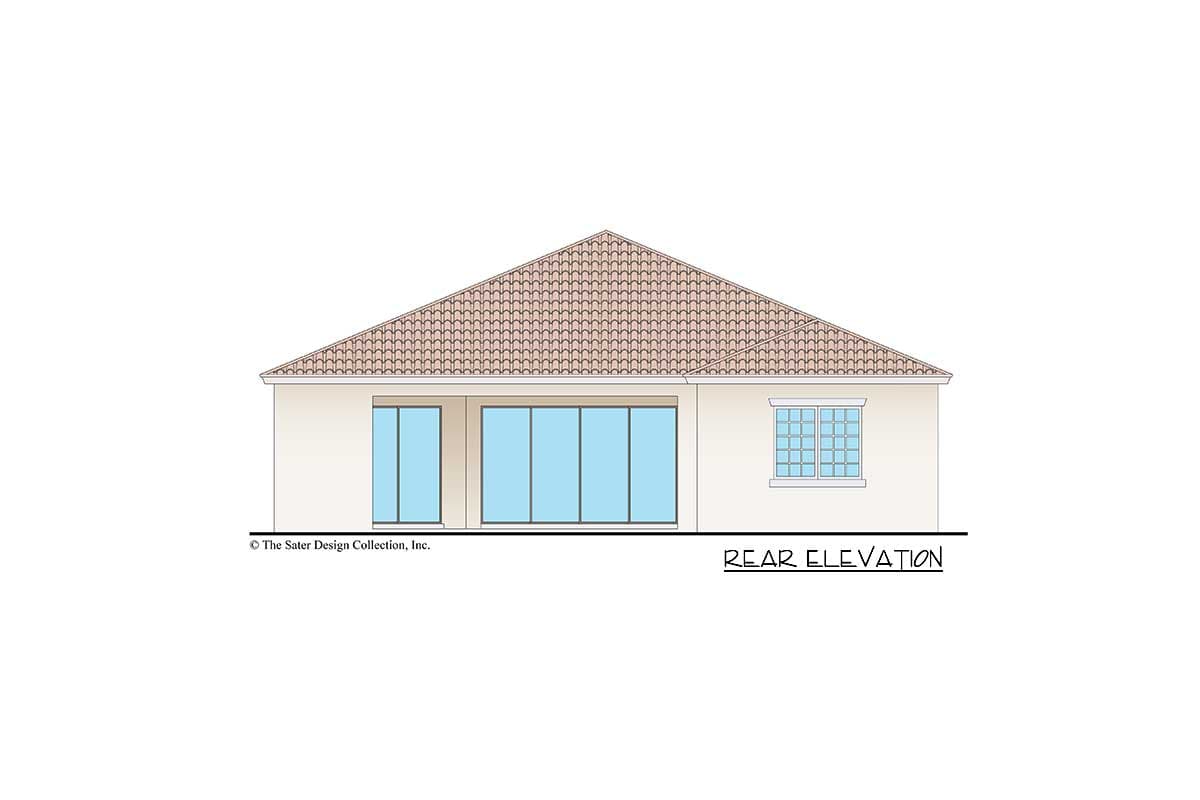

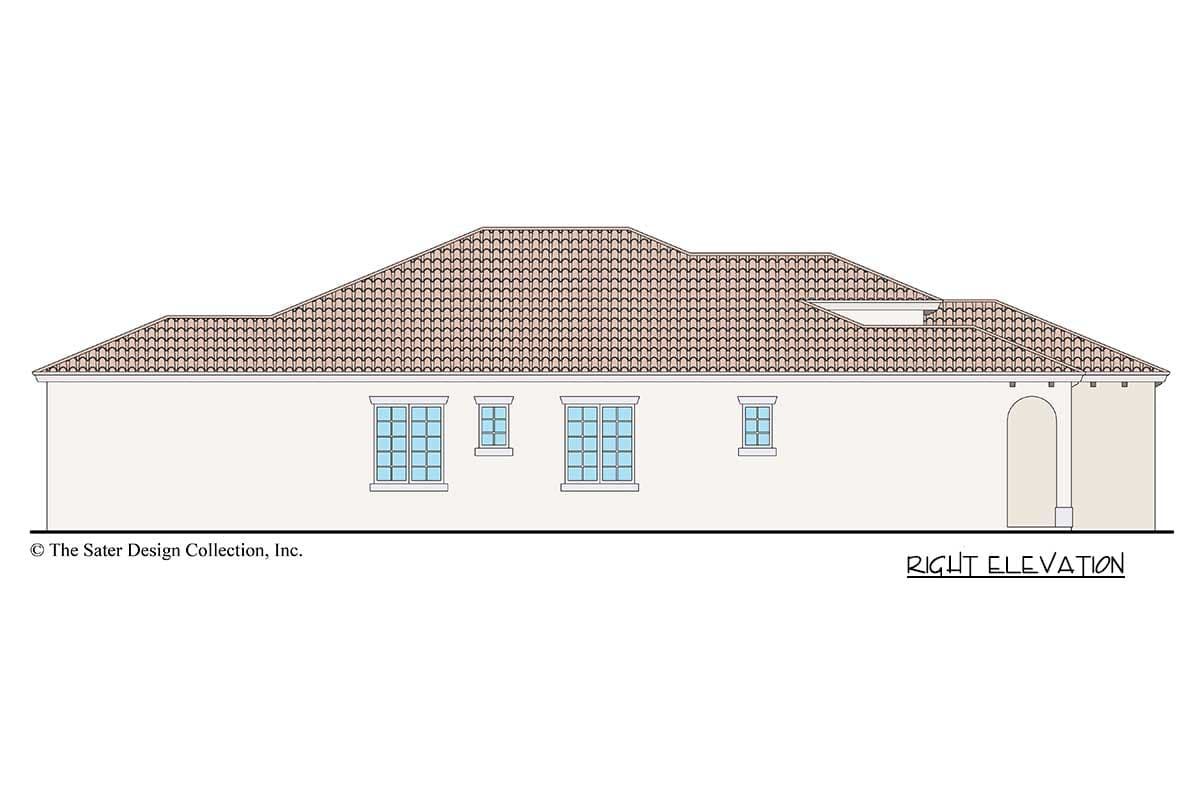

  • All Elevations
  • Building Section & Details
  • Interior Elevations (Details may vary based on the design)
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,920 sq. ft.

1st Floor

1,920 sq. ft.

Balcony / Veranda

418 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

45' 0"

Depth

75' 0"

Max Ridge Height

20' 7"

Garage

Type

Attached

Area

453 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Coastal

European

Florida

Mediterranean

Special Features

Bedrooms - Clustered

Home Office

Laundry - Main Level

Master Suite - 1st Floor
