Plan 66321WE
Mediterranean Home With Circular Dining Room - 3800 Sq Ft
Heated S.F.
3,800
Beds
4
Baths
4
Stories
1
Cars
3
Floor Plan

Plan 66321WE

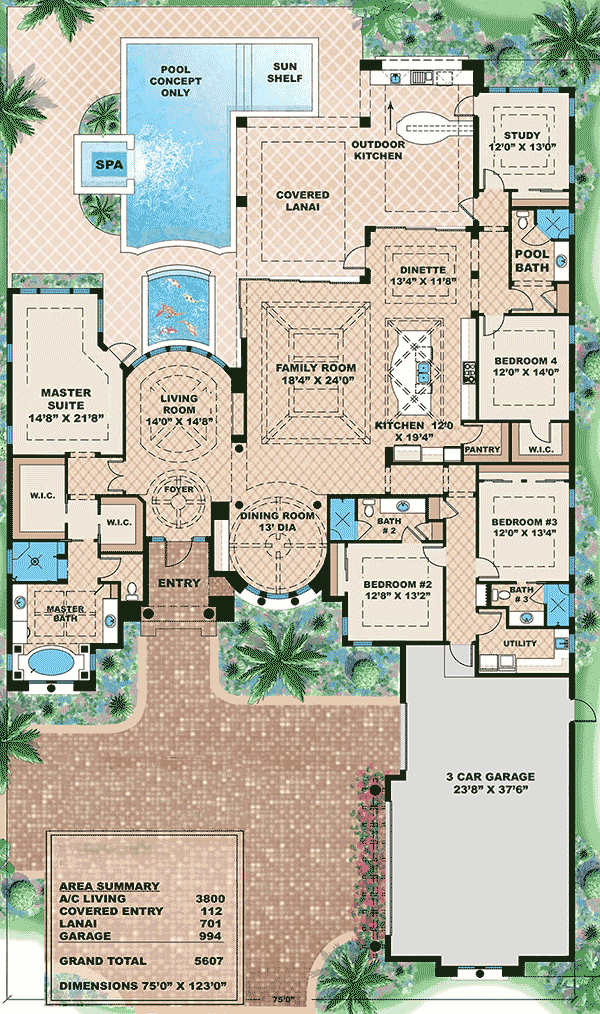

Main Level
slide image 0

Plan 66321WE

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • The strikingly beautiful exterior of this Mediterranean home is matched by unusual design elements within.
  • The sightlines from the wide foyer are amazing and special ceiling treatments can be found in almost every room in the house.

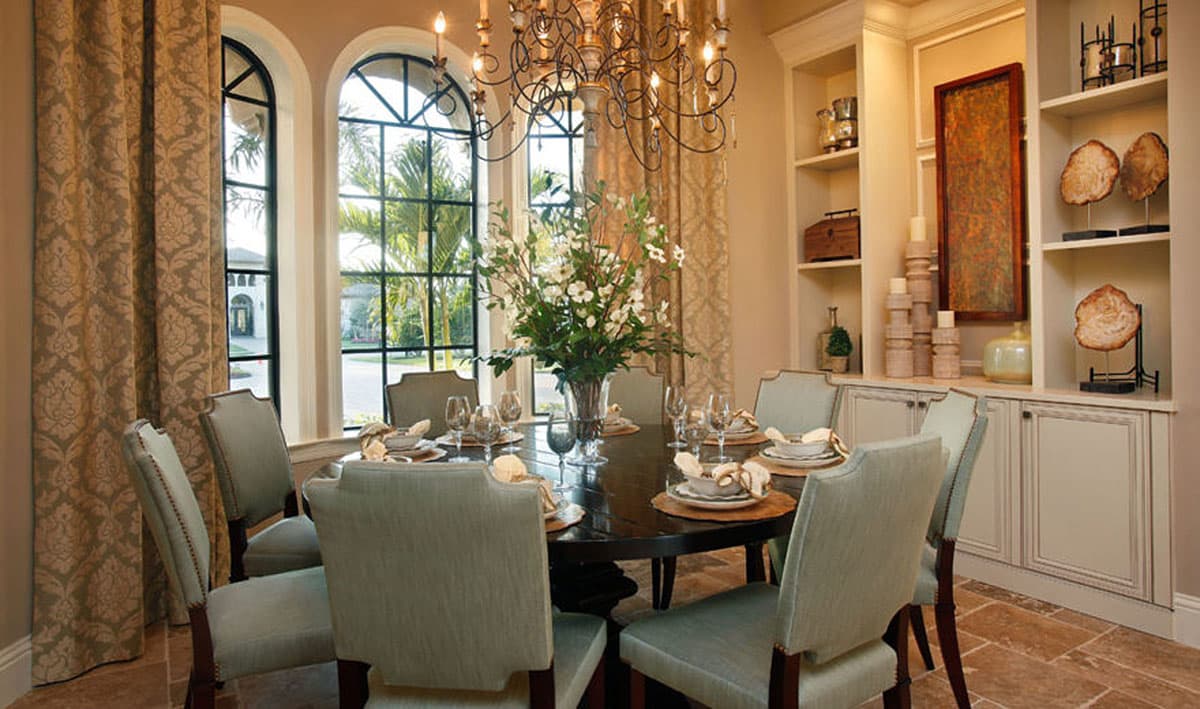

  • Of special note is the circular dining room with two columns to mark the space.

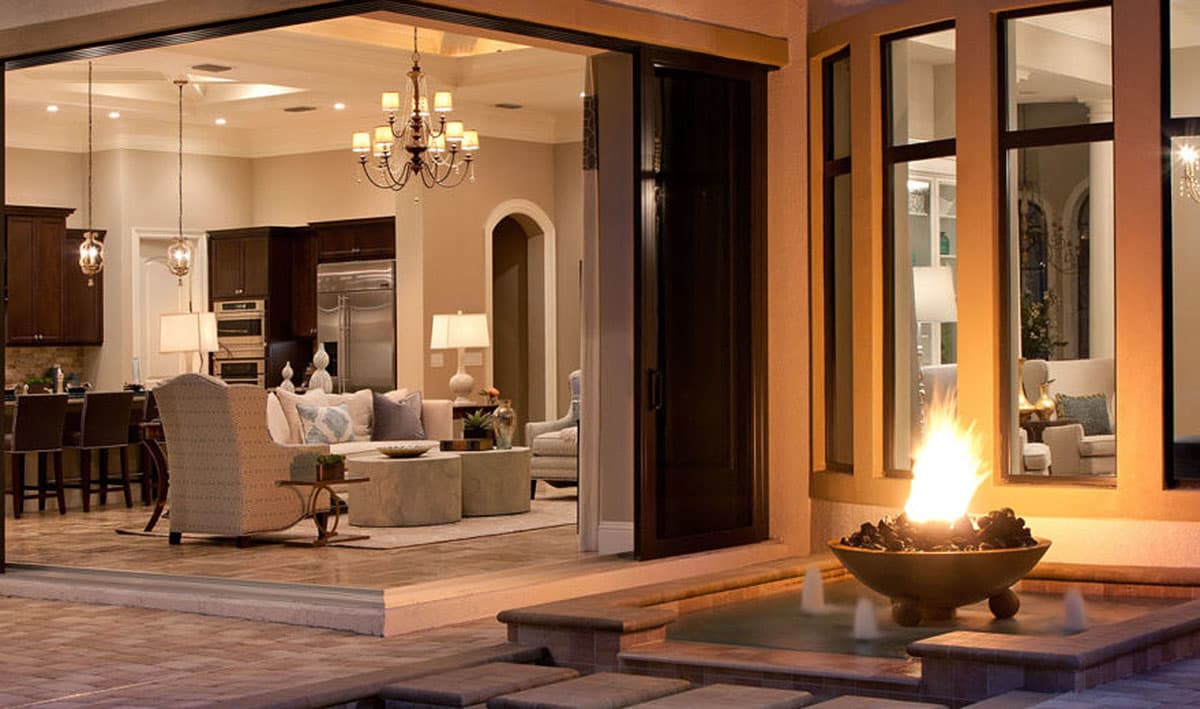

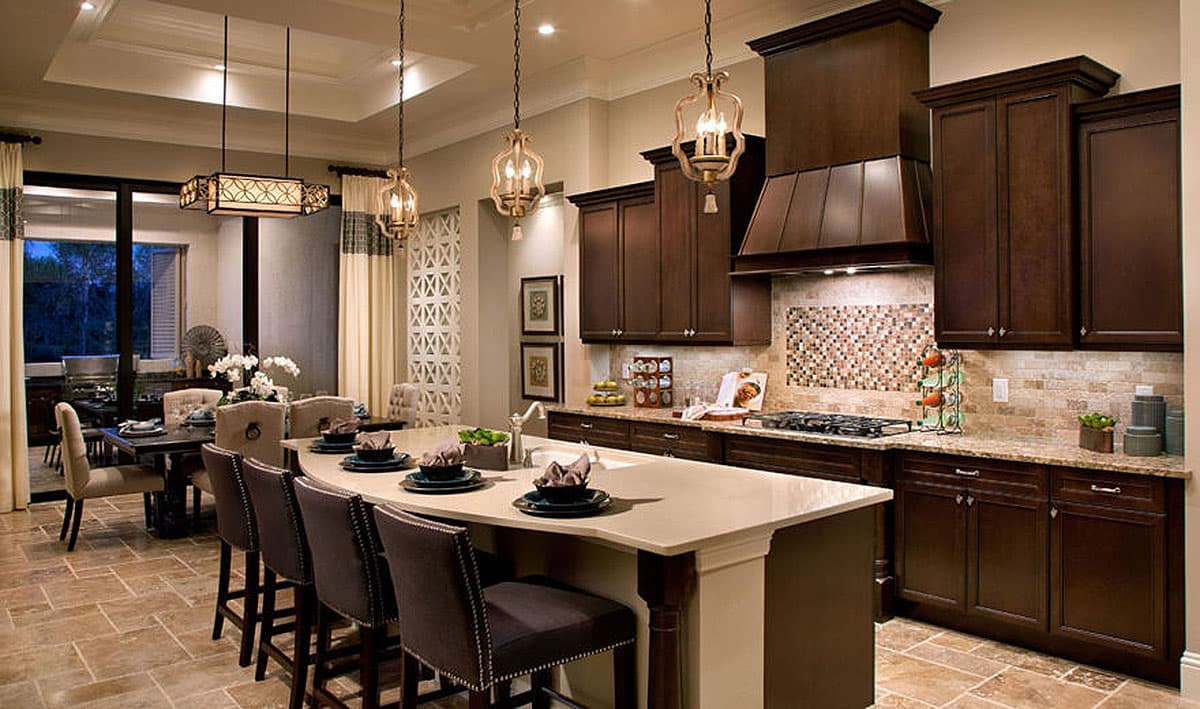

  • From here you can see into the enormous family room that is open to the kitchen and dinette.

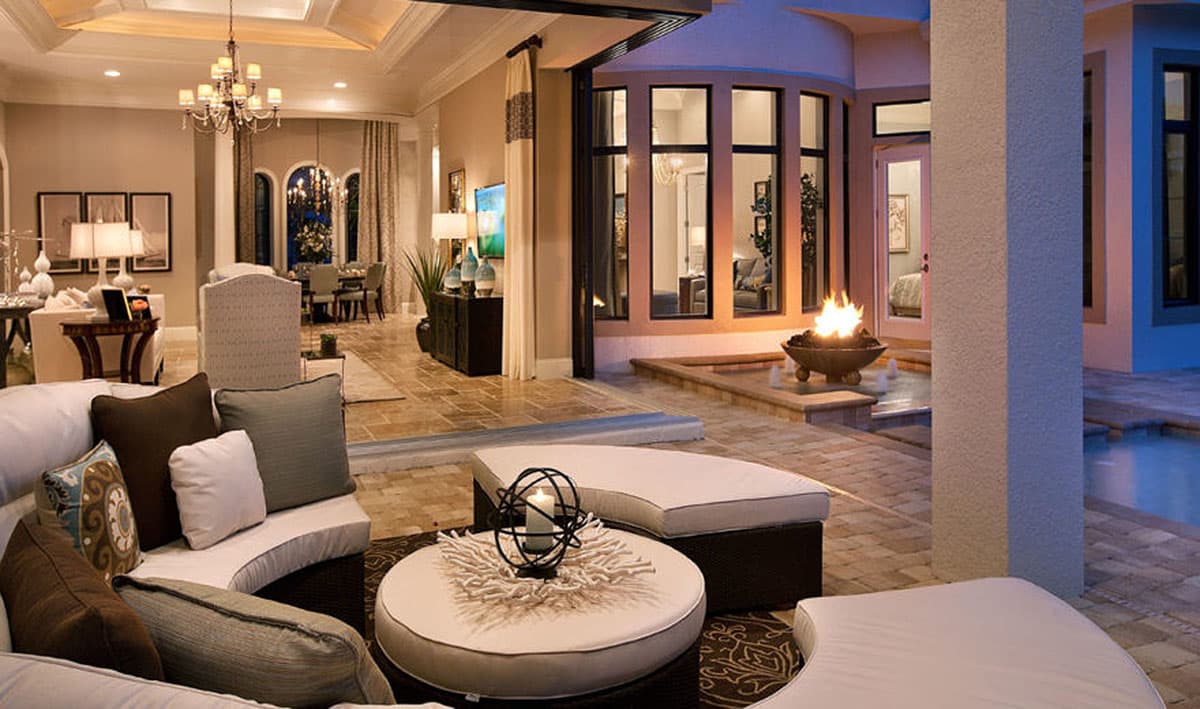

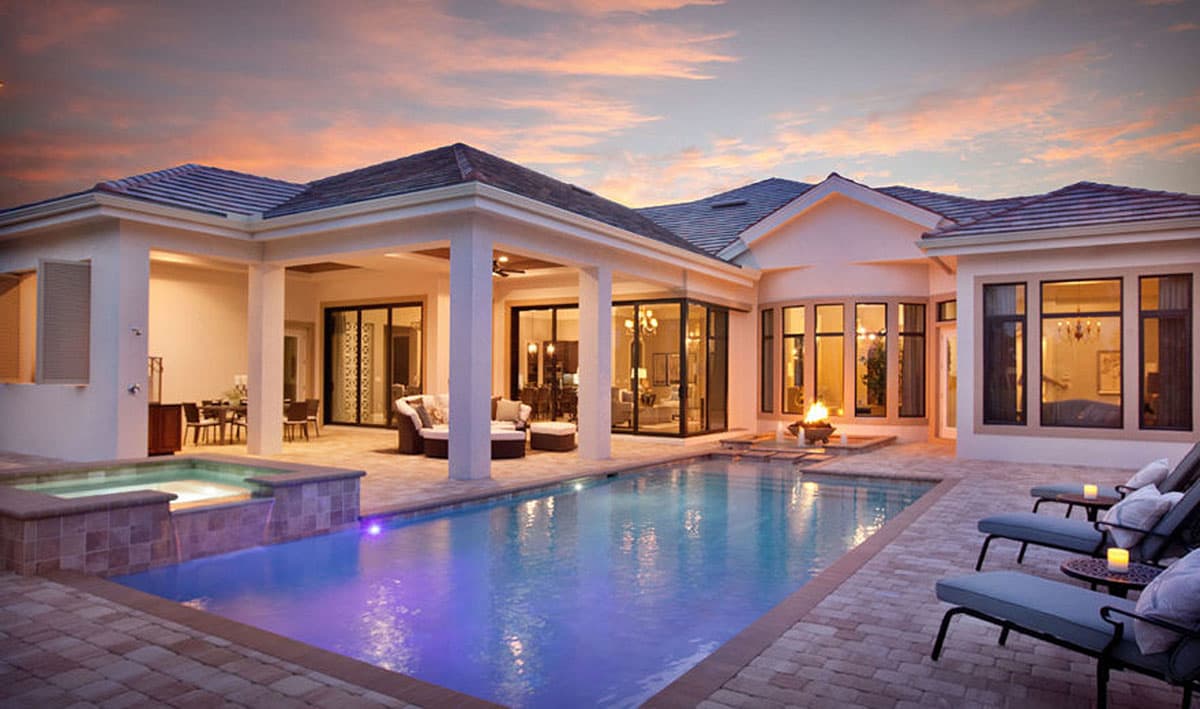

  • Even the outdoor areas are fabulous with a summer kitchen and huge covered lanai for your family to enjoy.

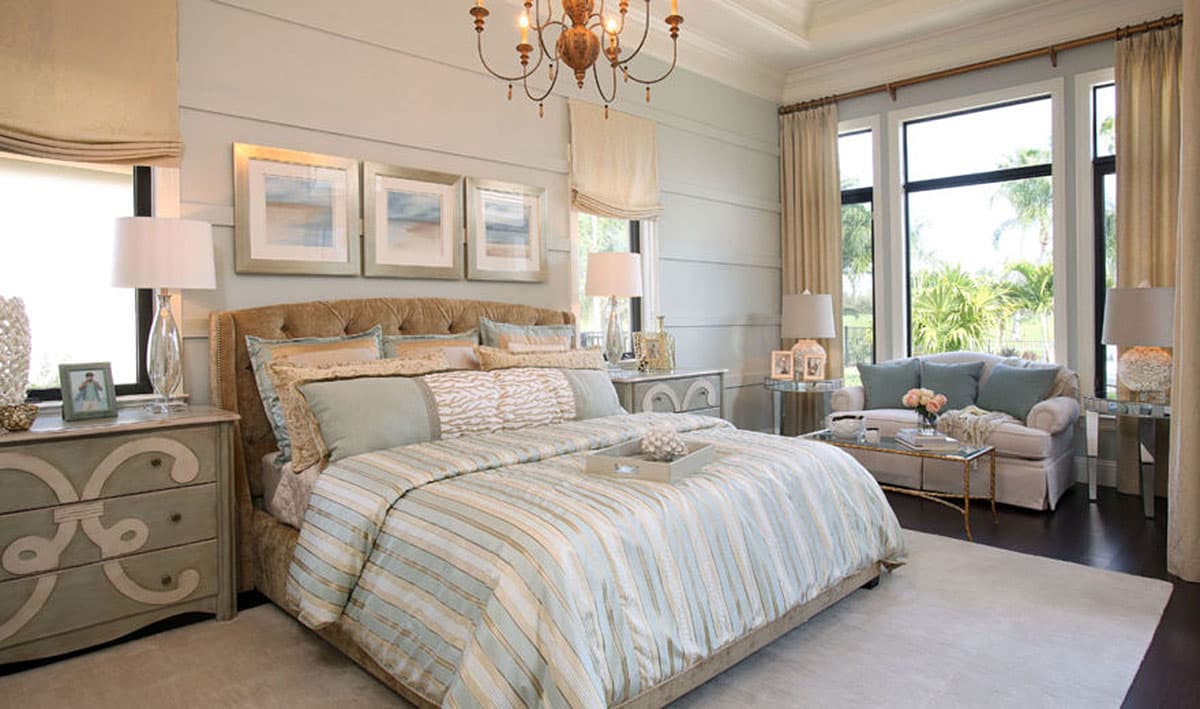

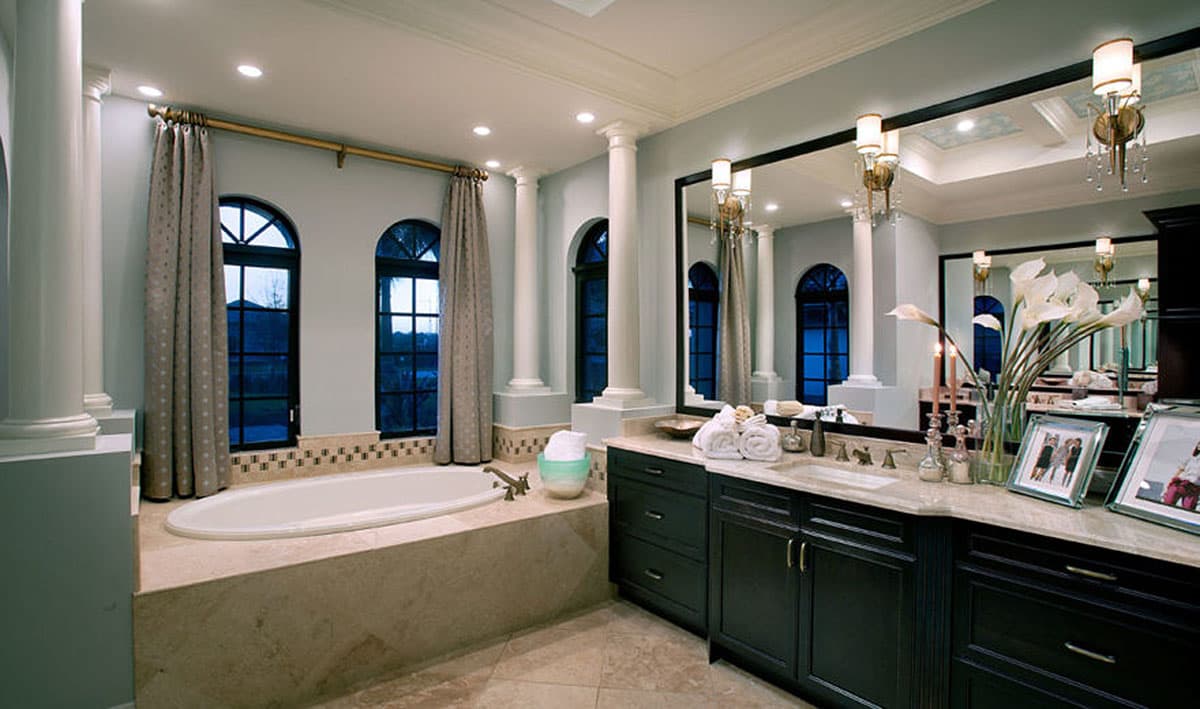

  • The master suite hold every luxury from a sitting area to gorgeous ceilings in both the bedroom and the spa-like bathroom.

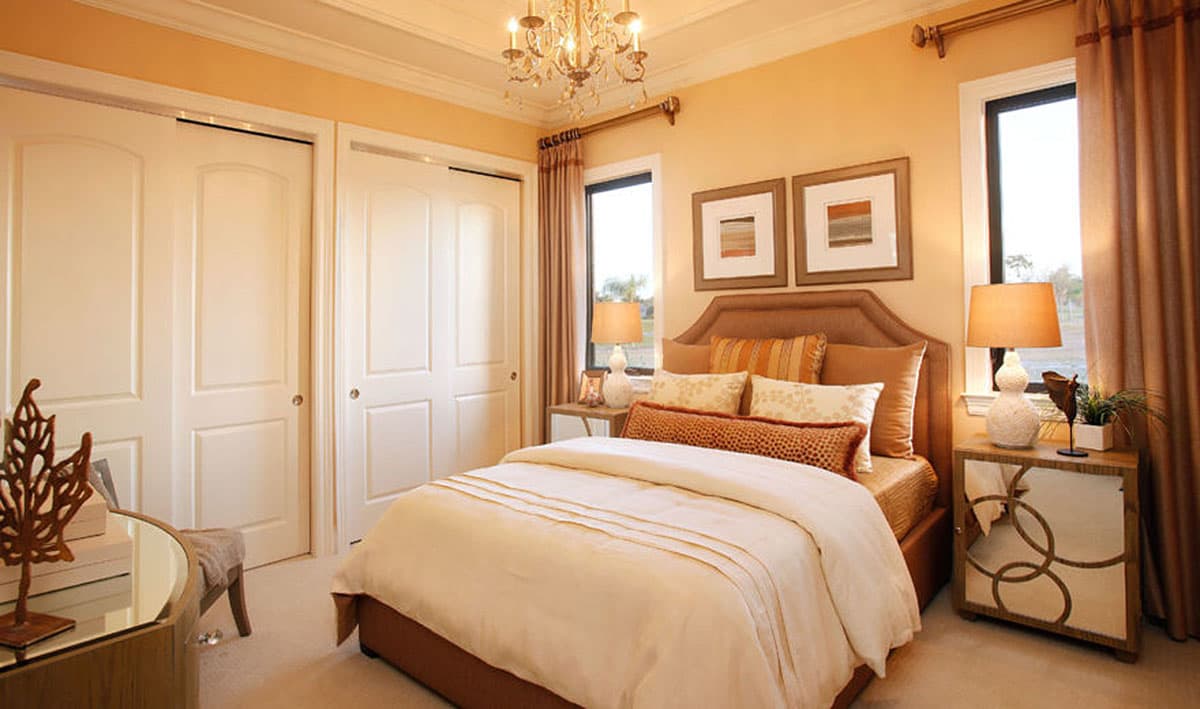

  • Three family bedrooms on the opposite side of the home are generously-sized.
  • BUILDING RESTRICTIONS: This house plan cannot be built in the state of Florida. Contact us for details.
What's Included
Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,800 sq. ft.

1st Floor

3,800 sq. ft.

Entry

112 sq. ft.

Lanai

701 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

75' 0"

Depth

123' 0"

Max Ridge Height

26' 9"

Garage

Type

Attached

Area

994 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Master Bedroom

Coffered

13' 0''

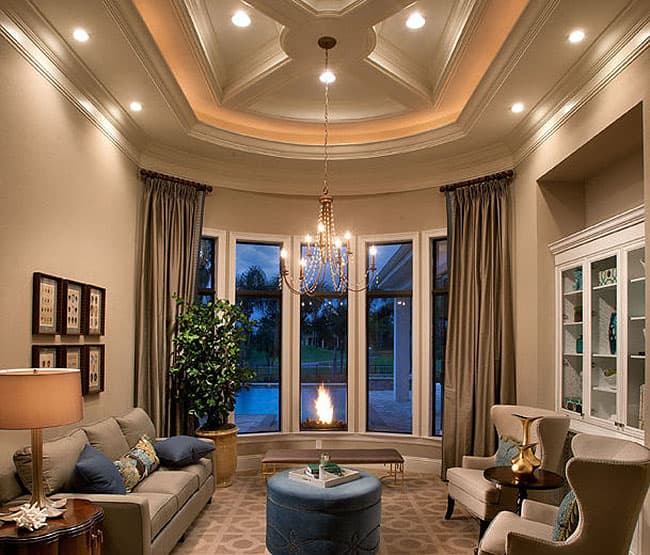

Living Room

14' 8''

Family Room

Tray

14' 8''

Dining Room

Coffered

23' 0''

Kitchen

Coffered

13' 0''

Dinette

Coffered

14' 0''

Entry

Flat

12' 0''

Foyer

Coffered

13' 8''

Study

Coffered

11' 4''

Bedroom 2

Coffered

13' 0''

Bedroom 3

Coffered

11' 0''

Lanai

Coffered

13' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Coastal Contemporary

European

Mediterranean

Spanish

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Kitchen

Plan Collections

Luxury

Photo Gallery
