Plan 42815MJ
Mediterranean House Plan with Great Guest or In-Law Suite
Heated S.F.
3,238
Beds
4
Baths
4.5
Stories
2
Cars
2
Floor Plan

Plan 42815MJ

2nd Floor
slide image 0
Main Level
slide image 1

Plan 42815MJ

1-800-854-7852

1-262-521-4596

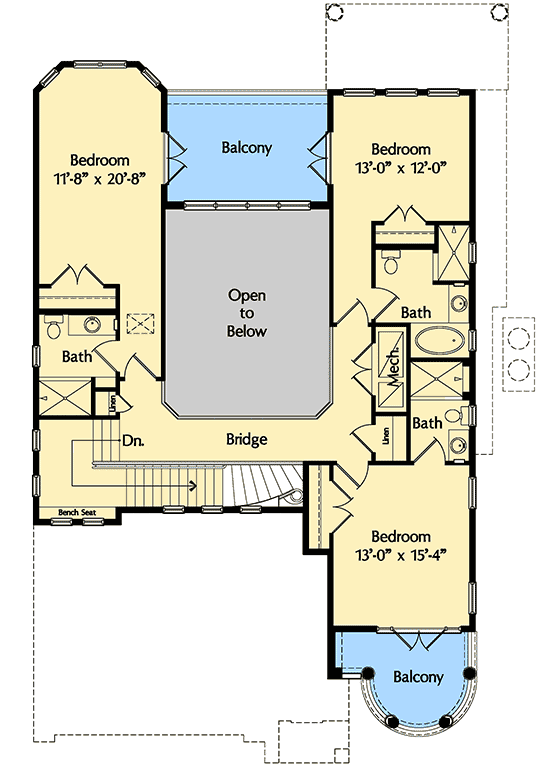

2nd Floor
floor plan image 2nd Floor

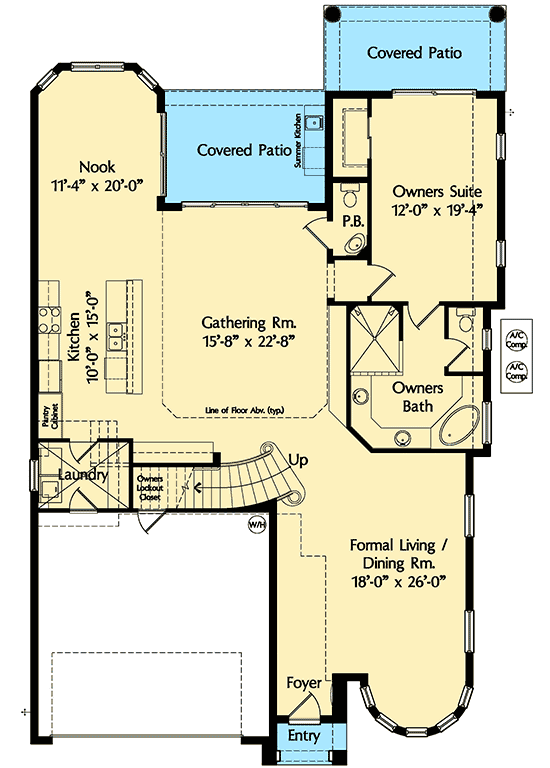

Main Level
floor plan image Main Level
Plan Details
  • Arches and a clay tile roof accentuate this beautiful Mediterranean home plan.
  • Both the formal and informal areas of the home have an open layout.
  • Guests or in-laws have their own private space off to the rear.
  • Windows all along the back of the home overlook the rear covered outdoor living area.
  • A spacious owner's suite is your reward at the end of a hard day.
  • An extra bedroom, bath and playroom can be found on the second floor. This too would function well as an in-law suite.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.
What's Included
  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)

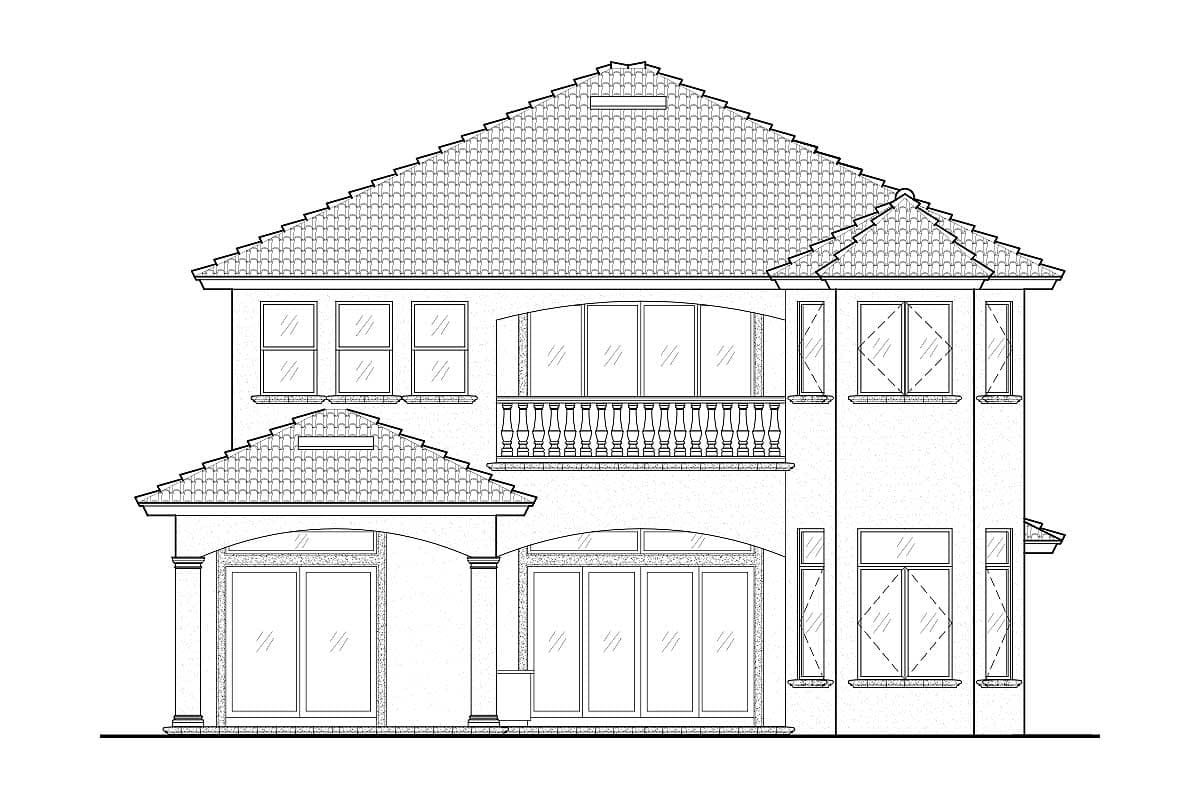

  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,238 sq. ft.

1st Floor

2,012 sq. ft.

2nd Floor

1,226 sq. ft.

Covered Patio

300 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

45' 0"

Depth

72' 0"

Max Ridge Height

35' 5"

Garage

Type

Attached

Area

1504 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Architectural Style

European

Florida

Mediterranean

Special Features

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Playroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,238 sq. ft.

1st Floor

2,012 sq. ft.

2nd Floor

1,226 sq. ft.

Covered Patio

300 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

45' 0"

Depth

72' 0"

Max Ridge Height

35' 5"

Garage

Type

Attached

Area

1504 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Architectural Style

European

Florida

Mediterranean

Special Features

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Playroom

Plan Collections

Photo Gallery
