Plan 62892DJ
Mediterranean-style Backyard Office Plan
Heated S.F.
168
Beds
0
Baths
0
Stories
1
Floor Plan

Plan 62892DJ

Main Level
slide image 0

Plan 62892DJ

1-800-854-7852

1-262-521-4596

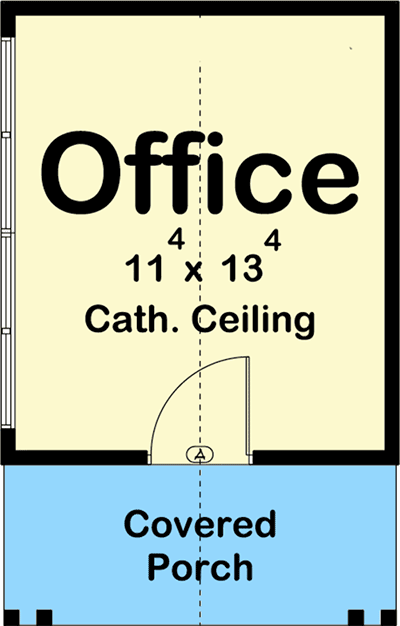

Main Level
floor plan image Main Level
Plan Details
  • Look no further than this backyard office plan if Mediterranean style is your jam and satisfy your work-from-home needs in style .

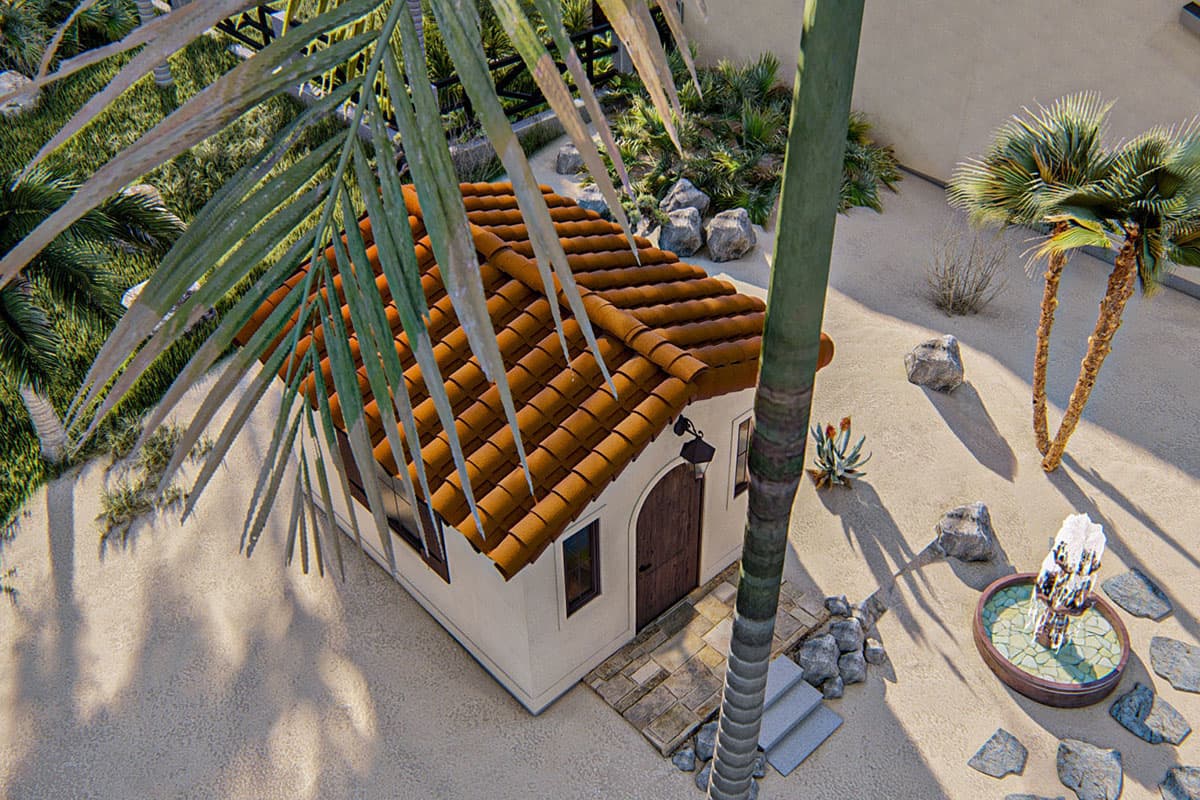

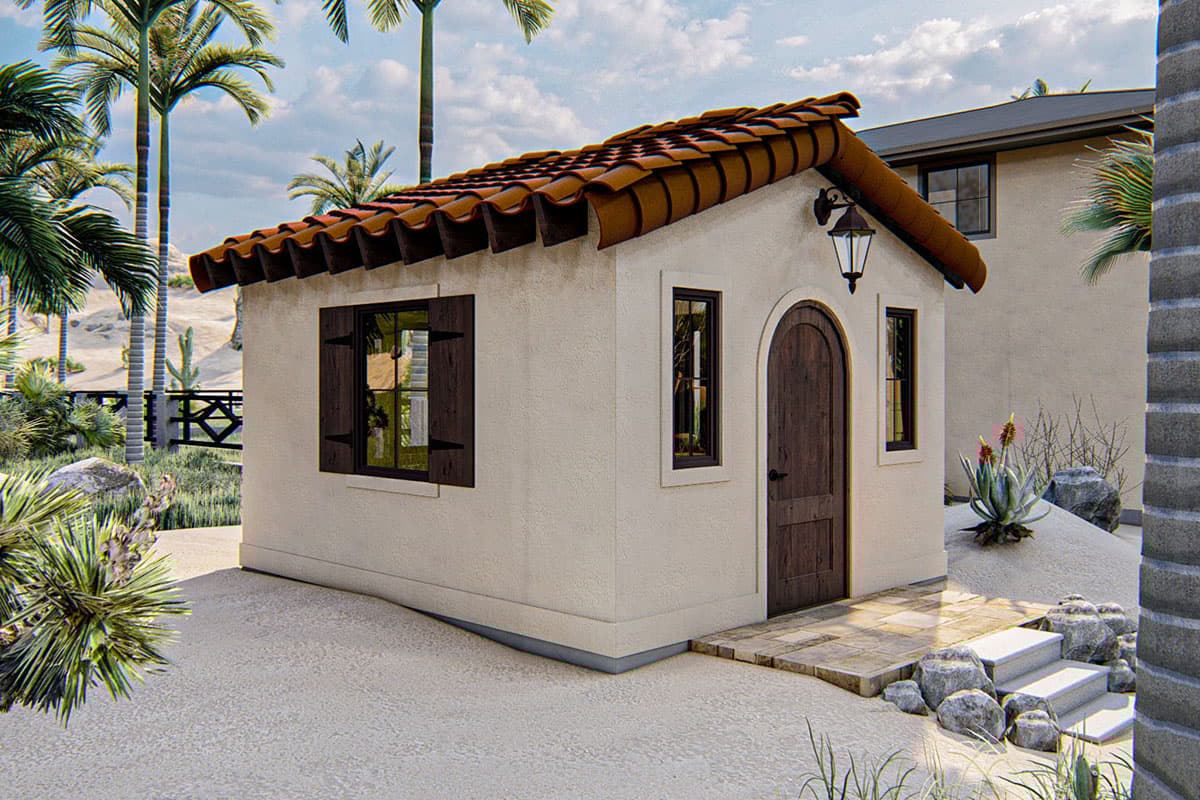

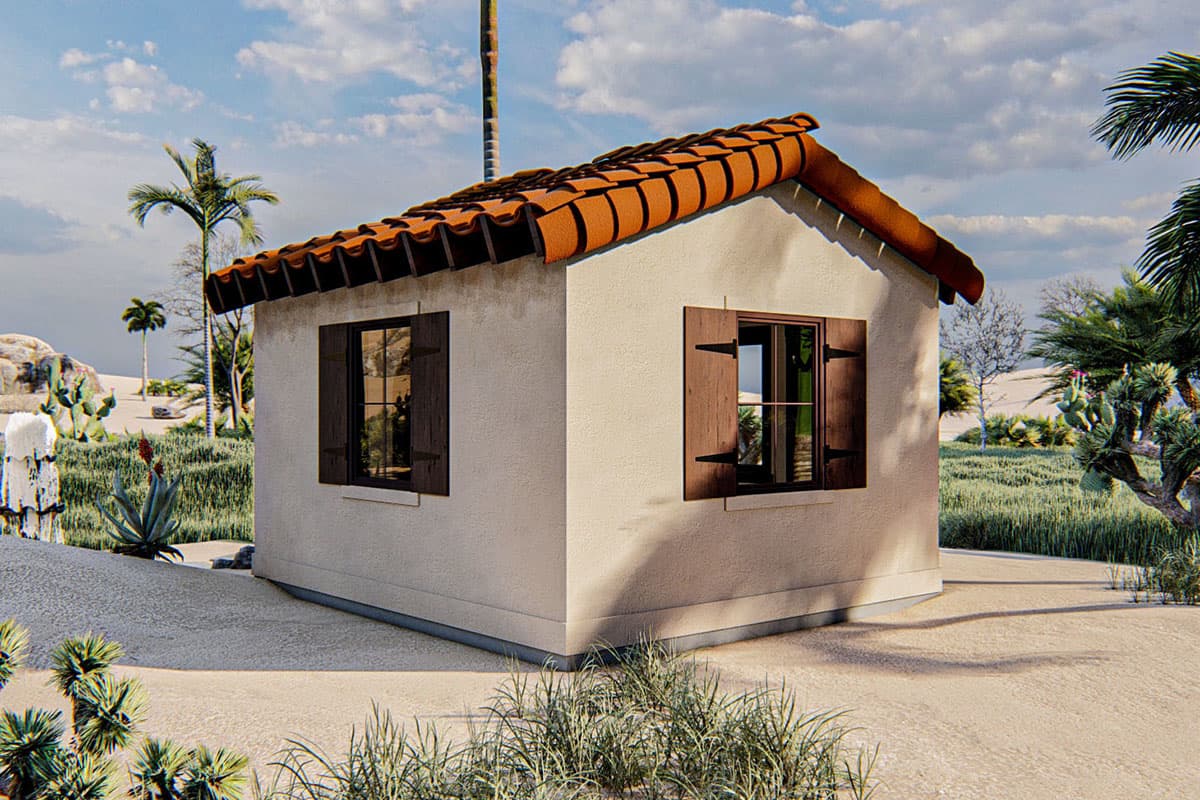

  • The exterior of the backyard office features stucco with a tile roof to give it a distinct Mediterranean look.

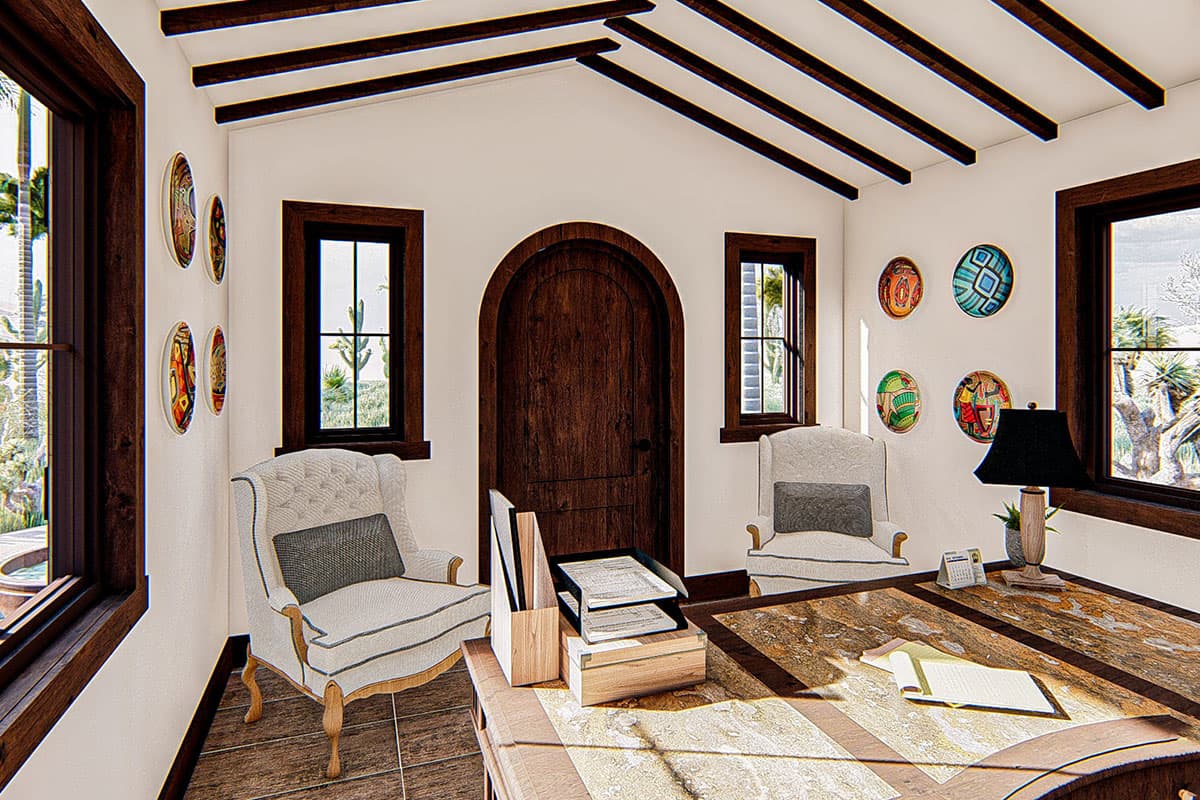

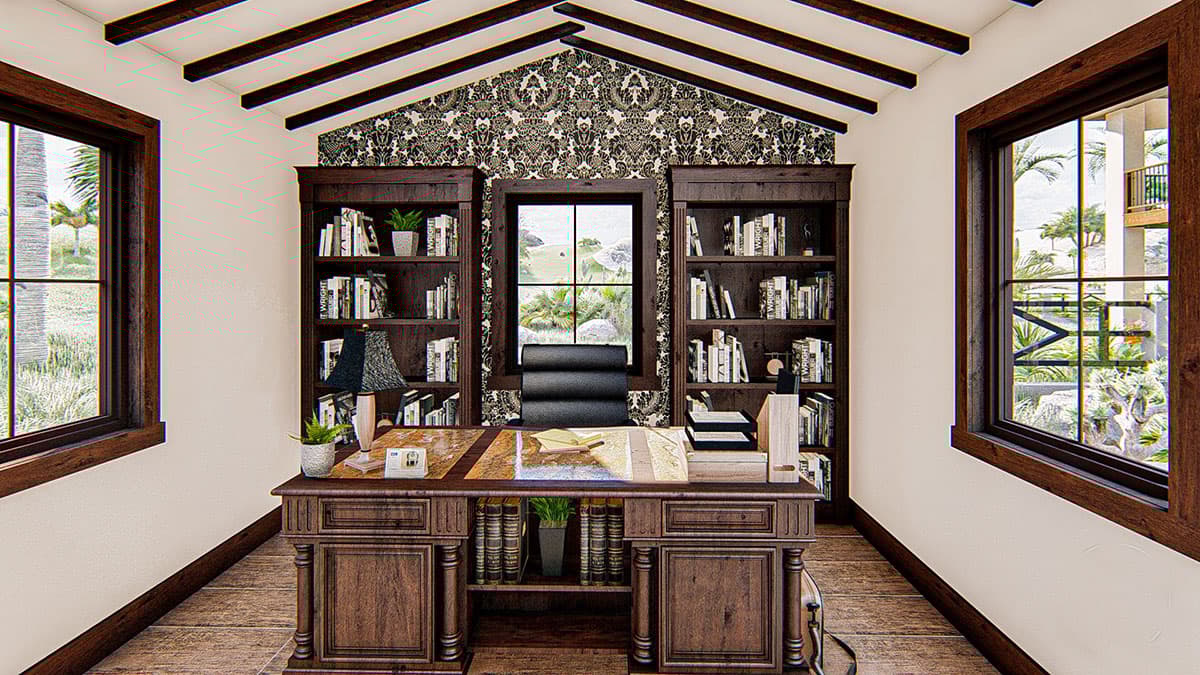

  • Inside, the 9' wall height and cathedral ceiling make this office feel huge.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

168 sq. ft.

1st Floor

168 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

12' 0"

Depth

14' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Architectural Style

Mediterranean

Tuscan

Special Features

Home Office

Plan Collections

Home Office

Home Office Studio

Square Footage Breakdown

Total Heated Area

168 sq. ft.

1st Floor

168 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

12' 0"

Depth

14' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Architectural Style

Mediterranean

Tuscan

Special Features

Home Office

Plan Collections

Home Office

Home Office Studio
