Plan 677033NWL
Mid-Century Modern Cottage - 800 Sq Ft
Heated S.F.
800
Beds
2
Baths
2
Stories
1
Tour
Floor Plan

Plan 677033NWL

Main Level
slide image 0

Plan 677033NWL

1-800-854-7852

1-262-521-4596

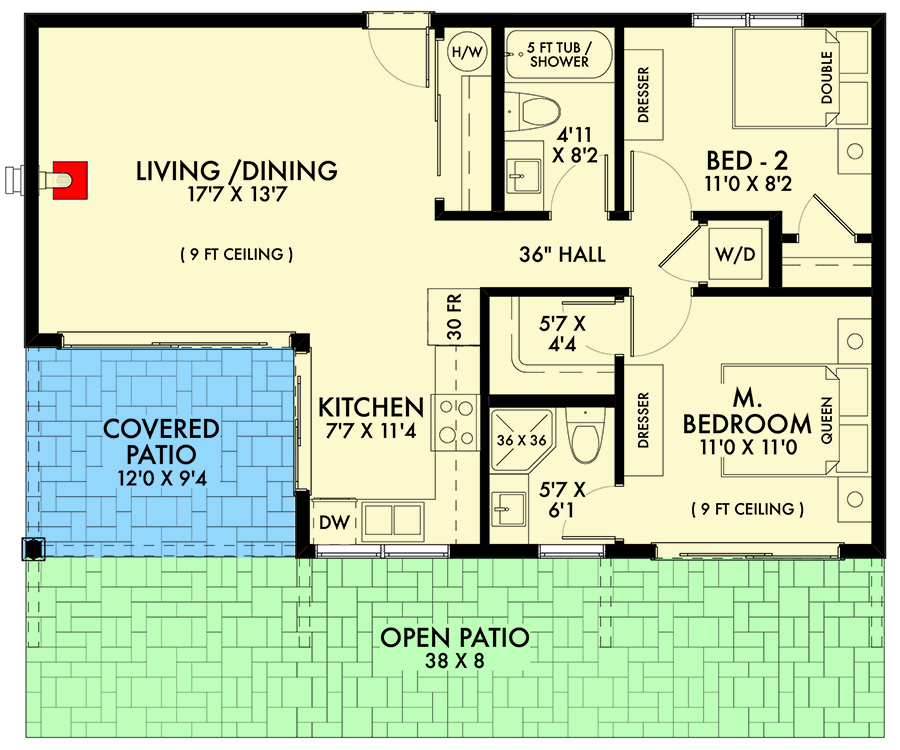

Main Level
floor plan image Main Level
Plan Details

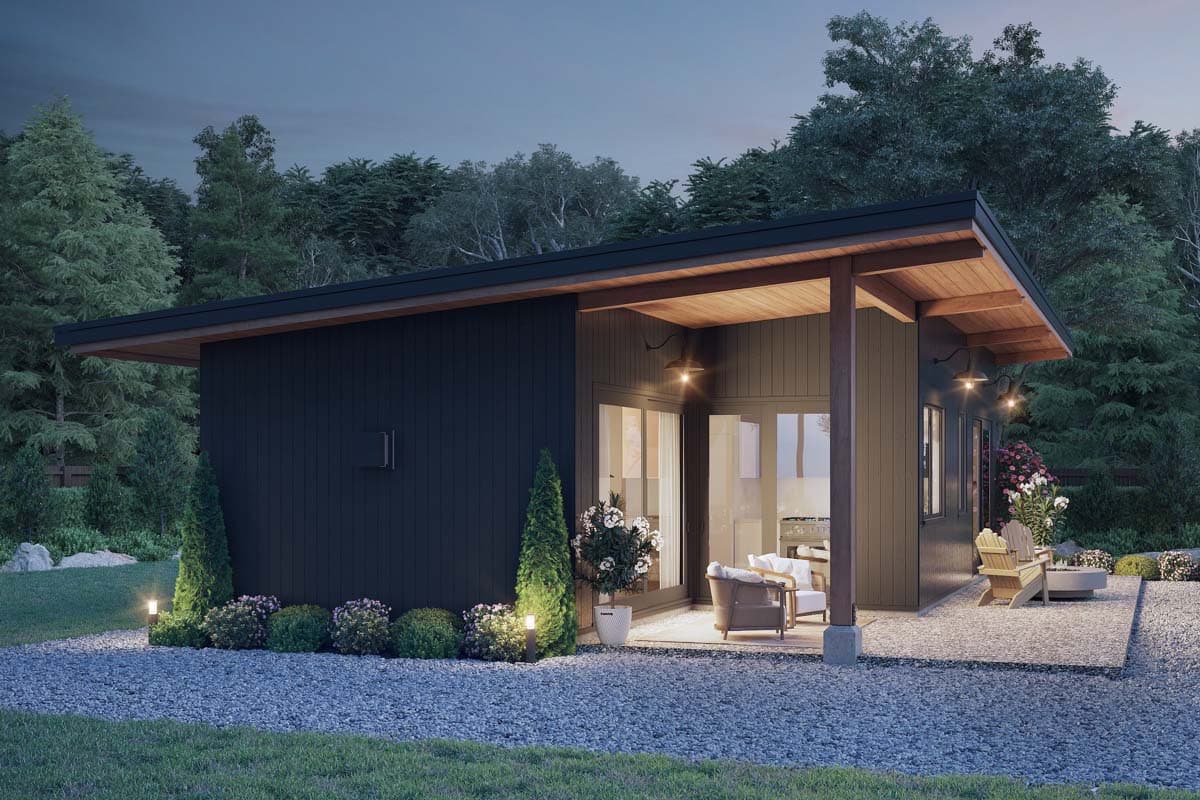

  • This 800 square foot mid-century modern house pan gives you two beds and two baths. Build this as a vacation escape, a rental home, an ADU house plan or a year-round residence.
  • An 8'-deep open patio and a 9'4" deep front porch give you outdoor spaces to enjoy the patio is accessible from the master suite which - along with Bed 2 - is on the right side of the home.

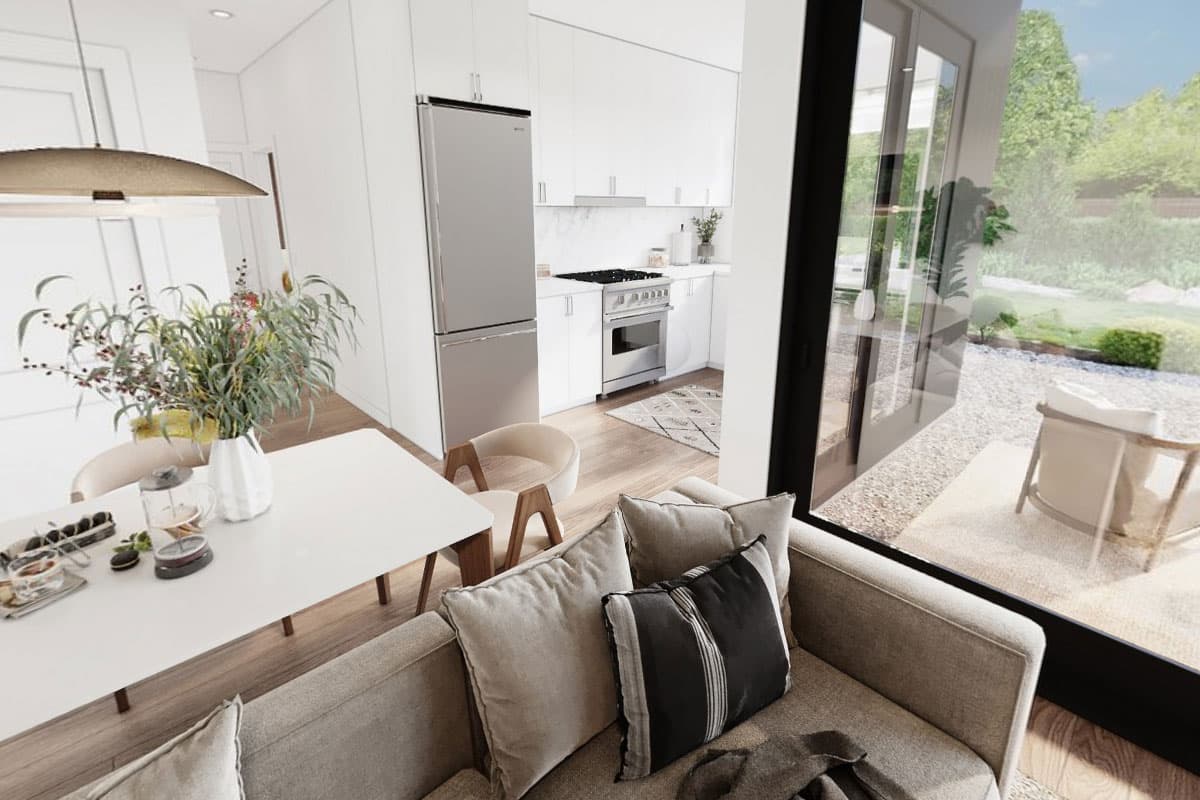

  • The living room and dining room are in a contiguous space and the kitchen is around the corner in an open-but-not-wide-open layout.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related: Get a larger version with house plan 677040NWL (1,232 sq ft)
What's Included
  • General Notes, Perspectives
  • Fully Dimensioned Floor Plans
  • Foundation & Roof Plan

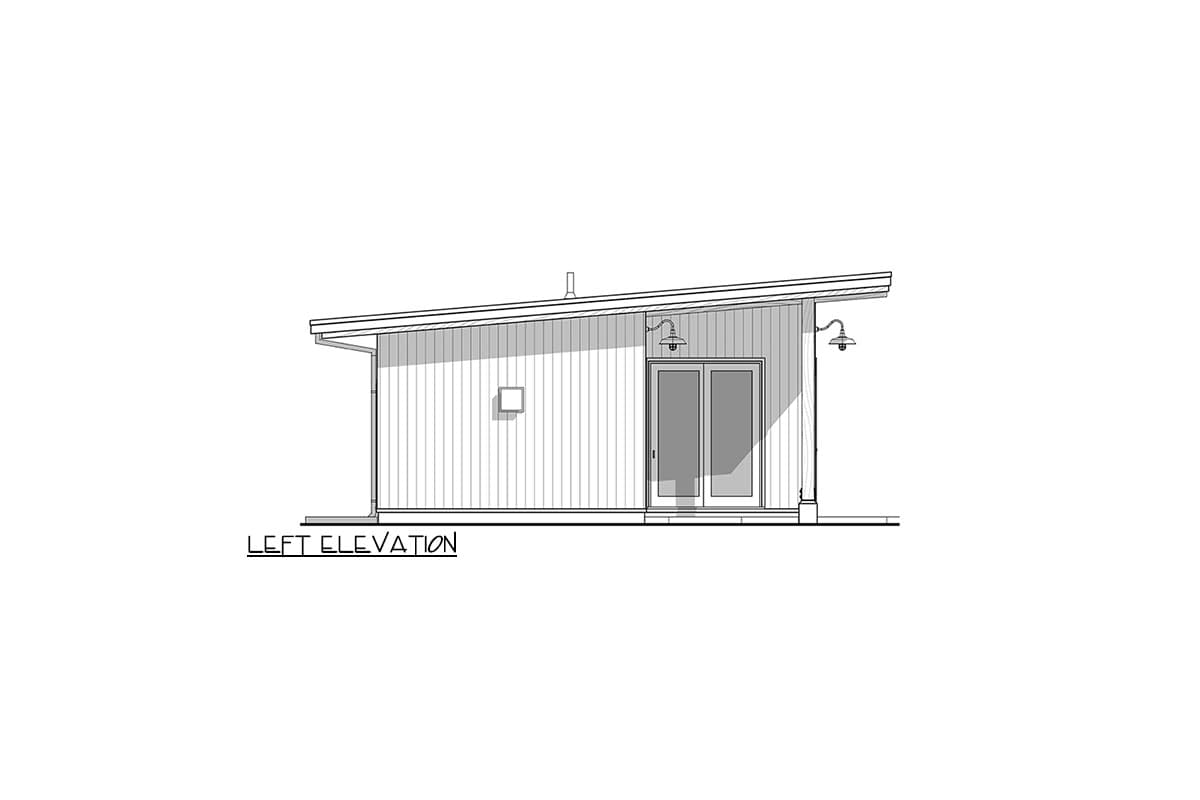

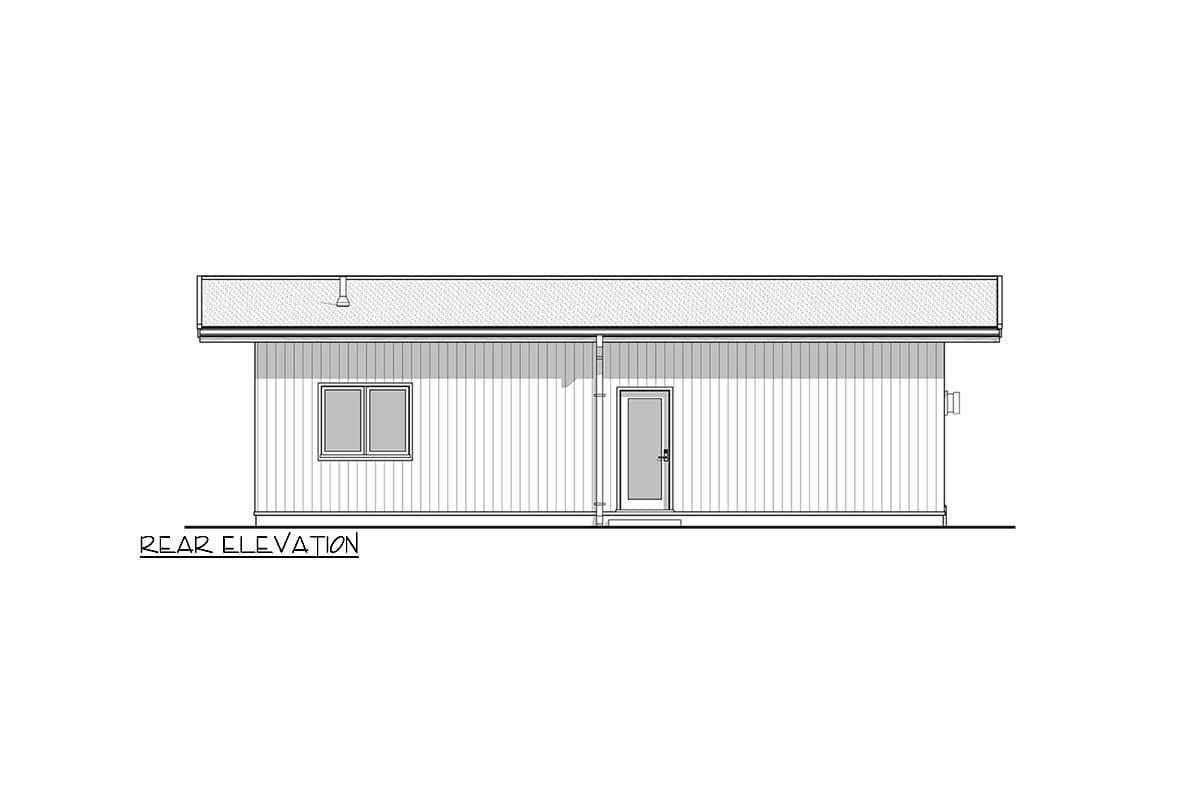

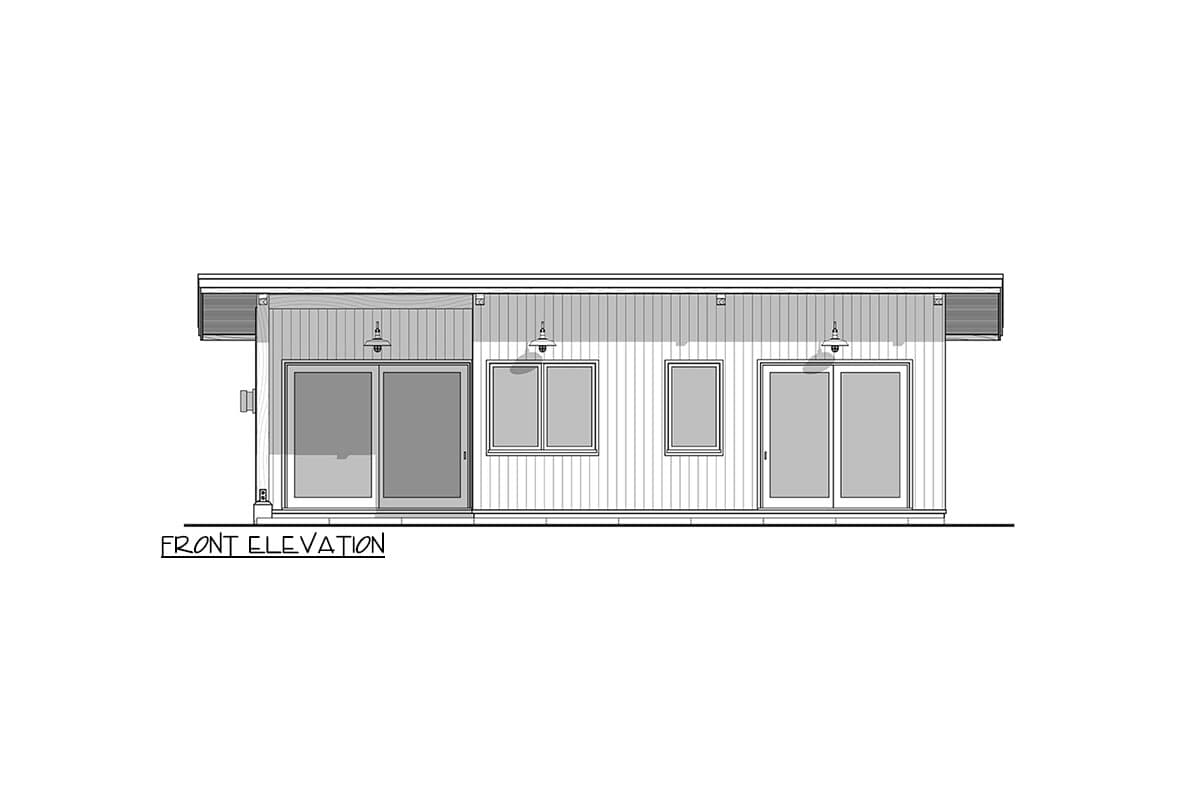

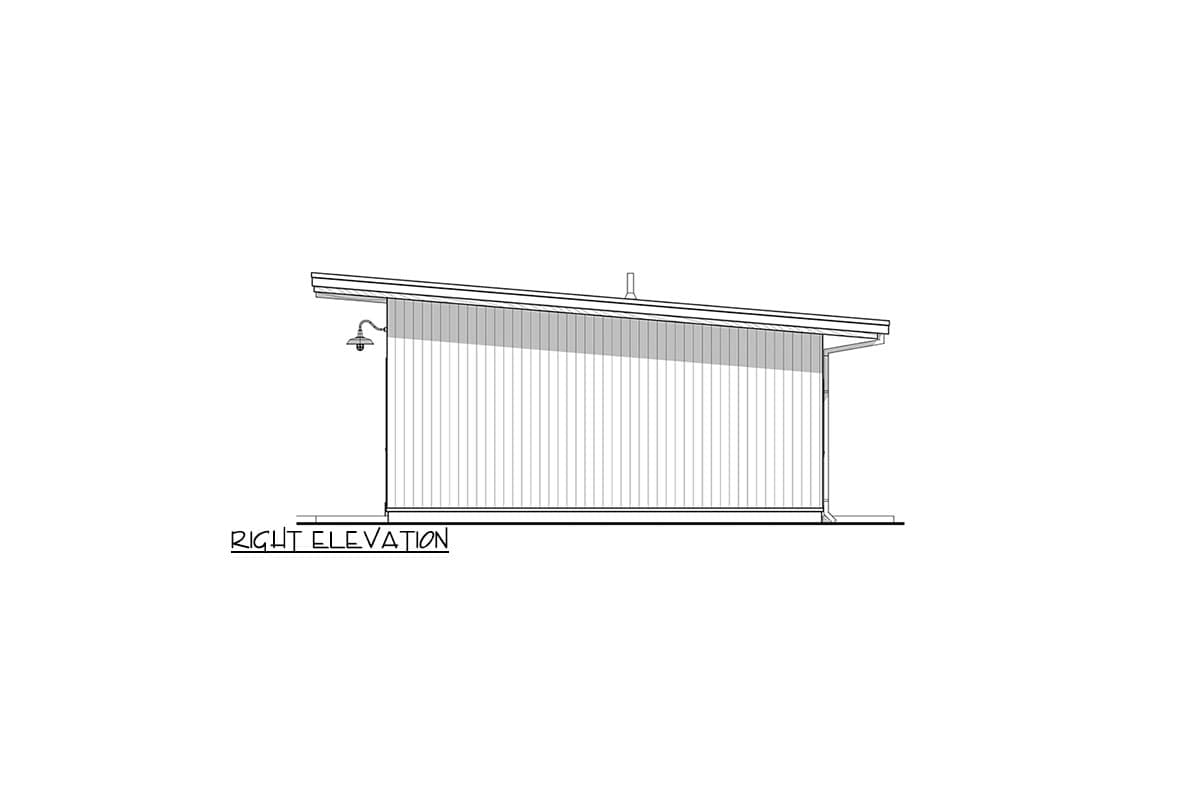

  • Elevations
  • Building & Wall Sections
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

800 sq. ft.

1st Floor

800 sq. ft.

Deck

112 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

24' 0"

Max Ridge Height

12' 9"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

1 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Canadian House Plans

Square Footage Breakdown

Total Heated Area

800 sq. ft.

1st Floor

800 sq. ft.

Deck

112 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

24' 0"

Max Ridge Height

12' 9"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

1 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Canadian House Plans
