Mid-Century Modern Home Plan with Loft and Flex Room
Heated S.F.
2,893
Beds
4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 580025DFT

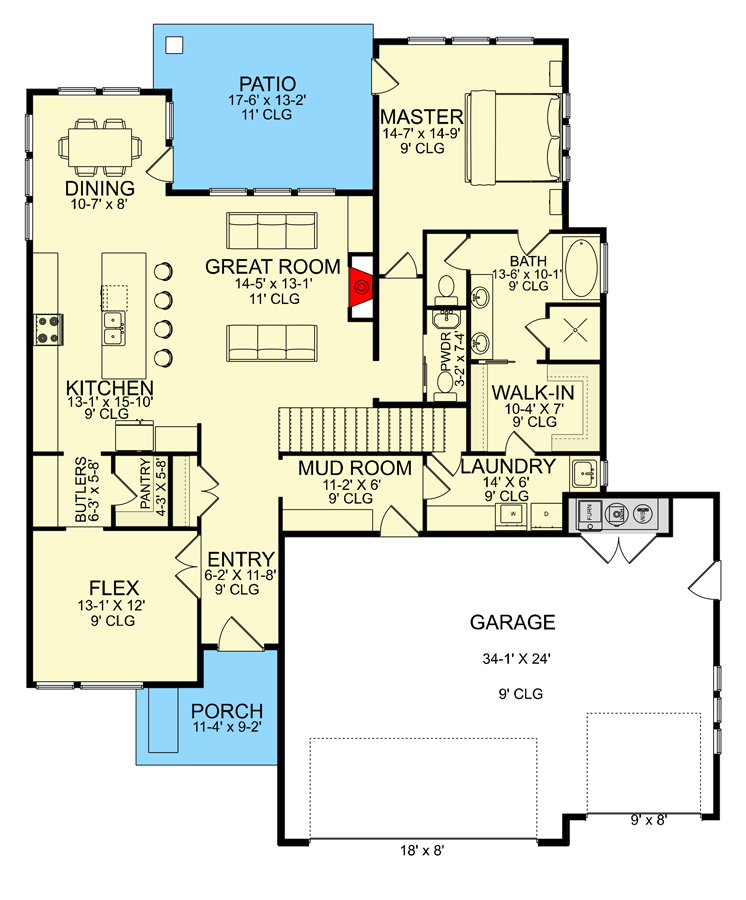

Main Level
slide image 0

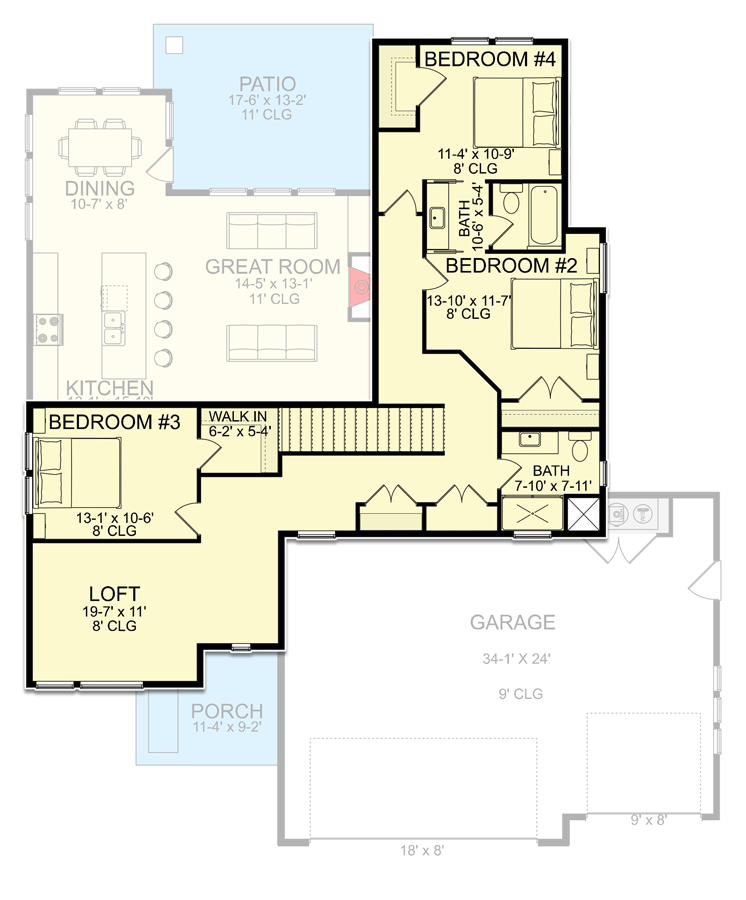

2nd Floor
slide image 1

Plan 580025DFT

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This Mid-Century Modern home plan delivers 4 bedrooms, 3.5 baths, a loft, and flex room; a total of 2,893 square feet of living space.
  • The great room, kitchen, and dining area blend together in order to create a family-friendly environment that overlooks the rear patio.
  • A butler's pantry expands the kitchen's storage space while connecting to the front flex room.
  • Retreat to the master suite for peace and quiet on the main level and enjoy the ensuite with a pass-through walk-in closet that links to the laundry room.
  • Upstairs, three family bedrooms can be found and a loft provides a secondary gathering space; two share a Jack-and-Jill bathroom.
What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details
  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,893 sq. ft.

1st Floor

1,752 sq. ft.

2nd Floor

1,141 sq. ft.

Porch, Front

64 sq. ft.

Covered Patio

193 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

64' 0"

Garage

Type

Attached

Area

871 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

2 on 12

Framing Type

Stick And Truss

Architectural Style

Mid Century Modern

Modern

Northwest

Special Features

Butler Walk-in Pantry

Flex Room

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

2,893 sq. ft.

1st Floor

1,752 sq. ft.

2nd Floor

1,141 sq. ft.

Porch, Front

64 sq. ft.

Covered Patio

193 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

64' 0"

Garage

Type

Attached

Area

871 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

2 on 12

Framing Type

Stick And Truss

Architectural Style

Mid Century Modern

Modern

Northwest

Special Features

Butler Walk-in Pantry

Flex Room

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office
