Plan 506039BRY
Modern ADU Cottage with 1 Bedroom - 739 Sq Ft
Heated S.F.
739
Beds
1
Baths
1.5
Stories
1
Floor Plan

Plan 506039BRY

Main Level
slide image 0

Plan 506039BRY

1-800-854-7852

1-262-521-4596

Main Level

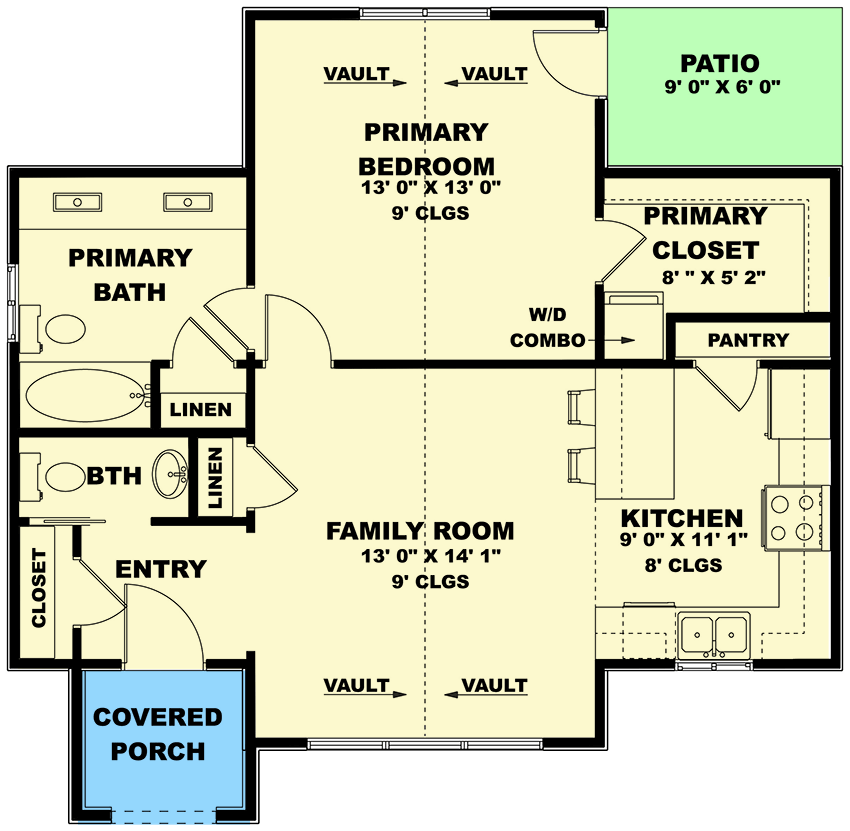

floor plan image Main Level
Plan Details
  • This ADU house plan offers you 739 square feet of heated living space with 1 bed and 1.5 bath.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Index Page
  • Notes
  • Foundation Plan
  • Main Floor Plan
  • Front and Rear Elevations
  • Left and Right Elevations
  • Bird’s Eye Roof Plan
  • Floor Joist Layout
  • Main Floor Electrical Plan
  • Basement Electrical Plan (if applicable)
  • Cross Sections
  • Details Page
View Sample Plan
What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

739 sq. ft.

1st Floor

739 sq. ft.

Porch, Front

45 sq. ft.

Porch, Rear

61 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

31' 7"

Depth

30' 10"

Max Ridge Height

18' 11"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick Or Truss

Architectural Style

Cottage

Country

Modern

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

739 sq. ft.

1st Floor

739 sq. ft.

Porch, Front

45 sq. ft.

Porch, Rear

61 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

31' 7"

Depth

30' 10"

Max Ridge Height

18' 11"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick Or Truss

Architectural Style

Cottage

Country

Modern

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU
