Plan 400007FTY

Exclusive

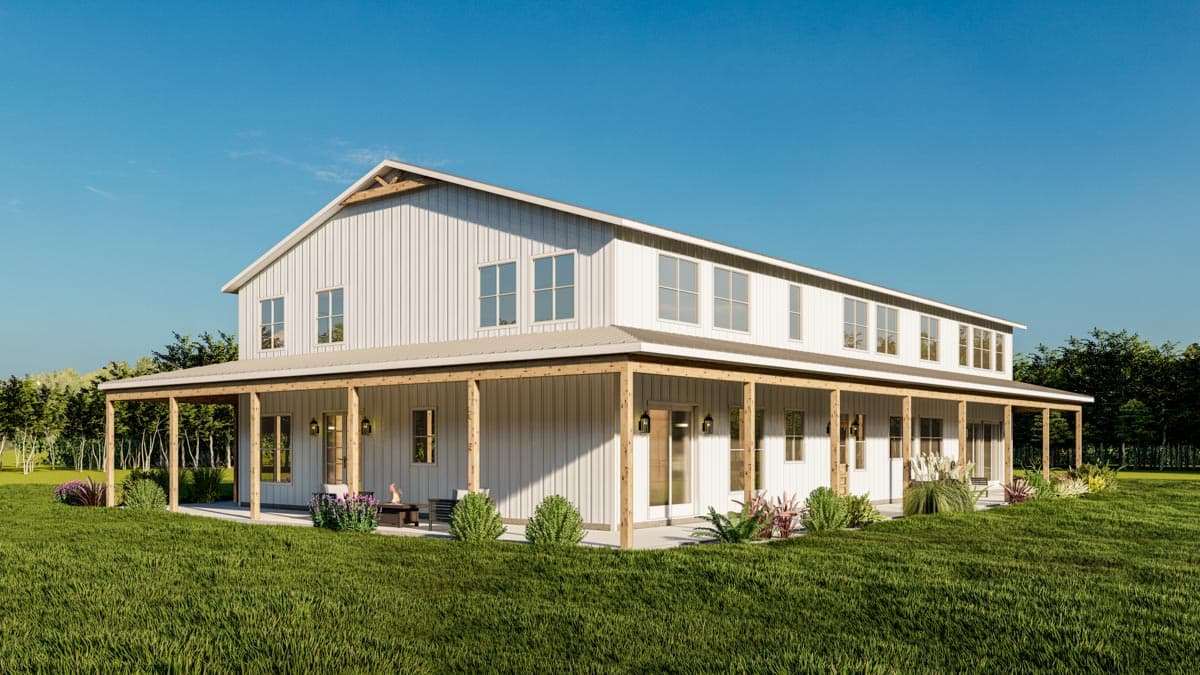

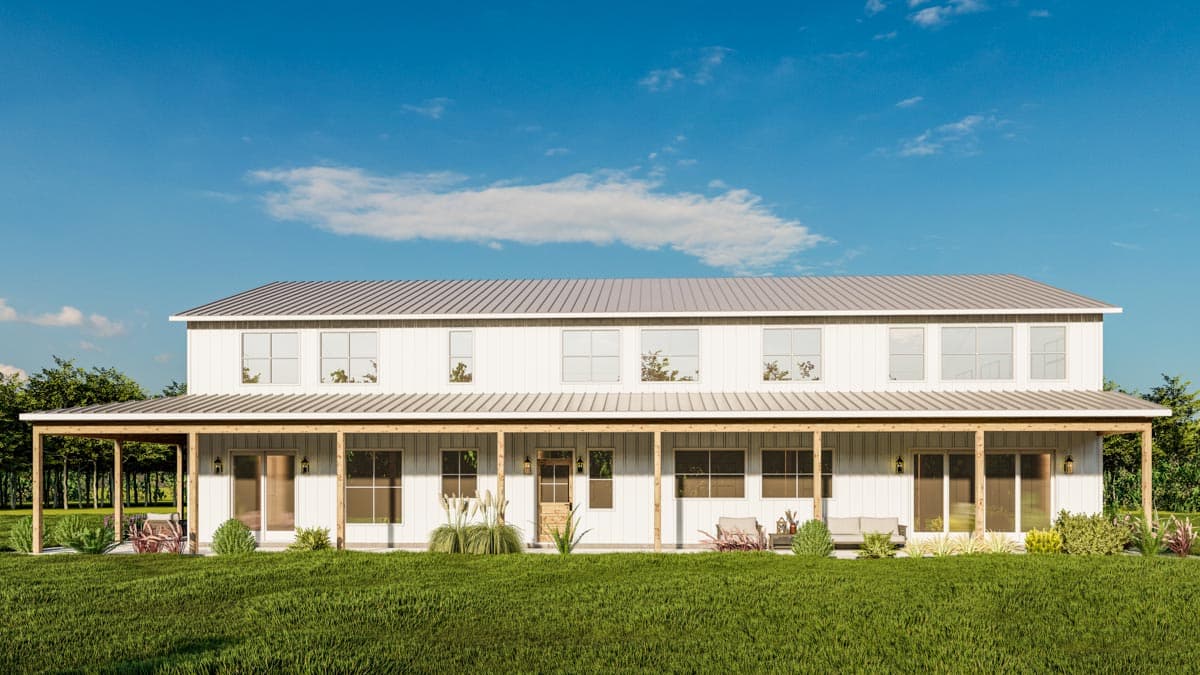

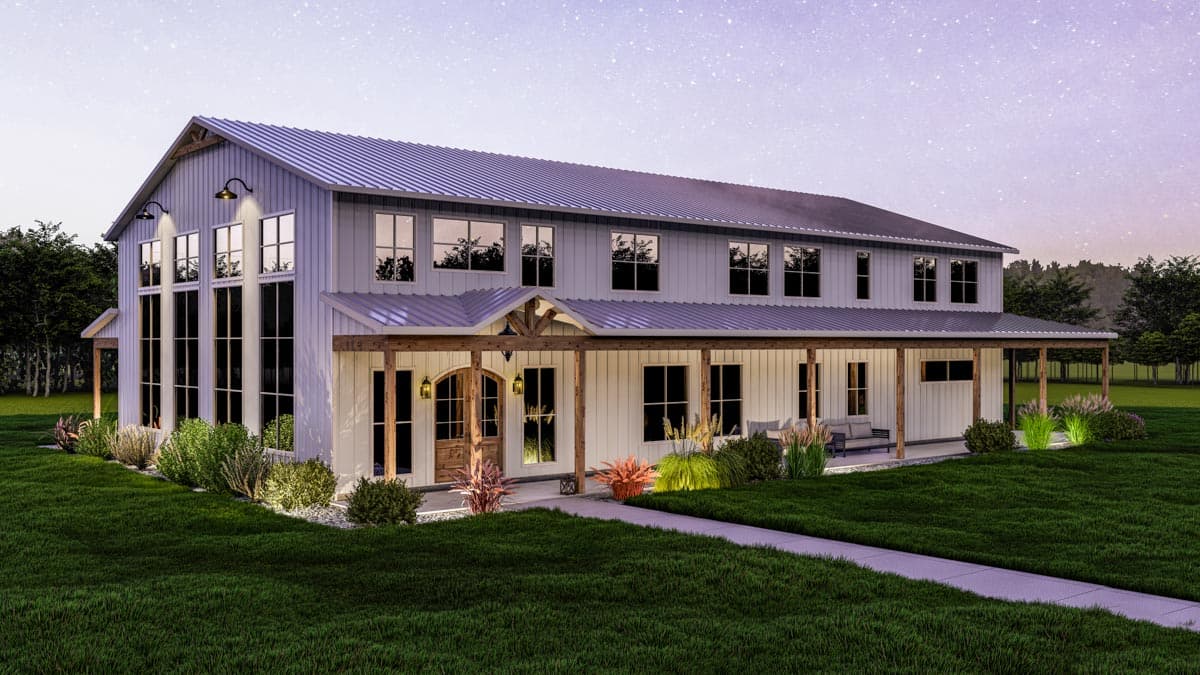

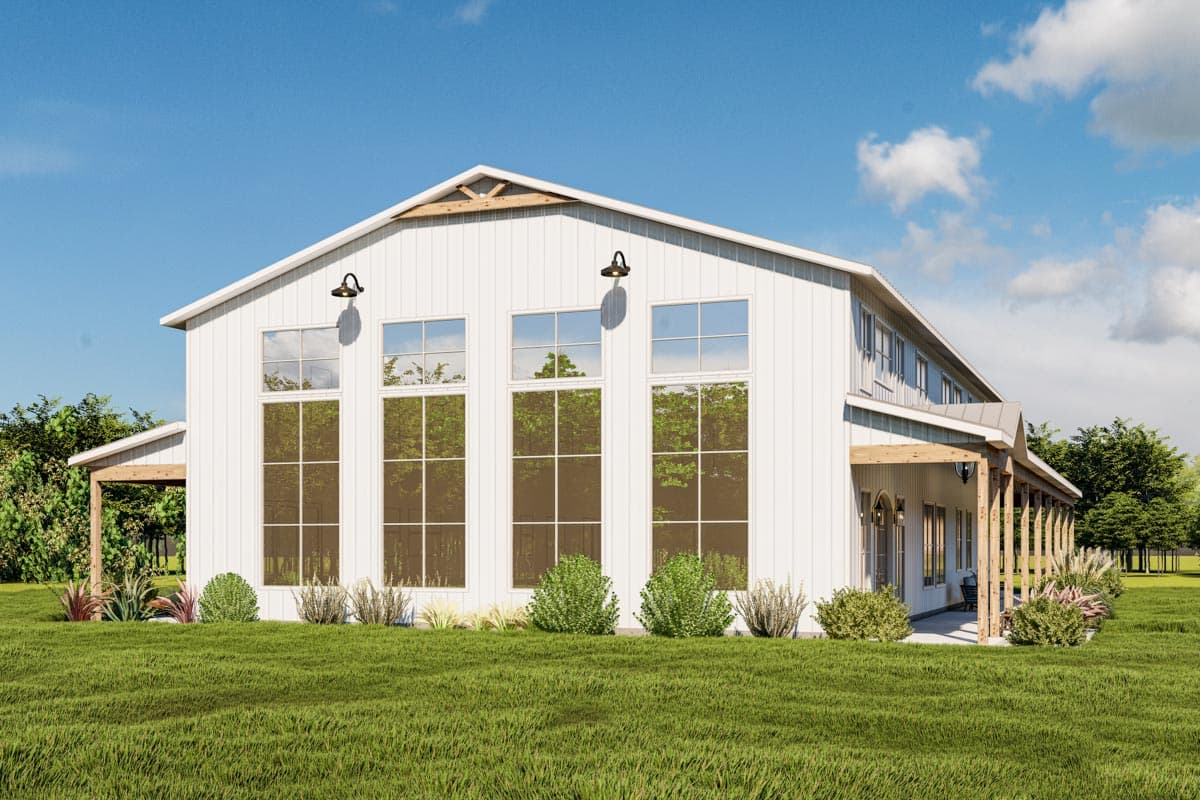

Modern Barndominium Plan with Wraparound Porch and Loft - 6,169 Sq Ft
Heated S.F.
6,169
Beds
6
Baths
4.5+
Stories
2
Floor Plan

Plan 400007FTY

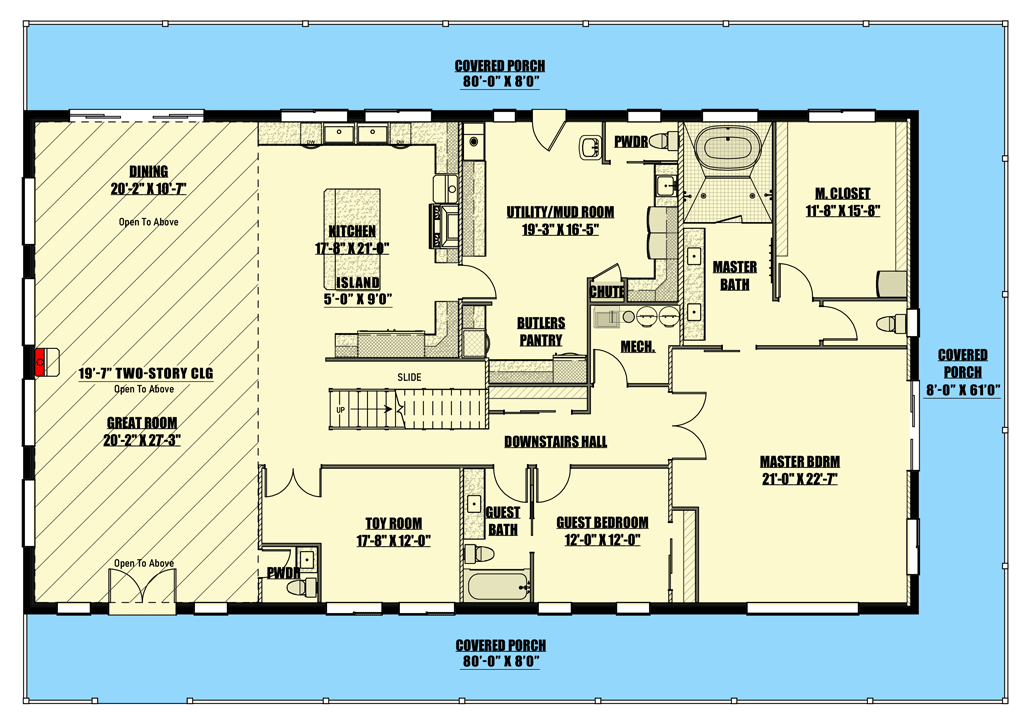

Main Level
slide image 0

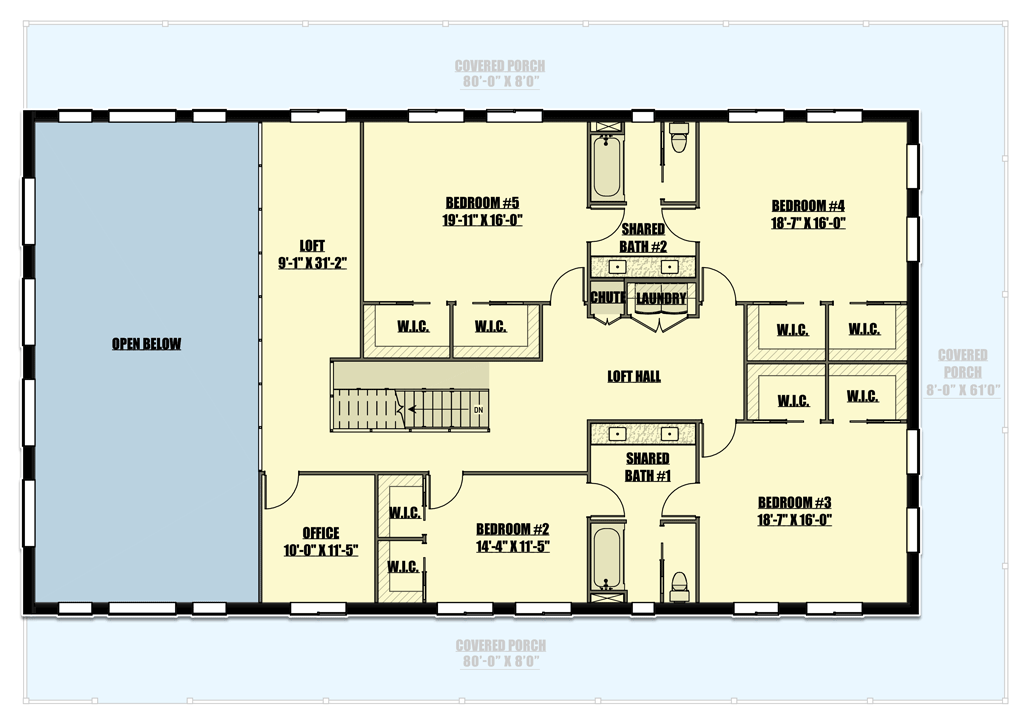

2nd Floor
slide image 1

Plan 400007FTY

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

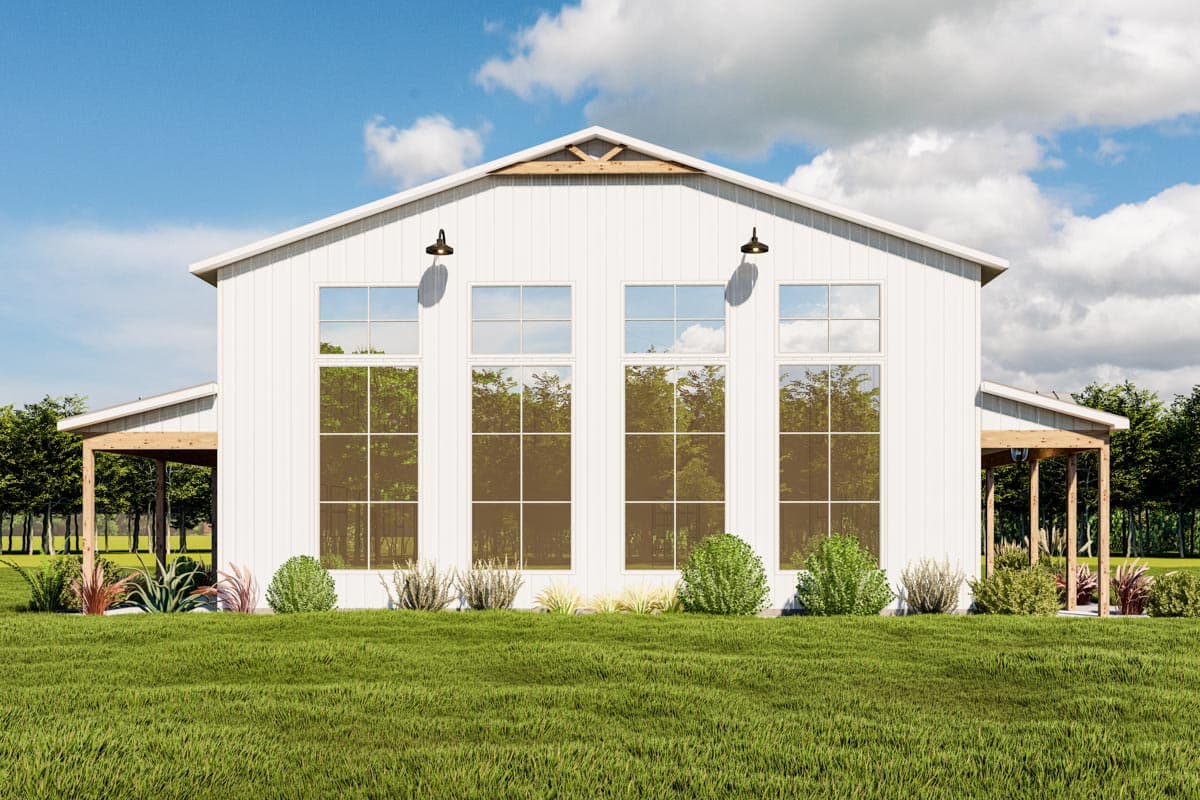

  • This spacious floor plan delivers over 6,100 square feet of living space spread across two floors with a Barndominium-style exterior. This design is exclusive to Architectural Designs and is available in 2x6 exterior walls as an upgrade.

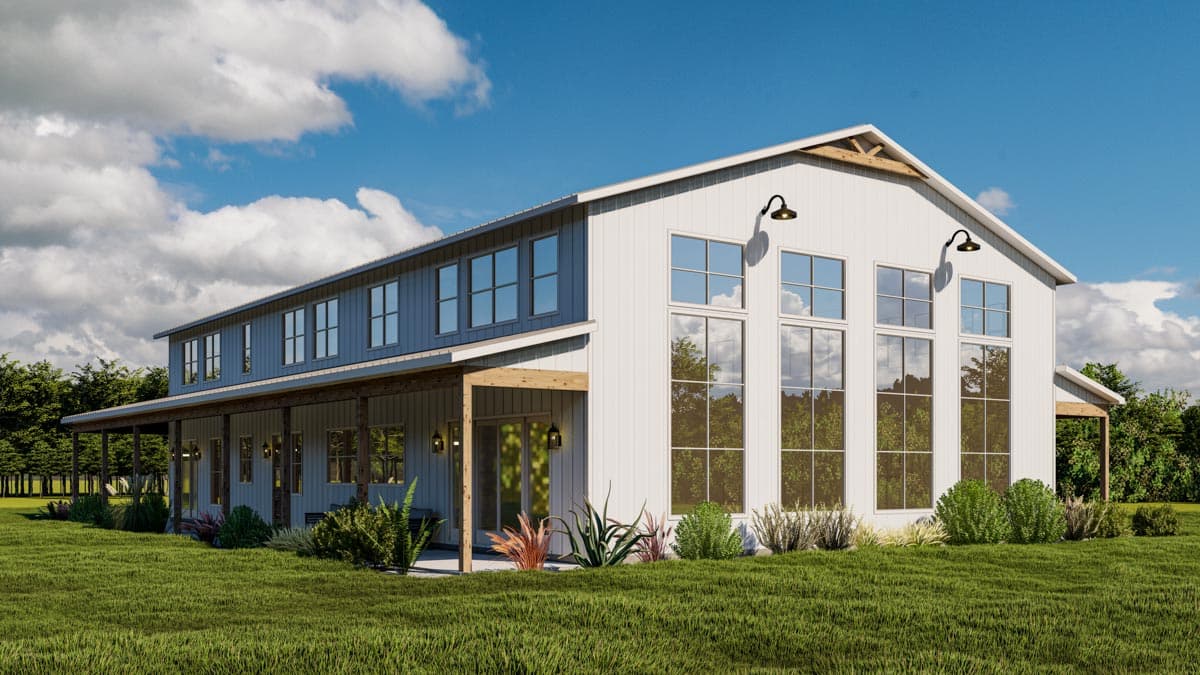

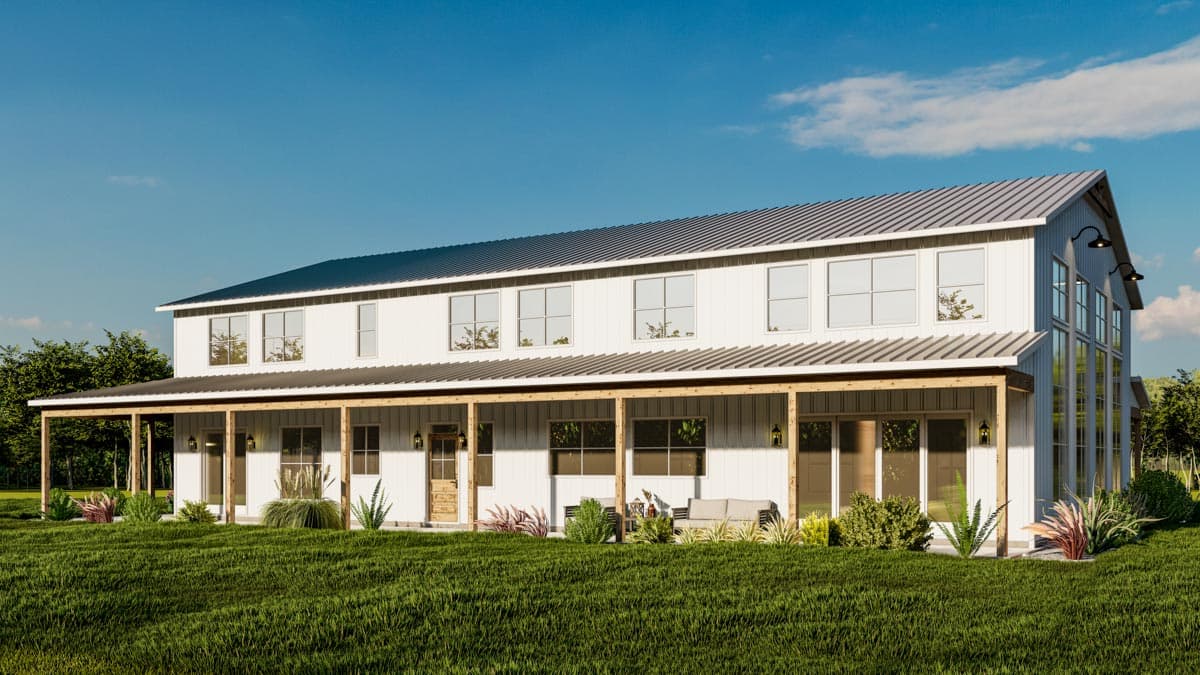

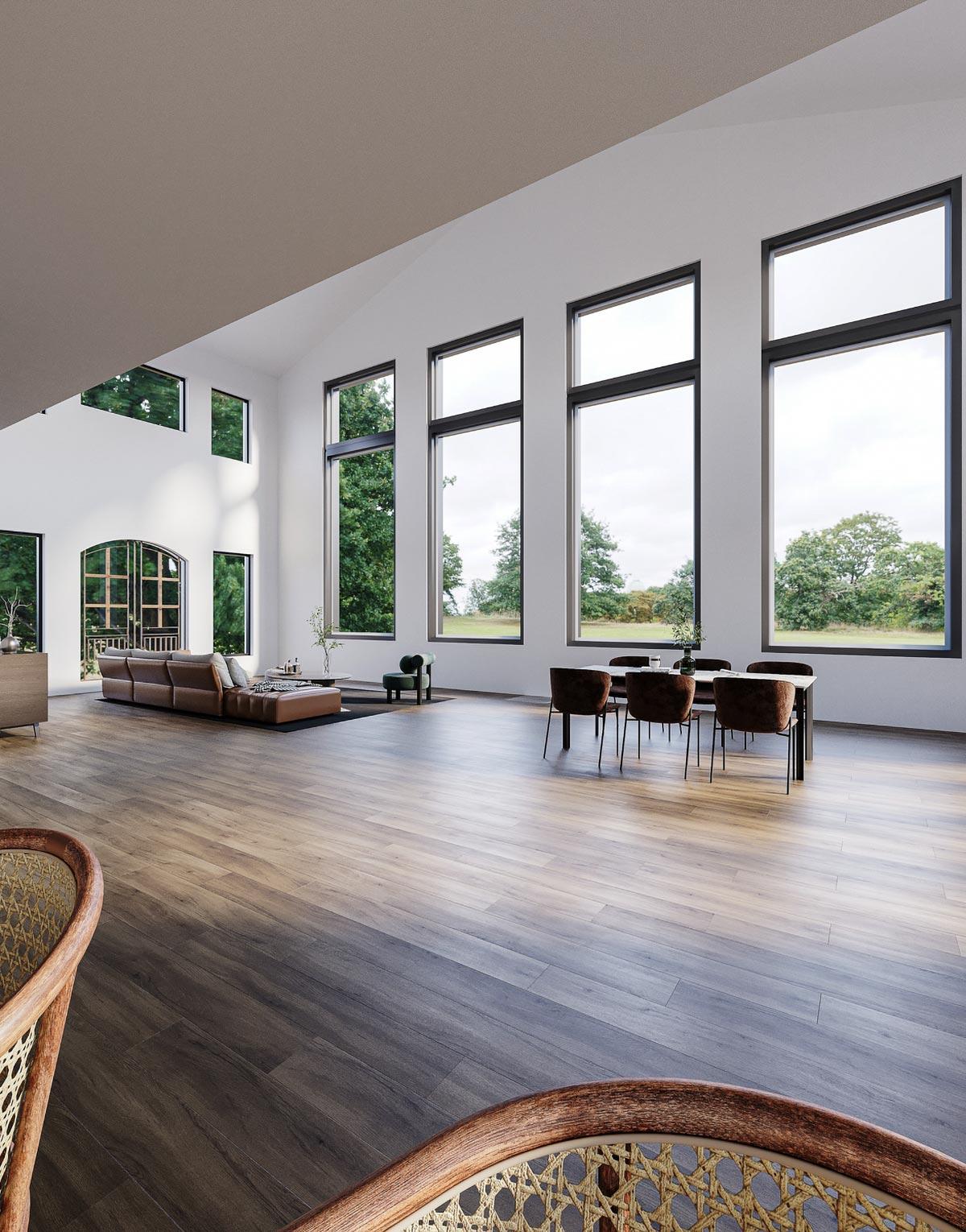

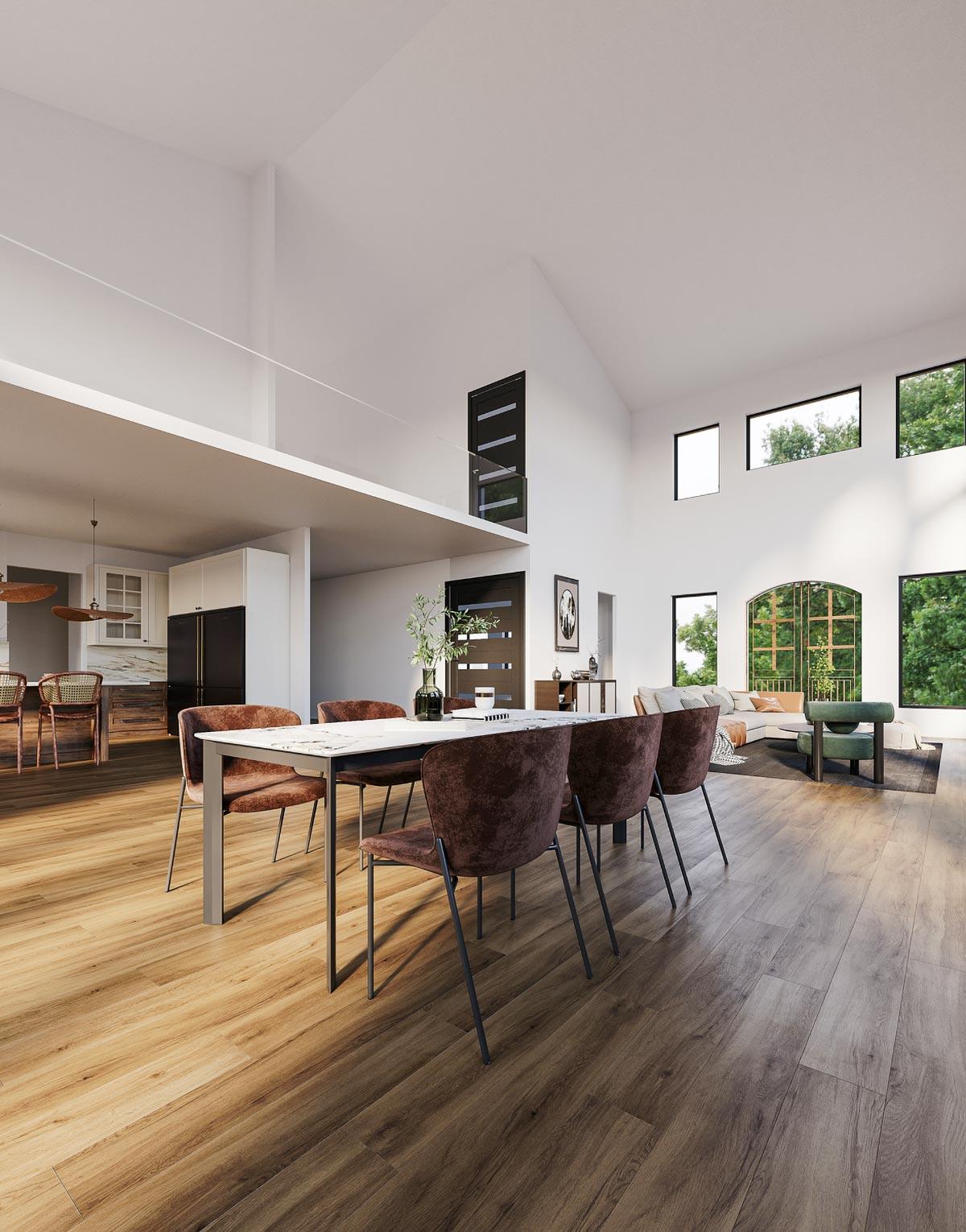

  • An 8'-deep, covered porch spans three sides of the home to make the most of outdoor living, while two-story ceilings above the great room and dining area create a spacious interior for entertaining friends and family.

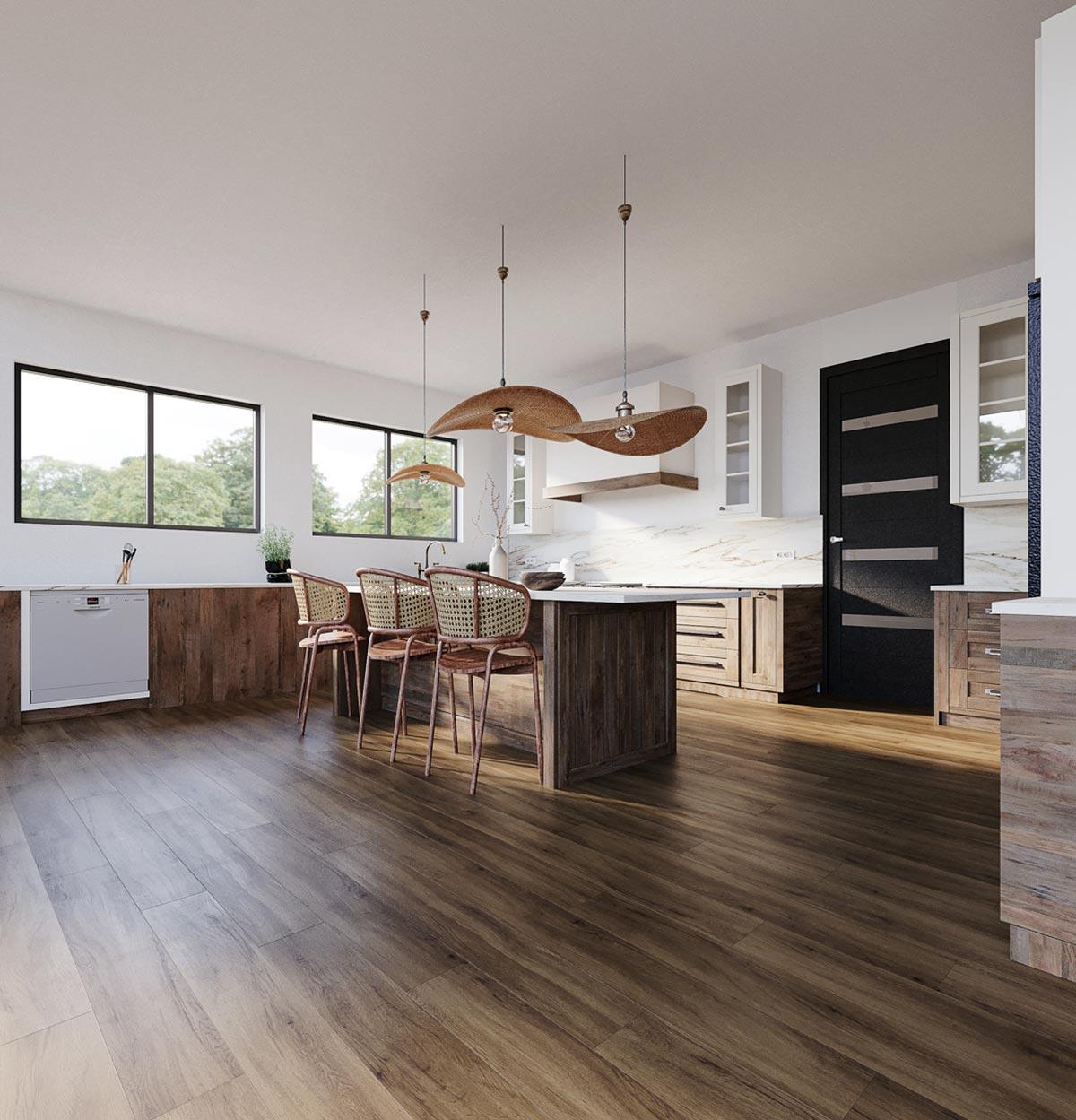

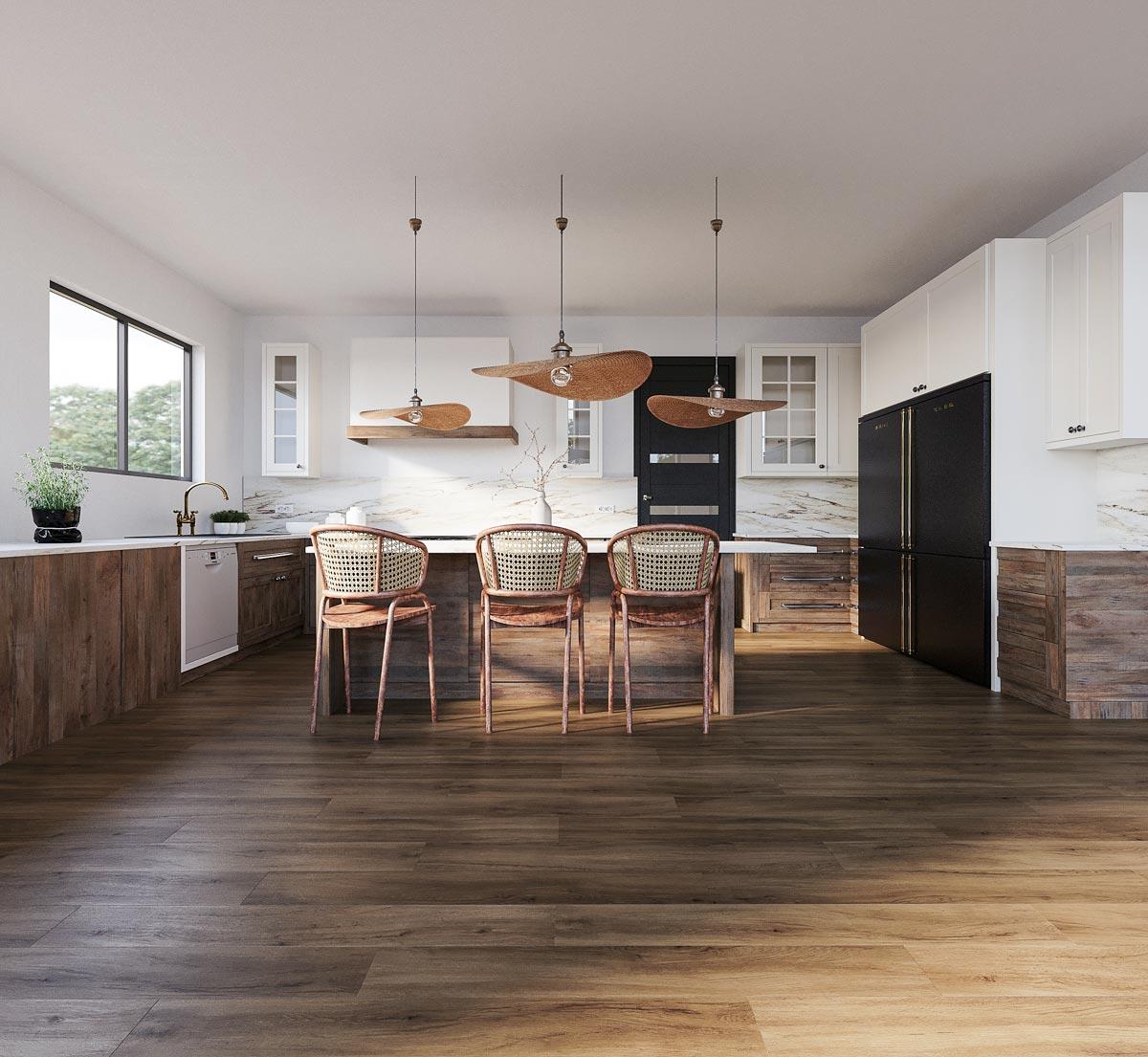

  • The gourmet kitchen provides plenty of workspace and a large range with an adjacent utility area that combines the pantry, laundry, and mudroom into one convenient space.

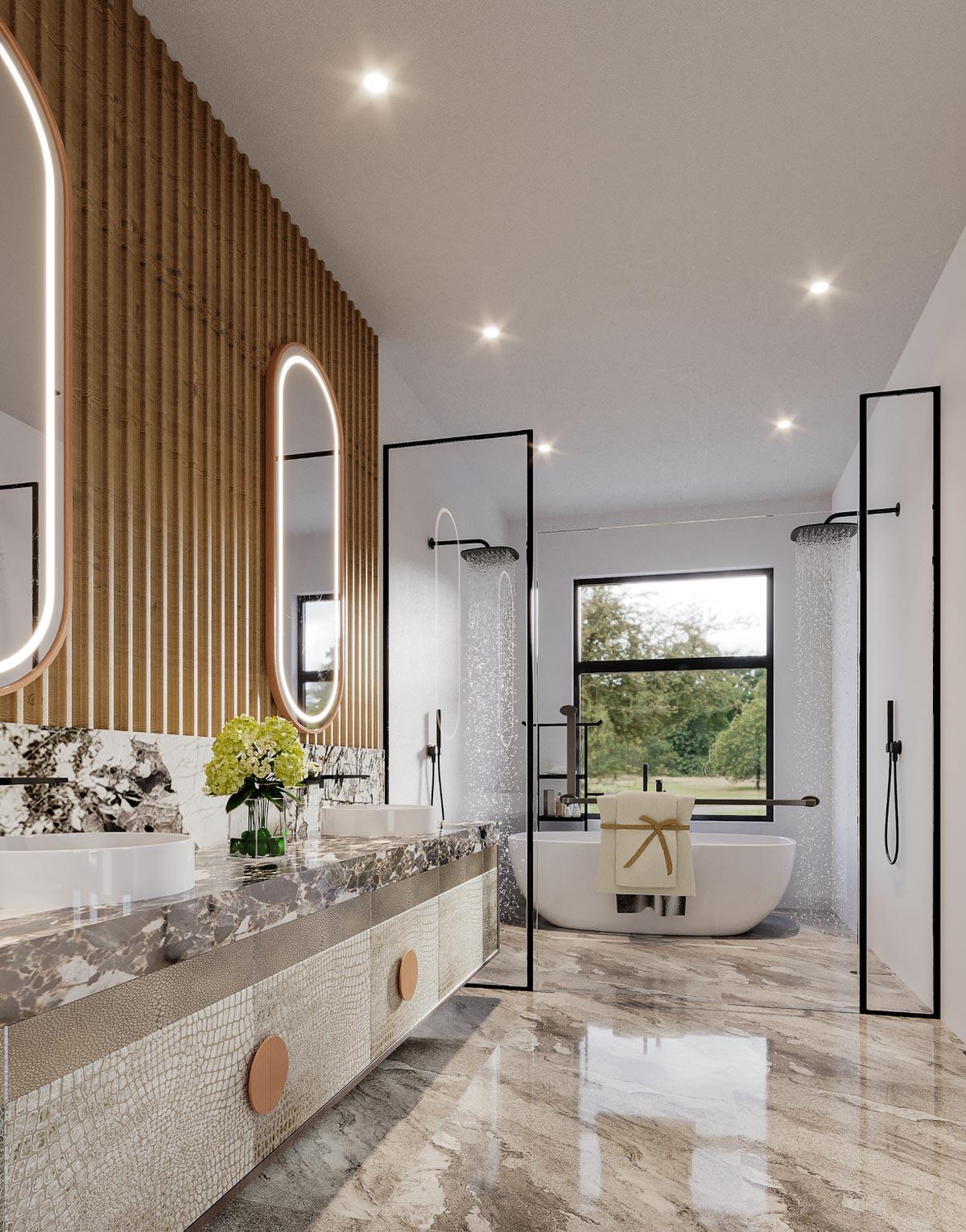

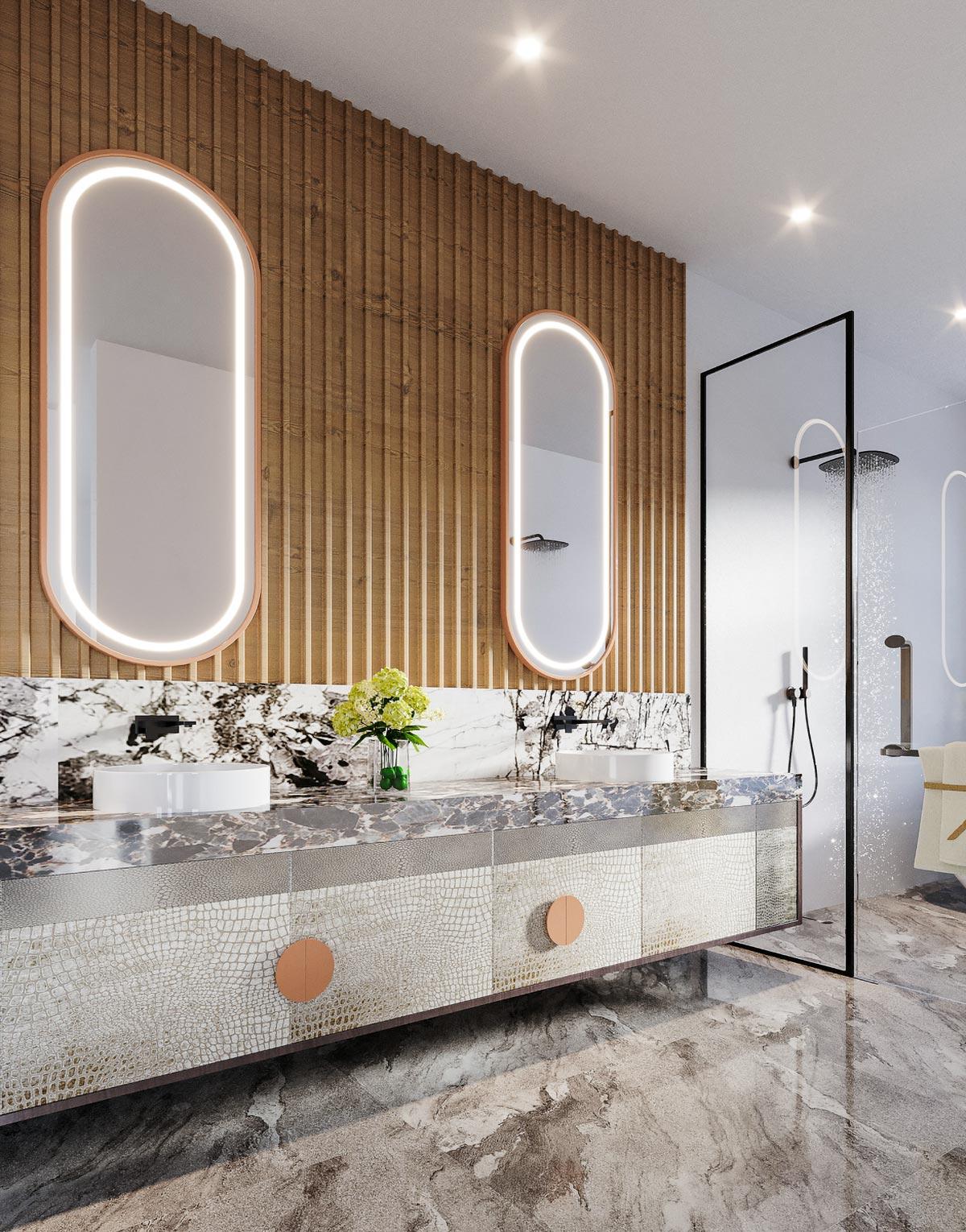

  • The master bedroom is comfortably located on the main level with a deluxe wet room in the ensuite. A guest bedroom and toy room complete the first floor.
  • Each of the four bedrooms upstairs include two walk-in closets and they share a Jack-and-Jill bath. An office can also be found for the work-at-home resident or as a homework station for kids.
What's Included

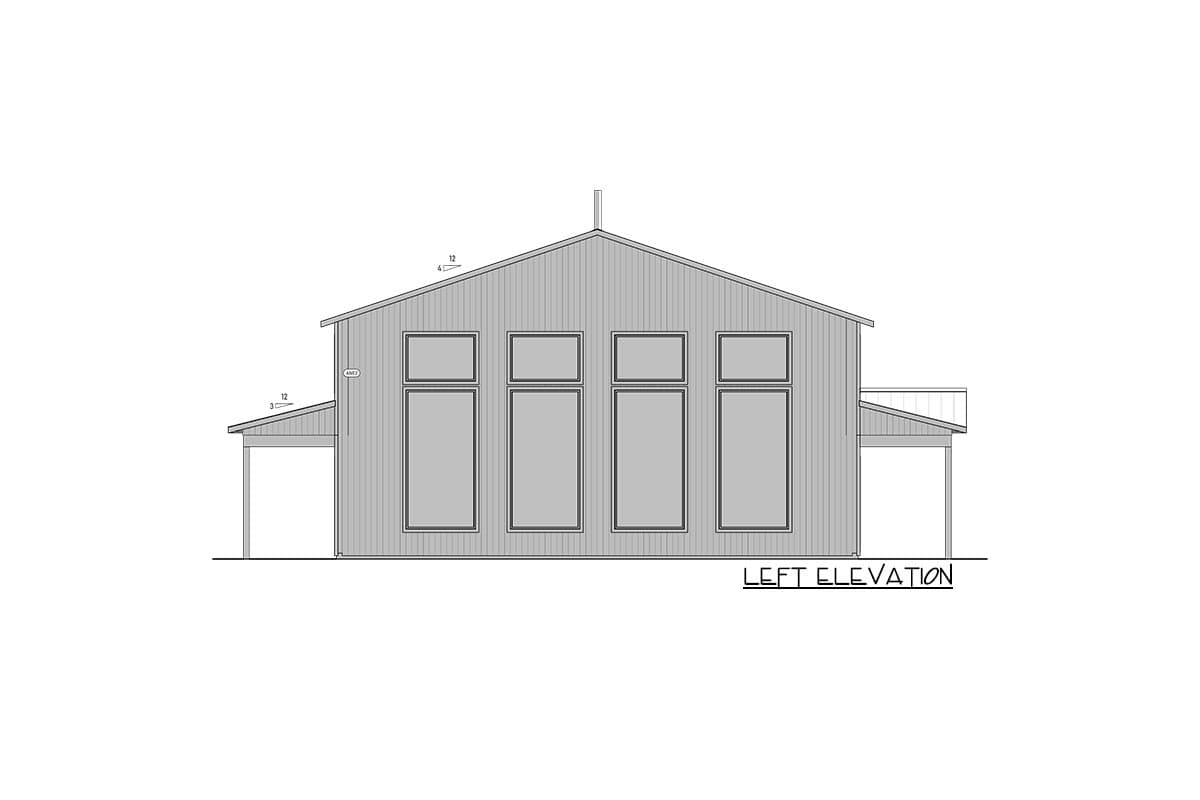

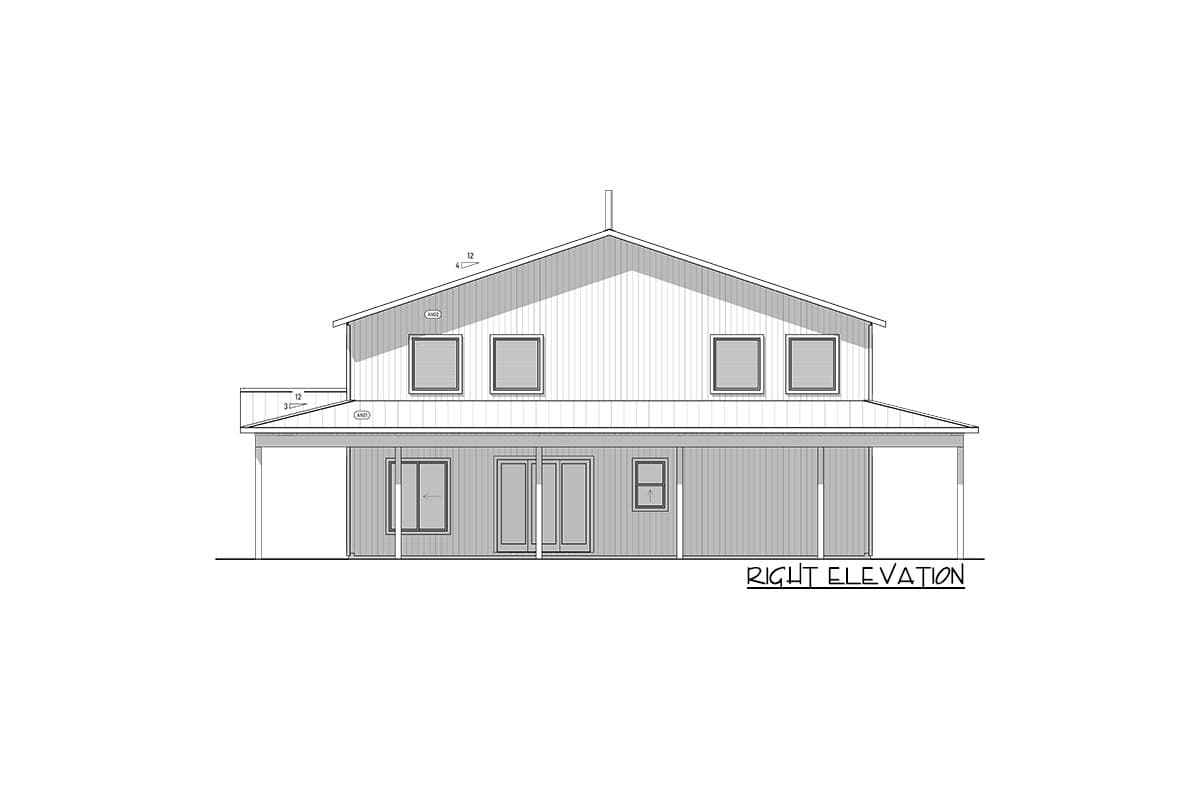

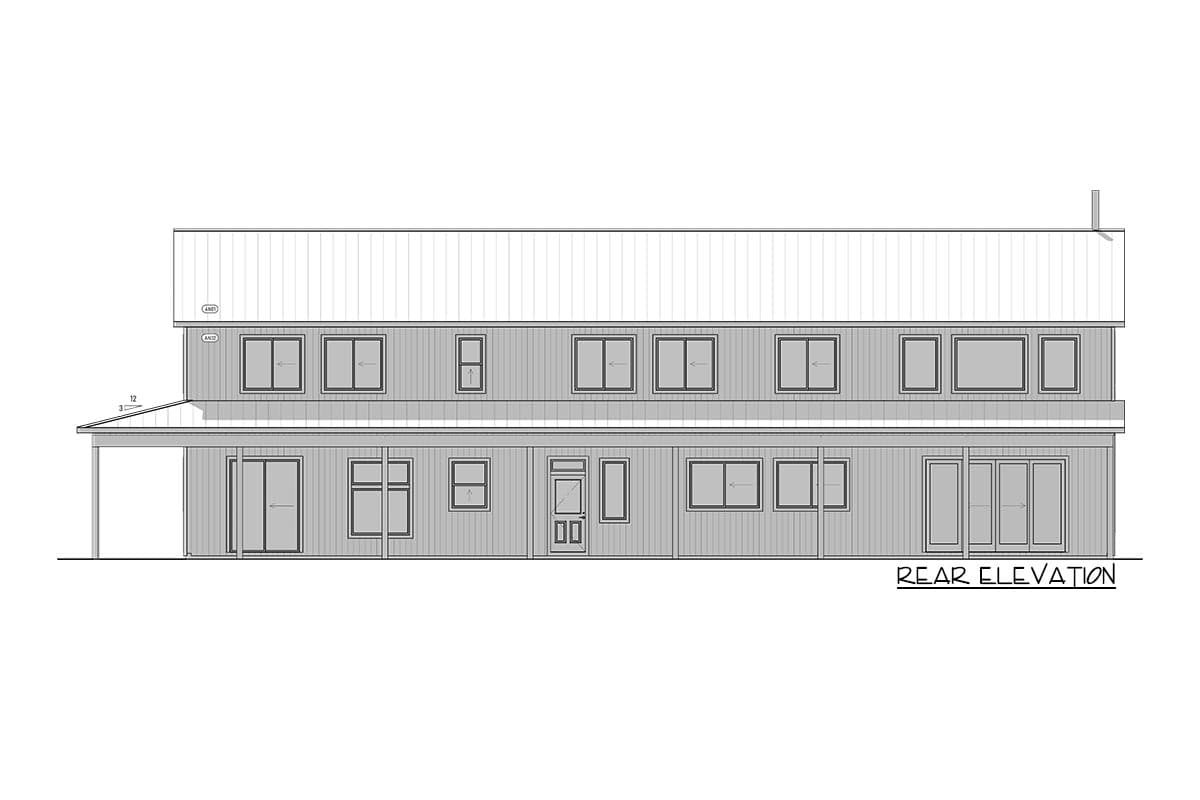

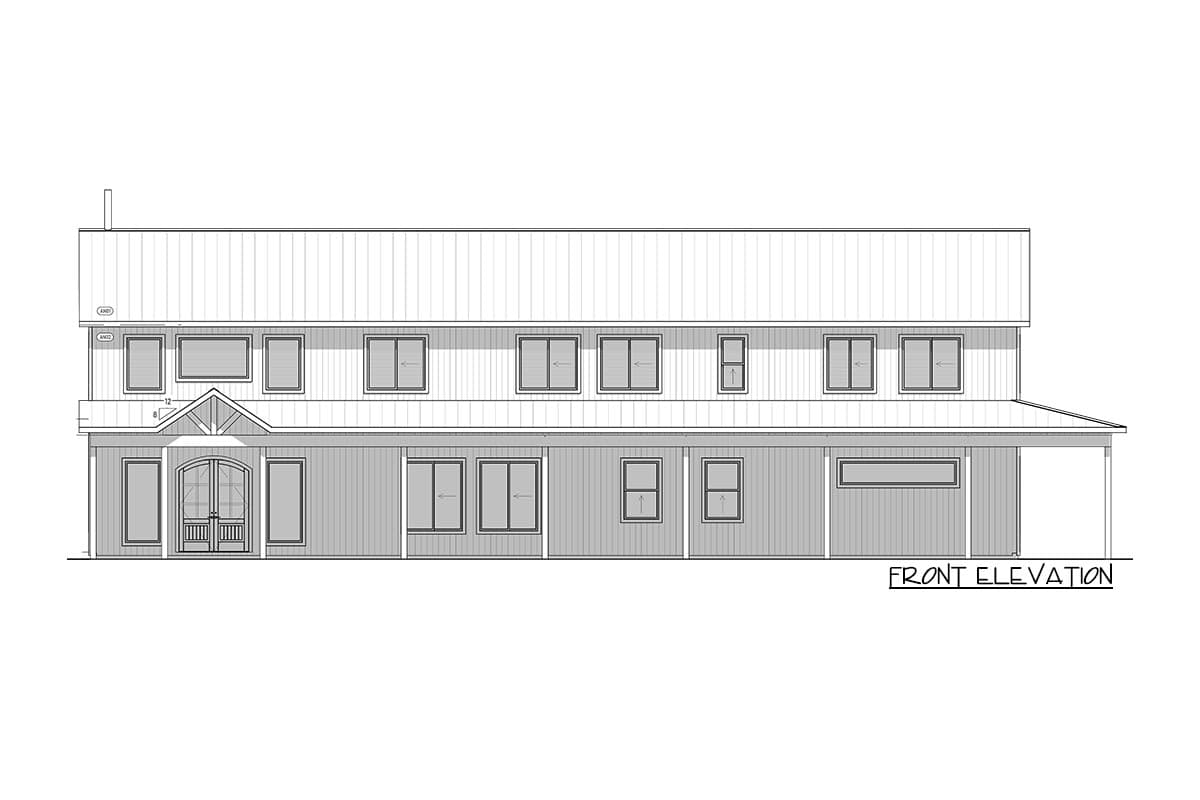

  • Building elevations
  • Detailed floorplan
  • Window and Door schedules
  • Roof plan
  • Electrical Plan
  • Standard and typical details
  • General notes and specifications
  • Foundation Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

6,169 sq. ft.

1st Floor

3,600 sq. ft.

2nd Floor

2,569 sq. ft.

Porch, Combined

1,768 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab, Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 0"

Depth

61' 0"

Max Ridge Height

27' 10"

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

4 on 12

Framing Type

Steel

Architectural Style

Barndominium

Country

Rustic

Special Features

Home Office

Jack & Jill Bath

Laundry - Main Level

Loft

Mudroom

Two Story Great Room

Plan Collections
