Plan 68807VR
Modern Carriage House with Balcony
Heated S.F.
430
Beds
0
Baths
1
Stories
2
Cars
1
Floor Plan

Plan 68807VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 68807VR

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • A shed-style roof with deep overhangs caps this Modern Carriage House plan, while a blend of vertical and horizontal siding materials offer a fresh exterior look.
  • Discover a single garage bay on the lower level with storage space tucked near the stairwell.
  • Two man doors provide easy access to the garage or entry that leads to the second level.

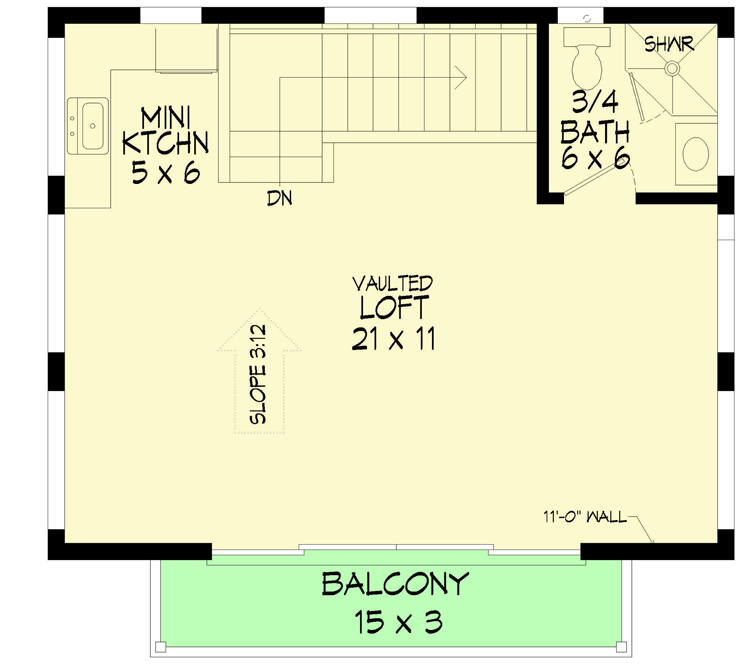

  • Upstairs, the 402 square foot loft is filled with natural lighting and features a mini kitchen, 3/4 bath, and a 15' x 3' balcony.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

430 sq. ft.

1st Floor

28 sq. ft.

2nd Floor

402 sq. ft.

Balcony / Veranda

46 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

22' 4"

Depth

21' 0"

Max Ridge Height

21' 8"

Garage

Type

Detached

Area

374 sq. ft.

Count

1 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

8'

Second Floor

11'

Room

Ceiling Type

Height

Loft

Vaulted

6' 8''

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Carriage

Modern

Special Features

Loft

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

430 sq. ft.

1st Floor

28 sq. ft.

2nd Floor

402 sq. ft.

Balcony / Veranda

46 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

22' 4"

Depth

21' 0"

Max Ridge Height

21' 8"

Garage

Type

Detached

Area

374 sq. ft.

Count

1 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

8'

Second Floor

11'

Room

Ceiling Type

Height

Loft

Vaulted

6' 8''

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Carriage

Modern

Special Features

Loft

Plan Collections

ADU
