Plan 720083DA
Modern Cottage House Plan with 2-Story Great Room and Kitchen
Heated S.F.
1,749
Beds
2 - 3
Baths
2.5
Stories
2
Floor Plan

Plan 720083DA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 720083DA

1-800-854-7852

1-262-521-4596

Main Level

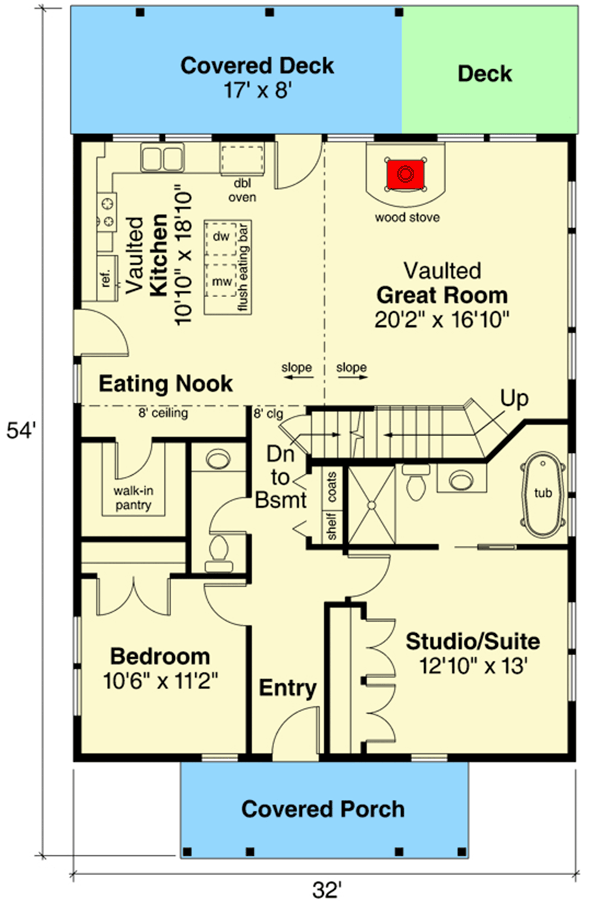

floor plan image Main Level
2nd Floor

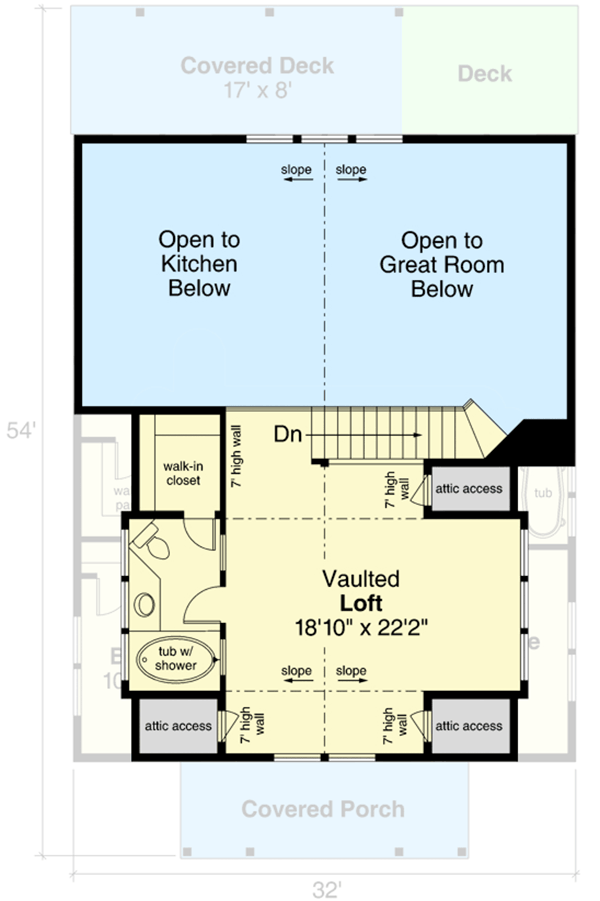

floor plan image 2nd Floor
Plan Details
  • Board and batten siding and a shed roof over the porch grace the front of this modern cottage house plan. A shed roof provides covers the front porch of this 1.5 story floor plan offers.
  • Inside, the kitchen with eating nook is open to the living room and is visually separated by an island with a flush eating bar. A cozy woodstove can be enjoyed throughout the great room.
  • Towards the front of the home are two bedrooms. One could easily serve as the master bedroom as it features a private bathroom with free-standing soaking tub and separate shower.
  • Upstairs is a vaulted loft which offers flexibility to homeowners. If an extra bedroom is needed there is a second floor bathroom and walk-in closet. This space could also be set up as a study, den, home office, or hobby room - whatever suites.
  • With an overall width of only 32', this cottage house plan can fit neatly on a narrow lot.
  • Related Plan: Get an alternate layout with plan 72413DA (1,752 sq. ft.)
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,749 sq. ft.

1st Floor

1,280 sq. ft.

2nd Floor

469 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

54' 0"

Max Ridge Height

24' 6"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Square Footage Breakdown

Total Heated Area

1,749 sq. ft.

1st Floor

1,280 sq. ft.

2nd Floor

469 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

54' 0"

Max Ridge Height

24' 6"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick
