Plan 623483DJ
Modern Cottage Style Duplex with 3-Bed 3-Bath 1709 Sq Ft Units
Heated S.F.
3,418
Units
2
Width
Depth
Tour
Floor Plan

Plan 623483DJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 623483DJ

1-800-854-7852

1-262-521-4596

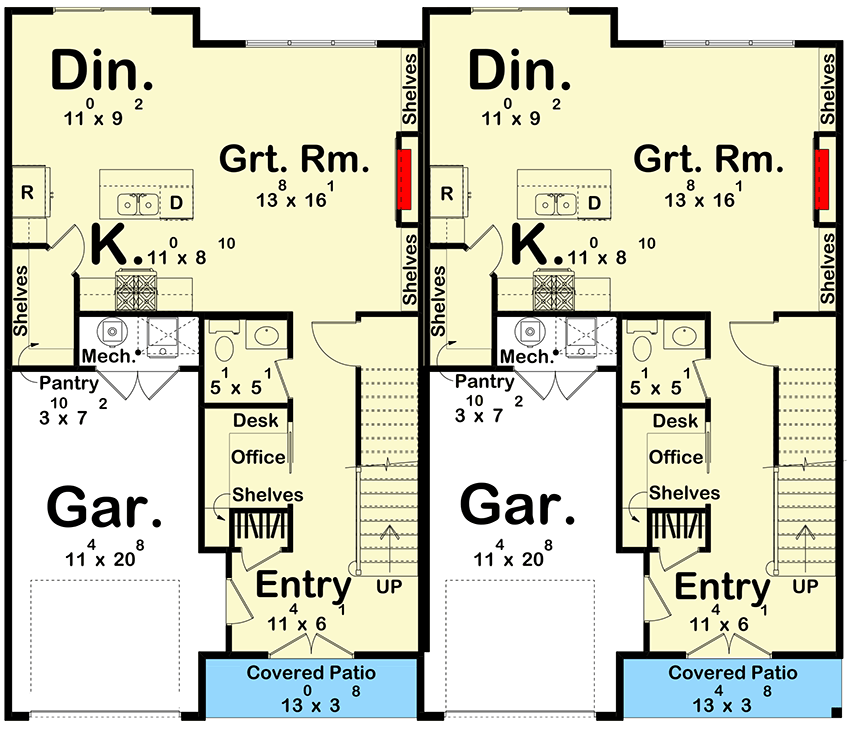

Main Level
floor plan image Main Level

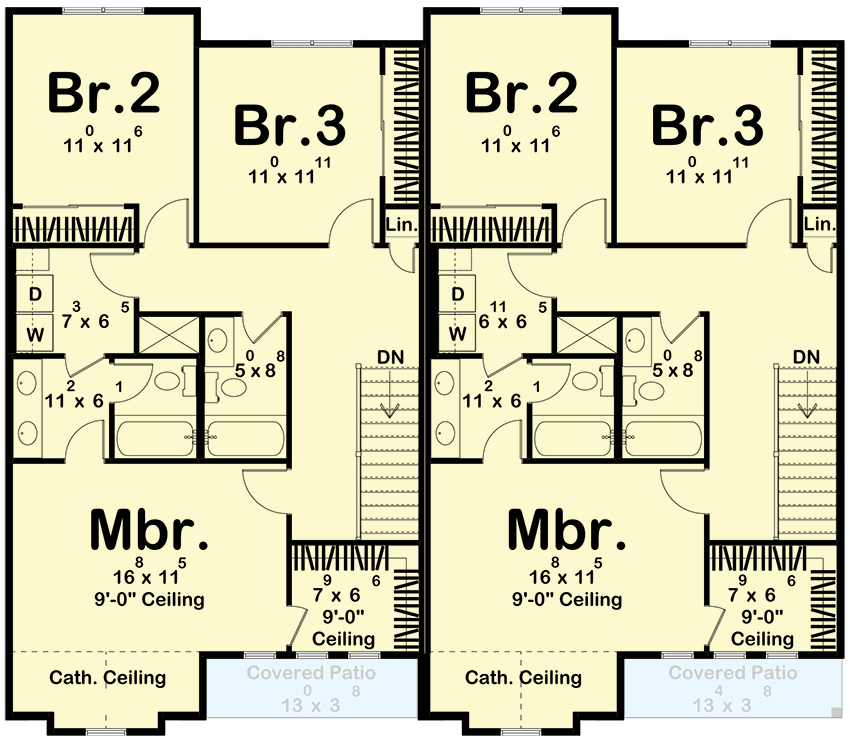

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This two-story modern cottage-style duplex balances style and function. Its exterior features clean lines and classic charm, while the open floor plan connects the kitchen, dining, and living areas.
  • The home includes three bedrooms, with a private master suite, and a well-equipped kitchen with ample pantry storage. A one-car garage adds secure storage.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
1,709Sq. Ft.
735 Sq. Ft.
1st Floor
974 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
257 Sq. Ft.
25' 4"width
43'depth
Unit B
1,709Sq. Ft.
735 Sq. Ft.
1st Floor
974 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
257 Sq. Ft.
25' 4"width
43'depth
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,418 sq. ft.

1st Floor

1,470 sq. ft.

2nd Floor

1,948 sq. ft.

Porch, Front

96 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 8"

Depth

43' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

514 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Cottage

Modern

New American

Transitional

Tudor

Special Features

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Flex Room

Home Office

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

3,418 sq. ft.

1st Floor

1,470 sq. ft.

2nd Floor

1,948 sq. ft.

Porch, Front

96 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 8"

Depth

43' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

514 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Cottage

Modern

New American

Transitional

Tudor

Special Features

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Flex Room

Home Office

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - 2nd Floor
