Plan 801166PM
Modern Euro-Style House Plan Under 1100 Square Feet - Architectural Designs
Heated S.F.
1,047
Beds
2
Baths
1
Stories
1
Floor Plan

Plan 801166PM

Main Level
slide image 0

Plan 801166PM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This 2 bed, 1 bath modern Euro-style house plan gives you 1,047 square feet of single-level living.
  • There are two large bedrooms in a split layout with the master bedroom (Bed 2) having a with a walk-in closet.
  • The dining room, living room and kitchen, the latter with a four person island and a walk-in pantry, are all open-concept.
  • The washer and dryer is set behind bifold doors between the two bedrooms.
  • NOTE: Please allow 15 to 20 business days for plan delivery.
What's Included
Please note this plan is designed to the National Building Code of Canada.

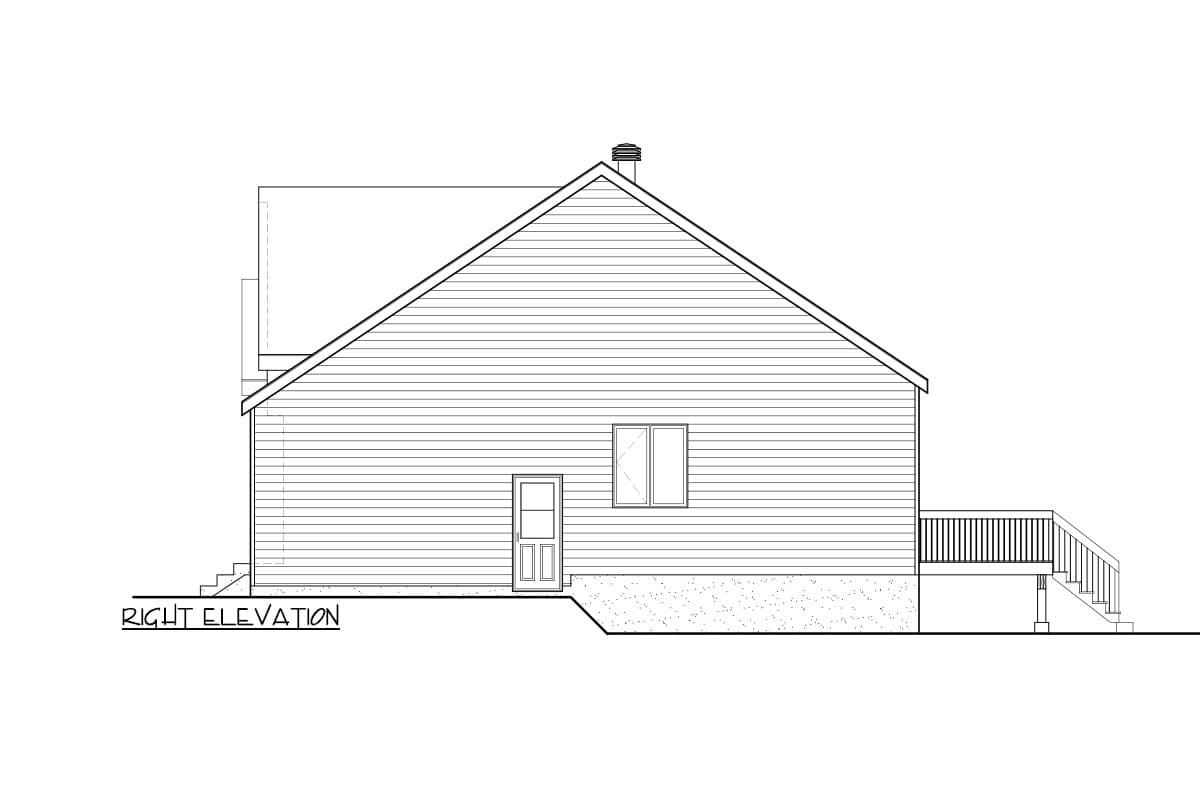

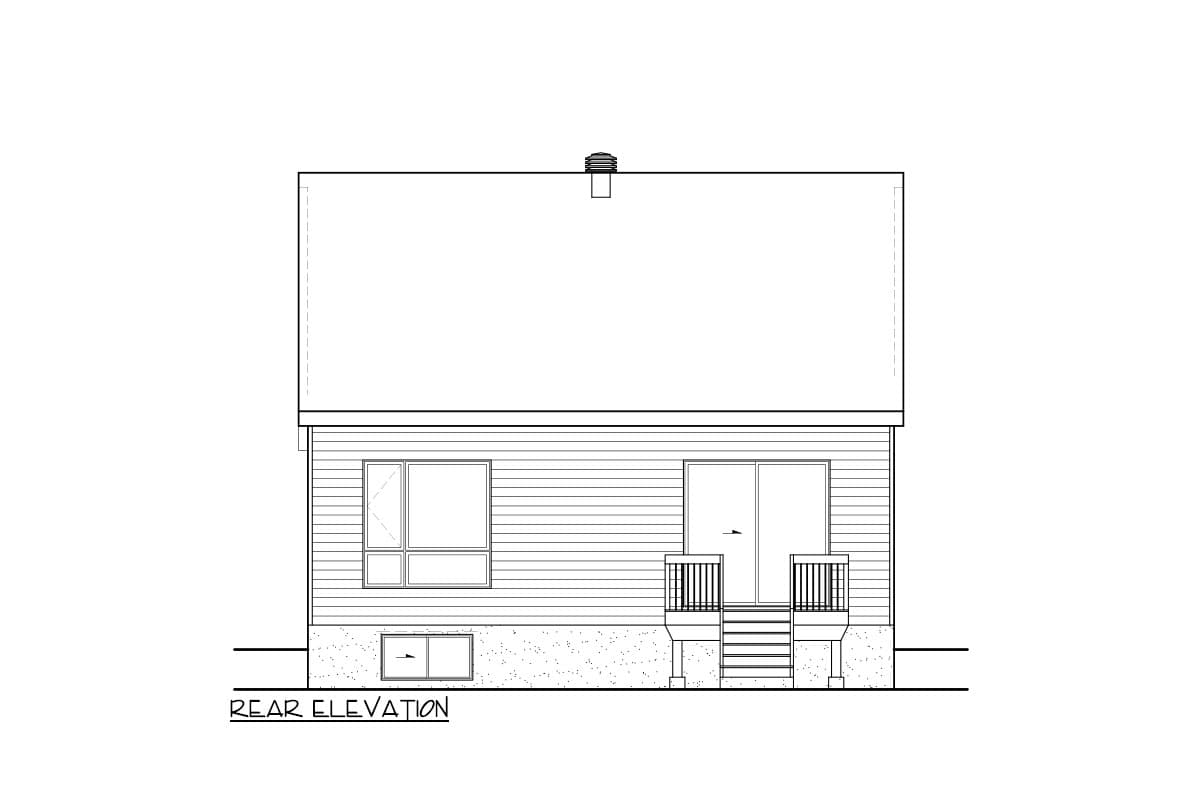

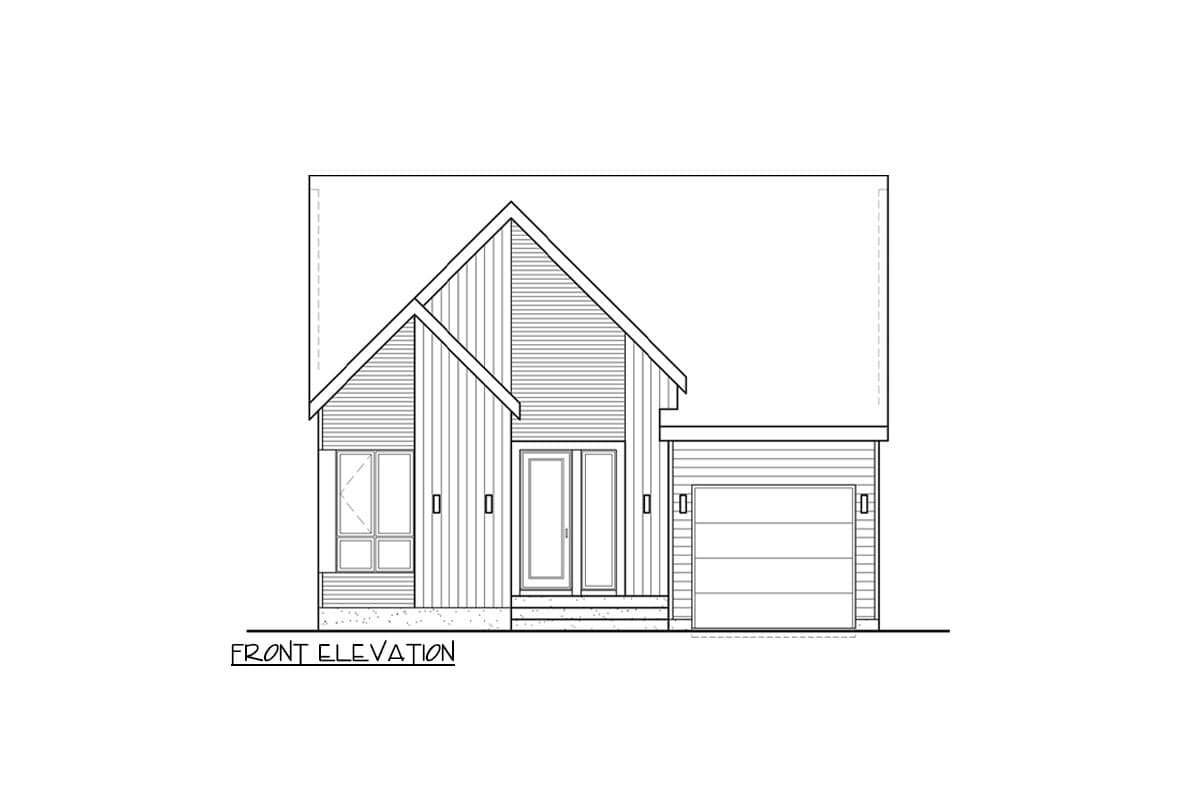

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

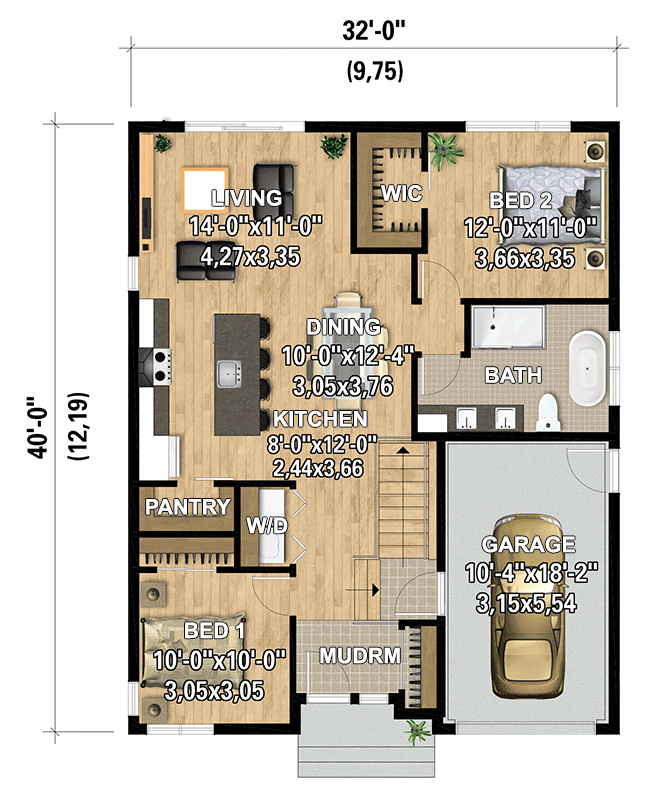

  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,047 sq. ft.

1st Floor

1,047 sq. ft.

Basement Unfinished

1,047 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

40' 0"

Max Ridge Height

28' 2"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Contemporary

European

Modern

Scandinavian

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,047 sq. ft.

1st Floor

1,047 sq. ft.

Basement Unfinished

1,047 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

40' 0"

Max Ridge Height

28' 2"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Contemporary

European

Modern

Scandinavian

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Canadian House Plans
