Plan 70802MK
Modern European-style Transitional Home Plan with Porte Cochere and 2-Story Great Room - 2782 Sq Ft
Heated S.F.
2,782
Beds
3
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 70802MK

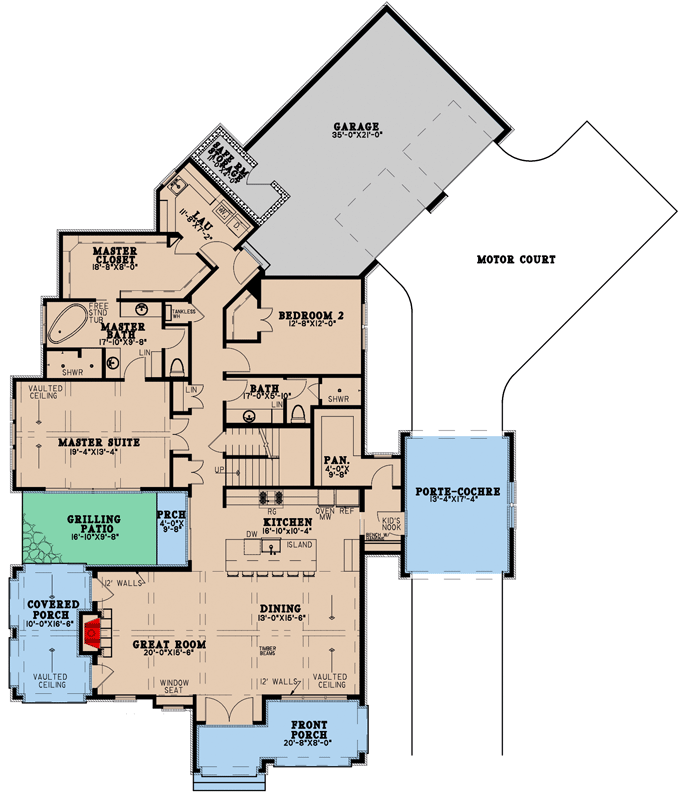

Main Level
slide image 0
2nd Floor
slide image 1

Plan 70802MK

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

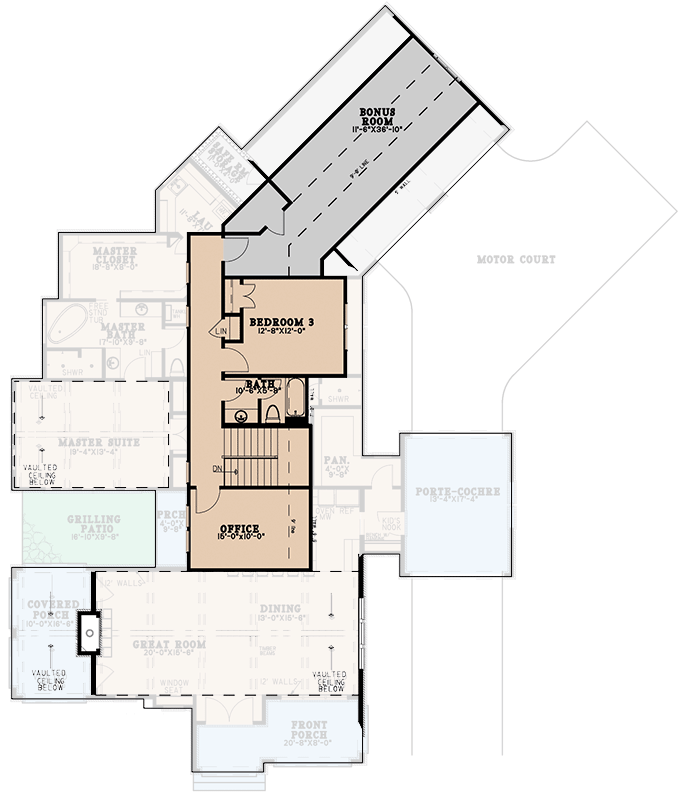

2nd Floor
floor plan image 2nd Floor
Plan Details

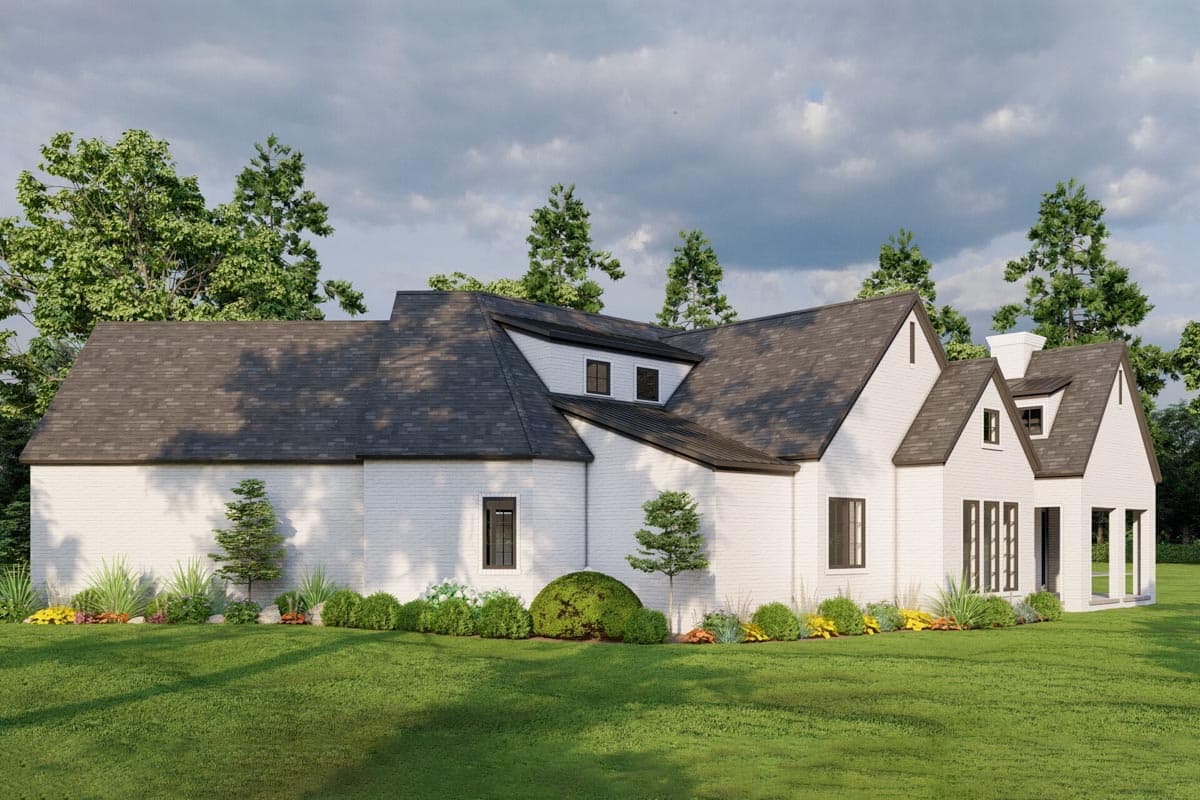

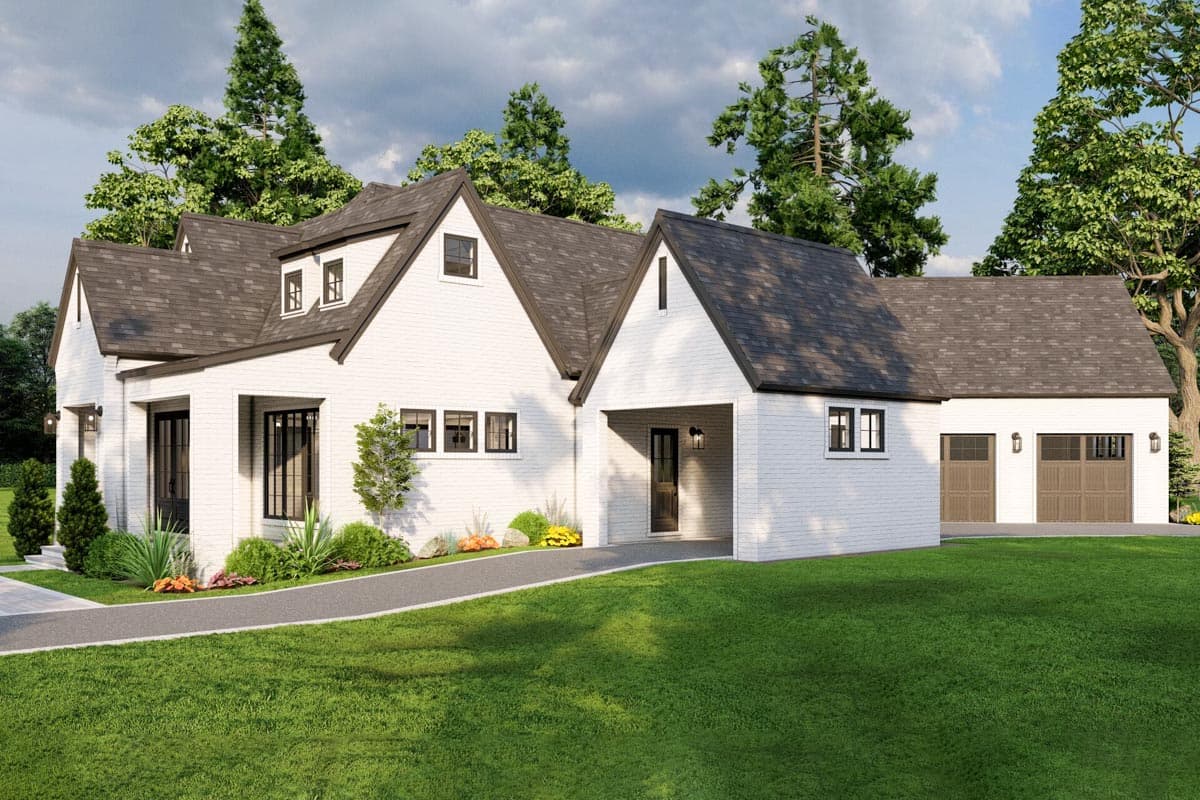

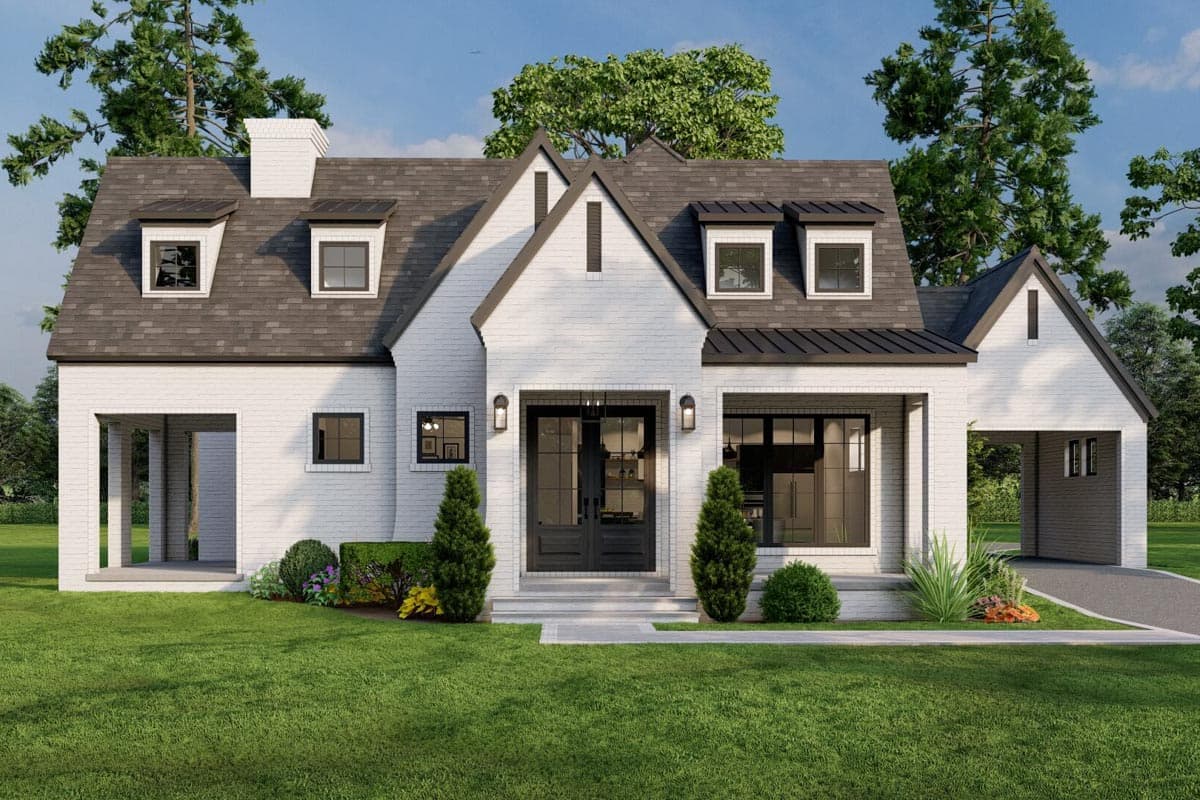

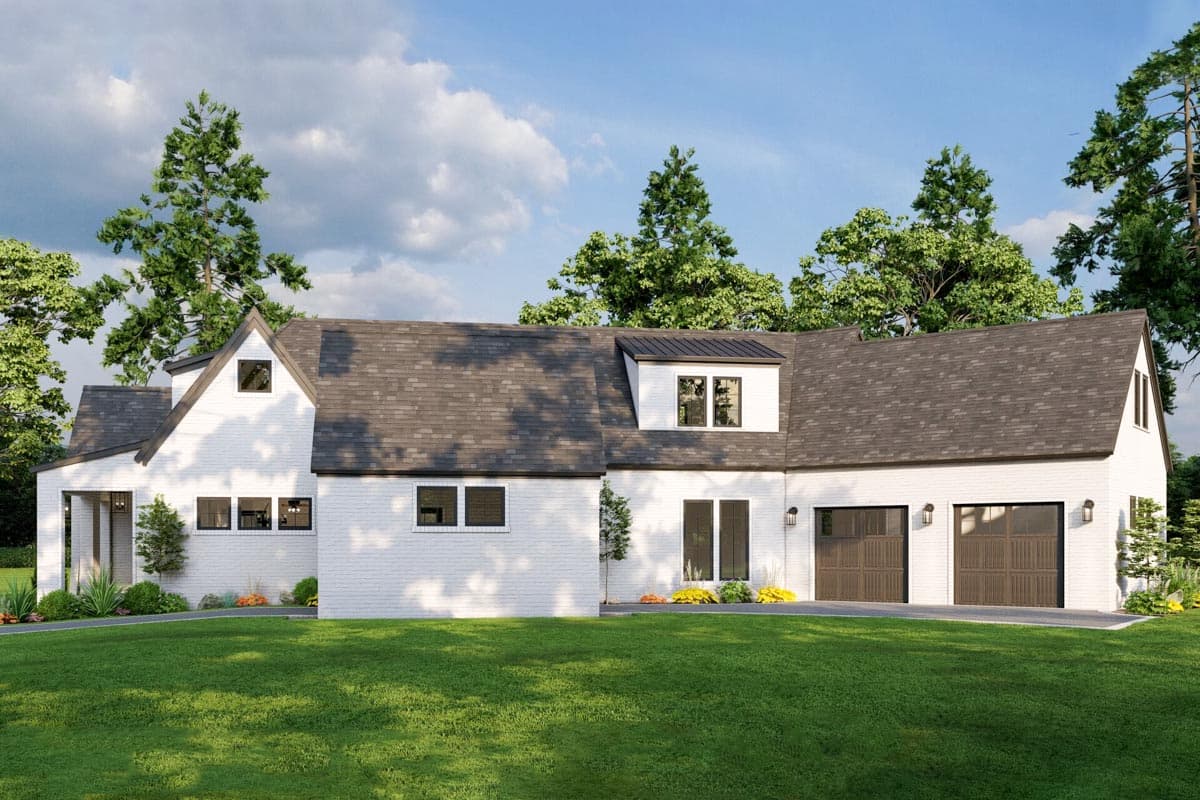

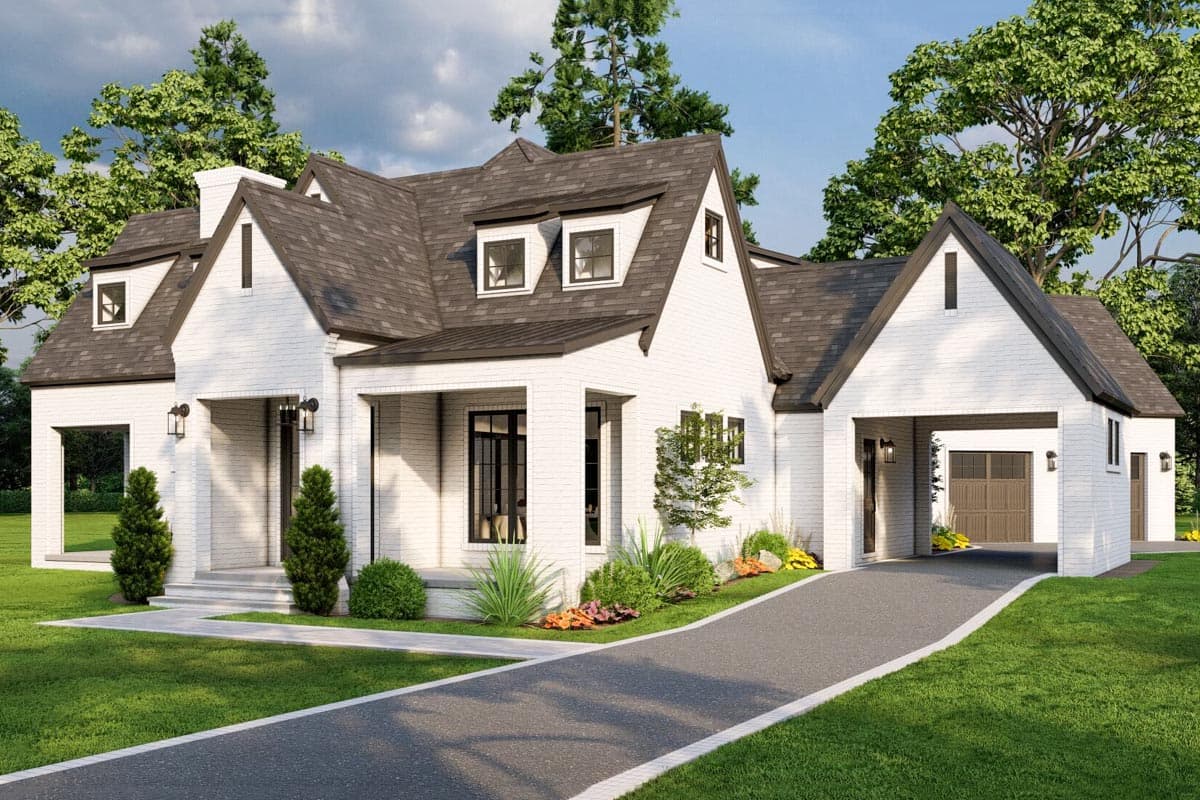

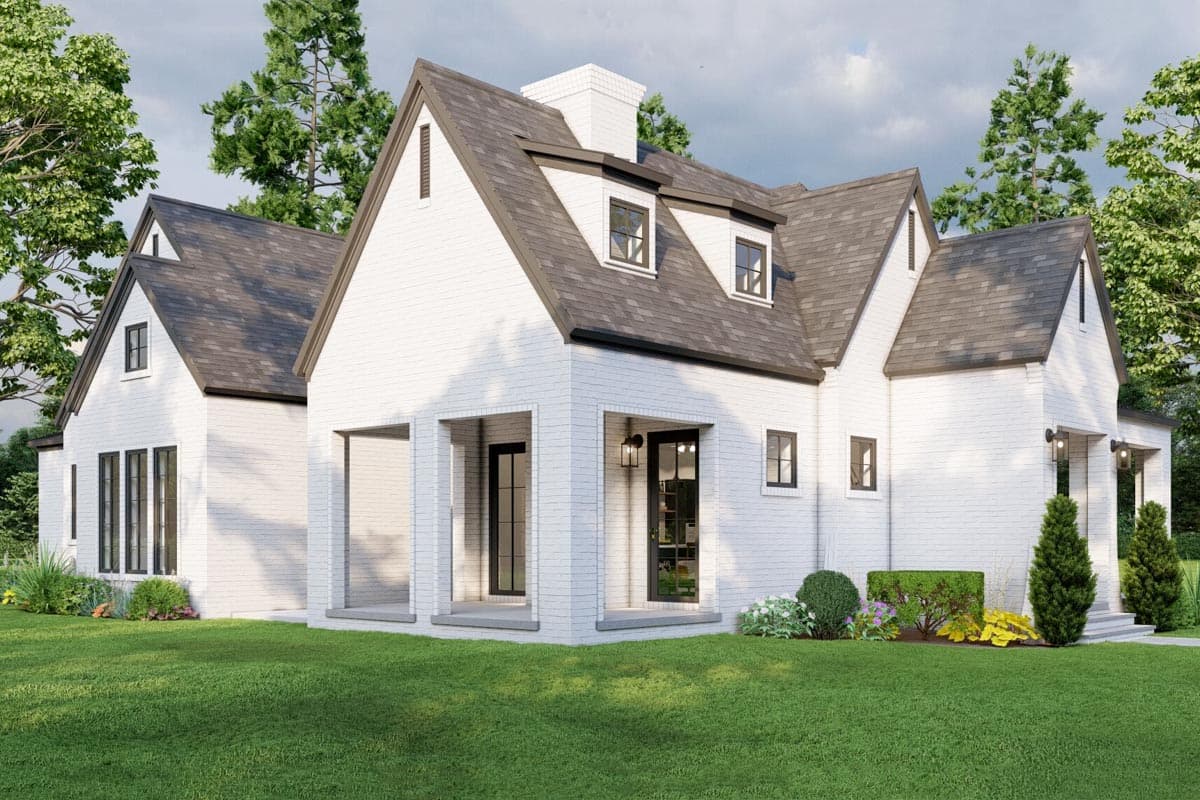

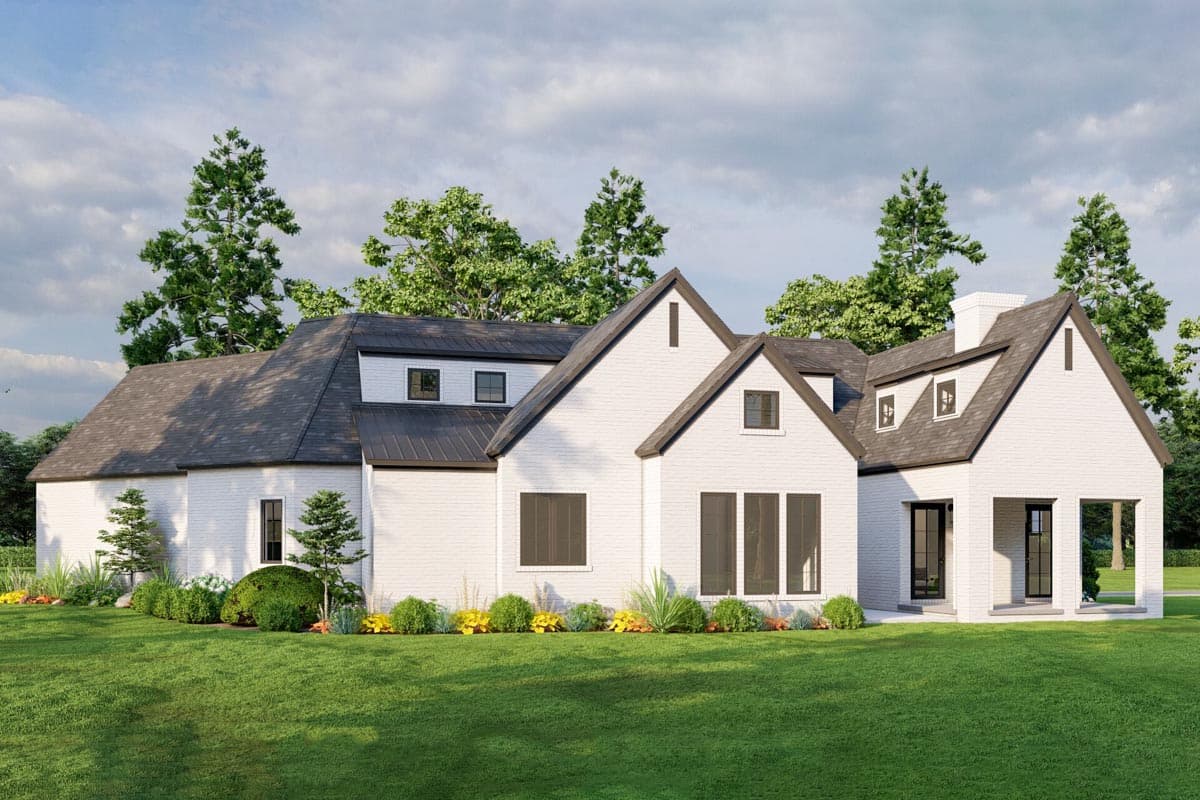

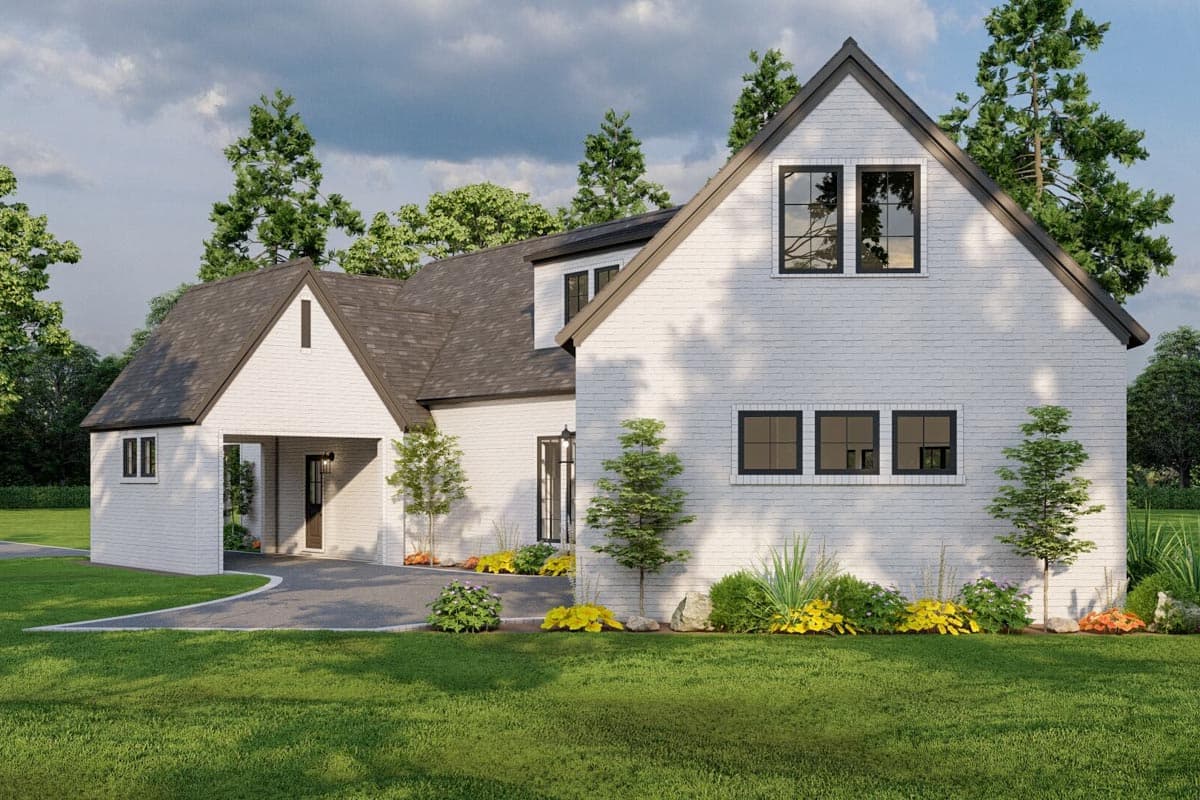

  • This modern European-style transitional home plan, with its striking metal roofing accents, its all white brick exterior accented by wooden detail on the windows and doors and brick columns framing the covered front porch has great curb appeal. The home offers main level living with an additional bedroom and office on the upper level.

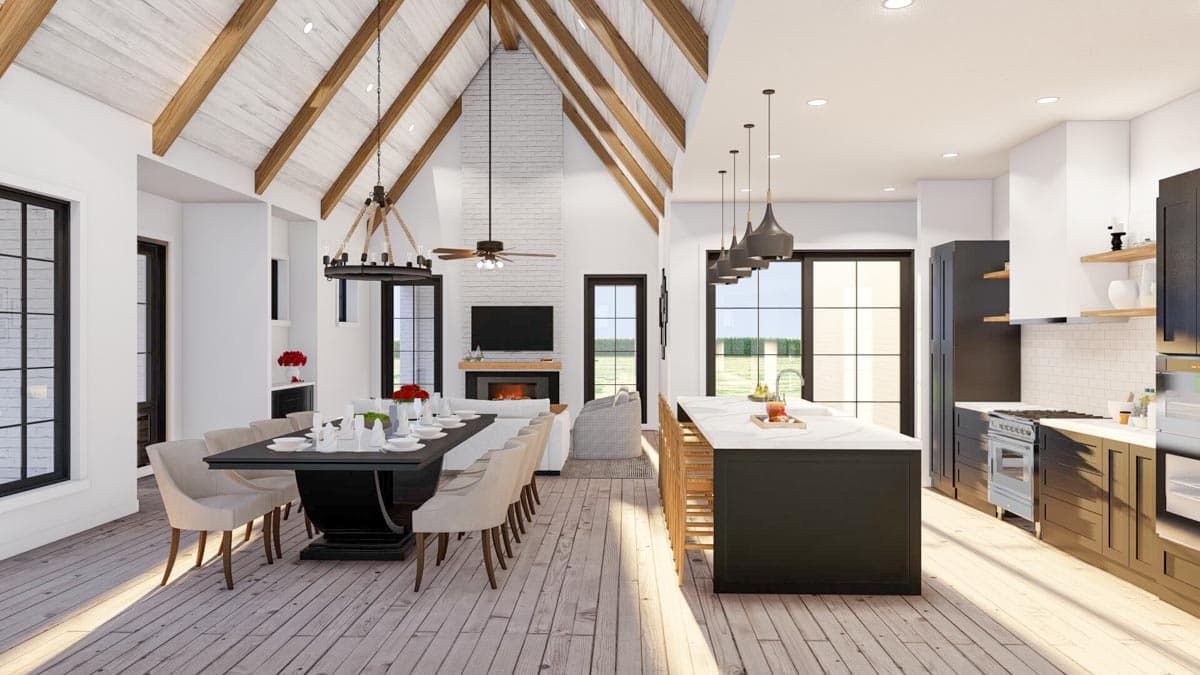

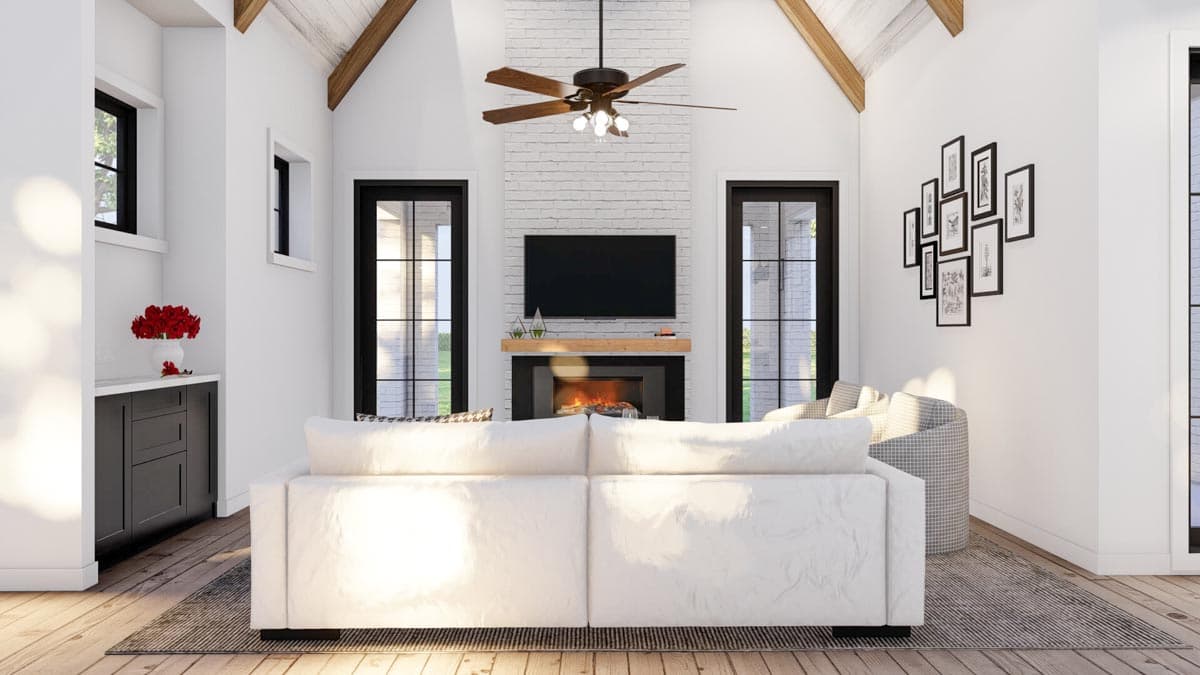

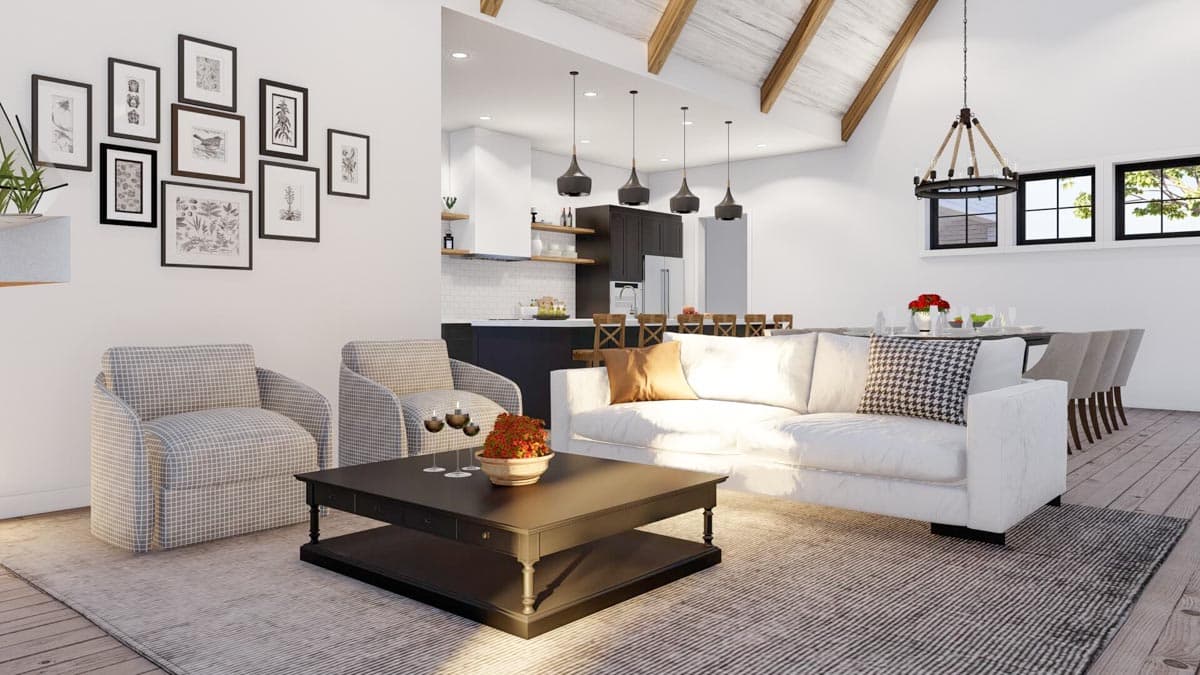

  • The front covered porch opens into a small foyer/entry area leading directly into the great room with vaulted ceiling and dining open floor design. A large picture window in the dining room brings in natural light.

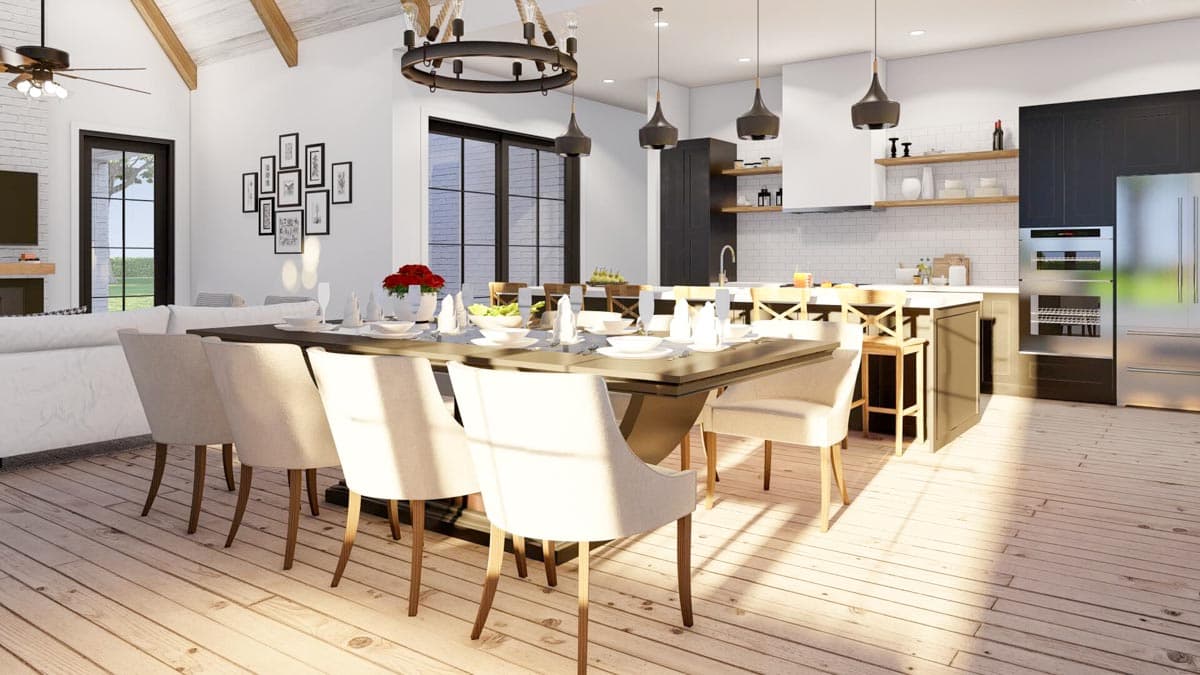

  • The kitchen has a huge high-low bar island with additional seating for up to 6. Around the corner and through the mudroom, you'll find a step-in pantry.
  • The master suite is nestled in the rear of the home. Gorgeous windows bathe the room in natural lighting. A spacious master bathroom leads into the large walk-in closet with an expanded laundry room. The master bath has a free-standing tub, an open walk-in shower and dual vanities.
  • At the top of the stairs, the landing opens into another extended hallway offering access to the bedroom, and office. A large angled bonus space over the garage gives you expansion potential.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,782 sq. ft.

1st Floor

2,206 sq. ft.

2nd Floor

576 sq. ft.

Bonus

425 sq. ft.

Porch, Combined

346 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 5"

Depth

96' 0"

Max Ridge Height

24' 10"

Garage

Type

Attached

Area

966 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

16 on 12

Secondary Pitch

3 on 12

Architectural Style

European

Southern

Transitional

Special Features

Angled Garage

Bonus Room

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Porte Cochere

Safe Room

Two Story Great Room
