Plan 444380GDN

Modern Farmhouse Duplex with Matching 3-Bed Units Under 1700 Square Feet

Heated S.F.

3,306

Units

2

Width

Depth

Floor Plan

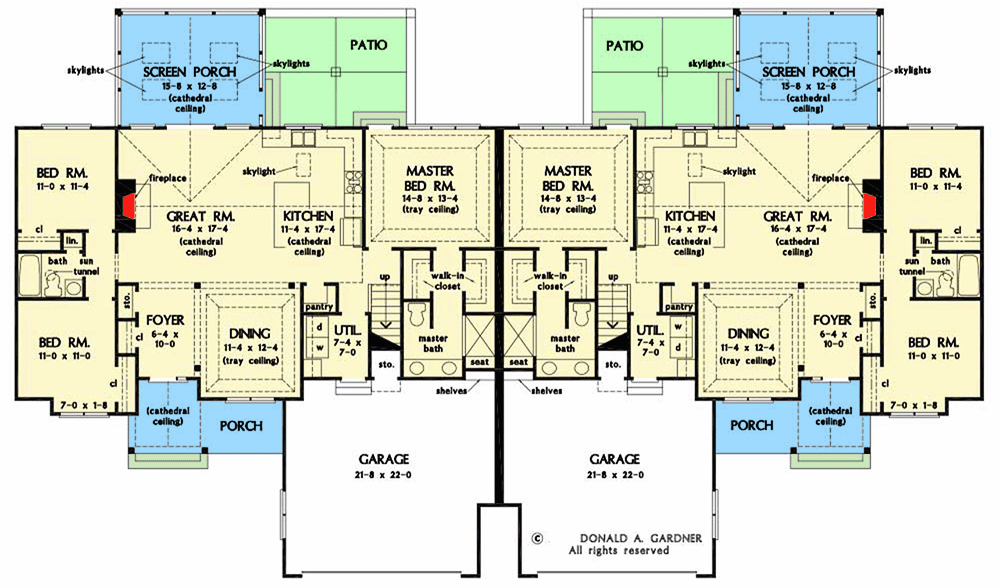

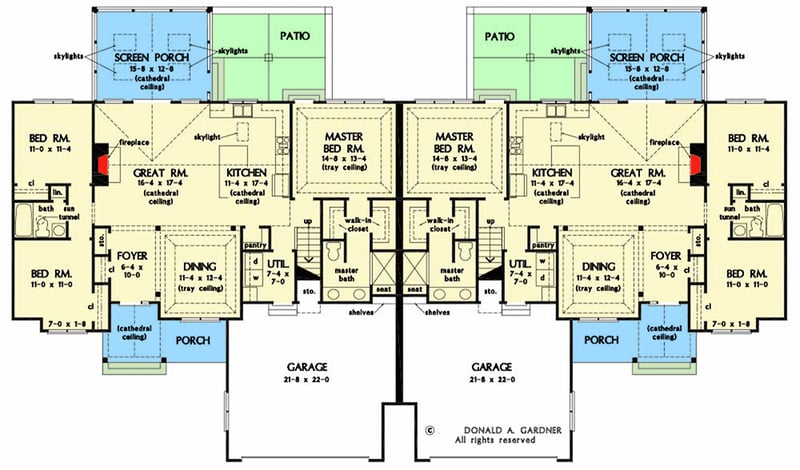

Main Level

floor plan image Main Level

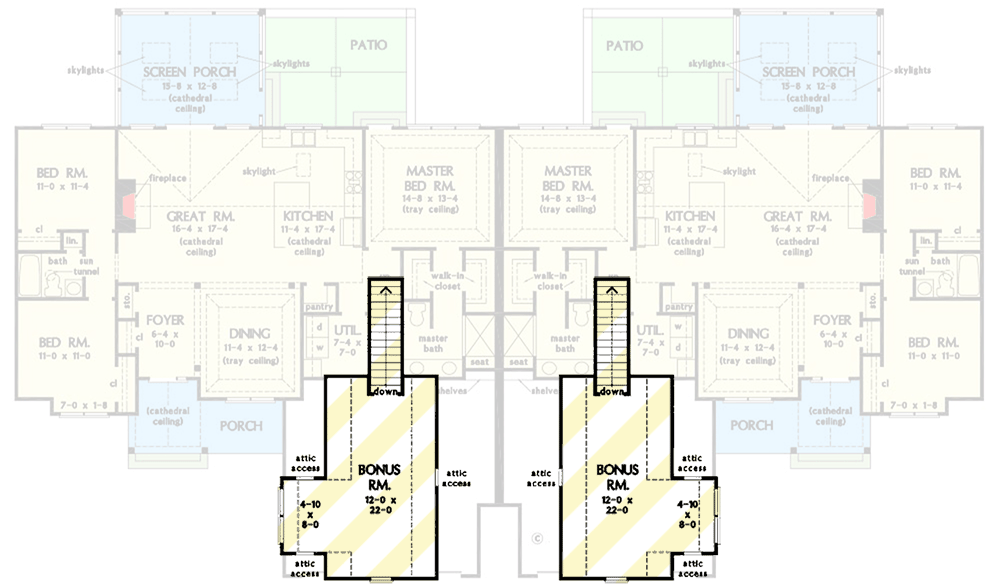

Bonus Level

floor plan image Bonus Level

Plan Details

This symmetrical duplex home design features a charming modern farmhouse façade with a mix of vertical and horizontal siding.
Each unit gives the families that call them home 1,653 square feet of heated living area with 3 beds and 2 baths and a 2-car garage with storage space.
Inside each unit, find an open floor plan with a spacious great room, an island kitchen, and an elegant dining room. A cathedral ceiling elevates the main living area and a screened porch with skylights extends living outdoors.
The master suite is separated from the secondary bedrooms for privacy.
Find built-in cabinetry in the utility room and multiple storage closets, including a walk-in pantry, throughout the home.
An optional bonus room above the garage gives each unit 320 square feet of expansion space.
NOTE: Please allow 15 to 20 days for delivery.
Please allow 20 to 25 days for delivery if it includes the basement foundation option.

Unit A

1,653Sq. Ft.

1653 Sq. Ft.

1st Floor

3Beds

2Full Baths

2Vehicle

Attached

528 Sq. Ft.

54'width

64'depth

Unit B

1,653Sq. Ft.

3306 Sq. Ft.

1st Floor

3Beds

2Full Baths

2Vehicle

Attached

528 Sq. Ft.

54'width

64'depth

What's Included

Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
