Plan 444016GDN
Modern Farmhouse Plan with Split-bed Layout and Rear Deck
Heated S.F.
1,398
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 444016GDN

Main Level
slide image 0

Plan 444016GDN

1-800-854-7852

1-262-521-4596

Main Level

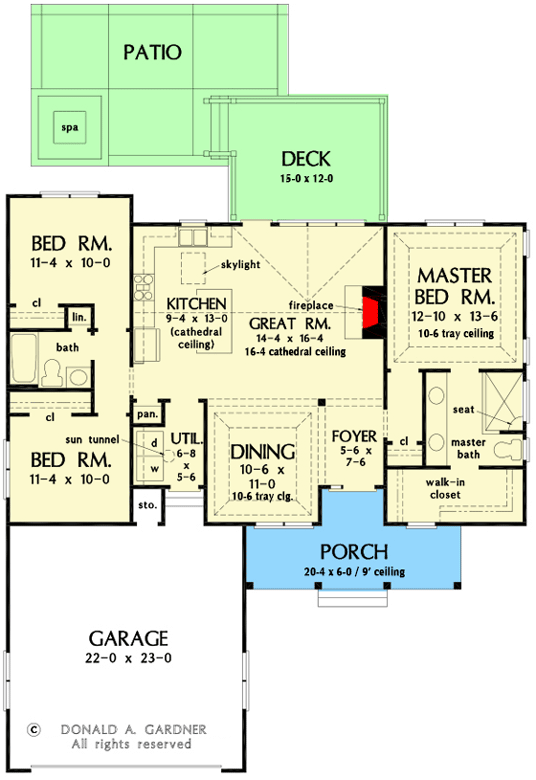

floor plan image Main Level
Plan Details
  • This modern farmhouse design features simple wooden gable brackets and black frame windows to complement the white board-and-batten facade.
  • A front entry garage and narrow width make this home neighborhood friendly.
  • Inside, the floor plan is thoughtfully arranged with open living spaces, a cathedral ceiling for vertical height, and a skylight and sun tunnel to bring in natural light.
  • The master suite is spacious and separate from the secondary bedrooms.
  • Luxury amenities include an island in the kitchen, a fireplace in the great room, pantry storage, and a rear deck.
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,398 sq. ft.

1st Floor

1,398 sq. ft.

Porch, Front

142 sq. ft.

Deck

180 sq. ft.

Covered Patio

335 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 2"

Depth

54' 8"

Max Ridge Height

25' 7"

Garage

Type

Attached

Area

552 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

Modern Farmhouse

Southern

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,398 sq. ft.

1st Floor

1,398 sq. ft.

Porch, Front

142 sq. ft.

Deck

180 sq. ft.

Covered Patio

335 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 2"

Depth

54' 8"

Max Ridge Height

25' 7"

Garage

Type

Attached

Area

552 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

Modern Farmhouse

Southern

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room
