Name: Plan 290085IY: Modern Farmhouse With Dramatic Views To The Rear - 5472 Sq Ft
SKU: 290085IY
Price: 4925.0 USD
Availability: InStock

Plan 290085IY

Modern Farmhouse With Dramatic Views To The Rear - 5472 Sq Ft

Heated S.F.

5,472

Beds

3 - 6

Baths

3.5 - 5.5

Stories

Cars

Floor Plan

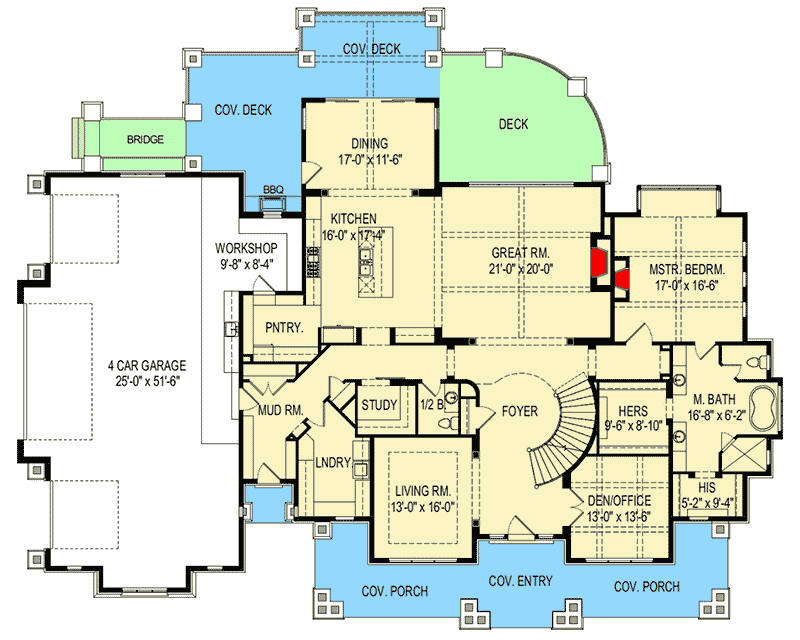

Main Level

2nd Floor

Optional Lower Level

Plan Details

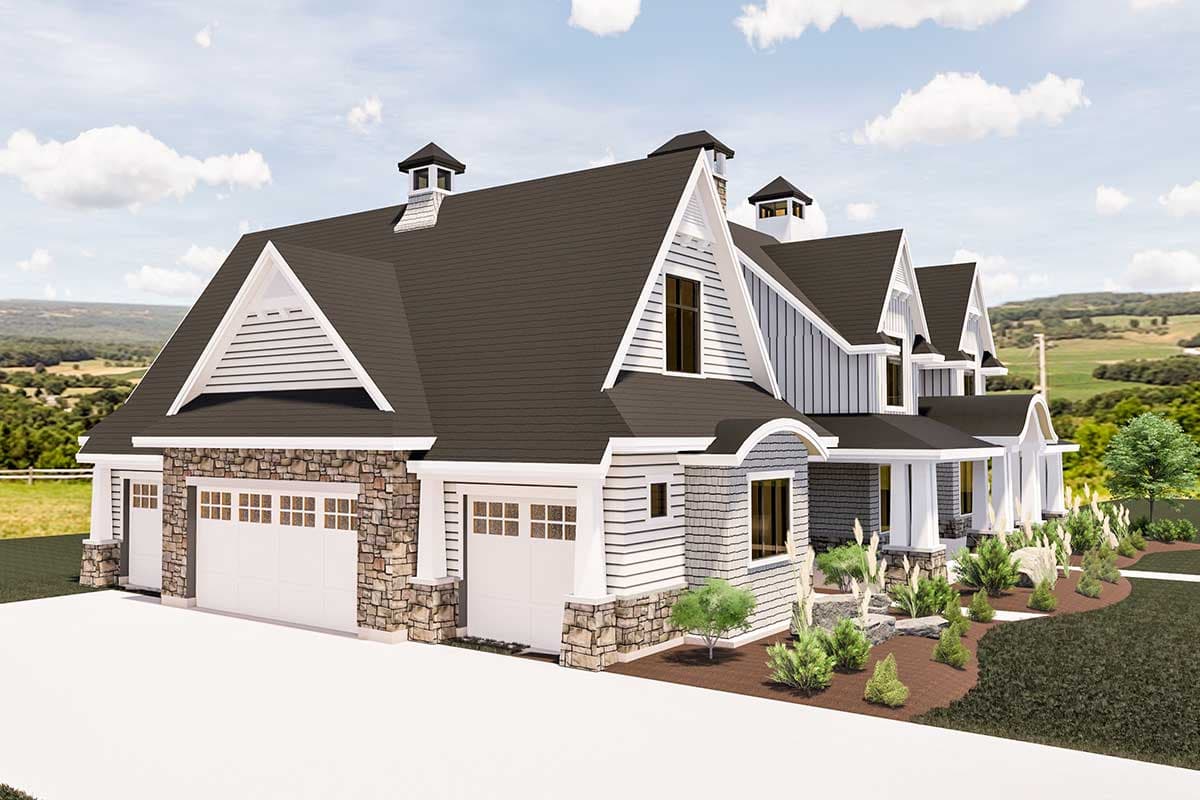

A covered porch with raised barrel-arch center greets you to this modern farmhouse plan. Two gables with an eyebrow dormer between them help lend the home great curb appeal.

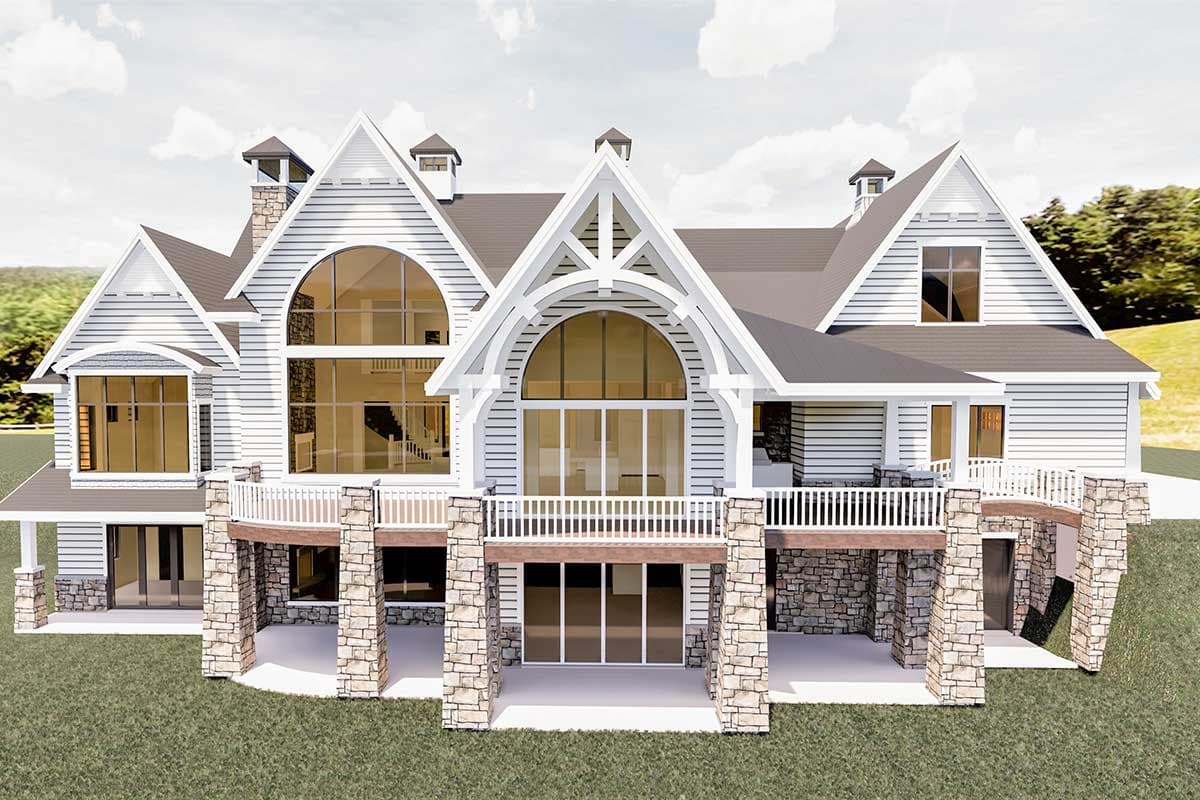

A curved stair greets you in the foyer with soaring 2-story ceiling. Ahead, the vaulted great room - with 2-story ceiling - takes center stage. A wall of windows gives you views across the deck and beyond.
The kitchen has a large island with casual seating and a walk-in pantry. Steps away, the vaulted dining room has a collapsible rear wall giving you access to the covered deck.
The master suite has a fireplace and dual walk-in closets.

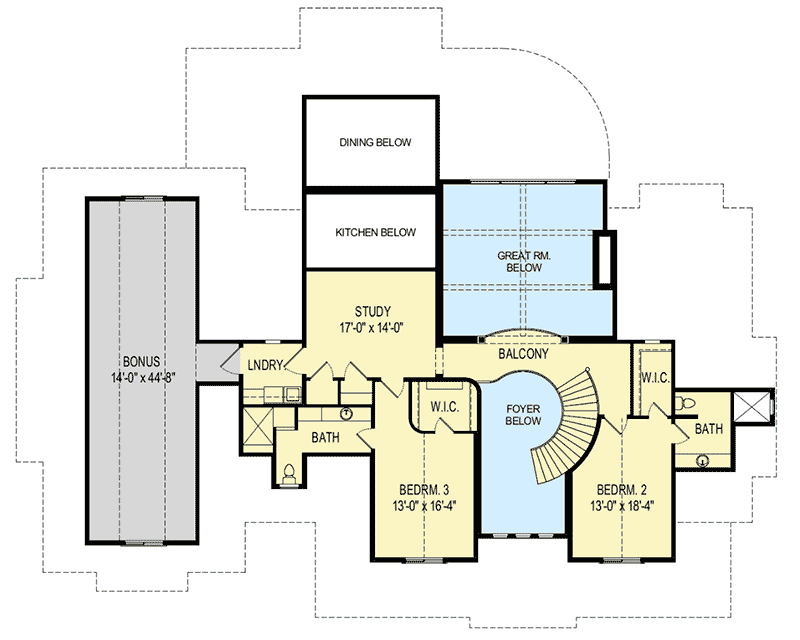

Upstairs, a balcony overlooks both the great room and foyer. Two bedrooms plus a study and upstairs laundry and bonus over the garage complete the floor.

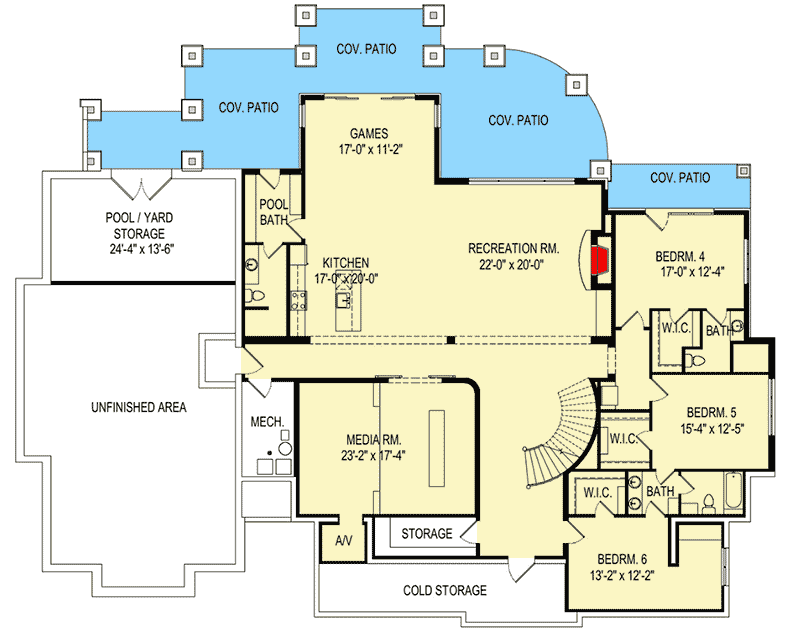

You'll find a second kitchen in the optional finished lower level that comes with the plans as well as a media room, three bedrooms and outdoor access.

What's Included

This plan has 27 pages as follows:

Cover sheet and index
Project notes
Complete schedules
Terrace level floor plan
Terrace level dimension plan
Main level floor plan
Main level dimension plan
Upper level floor plan
Upper level dimension plan
Terrace level refl. floor plan
Main level refl. floor plan
Second level refl. floor plan
Front and rear elevations
Left and right elevations

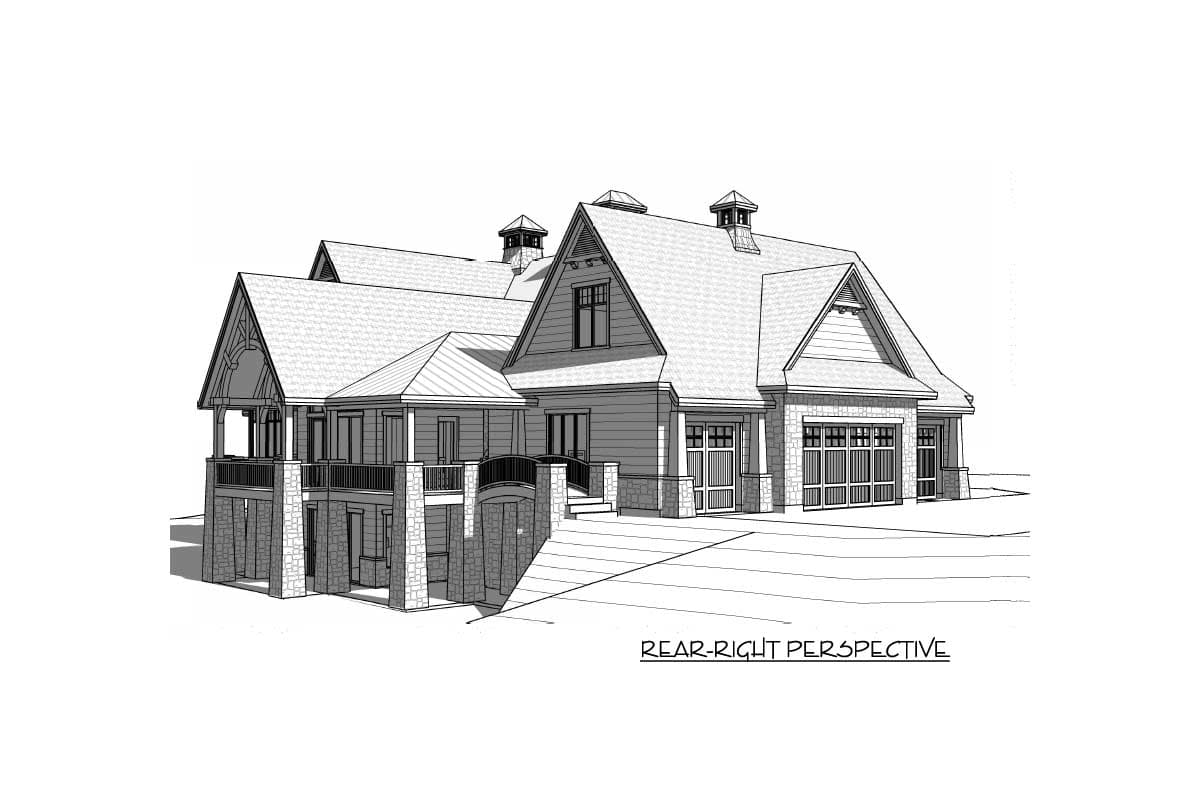

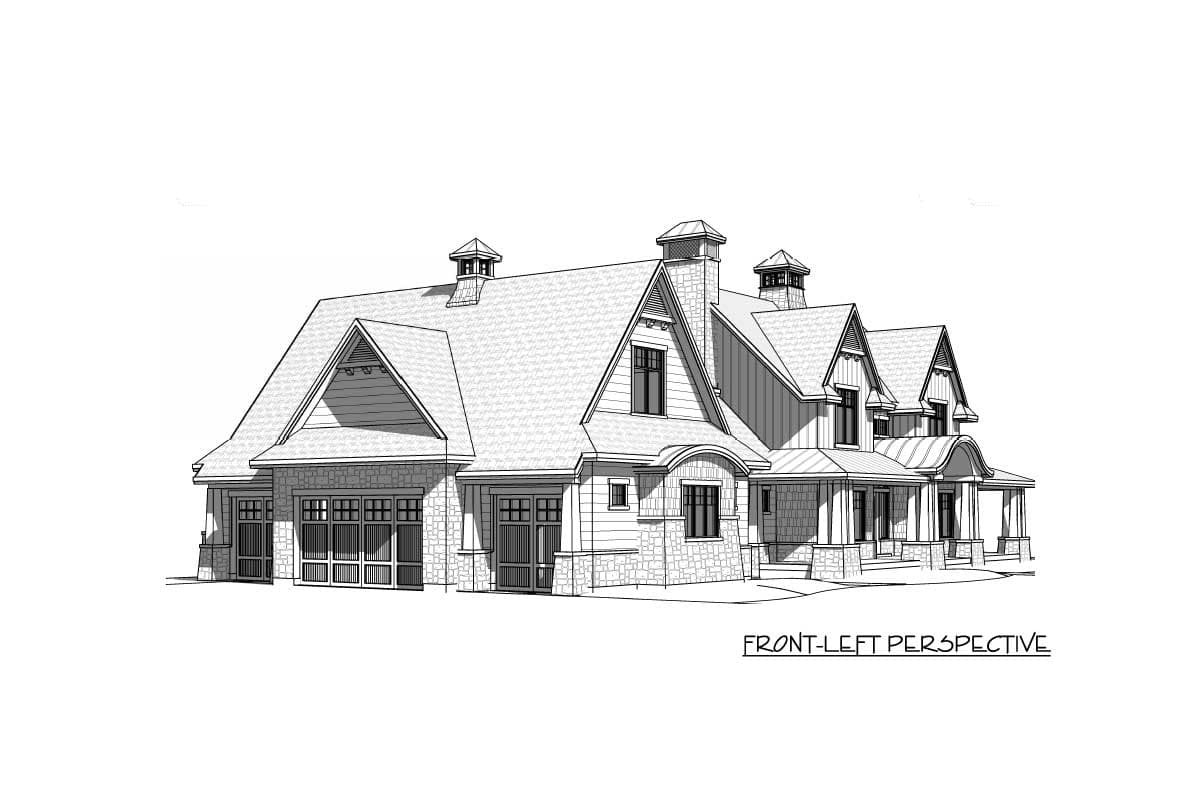

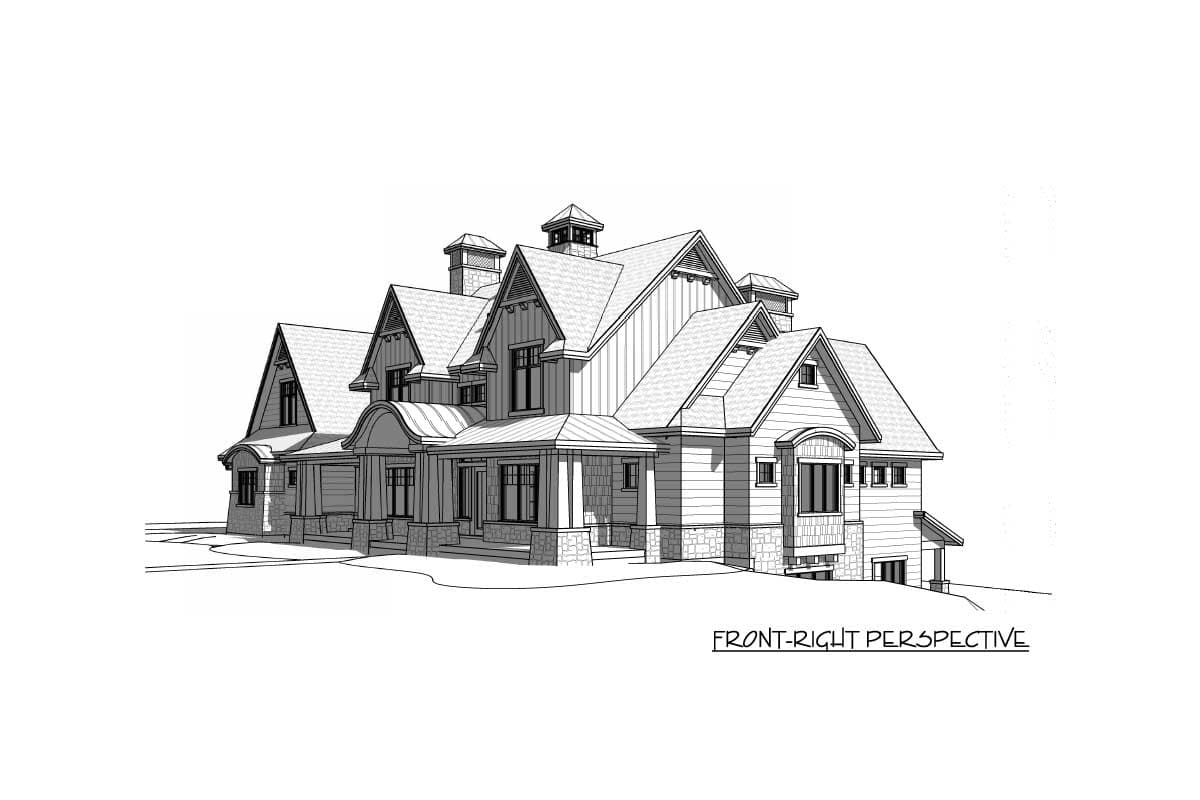

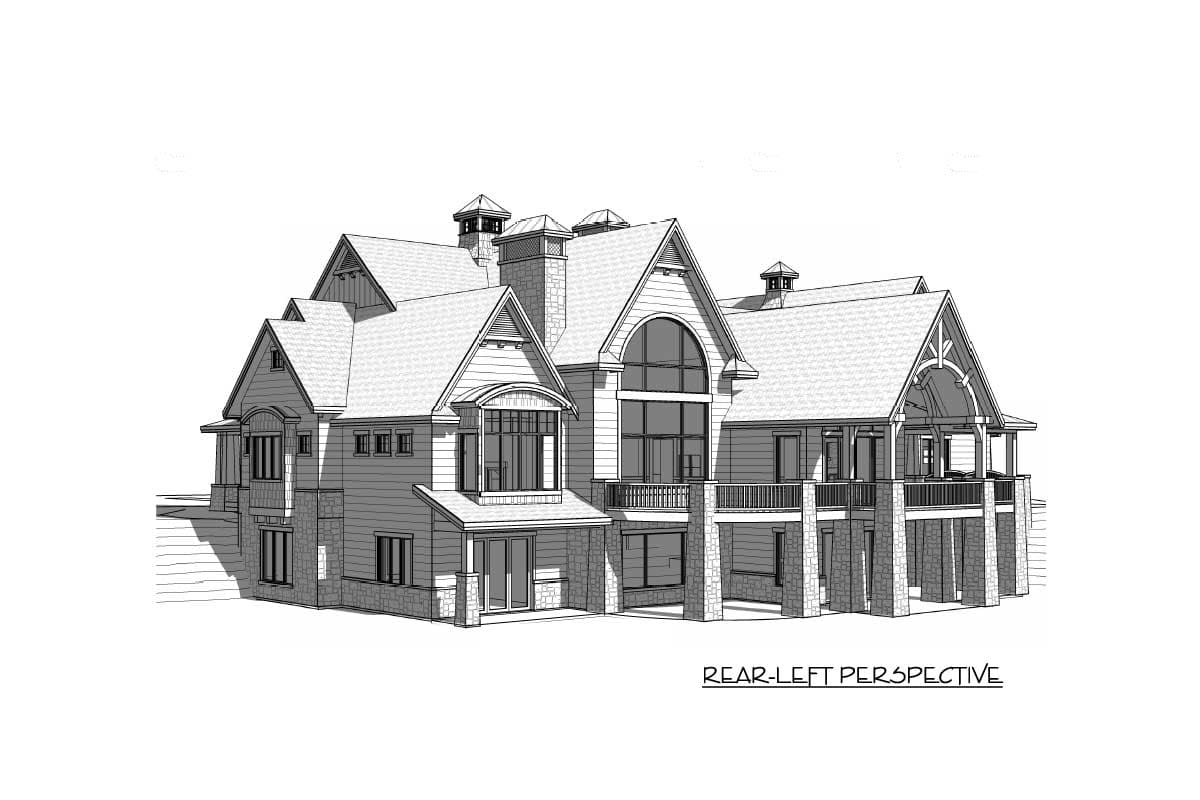

Perspective views
Building Section A and B
Building Section C and trusses
Column details
Architectural details
Architectural details
Roof plan
Terrace level power plan
Terrace level lighting plan
Main level power plan
Main level lighting plna
Upper level power plan
Upper level lighting plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
