Plan 450006ESP

Exclusive

Modern Getaway Retreat - 1284 Sq Ft
Heated S.F.
1,284
Beds
2
Baths
1
Stories
1
Cars
2
Floor Plan

Plan 450006ESP

Main Level
slide image 0
Lower Level
slide image 1

Plan 450006ESP

1-800-854-7852

1-262-521-4596

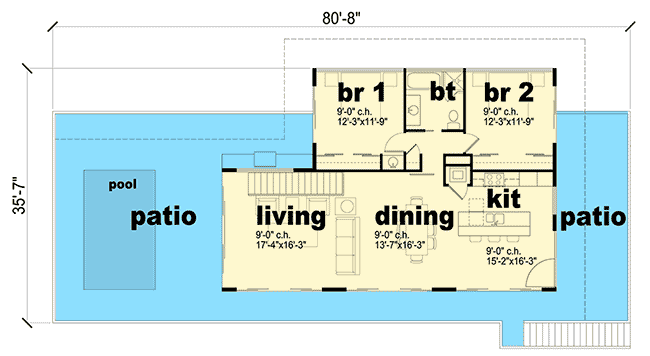

Main Level
floor plan image Main Level

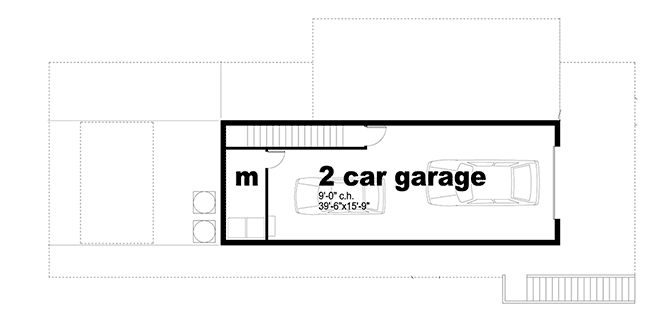

Lower Level
floor plan image Lower Level
Plan Details

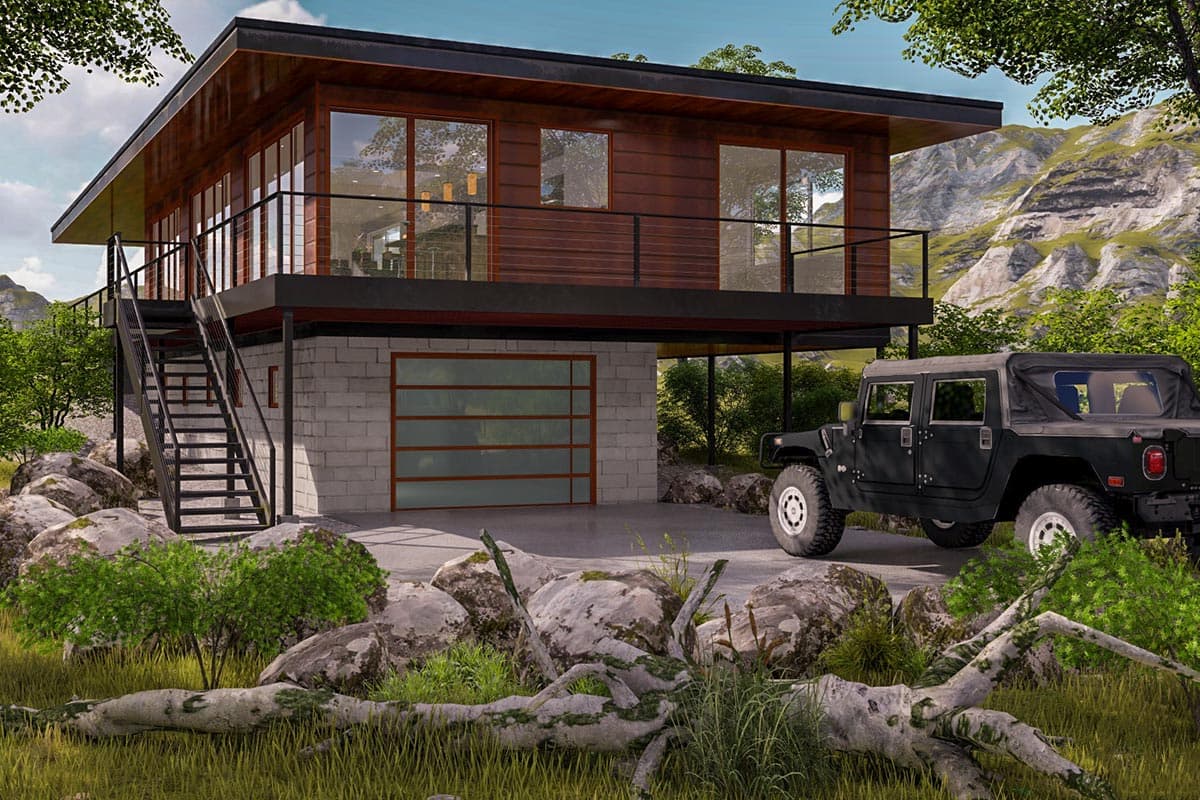

  • Get away from it all in this eye-catching Modern house plan that's just the right size for a weekend retreat or Vacation home.
  • Wall of floor-to-ceiling glass are made to capture the views outside.

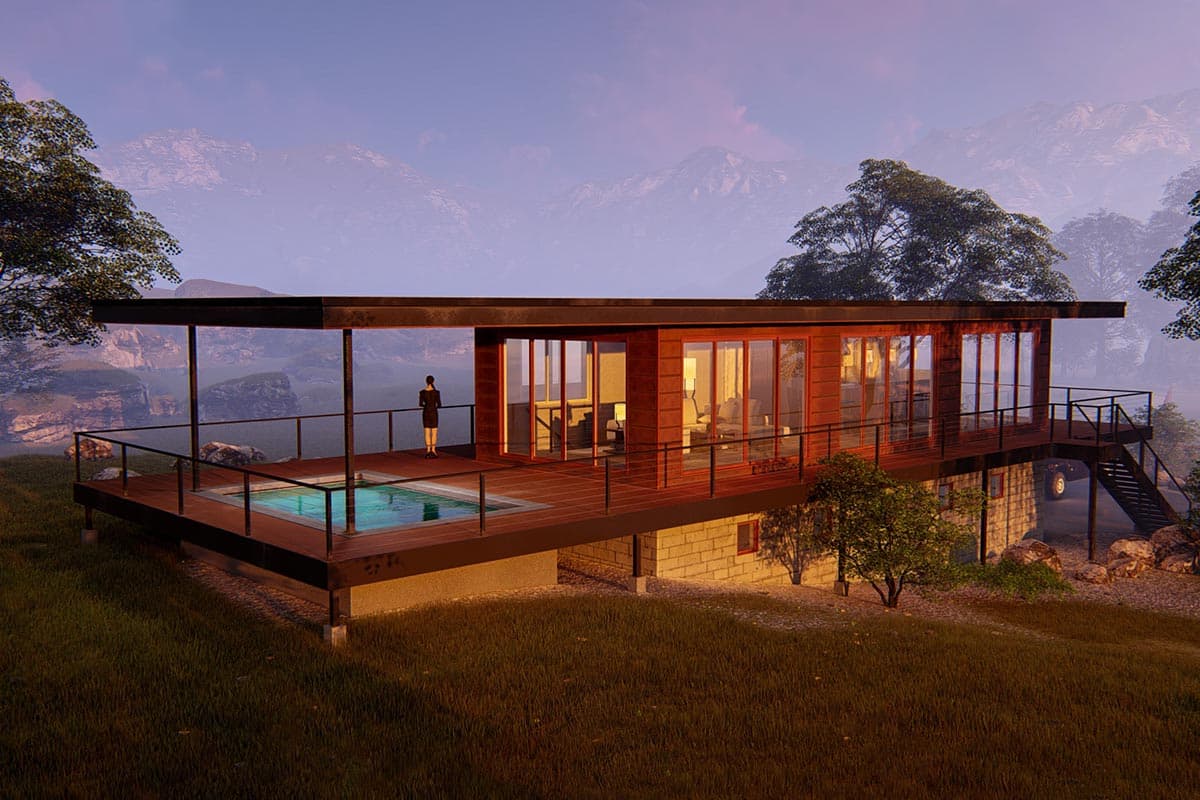

  • And the wrap-around covered patio means you can enjoy the outdoors even in the rain.

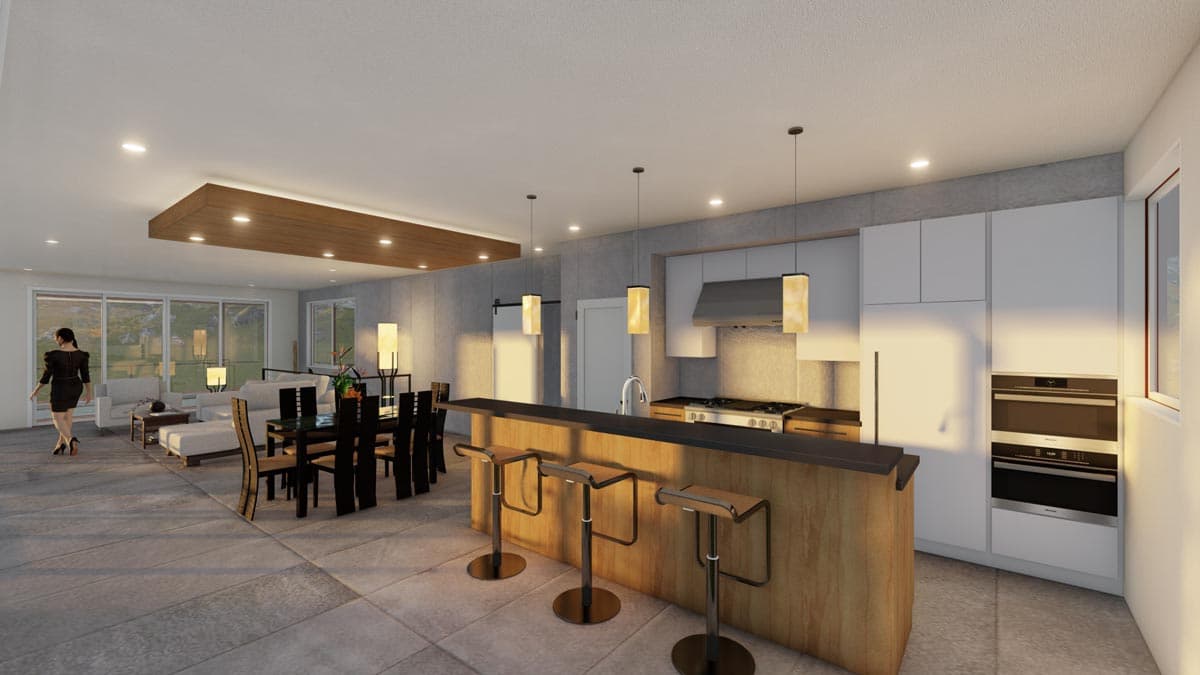

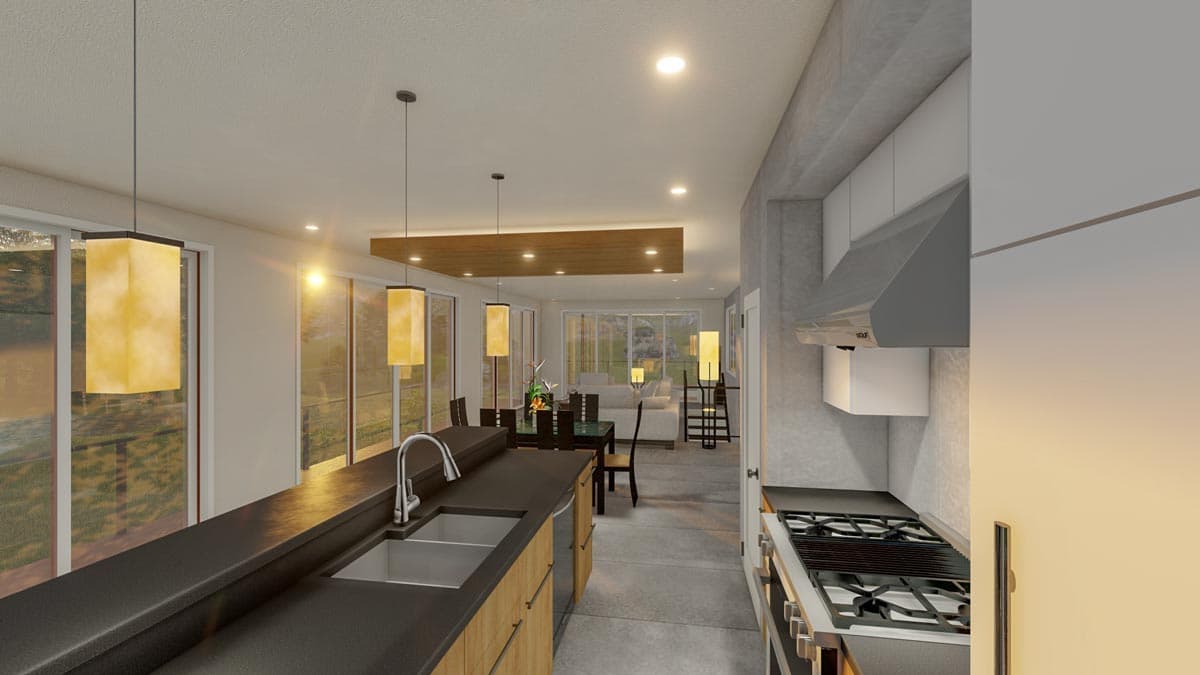

  • The cooking, eating and living areas are all combined into one large space with sliding glass doors off the living room.
  • Both bedrooms have sliding glass doors too.
  • The home comes with a closet for a stack washer/dryer, a four piece washroom and a tandem two car garage on the ground level.
What's Included

  • General Notes
  • Foundation, floor and framing plans
  • Sections and details

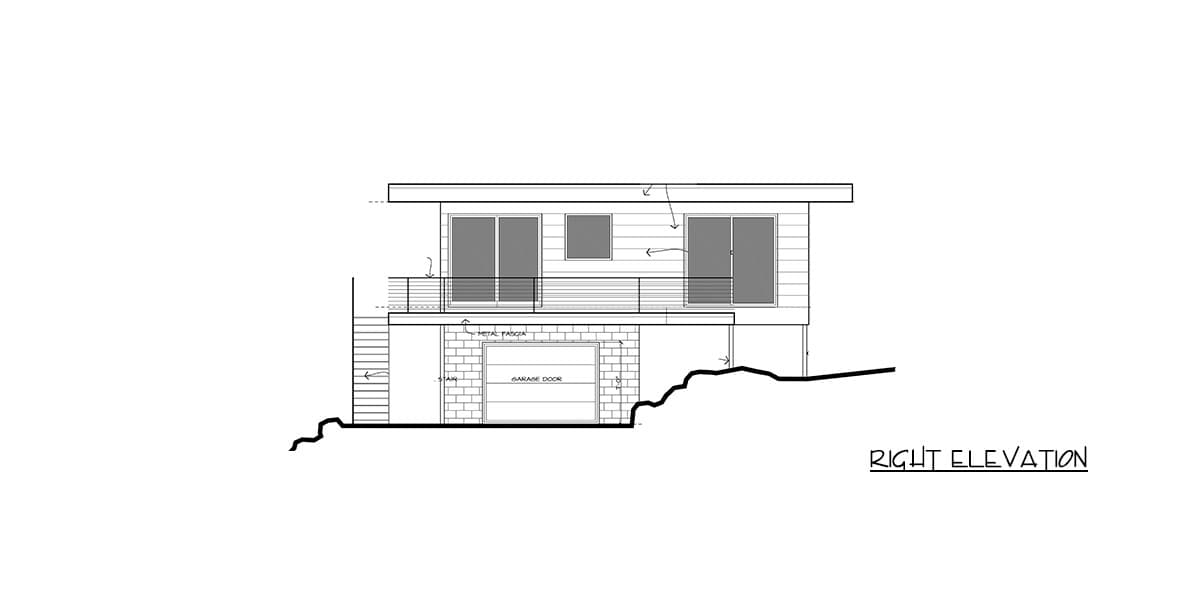

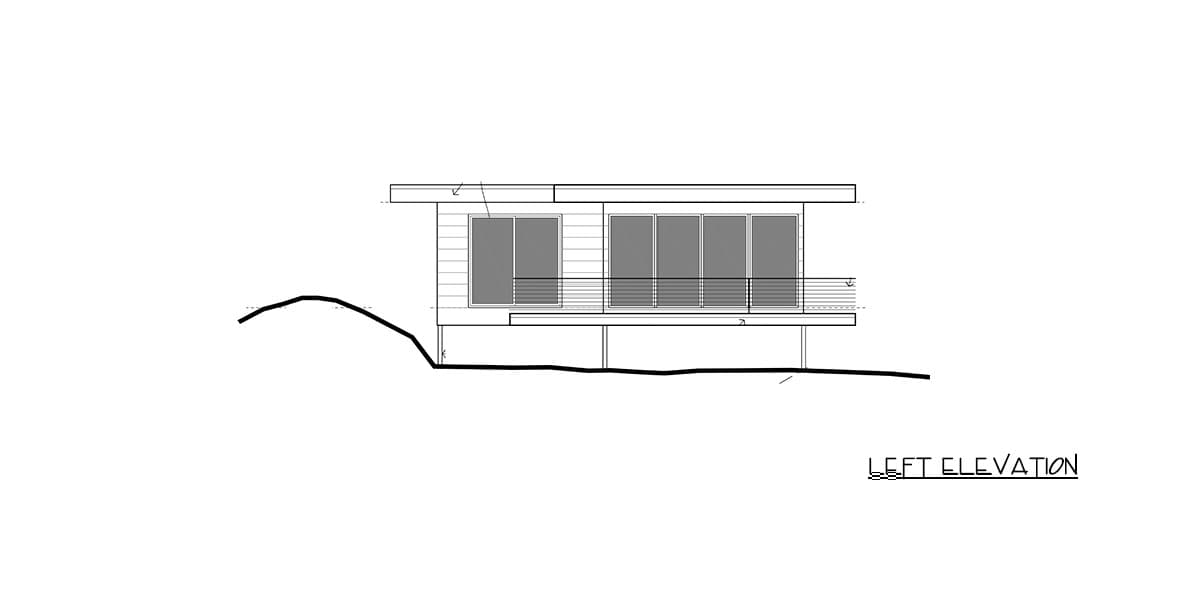

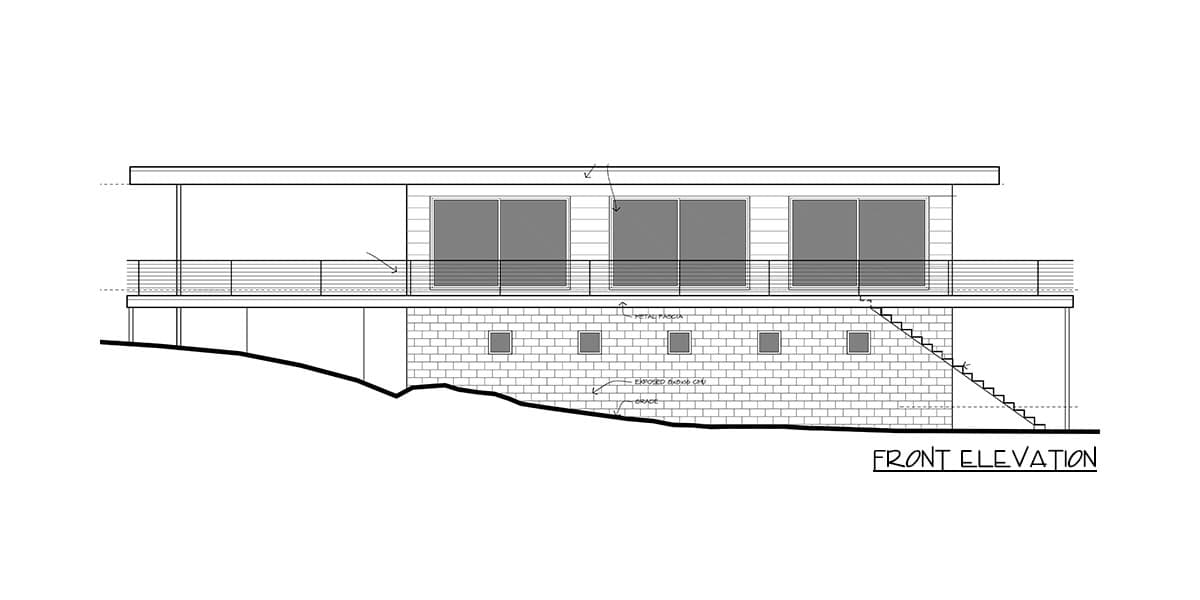

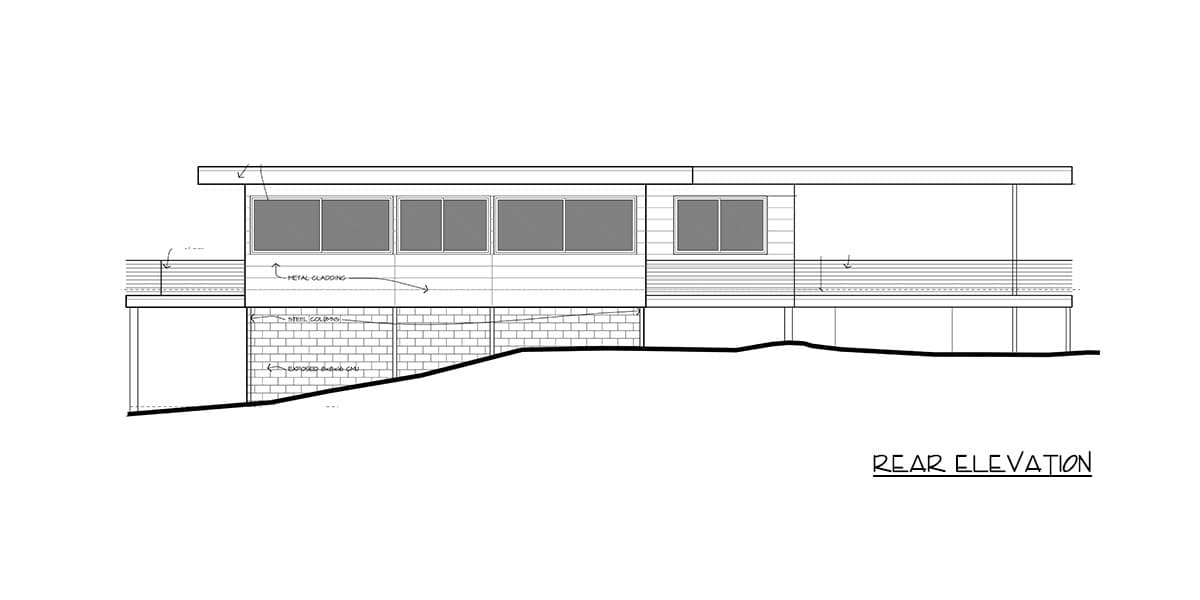

  • Elevations and roof plan
  • Electrical, mechanical and plumbing plans schematic

What's Not Included
Document
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
  • Materials list - MAY be available as a purchasable option under the "Options" tab
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,284 sq. ft.

1st Floor

1,284 sq. ft.

Porch, Combined

600 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

80' 8"

Depth

35' 7"

Max Ridge Height

21' 6"

Garage

Type

Drive Under

Area

800 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch

Plan Collections

Exclusive
