Modern Hill Country House Plan with Split-bed Layout
Heated S.F.
3,059
Beds
4
Baths
3
Stories
1
Cars
3
Floor Plan

Plan 150011HRP

Main Level
slide image 0

Plan 150011HRP

1-800-854-7852

1-262-521-4596

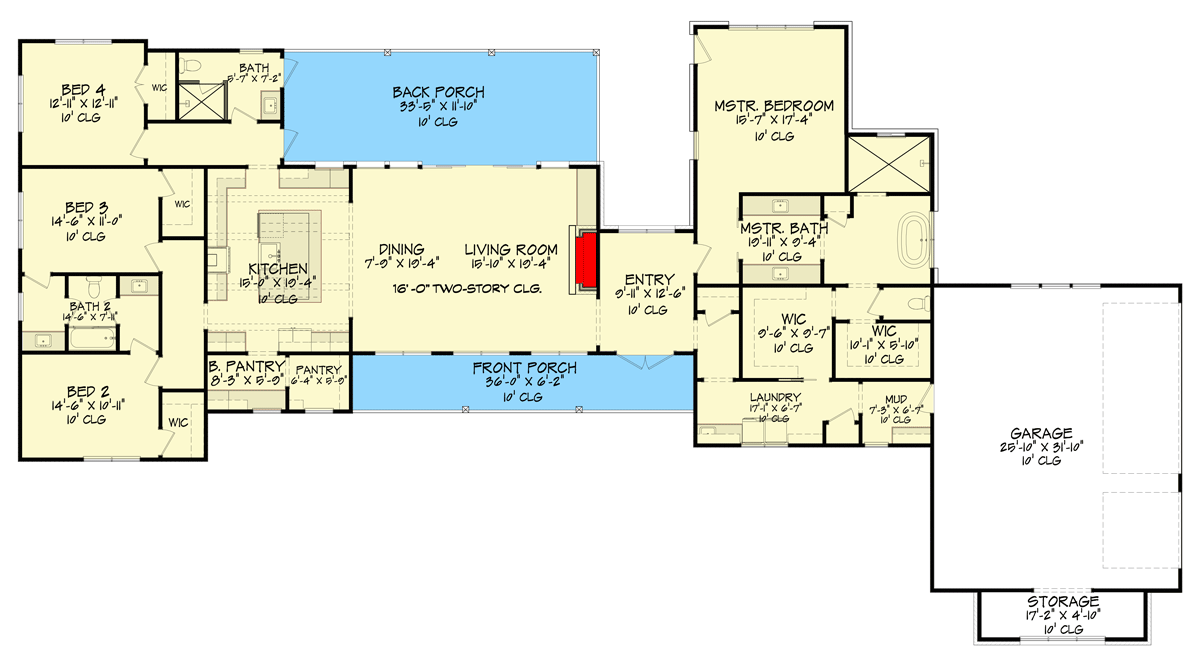

Main Level
floor plan image Main Level
Plan Details
  • Elevate one-level living with this Modern Hill Country home plan; a design that is exclusive to Architectural Designs.
  • The open living space is centered with a 16' ceiling height, flanked by front and rear porches, and separating the master bedroom from the family bedrooms.
  • The rectangular kitchen hosts an oversized island with a butler's pantry and walk-in pantry increasing storage space.
  • The 3-car garage shares the right wing with the master suite, mudroom, and laundry room. The master bathroom indulges in a large shower and two walk-in closets, one of which leads to the laundry room.
  • Three family bedrooms line the left side of the home; two share a Jack-and-Jill bath.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,059 sq. ft.

1st Floor

3,059 sq. ft.

Porch, Front

223 sq. ft.

Porch, Rear

413 sq. ft.

Storage

95 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

122' 11"

Depth

65' 0"

Max Ridge Height

21' 2"

Garage

Type

Attached

Area

854 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Clerestory

16' 0''

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Contemporary

Hill Country

Mid Century Modern

Modern

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,059 sq. ft.

1st Floor

3,059 sq. ft.

Porch, Front

223 sq. ft.

Porch, Rear

413 sq. ft.

Storage

95 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

122' 11"

Depth

65' 0"

Max Ridge Height

21' 2"

Garage

Type

Attached

Area

854 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Clerestory

16' 0''

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Contemporary

Hill Country

Mid Century Modern

Modern

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Exclusive
