Plan 430027LY

Exclusive

Modern Hill Country House Plan with Split Bedrooms
Heated S.F.
3,539
Beds
4
Baths
3.5
Stories
1
Cars
4
Floor Plan

Plan 430027LY

Main Level
slide image 0

Plan 430027LY

1-800-854-7852

1-262-521-4596

Main Level

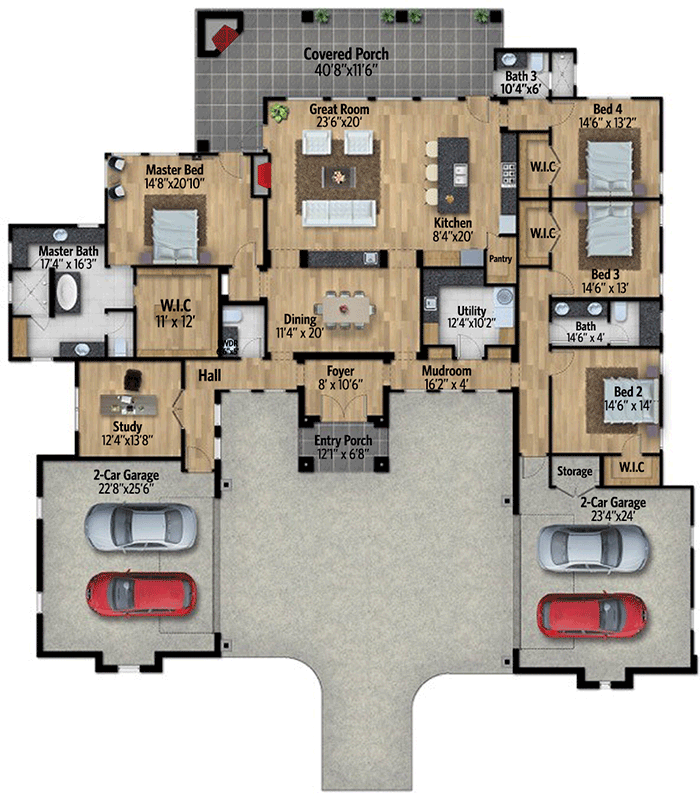

floor plan image Main Level
Plan Details
  • The functional and well-designed layout of this Hill Country house plan makes it a pleasure to live in.
  • The wide foyer directs you to either the quiet study on the left, the bedroom wing on the right or back to the main living area that is all open concept.
  • A half wall between the dining room and great room gives you great sight lines.
  • A covered porch in back wraps around the great room with its wall of windows.
  • Homeowners get a private master suite set off by itself.
  • The master bathroom is huge and has a stand alone soaking tub backed by a two-entry walk-in shower.
  • Courtyard style 2-car garages on either side of the entry.
  • Related Plan: Downsize and reduce one of the garages to a 1-car with house plan 430011LY (3,074 sq. ft.).
What's Included
  • Cover sheet
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.
