Plan 890074AH
Modern House Plan with 3 Beds in Split Layout
Heated S.F.
1,583
Beds
3
Baths
2
Stories
1
Cars
3
Floor Plan

Plan 890074AH

Main Level
slide image 0

Plan 890074AH

1-800-854-7852

1-262-521-4596

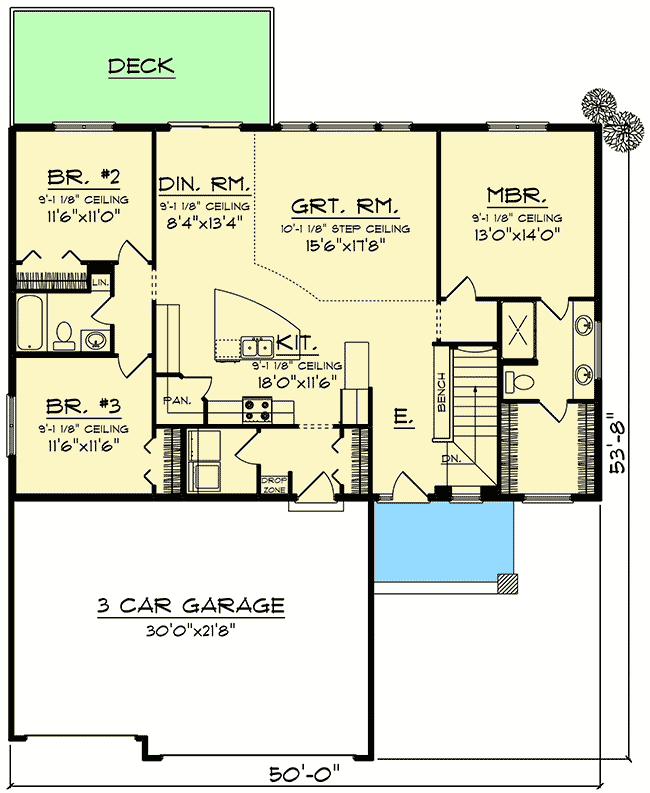

Main Level
floor plan image Main Level
Plan Details
  • This modern-style house plan has an open- concept floor plan that includes a spacious great room, kitchen, and dining room great for a family get-together.
  • The master bedroom is located on the right side of the home along with a walk-in closet and dual sinks.
  • Two additional bedrooms lie behind the garage to the left and share a full bath off the hall.
  • The garage has three-stalls with two garage doors allowing you to have the option of not having all of the garage doors open at once.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,583 sq. ft.

1st Floor

1,583 sq. ft.

Porch, Combined

85 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

53' 8"

Max Ridge Height

16' 10"

Garage

Type

Attached

Area

655 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Mid Century Modern

Modern

Northwest

Ranch

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Mudroom
