Plan 69667AM
Modern House Plan with Flexible Lower Level
Heated S.F.
2,298
Beds
3 - 4
Baths
4
Stories
2
Cars
1
Floor Plan

Plan 69667AM

Main Level
slide image 0
Second Level
slide image 1
Lower Level
slide image 2

Plan 69667AM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Second Level
floor plan image Second Level
Lower Level
floor plan image Lower Level
Plan Details

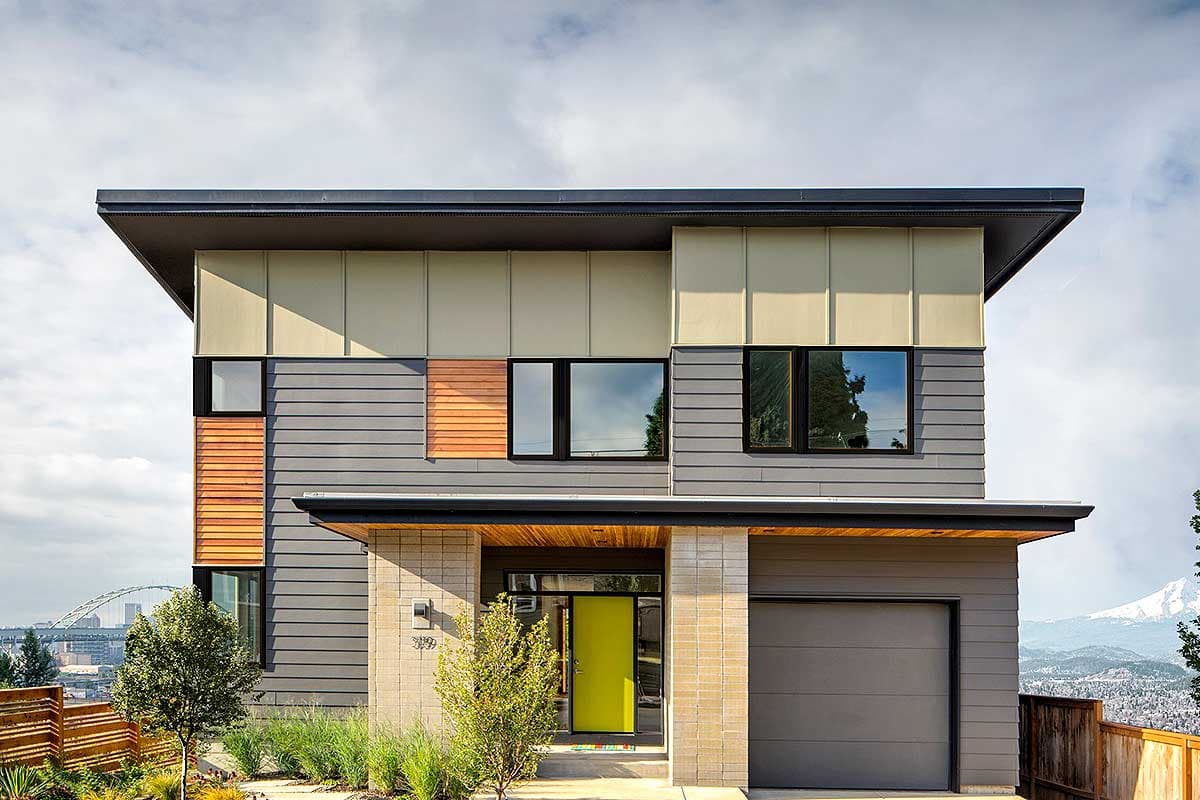

  • This sleek, sophisticated modern house plan has stylish and inviting exterior with a mixture of exterior textures and colors. Inside, the first room you’ll encounter is the home office which can be converted for use as a bedroom if needed.

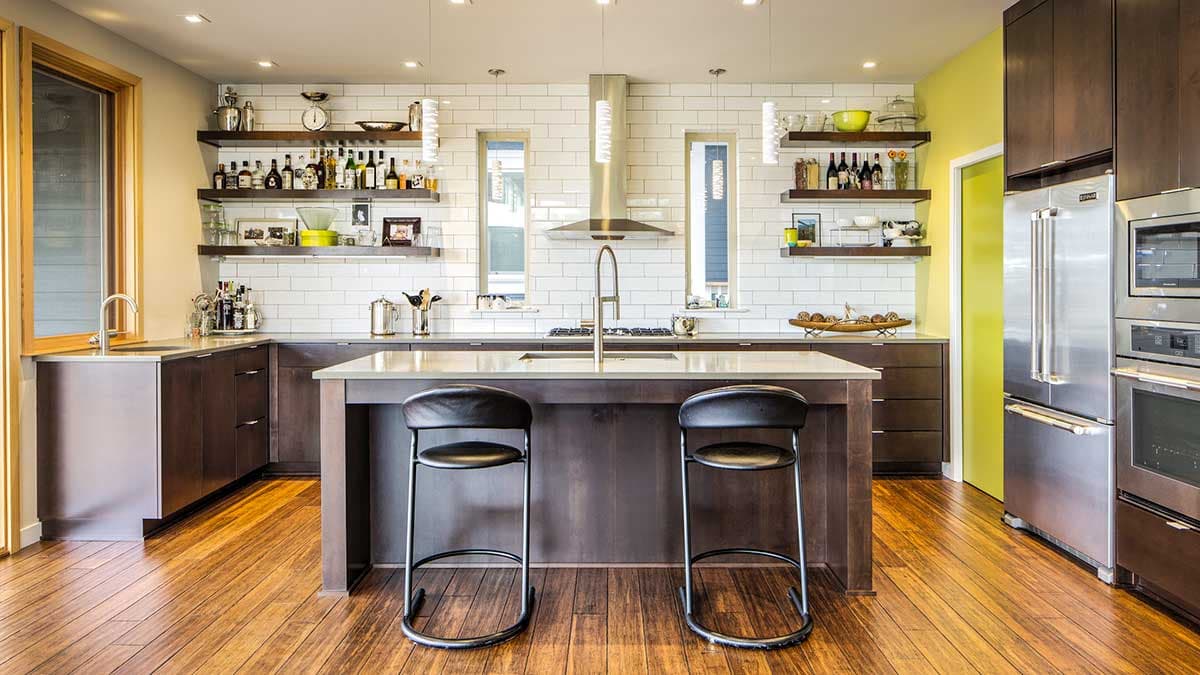

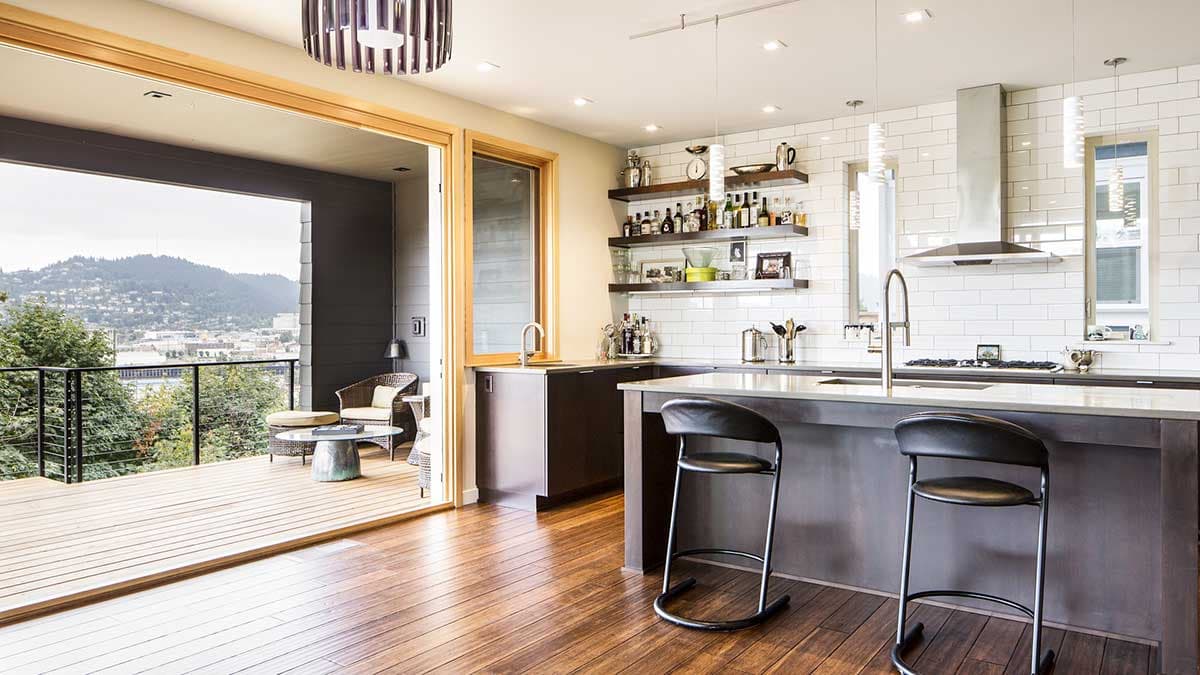

  • The great room, dining area and kitchen blend seamlessly together, giving you a great space to host friends or coworkers. The porch is a great spot to grill on and to enjoy the views.
  • On the upper floor, you’ll find the master bedroom with great master bathroom and a second bedroom with ensuite bathroom. The laundry room is located on this floor, making doing laundry a breeze.. There is also a spacious exercise area.
  • The lower level can serve as a small apartment complete with private bedroom, bathroom and kitchenette or as an entertainment room. The kitchenette makes an ideal wet bar and you’ll have plenty of space for card tables, a pool table or whatever you love most. A door opens out onto a secluded patio.
What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,298 sq. ft.

1st Floor

1,175 sq. ft.

2nd Floor

1,123 sq. ft.

Optional Lower Level

690 sq. ft.

Deck

437 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 6"

Depth

56' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

315 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Room

Ceiling Type

Height

Great Room

Flat

11' 0''

Roof Details

Primary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Home Office

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Wet Bar

Plan Collections

Home Office

Photo Gallery

Sloping Lot

Square Footage Breakdown

Total Heated Area

2,298 sq. ft.

1st Floor

1,175 sq. ft.

2nd Floor

1,123 sq. ft.

Optional Lower Level

690 sq. ft.

Deck

437 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 6"

Depth

56' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

315 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Room

Ceiling Type

Height

Great Room

Flat

11' 0''

Roof Details

Primary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Home Office

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Wet Bar

Plan Collections

Home Office

Photo Gallery

Sloping Lot
