Plan 80826PM
Modern House Plan with Master Suite with Wrap-Around Deck - 2370 Sq Ft
Heated S.F.
2,370
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 80826PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80826PM

1-800-854-7852

1-262-521-4596

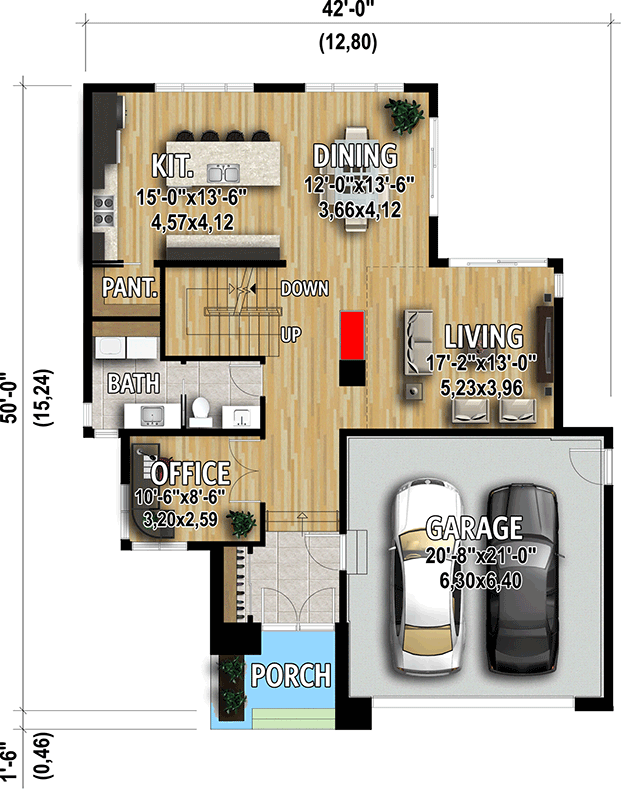

Main Level
floor plan image Main Level

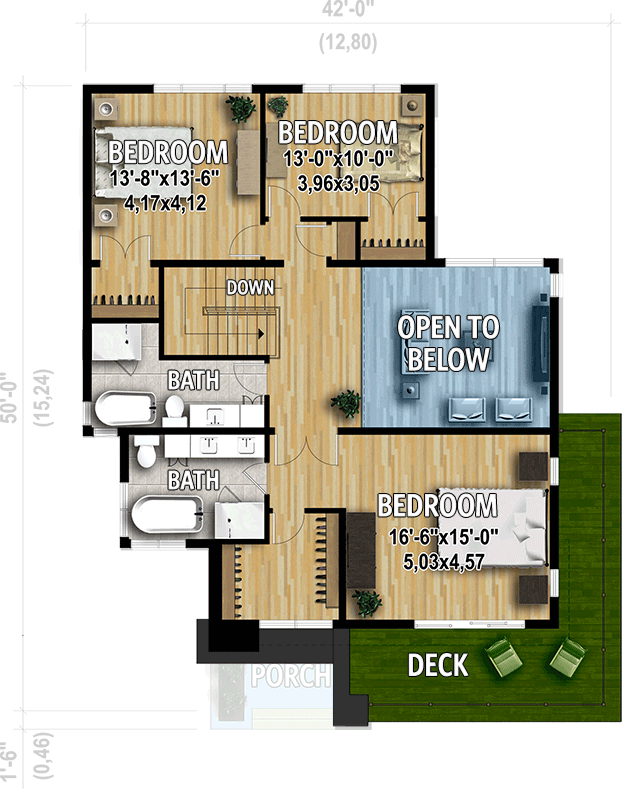

2nd Floor
floor plan image 2nd Floor
Plan Details
  • With Contemporary Styling and glass rails on the front deck, this Modern house plan deserves special attention.
  • The sunken foyer is just two steps up to the living area where the two-story living room soars up.
  • The open layout of the main floor lets you move easily from room to room and gives you terrific sightlines.
  • All three bedrooms are upstairs where the deluxe master suite gets a walk-in closet and private wrap-around deck.
What's Included
Please note this plan is designed to the National Building Code of Canada.

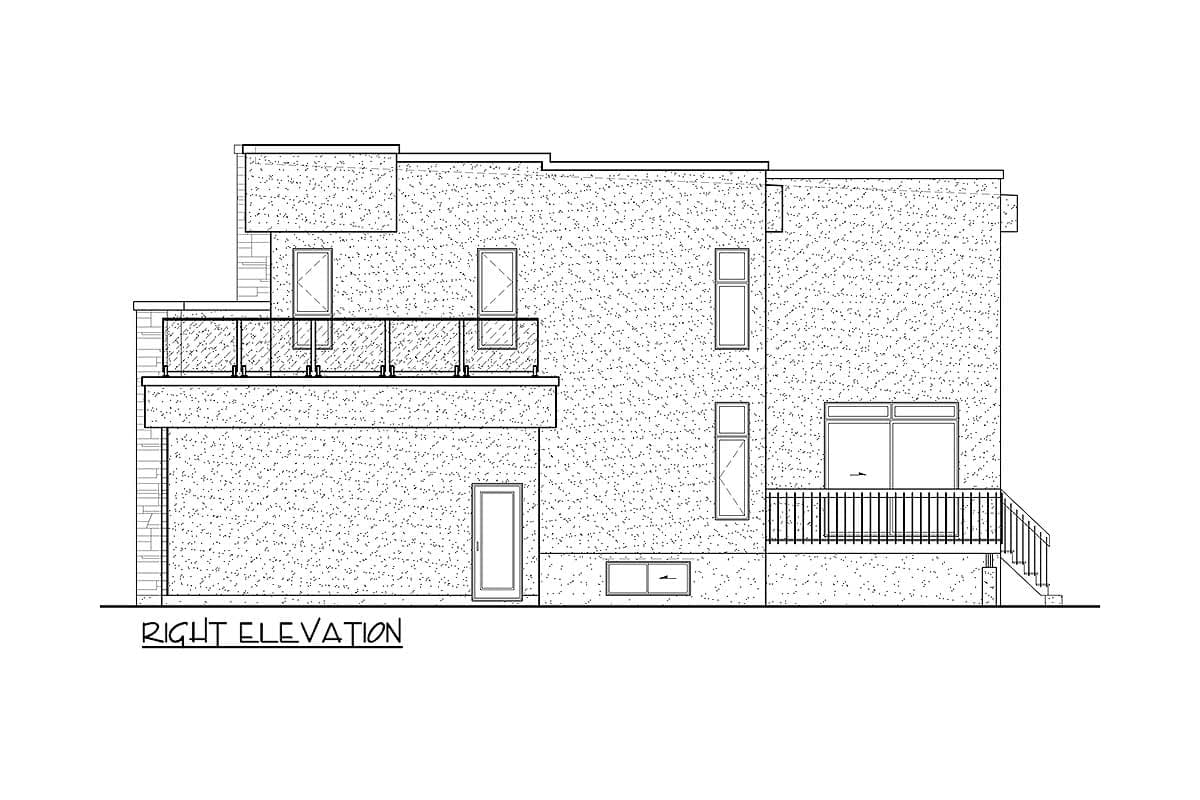

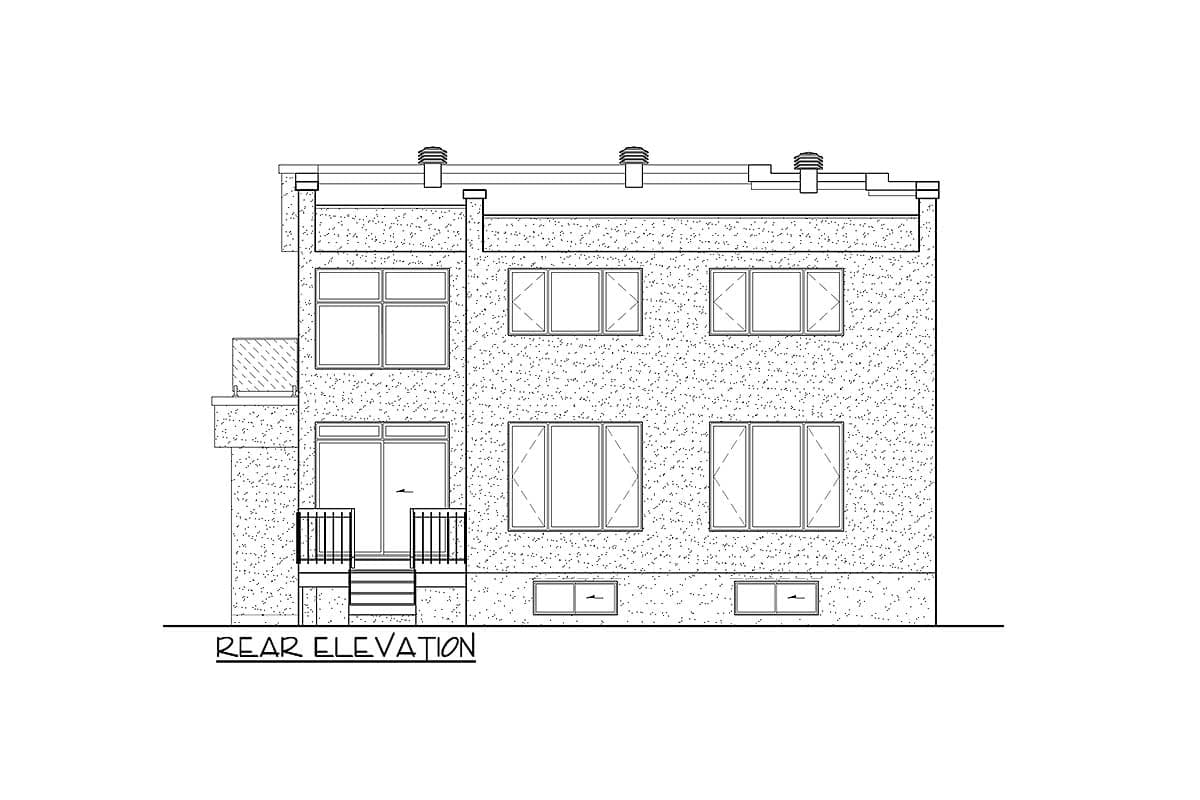

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,370 sq. ft.

1st Floor

1,155 sq. ft.

2nd Floor

1,215 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

50' 0"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

474 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom

Two Story Great Room

Plan Collections

Canadian House Plans

Metric

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,370 sq. ft.

1st Floor

1,155 sq. ft.

2nd Floor

1,215 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

50' 0"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

474 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom

Two Story Great Room

Plan Collections

Canadian House Plans

Metric

Photo Gallery
