Plan 82243KA
Modern House Plan with Upstairs Activity Room
Heated S.F.
3,210
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 82243KA

Main Level
slide image 0

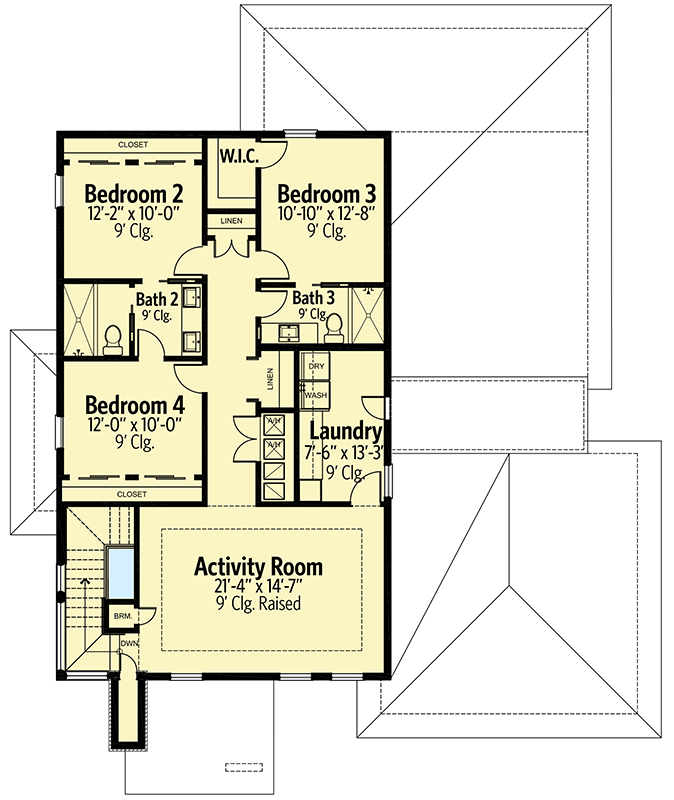

2nd Floor
slide image 1

Plan 82243KA

1-800-854-7852

1-262-521-4596

Main Level

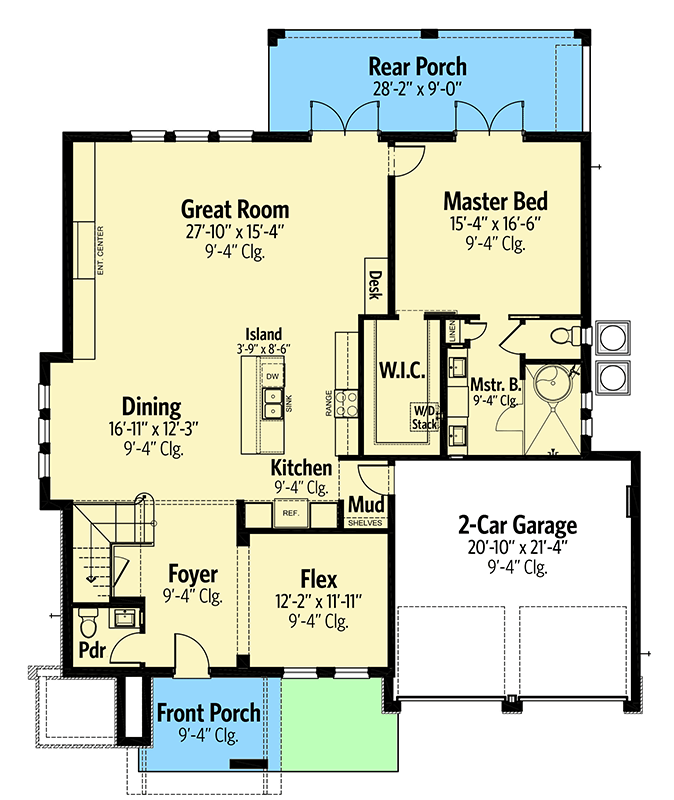

floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • A vibrant Contemporary exterior and an open layout make this Modern house plan a delight to live in.
  • The flex room off the foyer is yours to do with as you please.
  • There are lots of built-ins throughout the home and a handy second floor laundry room.

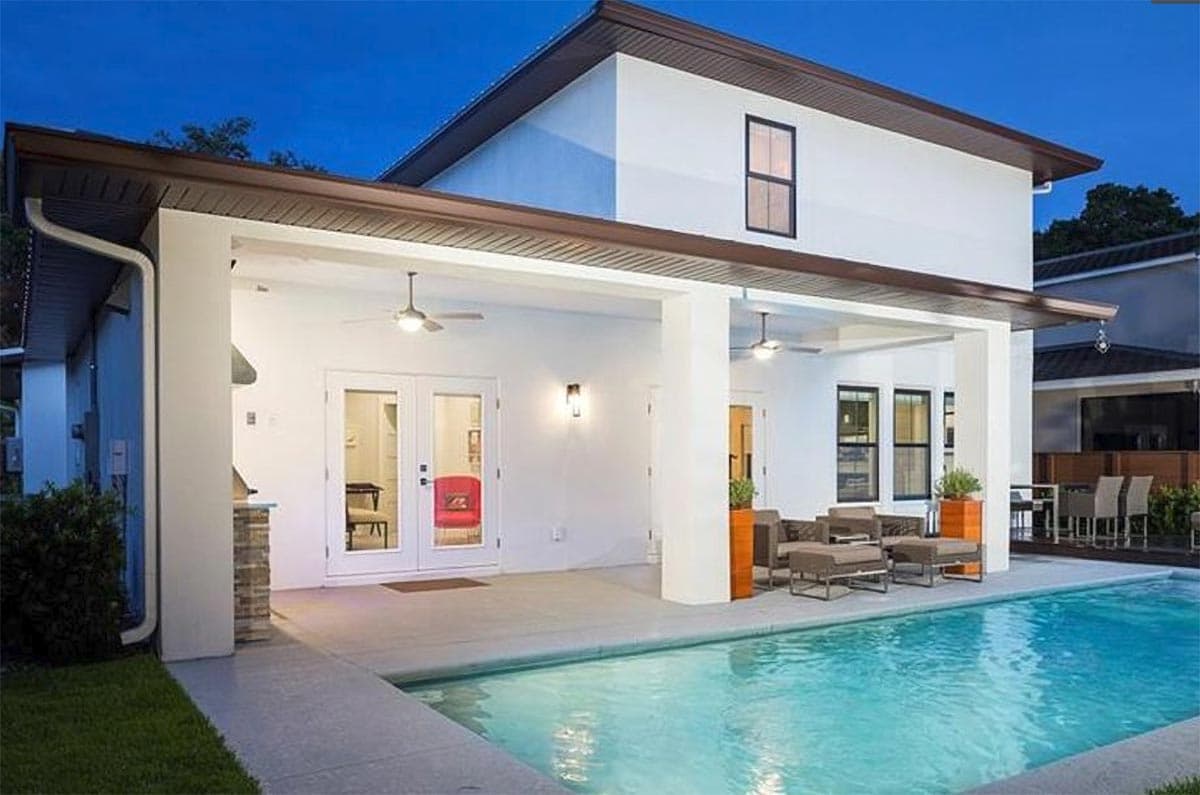

  • Double doors in the great room and master suite open up to the large rear covered porch.
  • The giant walk-in closet in the master suite even has its own stack washer/dryer for the ultimate in convenience.

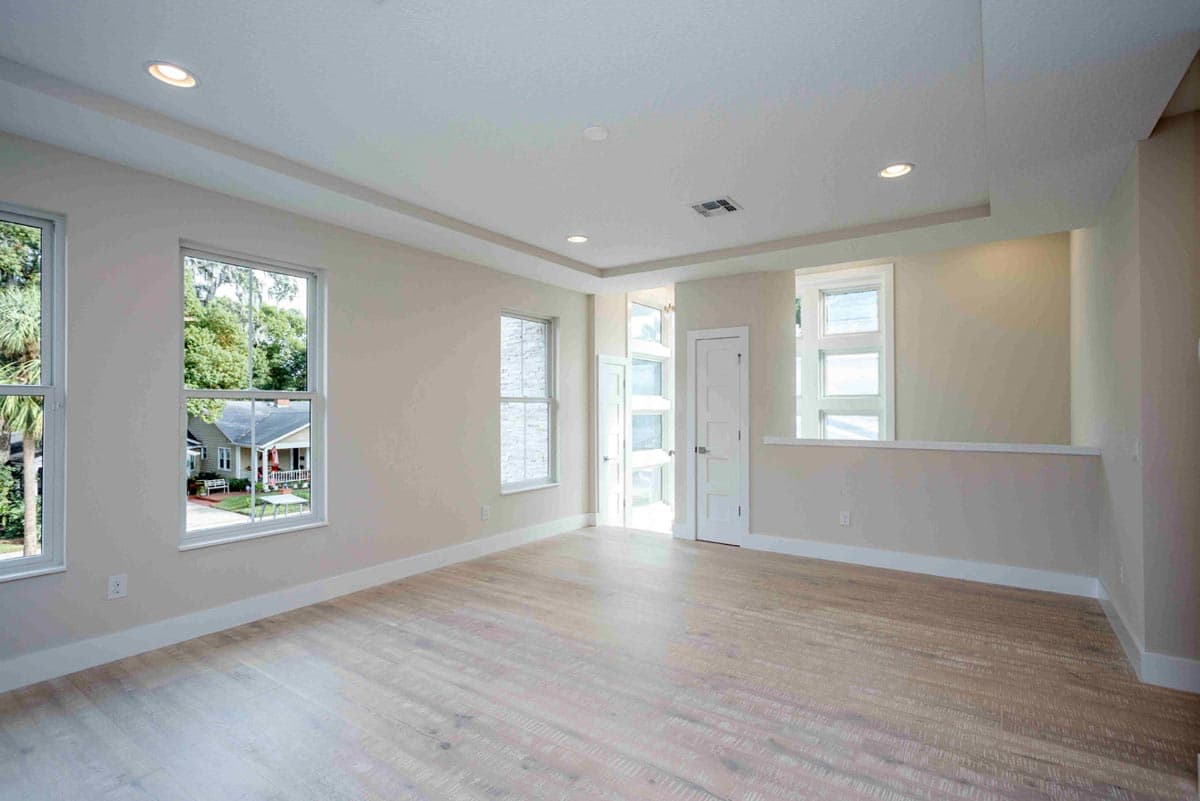

  • A tray ceiling tops the second floor activity room that friends and family alike will love.
What's Included
  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,210 sq. ft.

1st Floor

1,902 sq. ft.

2nd Floor

1,308 sq. ft.

Porch, Front

113 sq. ft.

Porch, Rear

253 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

52' 8"

Depth

65' 0"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

478 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Flex Room

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 1st Floor

Plan Collections

Luxury

Photo Gallery

Premium Collection

Square Footage Breakdown

Total Heated Area

3,210 sq. ft.

1st Floor

1,902 sq. ft.

2nd Floor

1,308 sq. ft.

Porch, Front

113 sq. ft.

Porch, Rear

253 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

52' 8"

Depth

65' 0"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

478 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Flex Room

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 1st Floor

Plan Collections

Luxury

Photo Gallery

Premium Collection
