Plan 290184IY
Modern House Plan with Upstairs Reading Nook with Fireplace - 4036 Sq Ft
Heated S.F.
4,036
Beds
6
Baths
5.5+
Stories
2
Cars
3
Floor Plan

Plan 290184IY

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 290184IY

1-800-854-7852

1-262-521-4596

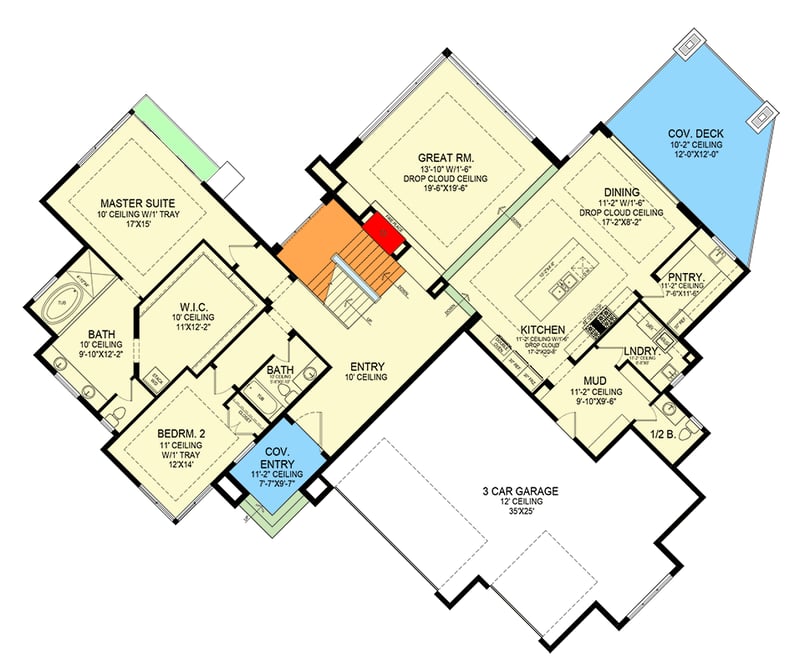

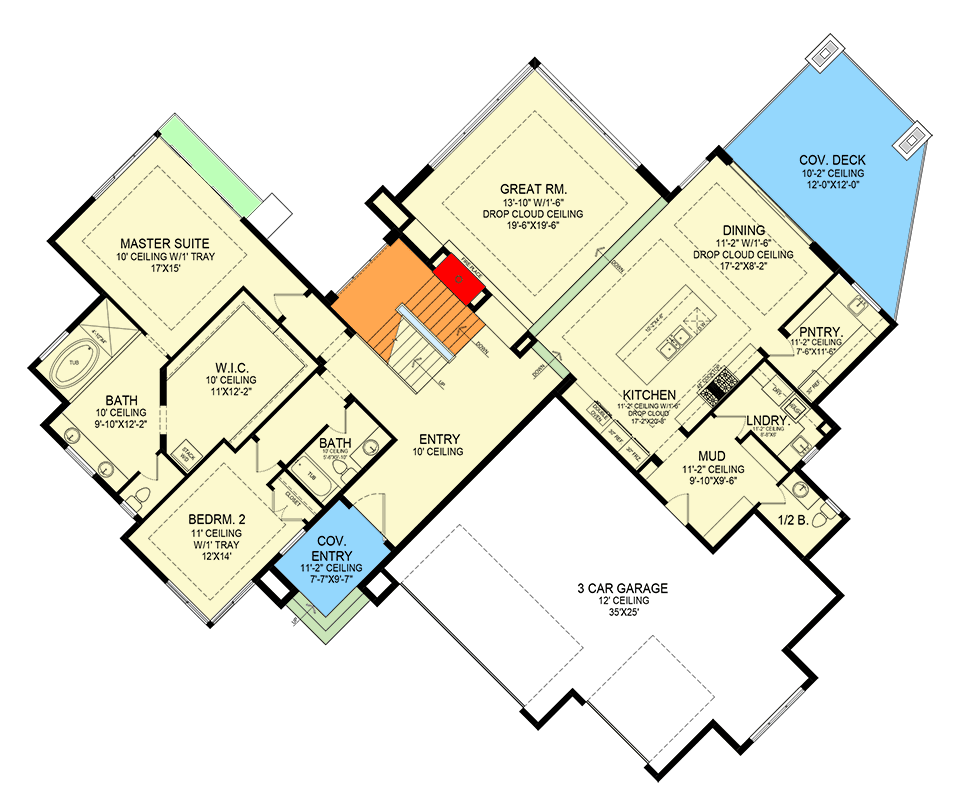

Main Level
floor plan image Main Level

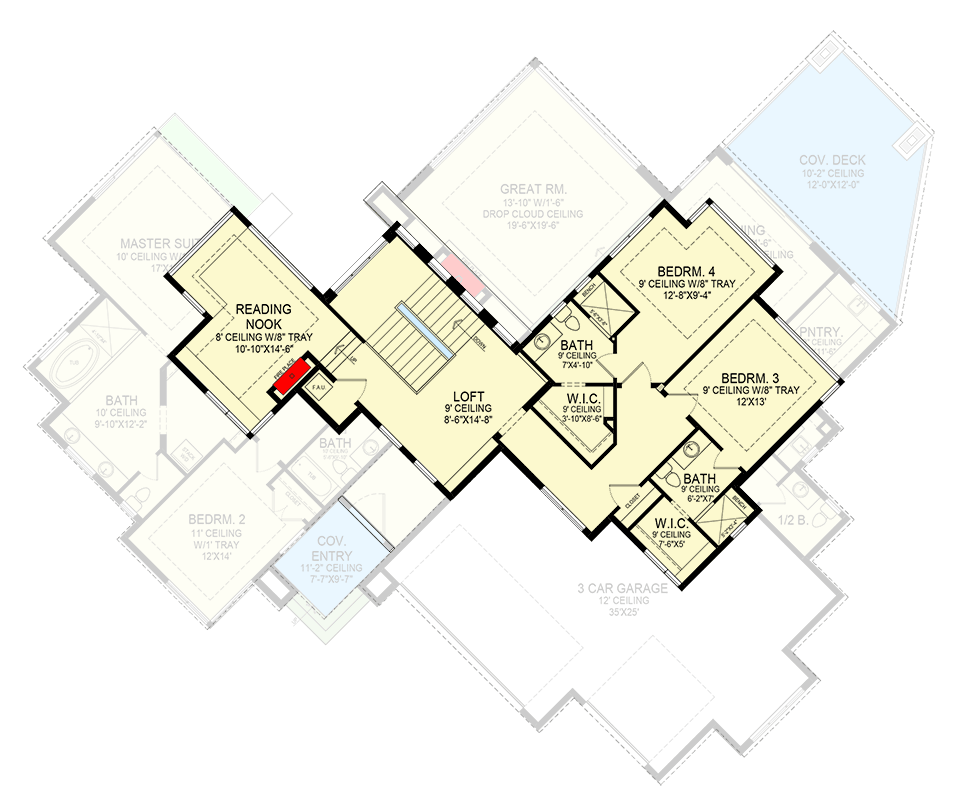

2nd Floor
floor plan image 2nd Floor

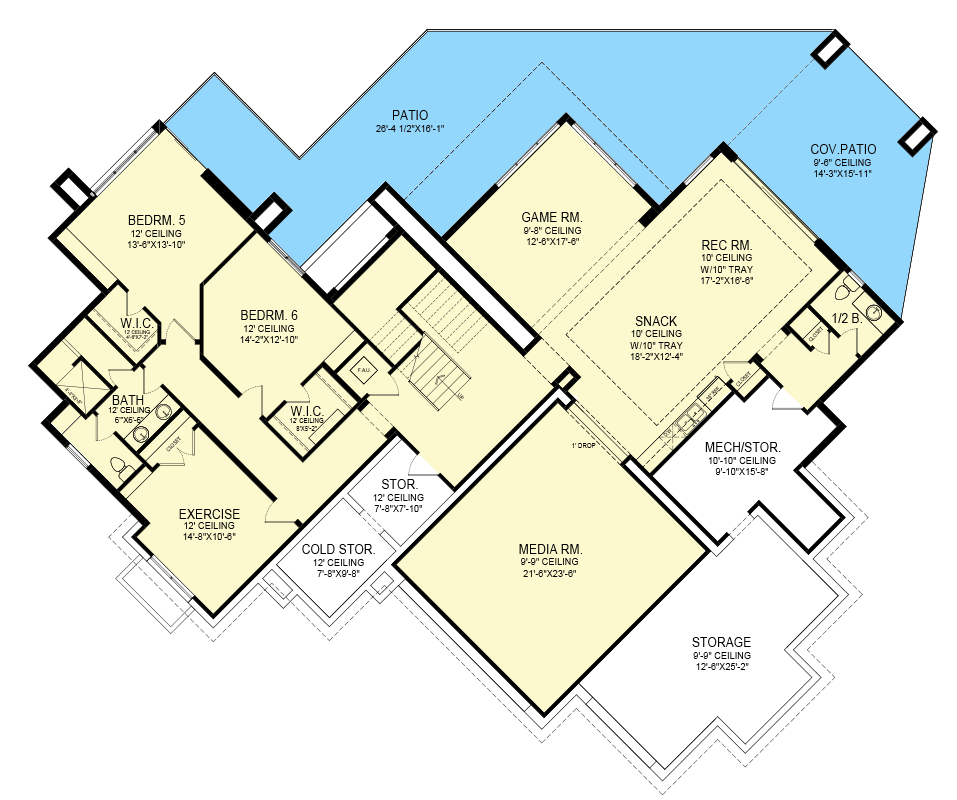

Lower Level
floor plan image Lower Level
Plan Details
  • This modern house plan gives you 6 beds and 4,036 square feet of heated living space with lower level expansion giving you 2,840 square feet of extra space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,036 sq. ft.

1st Floor

2,690 sq. ft.

2nd Floor

1,346 sq. ft.

Optional Lower Level

2,840 sq. ft.

Deck

314 sq. ft.

Entry

74 sq. ft.

Covered Patio

1,169 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

5

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 2"

Depth

87' 10"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

970 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

12'

First Floor

11' 2"

Second Floor

9'

Roof Details

Primary Pitch

12 on 3

Secondary Pitch

12 on 4-Jan

Architectural Style

Mid Century Modern

Modern

Mountain

Special Features

Angled Garage

Bedrooms - Clustered

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Home Theater

Laundry - Main Level

Loft

Master Suite - 1st Floor

Media Room

Mudroom

Wet Bar

Plan Collections

Luxury

Sloping Lot
