Plan 62675DJ
Modern Mediterranean with Sunken Great Room
Heated S.F.
4,230
Beds
3
Baths
3.5
Stories
2
Cars
4
Floor Plan

Plan 62675DJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 62675DJ

1-800-854-7852

1-262-521-4596

Main Level

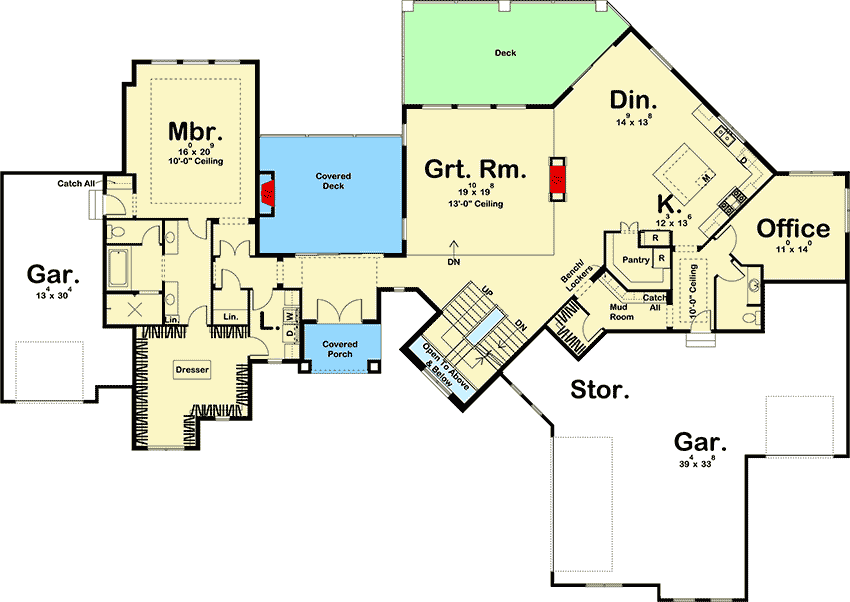

floor plan image Main Level

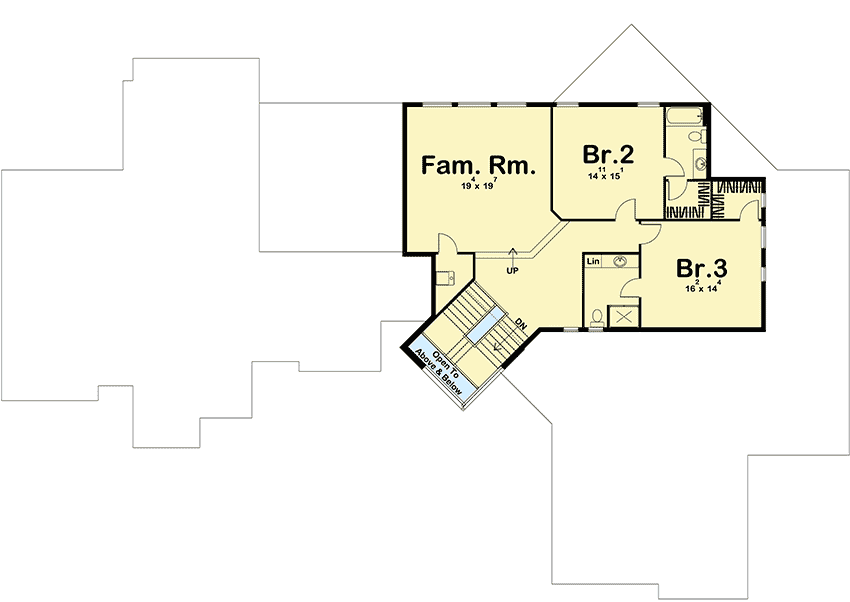

2nd Floor
floor plan image 2nd Floor
Plan Details
  • With its clean, straight lines, this Mediterranean house plan has a modern edge.
  • Double doors in the foyer open up to sliding glass doors in back that take you to a private covered deck.
  • The main living area is to the right where the sunken great room is huge.
  • A two-way fireplace warms both the great room and the kitchen/dining area.
  • Both rooms overlook the uncovered deck in back.
  • Tucked away off by itself, the home office has windows on two sides.
  • The master suite has its own wing on the right with a private garage right into the master bedroom.
  • The enormous walk-in closet has a built-in island dresser and a door into the laundry room - so convenient!
  • Upstairs, the raised family room is just a few steps away from the two bedrooms on this floor.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,230 sq. ft.

1st Floor

2,962 sq. ft.

2nd Floor

1,268 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

92' 0"

Depth

82' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

1710 sq. ft.

Count

4 Cars

Entry Location

Front, Courtyard

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

8'

Room

Ceiling Type

Height

Great Room

13' 0''

Master Bedroom

Tray

0' 0''

Roof Details

Primary Pitch

6 on 12

Architectural Style

European

Mediterranean

Special Features

Butler Walk-in Pantry

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

4,230 sq. ft.

1st Floor

2,962 sq. ft.

2nd Floor

1,268 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

92' 0"

Depth

82' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

1710 sq. ft.

Count

4 Cars

Entry Location

Front, Courtyard

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

8'

Room

Ceiling Type

Height

Great Room

13' 0''

Master Bedroom

Tray

0' 0''

Roof Details

Primary Pitch

6 on 12

Architectural Style

European

Mediterranean

Special Features

Butler Walk-in Pantry

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Plan Collections

Home Office
