Plan 520007RKY

Modern Minimalist Ranch with Courtyard and Wine Room - 4792 Sq Ft

Heated S.F.

4,792

Beds

4 - 5

Baths

3.5

Stories

1

Cars

3

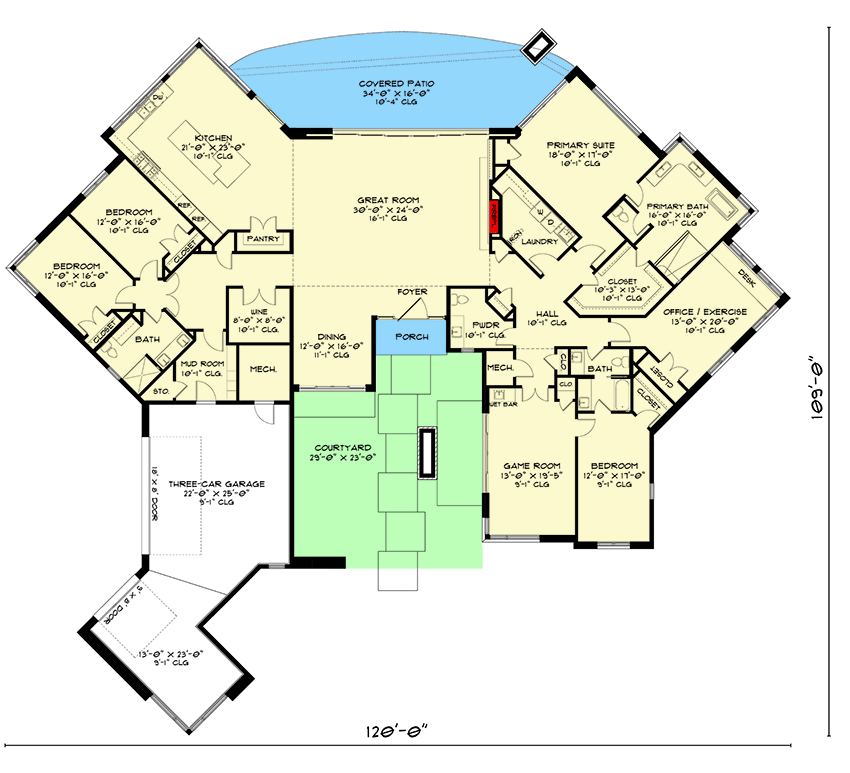

Floor Plan

Main Level

floor plan image Main Level

Plan Details

If you’re searching for luxurious one-level living in a home that prioritizes architectural balance, proportion, and flow, look no further than this modern minimalist ranch. Designed to fit a wide site with rear views, this home takes both form and function very seriously.
Enter through the soothing front courtyard – your own personal Zen garden – to a great room with a raised ceiling and a spectacular view of the covered patio. A modern, statement fireplace anchors the space and serves as a focal point, inviting you to enjoy the indoor and outdoor living space.
The gourmet kitchen includes sweeping rear views as well as plenty of counter space and room for high-end appliances. A tucked-away nook with windows facing the front courtyard can serve as the formal dining room and offers an entirely different scene for your guests. This home also boasts a wine room for intimate tastings and to show off your collection.
The primary suite occupies one wing of the plan, while two family or guest bedrooms are clustered on the opposite wing, providing balance and sanctuary. The primary suite includes a spa-like bath, a walk-in closet, and easy access to the laundry room and patio.
A game room in the front of the home is a paradise for kids or events, and a flex room adjacent to the primary suite provides an ideal home office or gym space. Closets and utility spaces tuck into every angle in this home, keeping your space tidy by providing hidden storage.
The flow and stair-free ease of this home provide unparalleled peace in your everyday life.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

Cover Sheet
Specifications
Foundation Layout Plan
Floor Plans
Sections

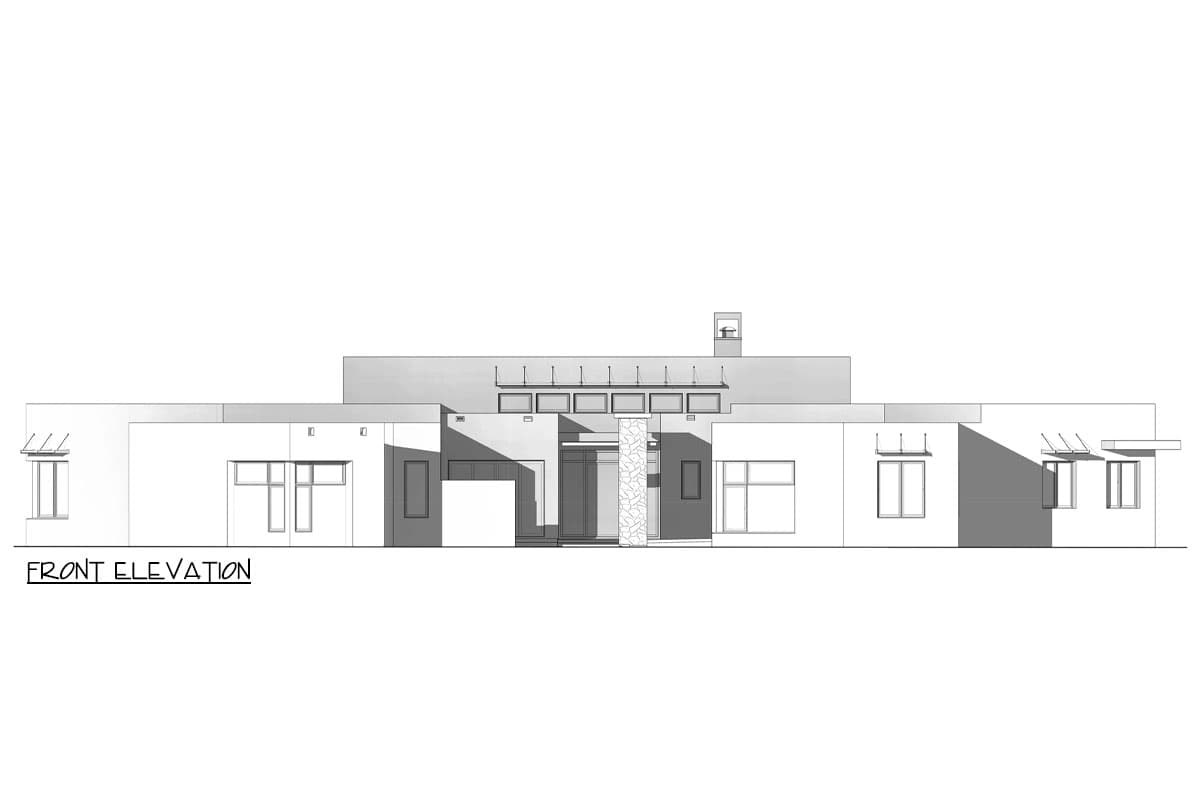

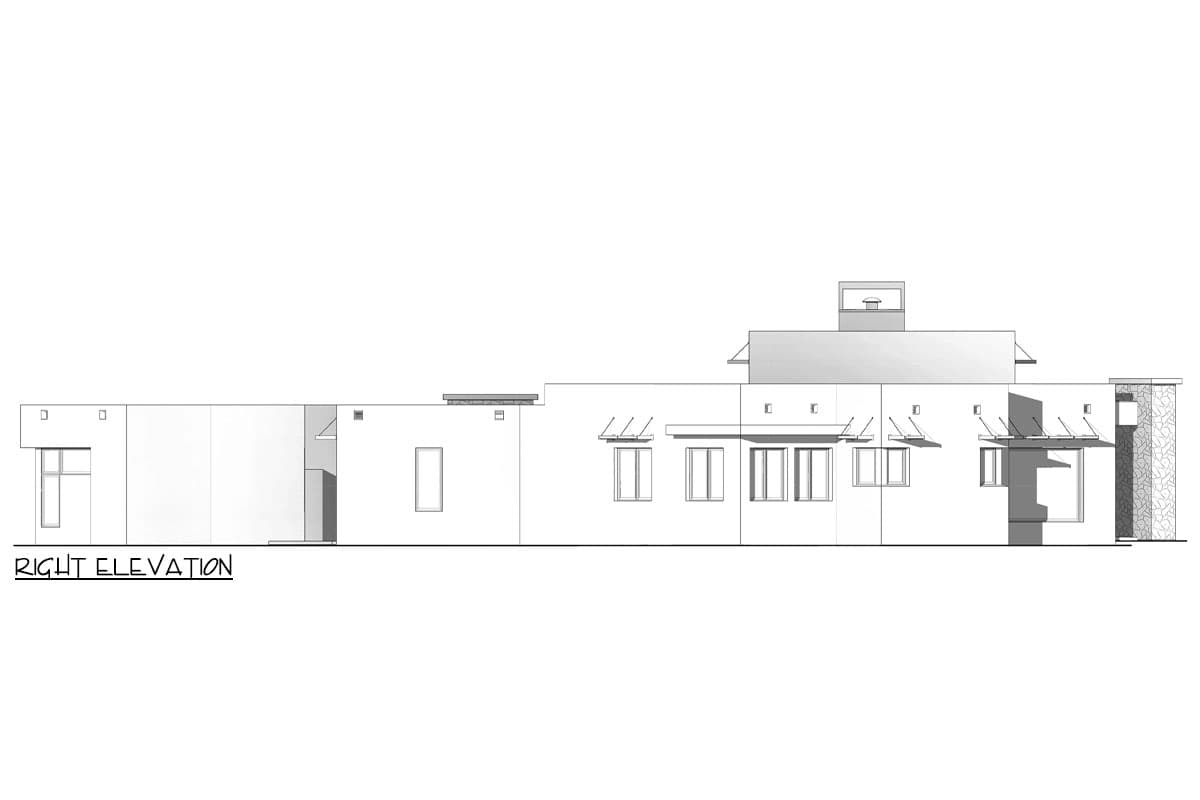

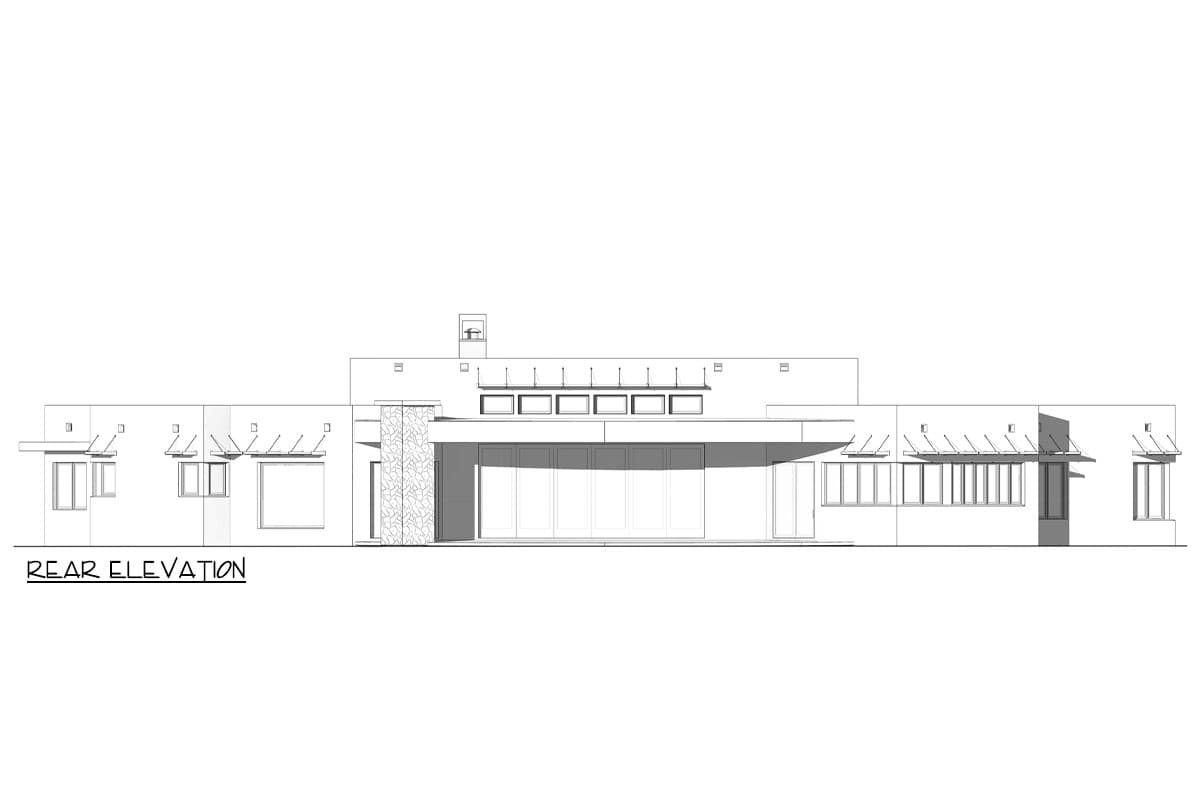

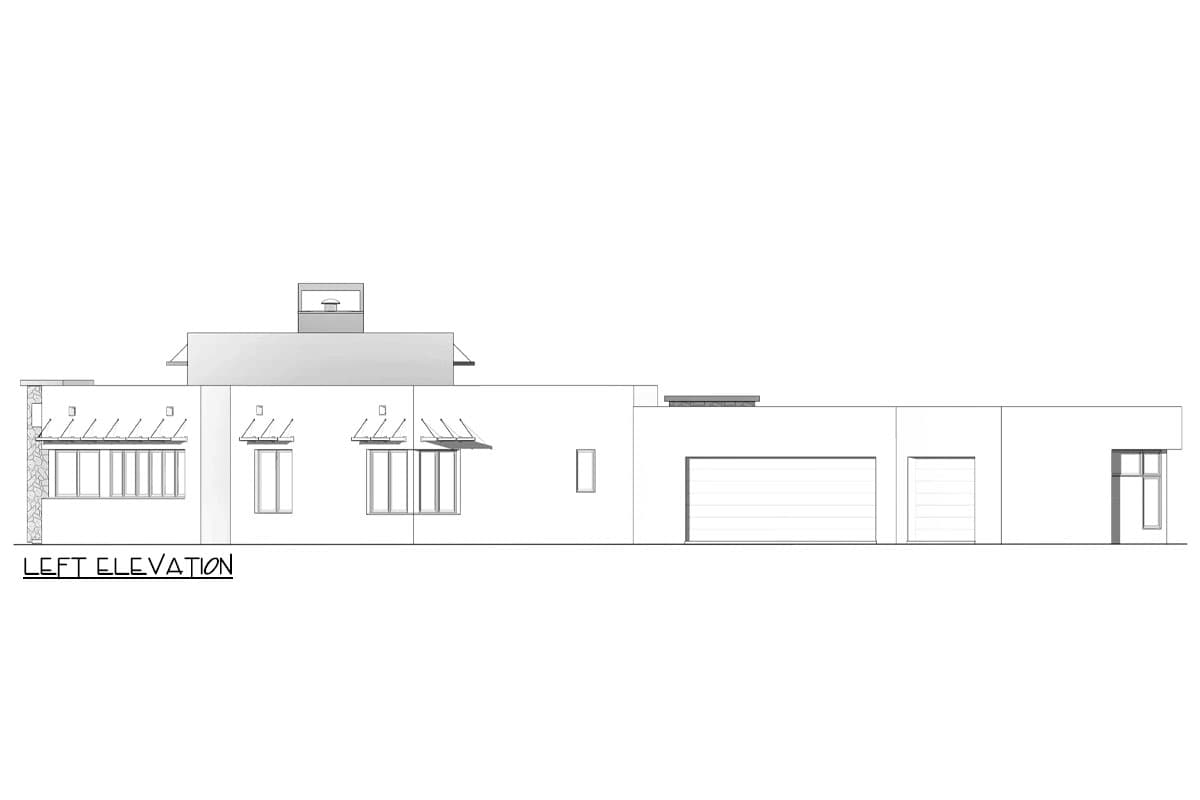

Elevations
Roof Ridge Plan
Details sheet(s)
Electrical Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Plumbing & Electrical plans
Mechanical Drawings (location of heating and air equipment and duct work)
Framing layouts with beam sizes and locations
Renderings, photography, or marketing imagery
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,792 sq. ft.

1st Floor

4,792 sq. ft.

Porch, Front

61 sq. ft.

Covered Patio

616 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

120' 0"

Depth

109' 0"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

981 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10' 1"

Room

Ceiling Type

Height

Great Room

16' 1''

Primary Bedroom

10' 1''

Roof Details

Primary Pitch

.25 on 12

Architectural Style

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Square Footage Breakdown

Total Heated Area

4,792 sq. ft.

1st Floor

4,792 sq. ft.

Porch, Front

61 sq. ft.

Covered Patio

616 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

120' 0"

Depth

109' 0"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

981 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10' 1"

Room

Ceiling Type

Height

Great Room

16' 1''

Primary Bedroom

10' 1''

Roof Details

Primary Pitch

.25 on 12

Architectural Style

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
