Plan 62788DJ
Modern Mountain Garage Apartment Plan
Heated S.F.
589
Beds
1
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 62788DJ

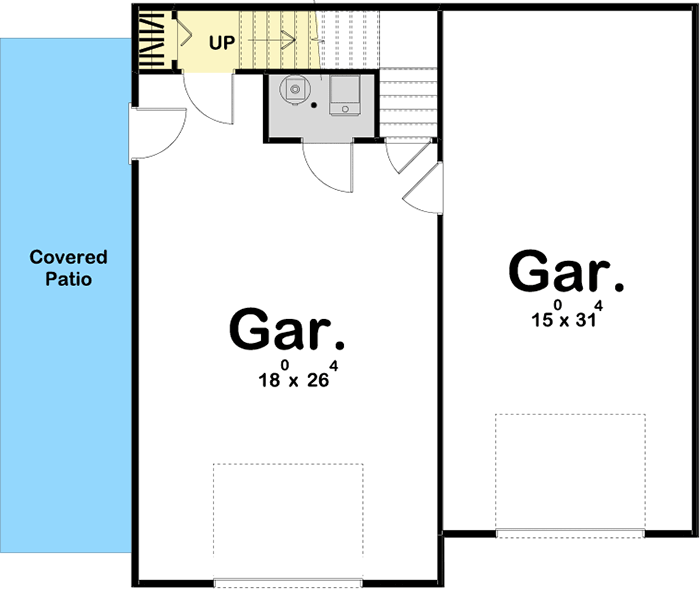

Main Level
slide image 0

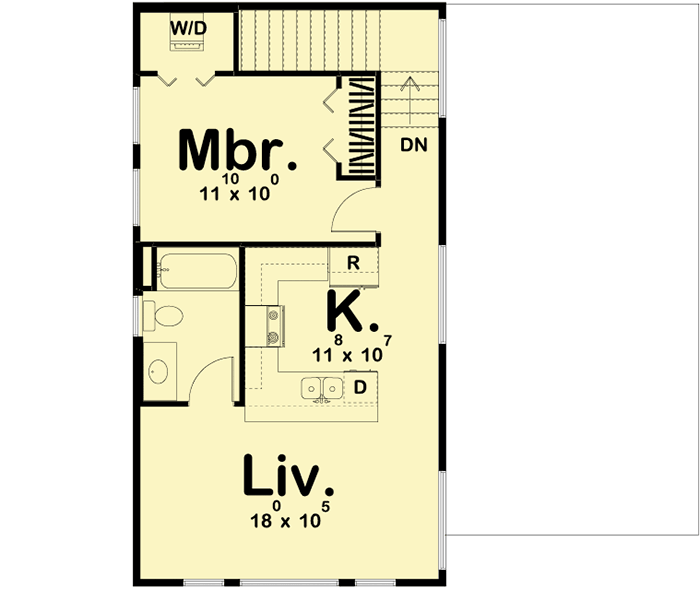

2nd Floor
slide image 1

Plan 62788DJ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Modern Mountain styling gives this garage apartment plan excellent curb appeal.
  • On the garage level, you will find 2 deep garage bays that are separated by a wall.
  • Upstairs, there is a great efficient 1 bedroom apartment. The kitchen in the apartment has a bar-height counter.
  • On the left side, there is an excellent covered patio that provides a space for outdoor entertainment.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

589 sq. ft.

1st Floor

589 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

35' 0"

Garage

Area

914 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Architectural Style

Barndominium

Carriage

Mountain

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

589 sq. ft.

1st Floor

589 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

35' 0"

Garage

Area

914 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Architectural Style

Barndominium

Carriage

Mountain

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU
