Plan 640002SRA
Modern Mountain Retreat
Heated S.F.
3,353
Beds
4
Baths
4 - 5
Stories
2
Cars
2
Floor Plan

Plan 640002SRA

Main Level
slide image 0
2nd Floor
slide image 1
Opt Lower Level
slide image 2

Plan 640002SRA

1-800-854-7852

1-262-521-4596

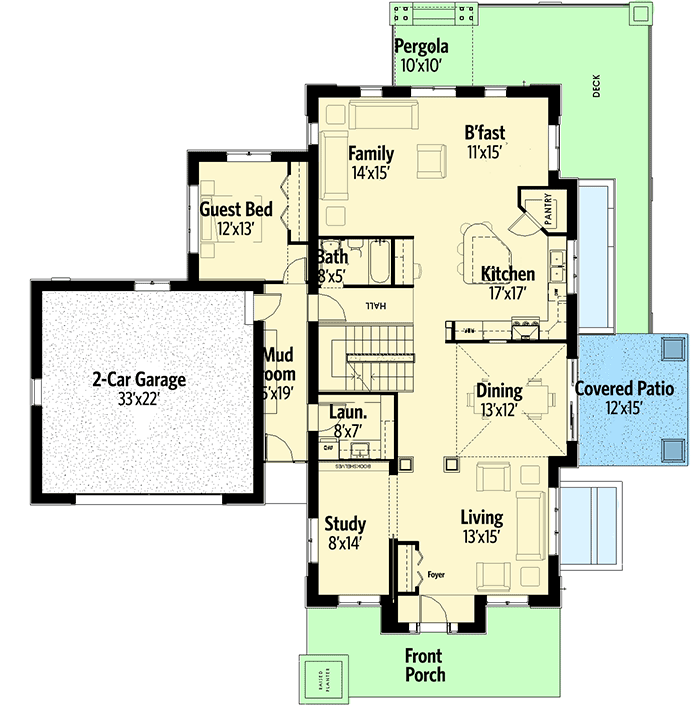

Main Level
floor plan image Main Level

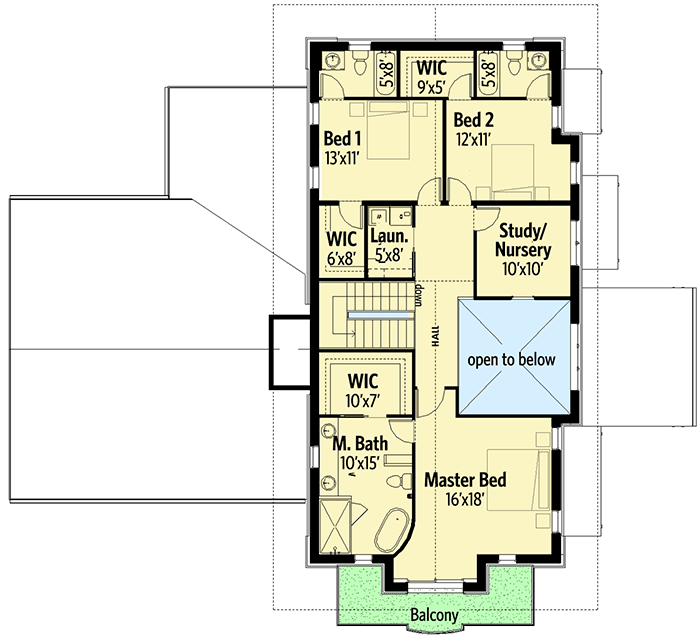

2nd Floor
floor plan image 2nd Floor

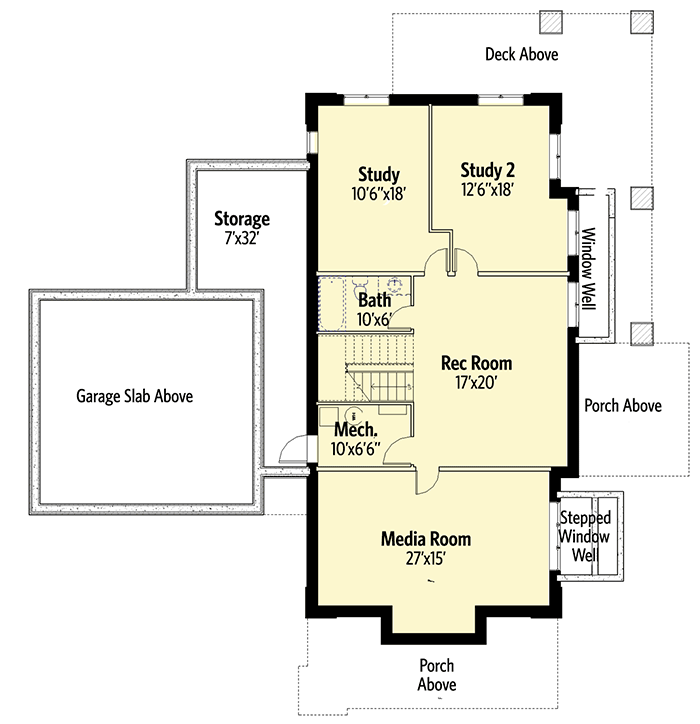

Opt Lower Level
floor plan image Opt Lower Level
Plan Details
  • Both the formal and informal areas of this modern Mountain house plan offer the ever-popular open layout.

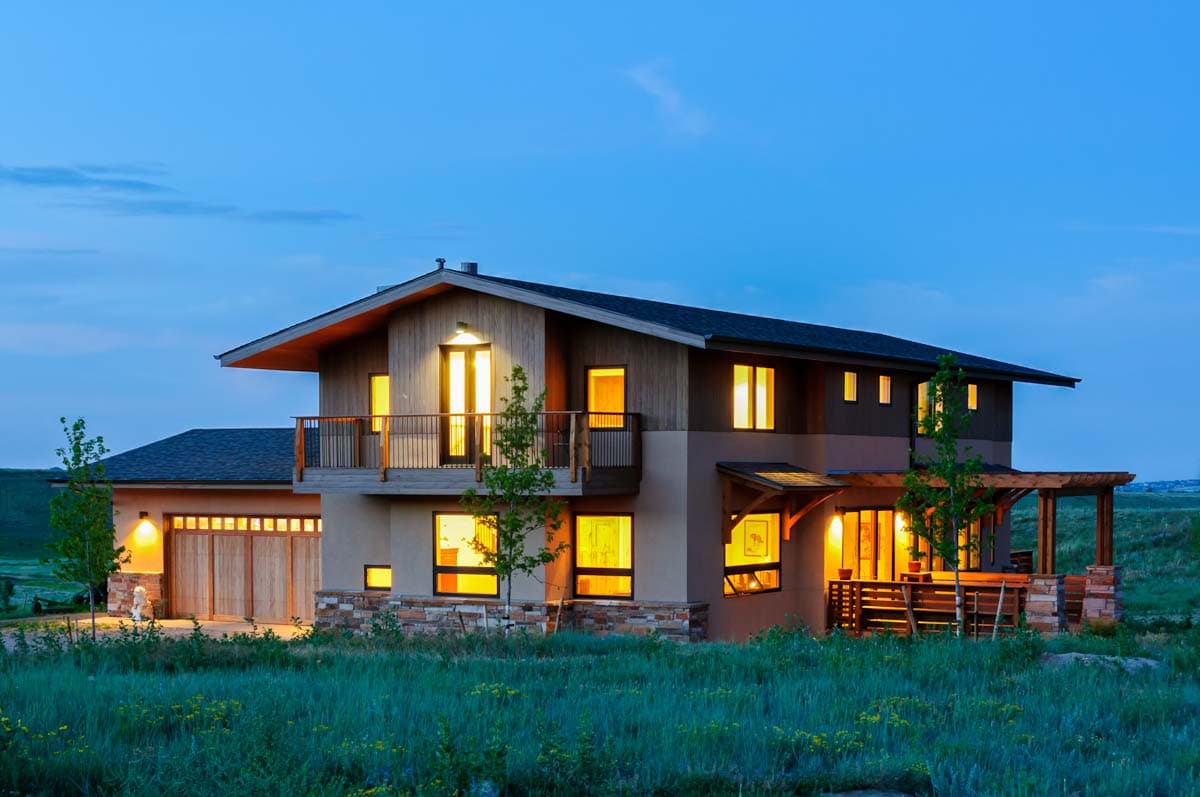

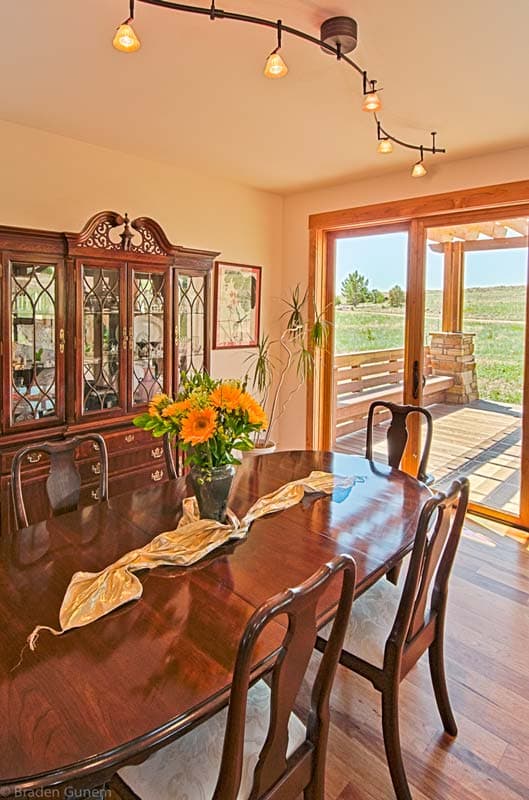

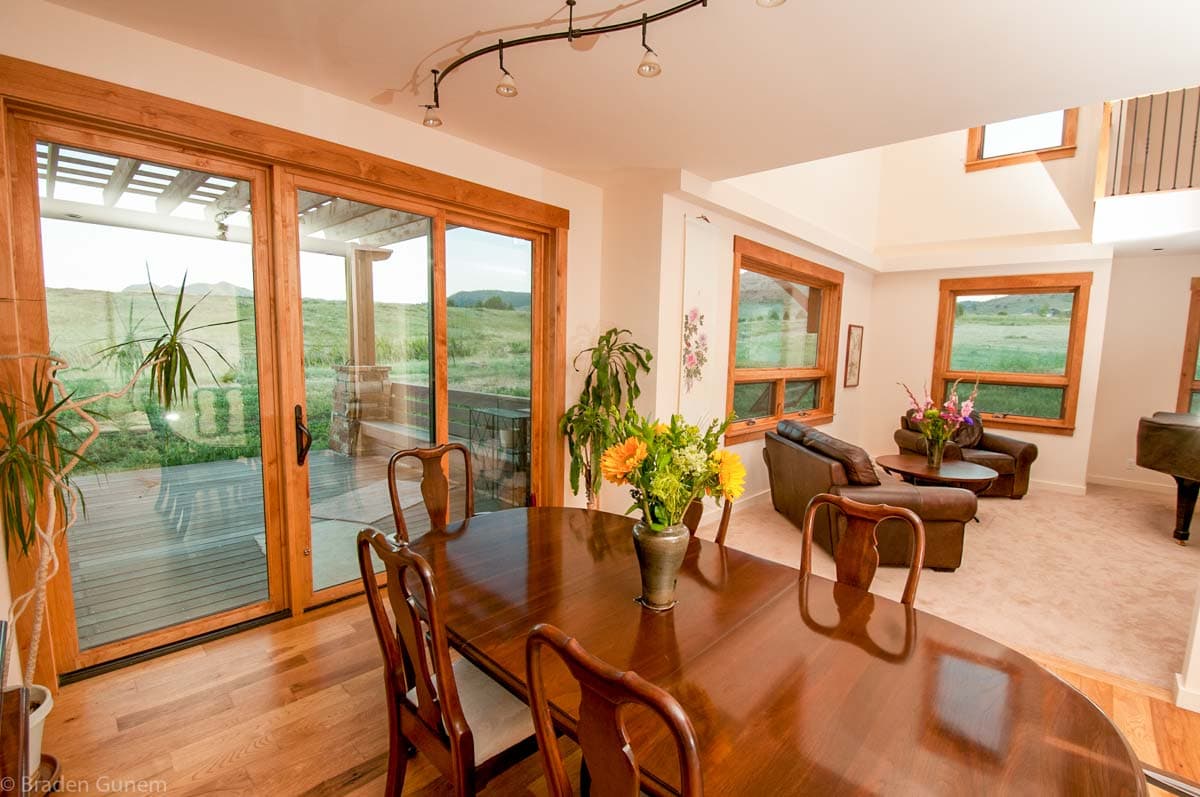

  • Sliding glass doors in the vaulted dining room lead out to a covered patio where you can dine al fresco.

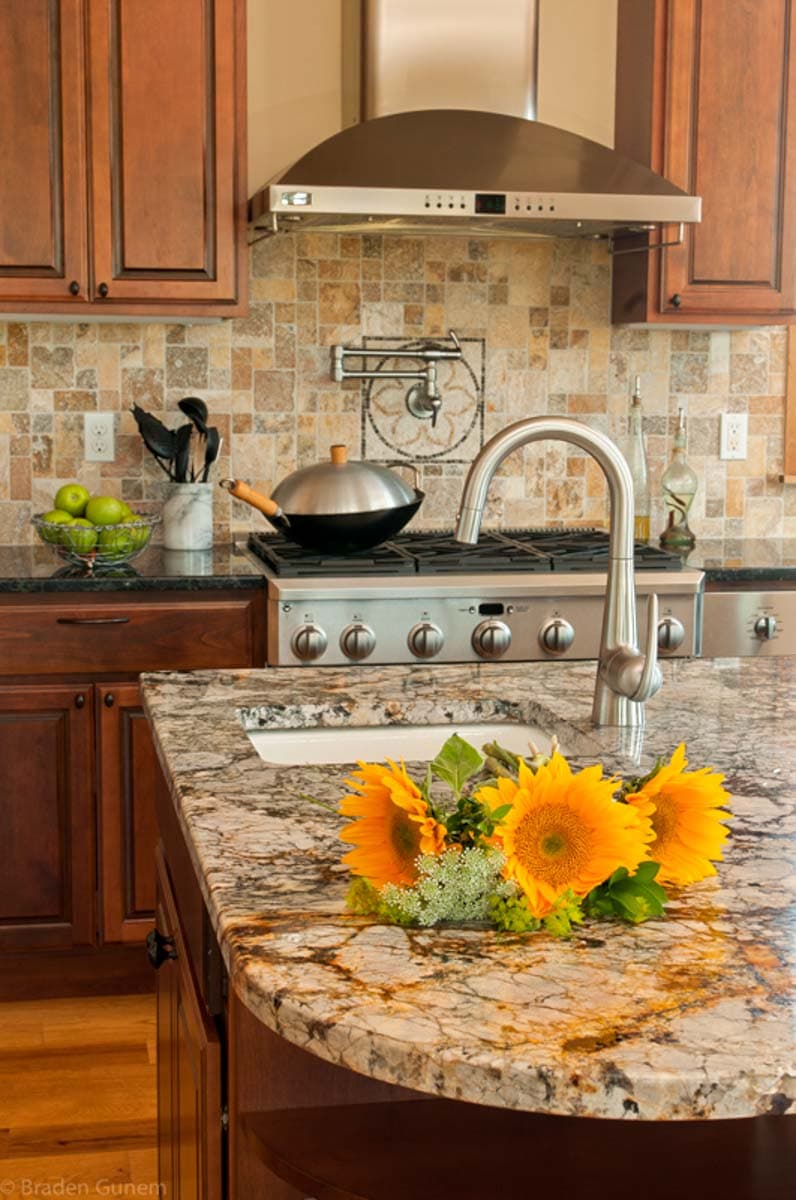

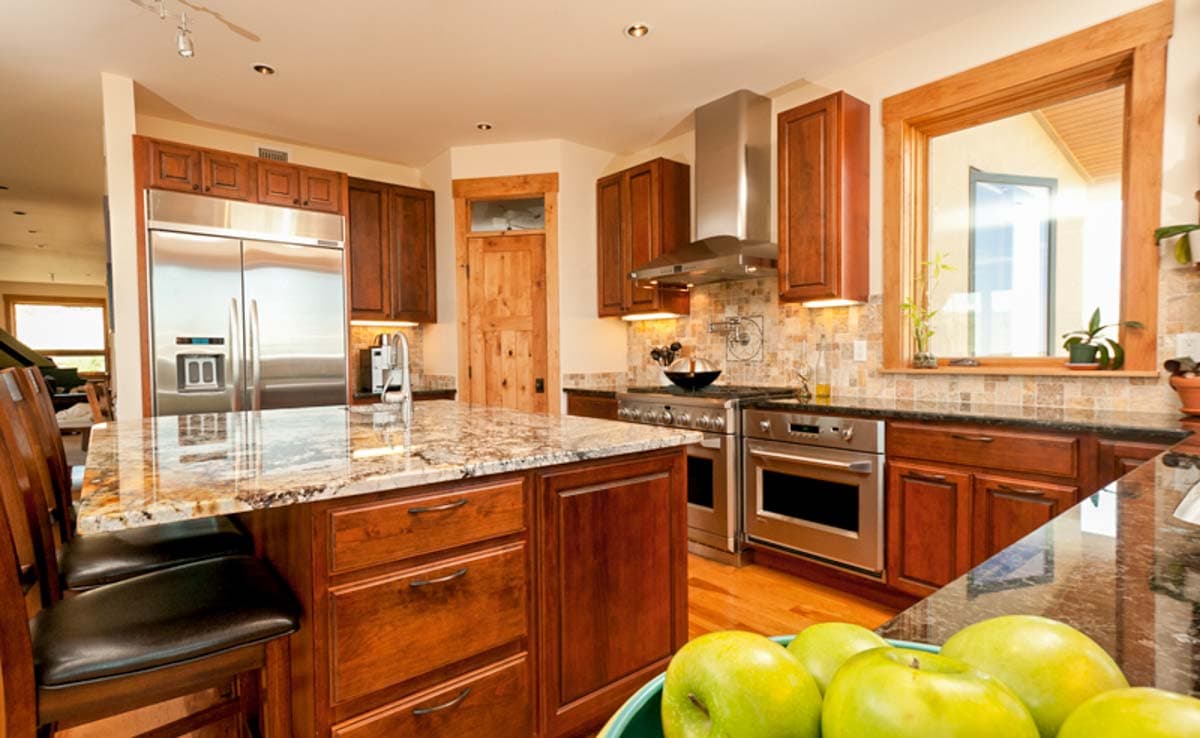

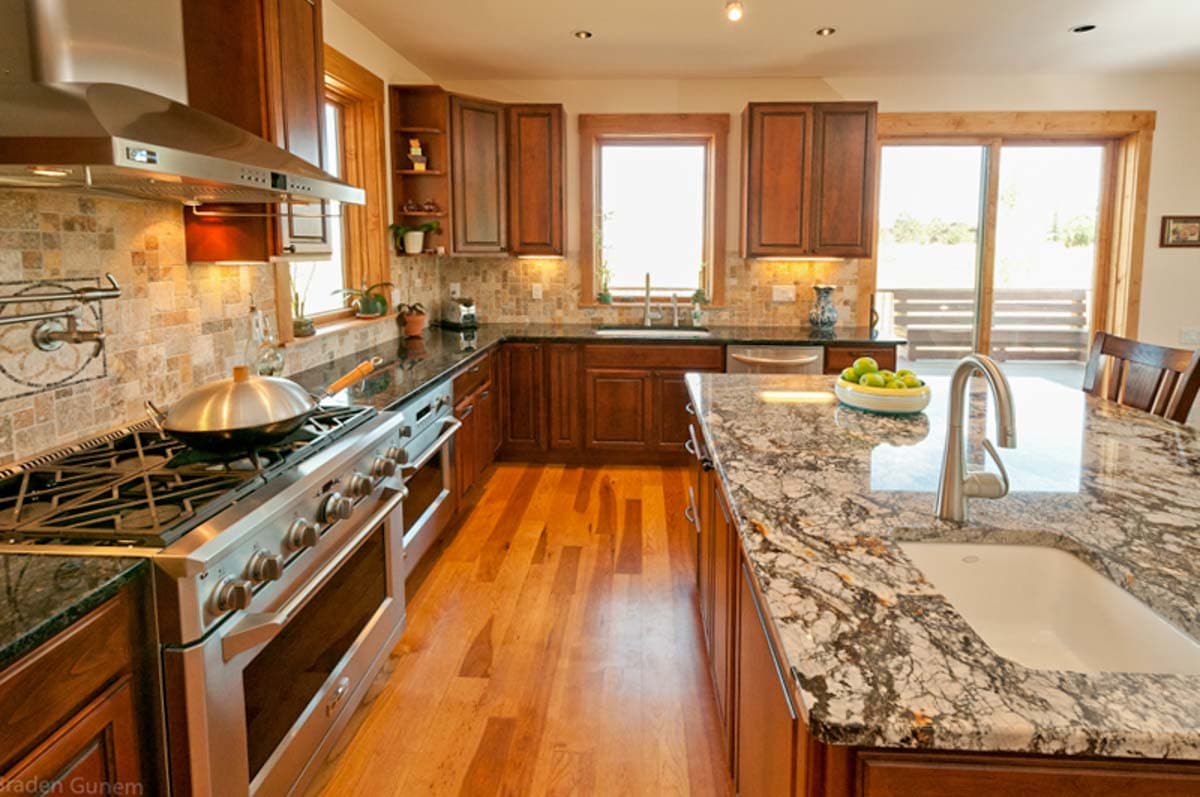

  • The kitchen faces the breakfast nook and family room.
  • A first floor guest bedroom and a study add value to the home.
  • On the upper floor, a second study makes an ideal nursery close to the master suite.
  • Bedrooms 1 and 2 each have a private bathroom and walk-in closet.
  • For the ultimate in convenience, another laundry room serves all the bedrooms on this floor.
  • Homeowners get a private balcony off the master bedroom.
  • Expand to the lower level to gain an extra 1,552 square feet of living space.
What's Included
  • Cover Page
  • Floor Plan
  • Roof Plan

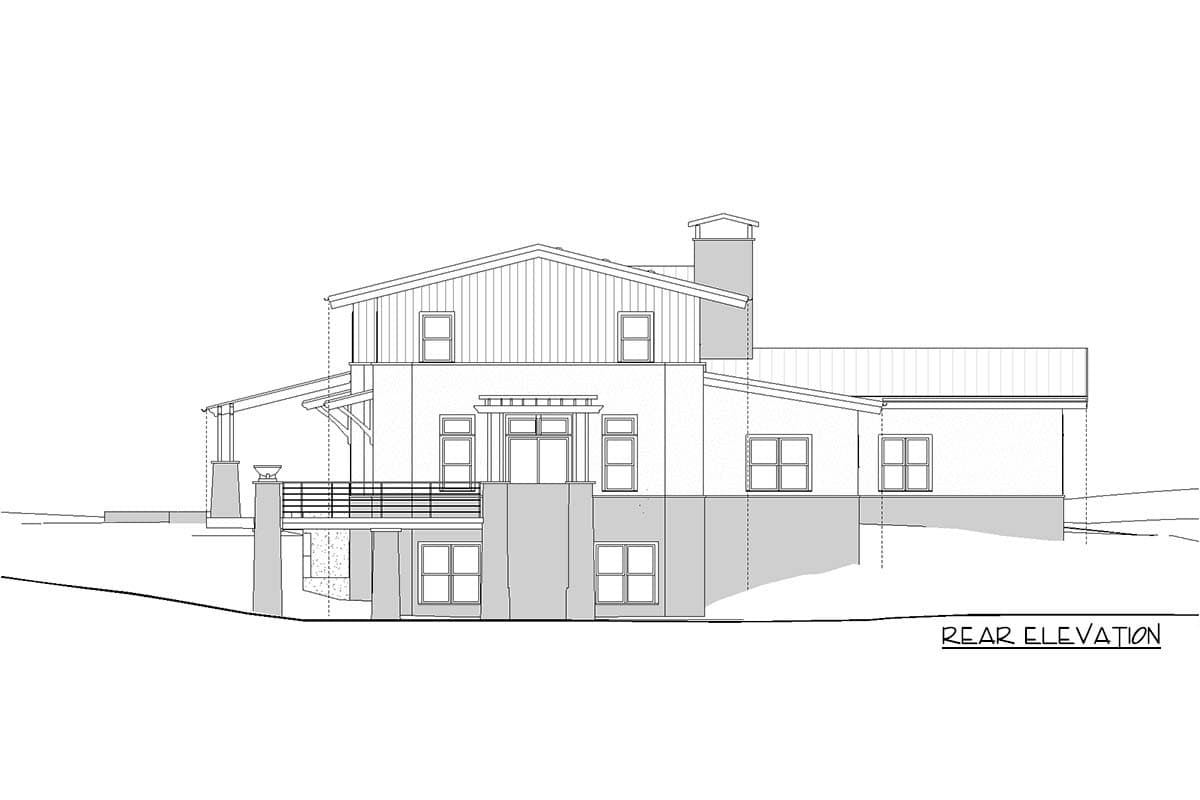

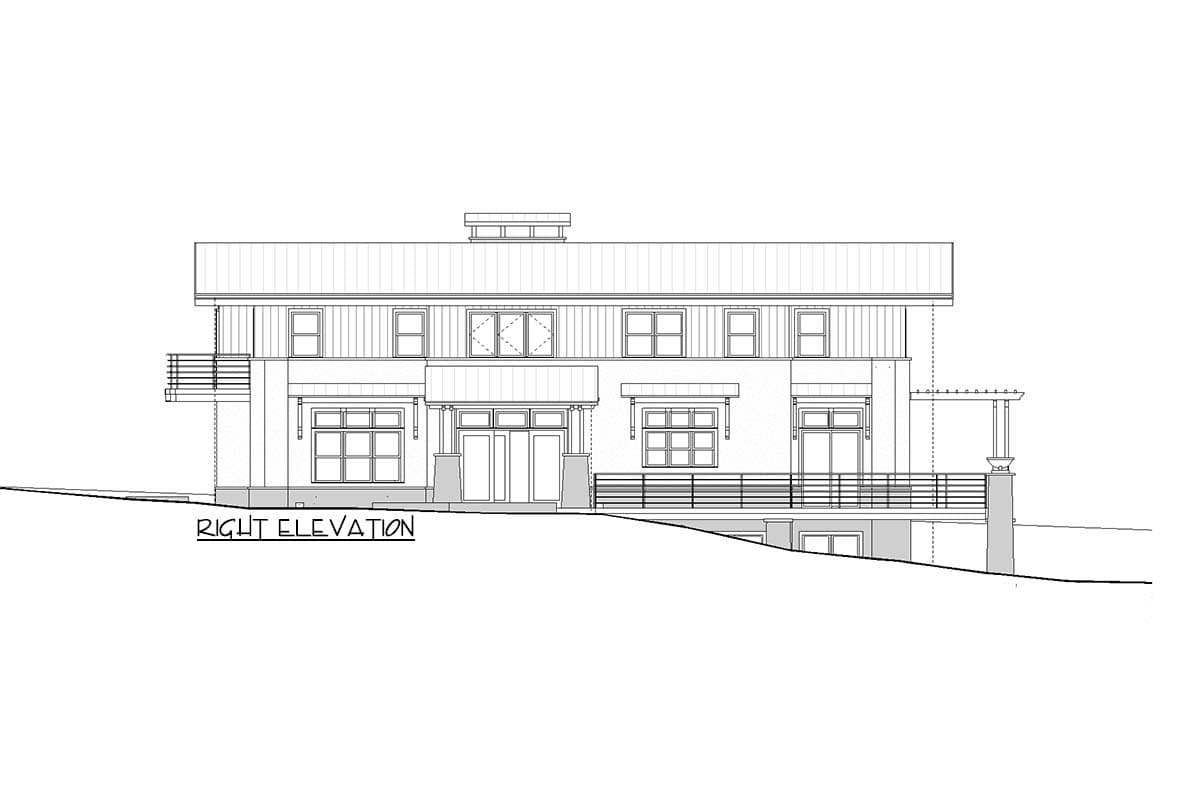

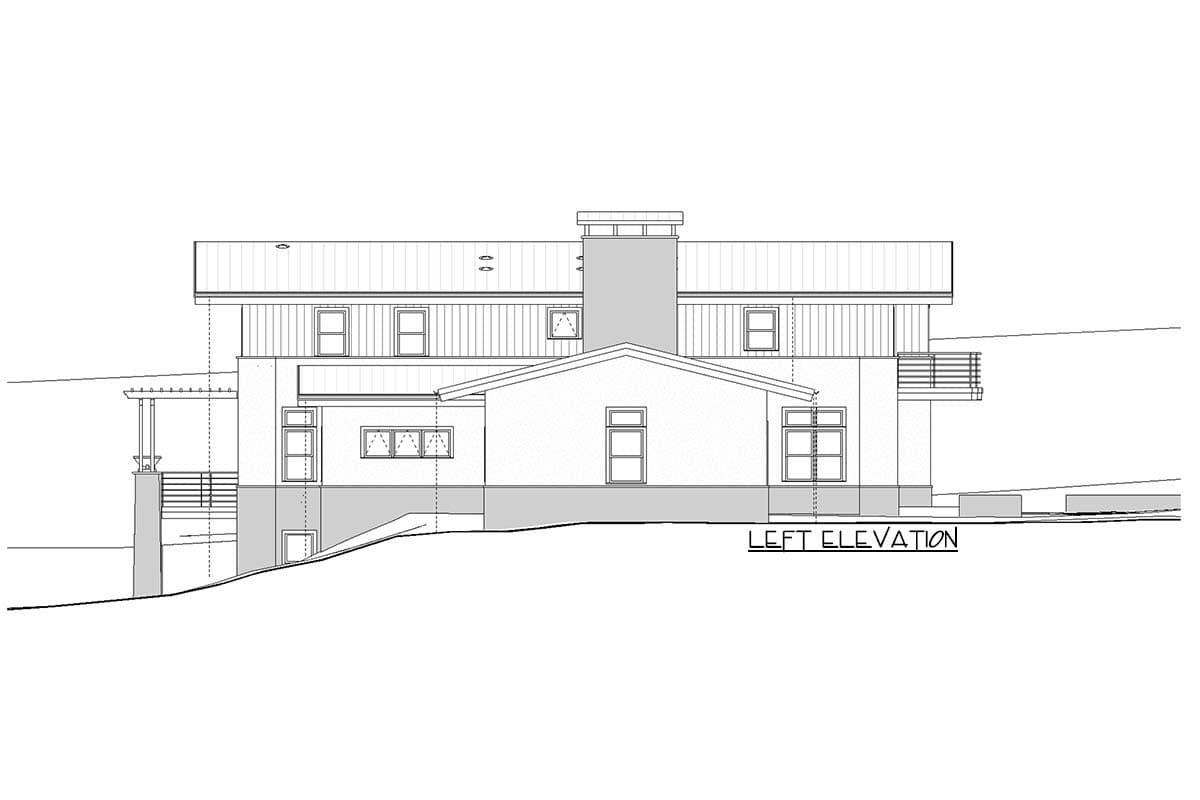

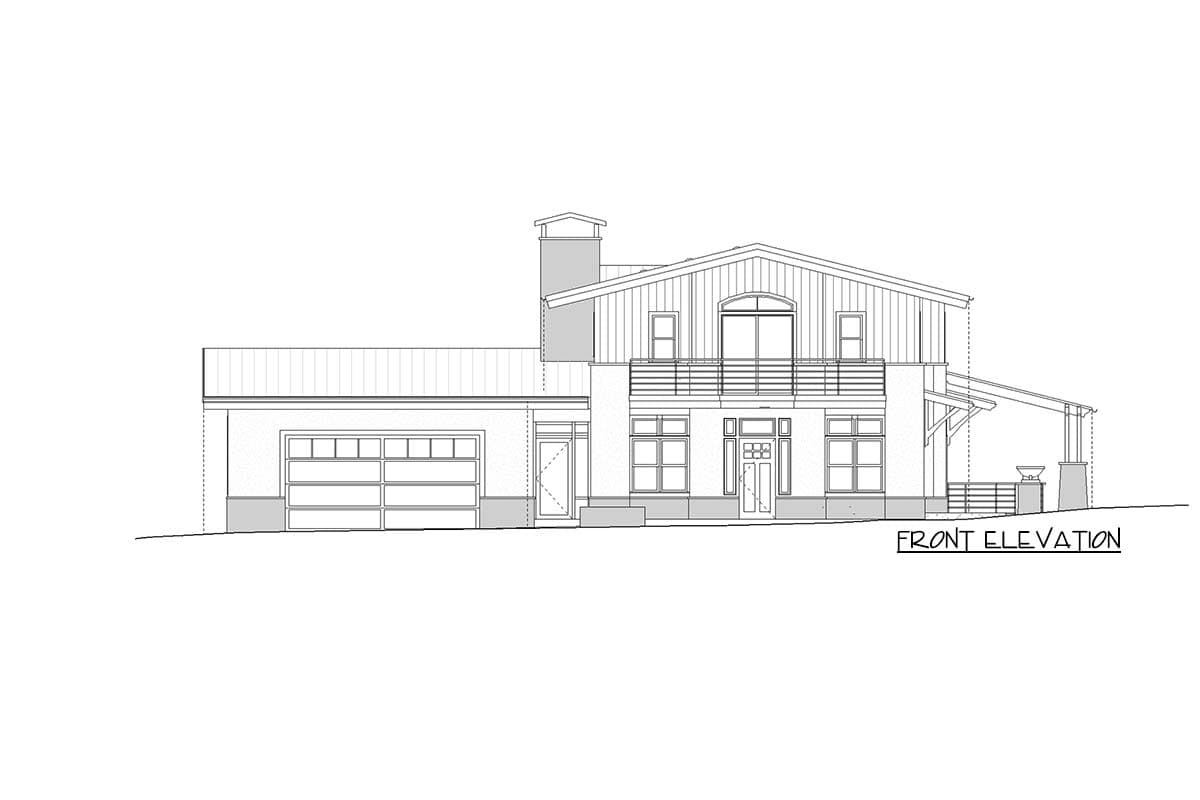

  • Elevations
  • Window
  • Sections
  • Interiors
  • General Notes
  • Foundation
  • Framing
  • Electrical
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,353 sq. ft.

1st Floor

1,923 sq. ft.

2nd Floor

1,430 sq. ft.

Optional Lower Level

1,552 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4 or 5

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

ICF

Dimensions

Width

68' 0"

Depth

71' 0"

Garage

Type

Attached

Area

578 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Mountain

Northwest

Special Features

Breakfast Nook

Butler Walk-in Pantry

Laundry - Upstairs

Library/Study

Master Suite - 2nd Floor
