Plan 666195RAF

Modern Northwest Home Plan with Studio and Sauna

Heated S.F.

4,502

Beds

4 - 5

Baths

5.5

Stories

2

Cars

3

Floor Plan

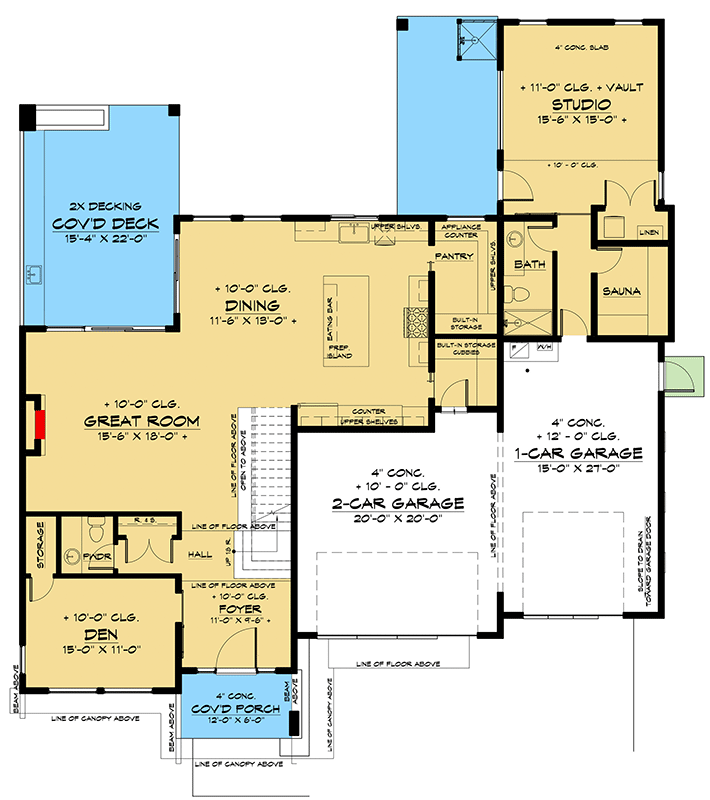

Main Level

floor plan image Main Level

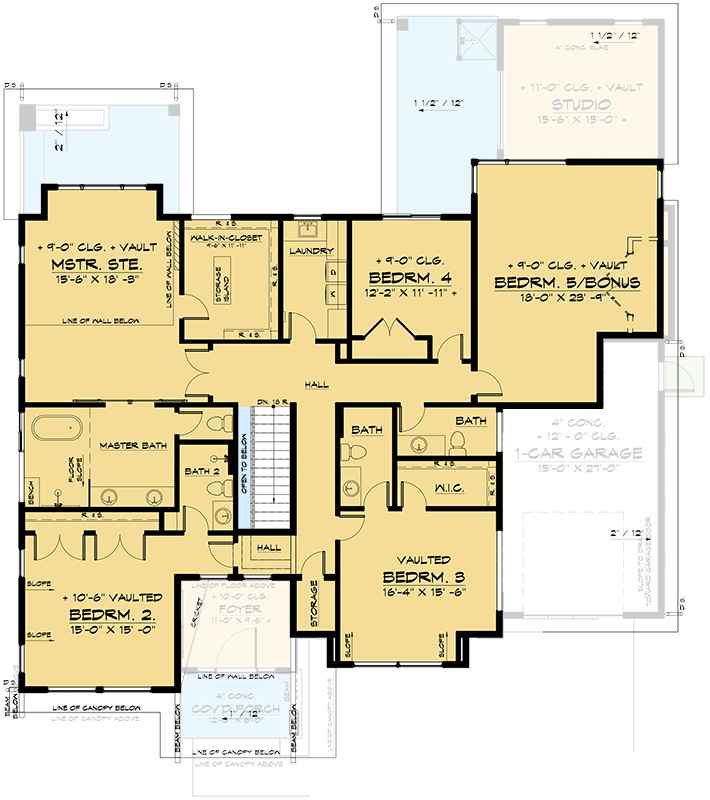

2nd Floor

floor plan image 2nd Floor

Plan Details

This Modern home plan presents an eye-catching exterior with oversized windows allowing natural light to permeate the 4,502 square feet of living space.
The gourmet kitchen features a prep island with an eating bar and walk-in pantry with an appliance counter.
Access the covered deck from the great room and dining area, while a secluded den offers a quiet spot to relax or get some work done.
A private studio with exterior access includes a sauna and can serve as an office, exercise room, or apartment.
Four bedrooms and a bonus room reside upstairs, including the master suite with a generously-sized closet and wet room in the attached bathroom. Laundry on this level completes the thoughtful design.

What's Included

Cover Sheet with plan info
General Notes - Note: codes will not include local state adopted amendments
Fully dimensions and detailed floor plans

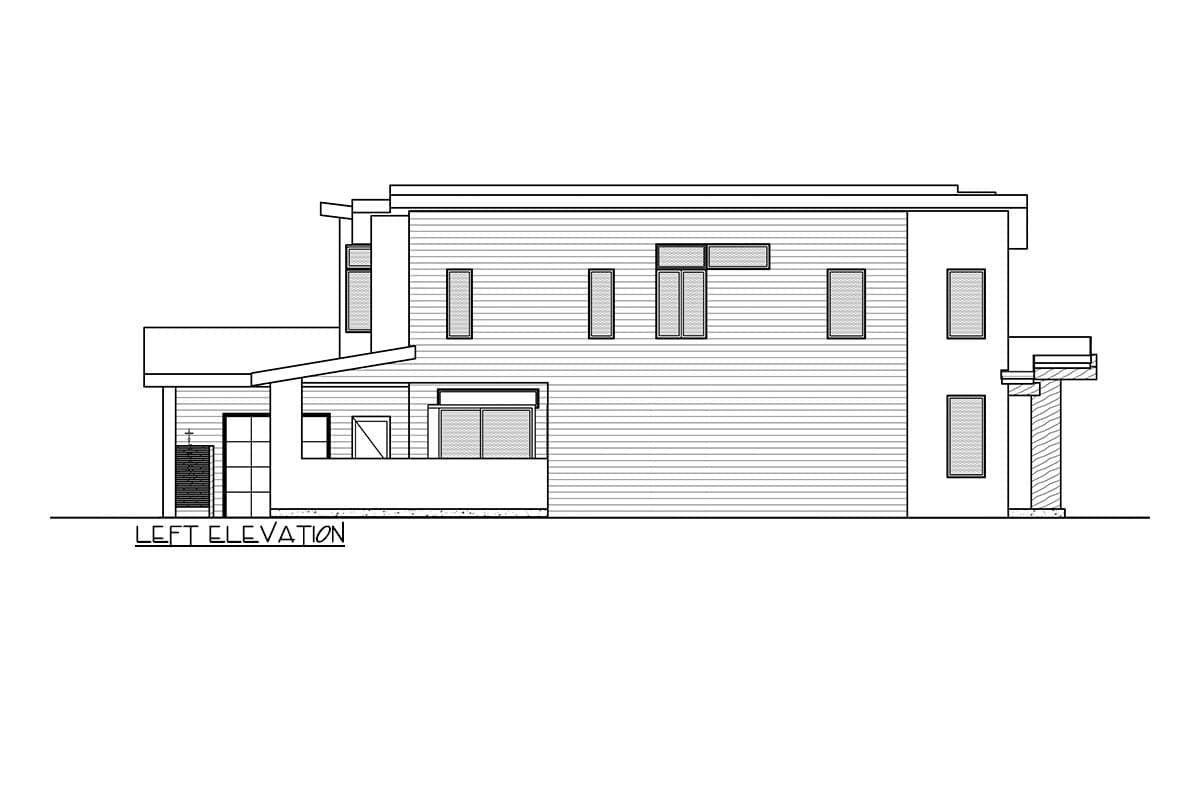

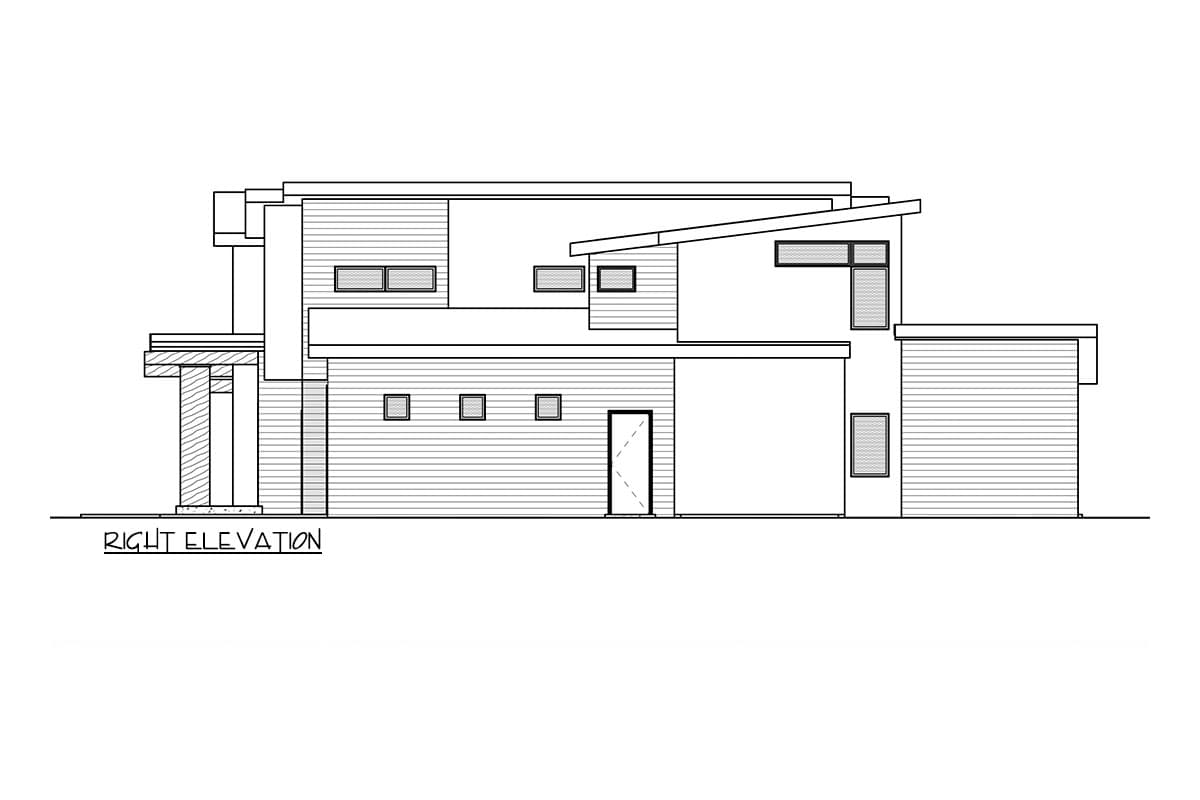

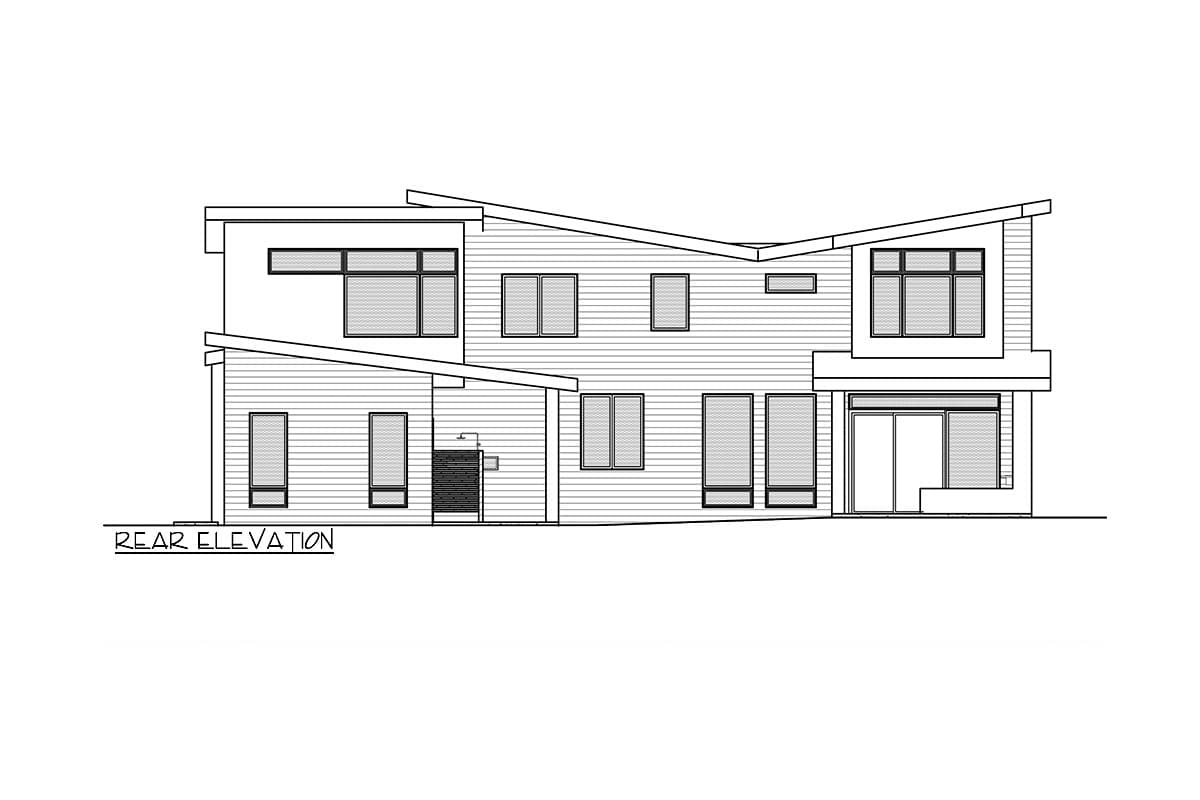

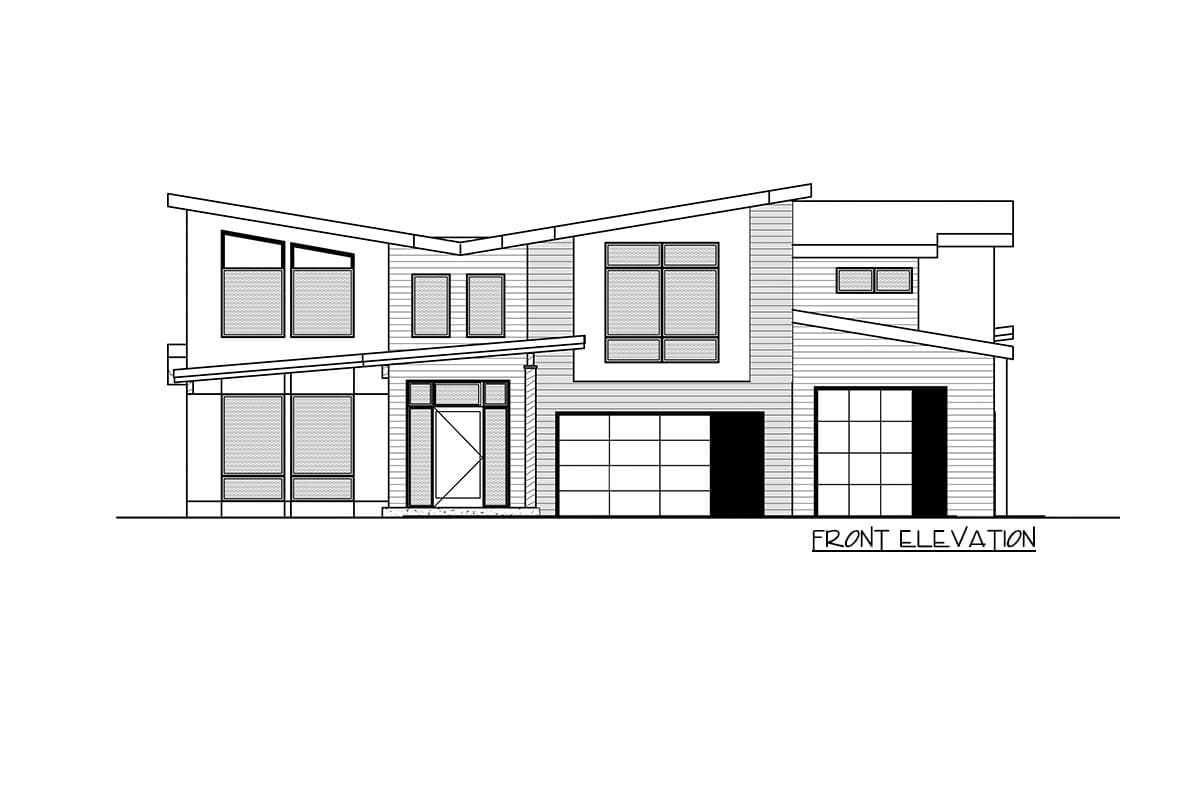

Elevations
Building Cross Section
Roof Plan
Details
Window Schedule
Original Structural plan FOR REFERENCE ONLY

What's Not Included

Architectural or Engineering Stamp - handled locally when required
Site plans - handled locally - handled locally when required
Mechanical Drawings - handled locally when required
Plumbing Drawings - handled locally when required
Electrical Drawings - handled locally when required
Energy Calculations - handled locally when required
Foundation and Framing plans - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,502 sq. ft.

1st Floor

2,077 sq. ft.

2nd Floor

2,425 sq. ft.

Porch, Front

77 sq. ft.

Deck

343 sq. ft.

Covered Patio

195 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 0"

Depth

67' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached, RV Garage

Area

874 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

2.5 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Master Suite - Sitting Area

Outdoor Kitchen

Square Footage Breakdown

Total Heated Area

4,502 sq. ft.

1st Floor

2,077 sq. ft.

2nd Floor

2,425 sq. ft.

Porch, Front

77 sq. ft.

Deck

343 sq. ft.

Covered Patio

195 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 0"

Depth

67' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached, RV Garage

Area

874 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

2.5 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Master Suite - Sitting Area

Outdoor Kitchen
