Plan 666202RAF

Modern Northwest House Plan with Over 4,000 Square Feet of Living Space

Heated S.F.

4,054

Beds

4

Baths

4.5

Stories

2

Cars

2

Floor Plan

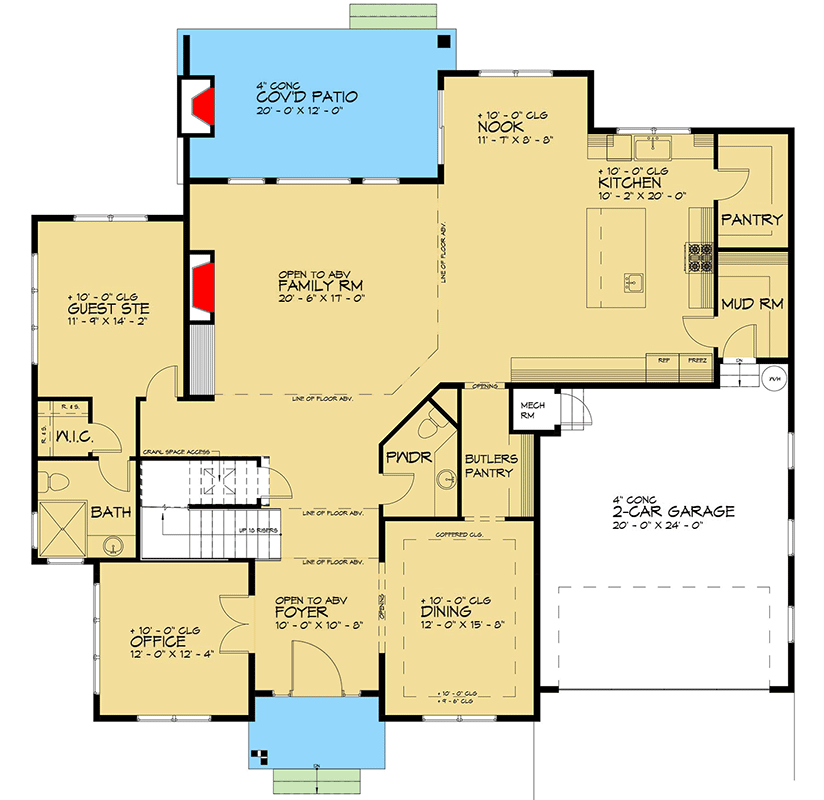

Main Level

floor plan image Main Level

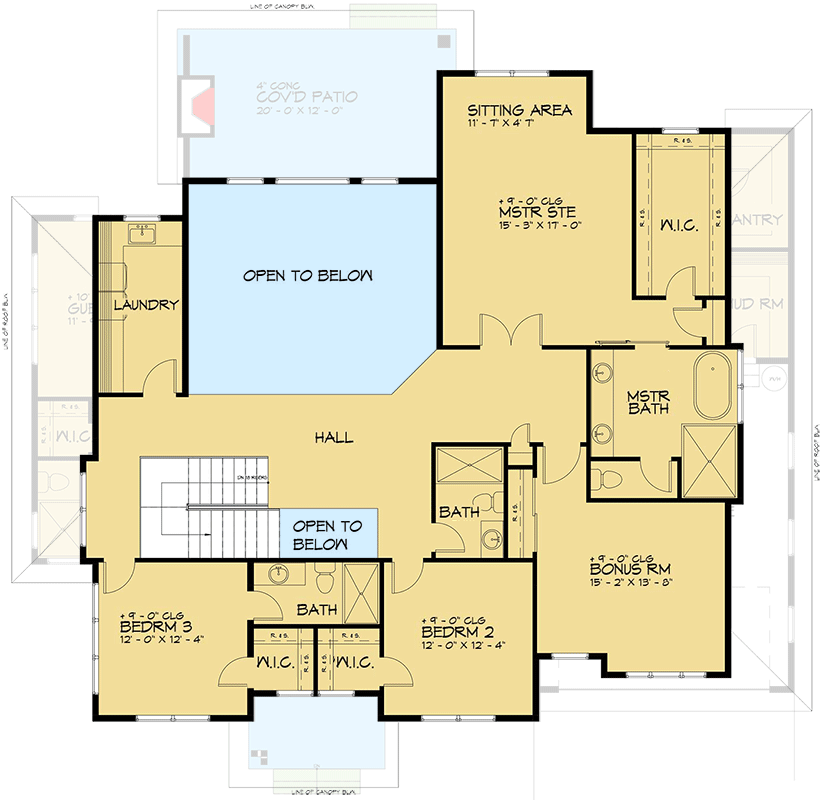

2nd Floor

floor plan image 2nd Floor

Plan Details

Large concrete panels adorn the facade of this Modern Northwest home plan that gives you over 4,000 square feet of living space.
In the foyer, a home office sits on the other side of french doors, across from the formal dining room with a shortcut into the kitchen by way of the butler's pantry.
A tall ceiling soars above the family room and the open layout allows you to easily move into the island kitchen. Casually dine at the island's eating bar or retreat to the covered patio to enjoy a meal outdoors.
Concluding the main level, discover a guest suite with a walk-in closet, while the remaining three bedrooms are located upstairs, along with the bonus and laundry rooms.
The master suite includes enough space for a sitting nook and boasts a walk-in closet and 5-fixture bathroom with a separate tub and shower.
Related Plan: Find a similar plan with an alternate exterior in 666201RAF.

What's Included

Cover Sheet with plan info
General Notes - Note: codes will not include local state adopted amendments
Fully dimensions and detailed floor plans
Elevations
Building Cross Section
Roof Plan
Details
Window Schedule
Original Structural plan FOR REFERENCE ONLY

What's Not Included

Architectural or Engineering Stamp - handled locally when required
Site plans - handled locally - handled locally when required
Mechanical Drawings - handled locally when required
Plumbing Drawings - handled locally when required
Electrical Drawings - handled locally when required
Energy Calculations - handled locally when required
Foundation and Framing plans - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,054 sq. ft.

1st Floor

2,194 sq. ft.

2nd Floor

1,860 sq. ft.

Porch, Front

71 sq. ft.

Covered Patio

257 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

61' 6"

Depth

53' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

508 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Mid Century Modern

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Master Suite - Sitting Area

Outdoor Fireplace

Two Story Great Room

Square Footage Breakdown

Total Heated Area

4,054 sq. ft.

1st Floor

2,194 sq. ft.

2nd Floor

1,860 sq. ft.

Porch, Front

71 sq. ft.

Covered Patio

257 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

61' 6"

Depth

53' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

508 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Mid Century Modern

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Master Suite - Sitting Area

Outdoor Fireplace

Two Story Great Room
