Plan 147009RML
Modern Northwest Style Home Plan with Outdoor Kitchen and 2 Car Garage
Heated S.F.
2,835
Beds
3
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 147009RML

Main Level
slide image 0
2nd Floor
slide image 1

Plan 147009RML

1-800-854-7852

1-262-521-4596

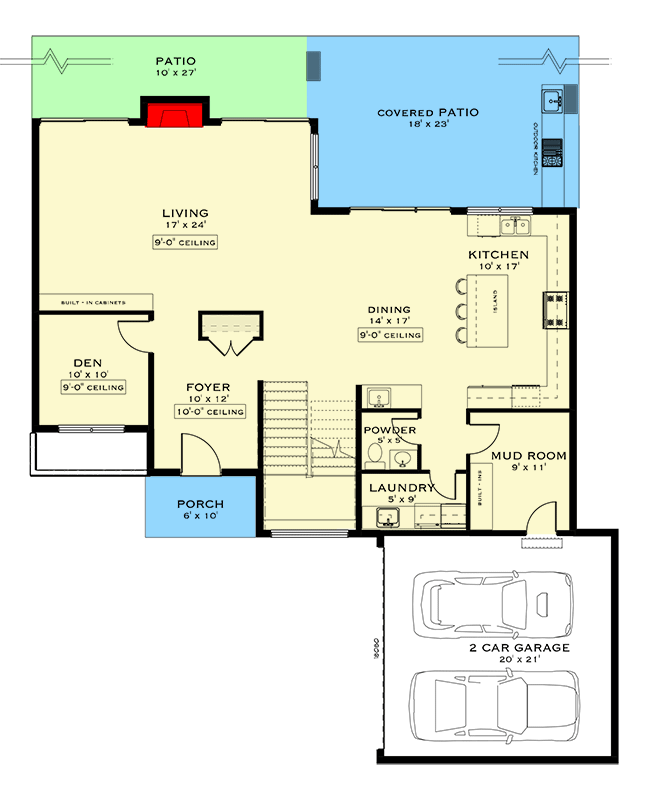

Main Level
floor plan image Main Level

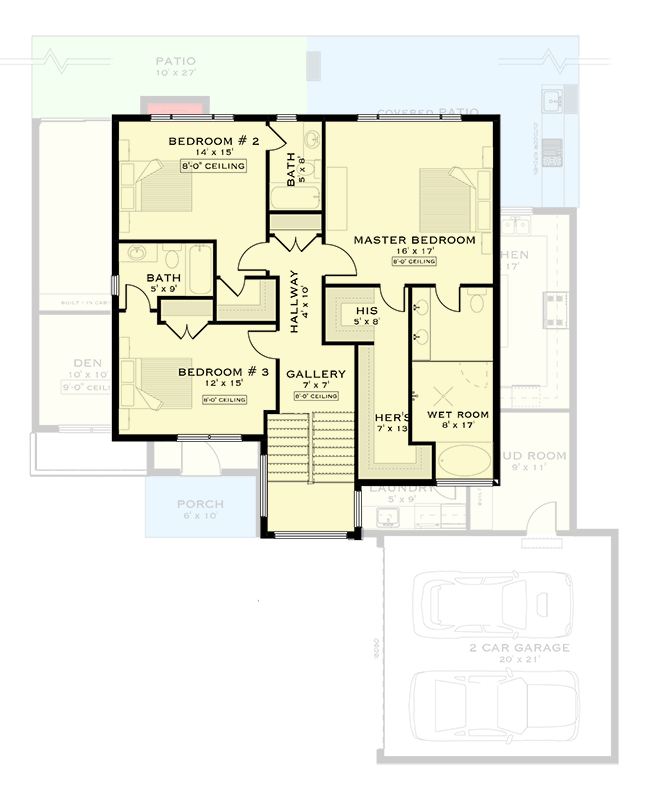

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Discover the epitome of West Coast modern living in this stunning 2800 SF home. his plan is available with  a  9' basement, and offers  luxurious 9-foot ceilings on the main floor, and a thoughtfully designed outdoor kitchen, entertaining is effortless.
  • Enjoy the convenience of a mudroom and side entry 2-car garage.
  • Step outside to a spacious covered patio, perfect for al fresco gatherings.
  • Embrace contemporary elegance and coastal charm in every detail of this exceptional residence.
What's Included
  • Title Sheet w/ Color Rendering and Sheet Index
  • General Notes and Details
  • Foundation Plan and Notes
  • Dimensioned Floor Plan(s) with Window Schedule
  • Roof Plan
  • Building Sections and Details
  • Exterior Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,835 sq. ft.

1st Floor

1,517 sq. ft.

2nd Floor

1,318 sq. ft.

Optional Lower Level

1,489 sq. ft.

Porch, Front

60 sq. ft.

Porch, Rear

414 sq. ft.

Porch, Combined

474 sq. ft.

Deck & Porch

474 sq. ft.

Entry

140 sq. ft.

Covered Patio

414 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4 or 2x6

Dimensions

Width

59' 9"

Depth

52' 6"

Max Ridge Height

24' 1"

Garage

Type

Attached

Area

456 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

3 on 12

Architectural Style

Contemporary

Mid Century Modern

Modern

Northwest

Special Features

Bedrooms - Clustered

Den

Home Office

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom

Outdoor Kitchen

Wet Bar

Square Footage Breakdown

Total Heated Area

2,835 sq. ft.

1st Floor

1,517 sq. ft.

2nd Floor

1,318 sq. ft.

Optional Lower Level

1,489 sq. ft.

Porch, Front

60 sq. ft.

Porch, Rear

414 sq. ft.

Porch, Combined

474 sq. ft.

Deck & Porch

474 sq. ft.

Entry

140 sq. ft.

Covered Patio

414 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4 or 2x6

Dimensions

Width

59' 9"

Depth

52' 6"

Max Ridge Height

24' 1"

Garage

Type

Attached

Area

456 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

3 on 12

Architectural Style

Contemporary

Mid Century Modern

Modern

Northwest

Special Features

Bedrooms - Clustered

Den

Home Office

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom

Outdoor Kitchen

Wet Bar
