Plan 666207RAF
Modern One-level House Plan with Under 1,800 Square Feet of Living Space
Heated S.F.
1,756
Beds
3
Baths
2
Stories
1
Cars
2
Photos
Floor Plan

Plan 666207RAF

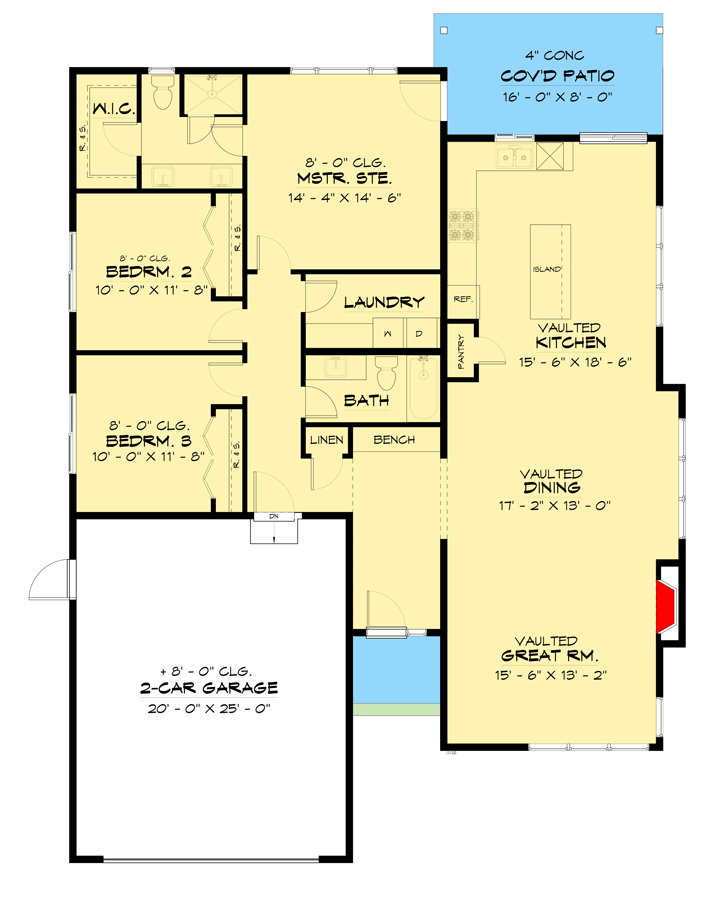

Main Level
slide image 0

Plan 666207RAF

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

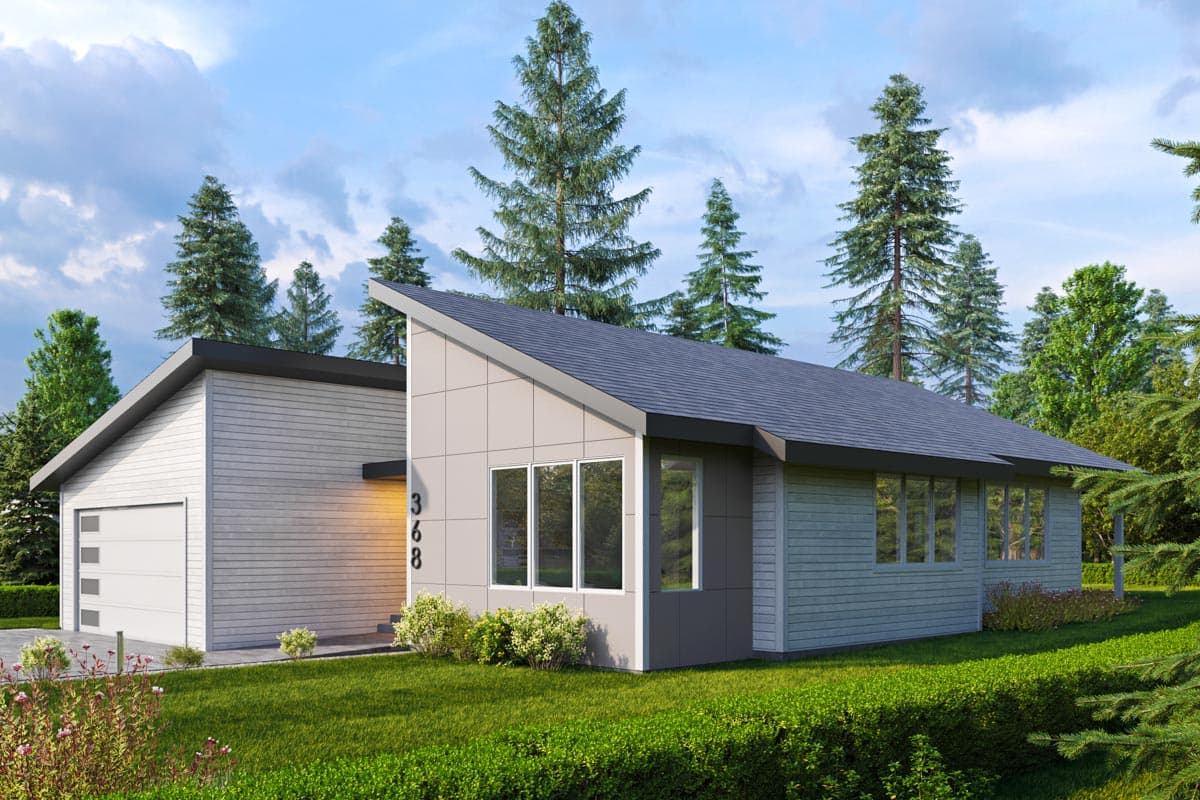

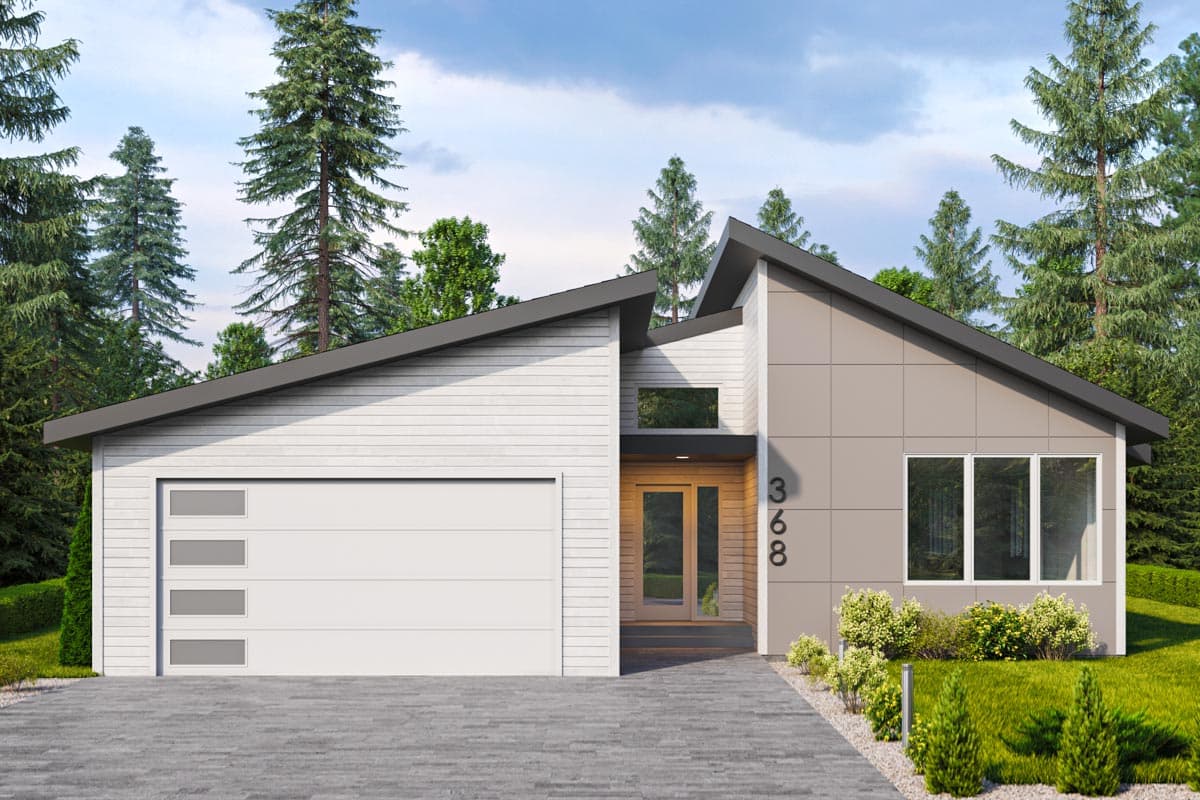

  • Oversized concrete panels add a modern appeal to the front facade of this one-level house plan which gives you just under 1,800 square feet of living space.

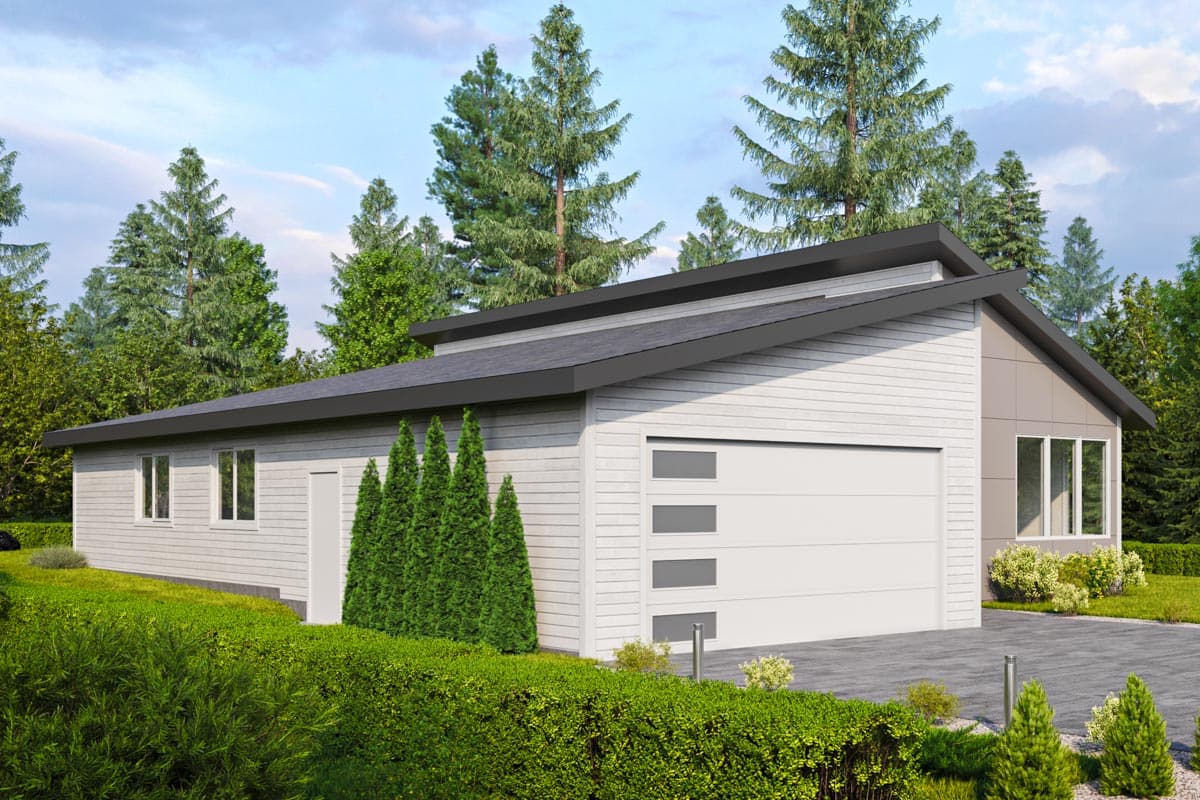

  • The front-facing double garage is considerate of smaller lots and a coat closet and built-in bench is easily accessible from both the family and formal entries.

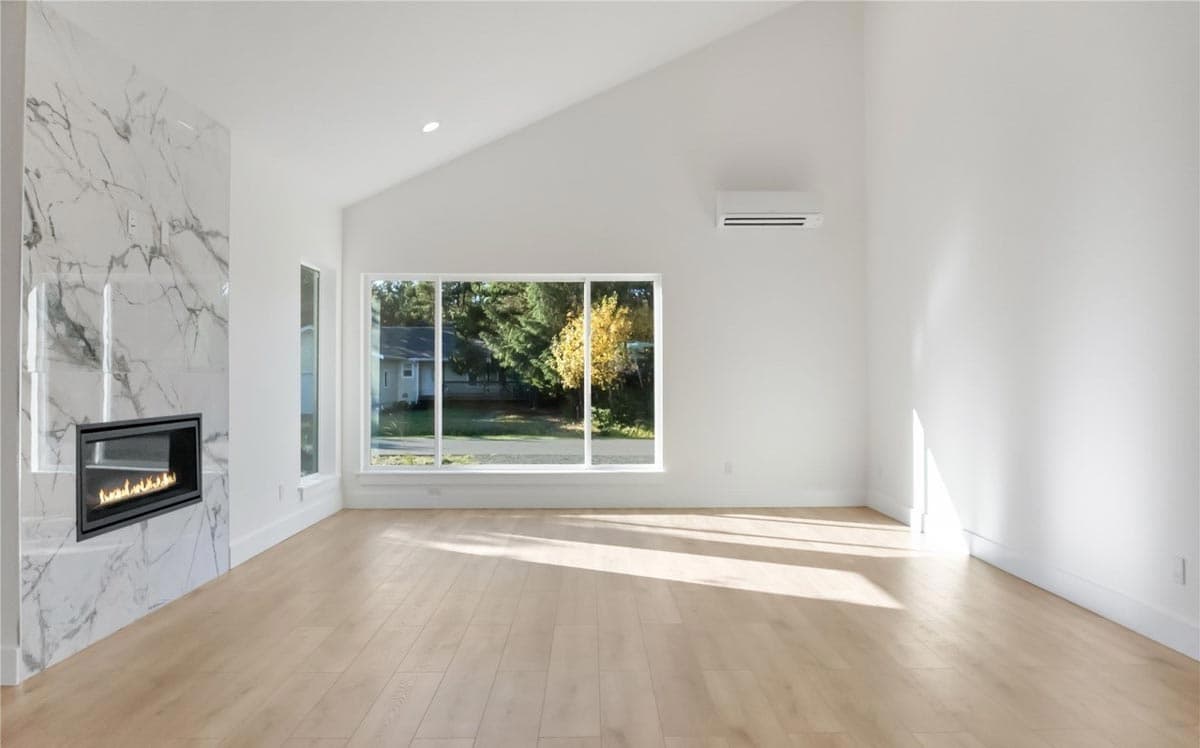

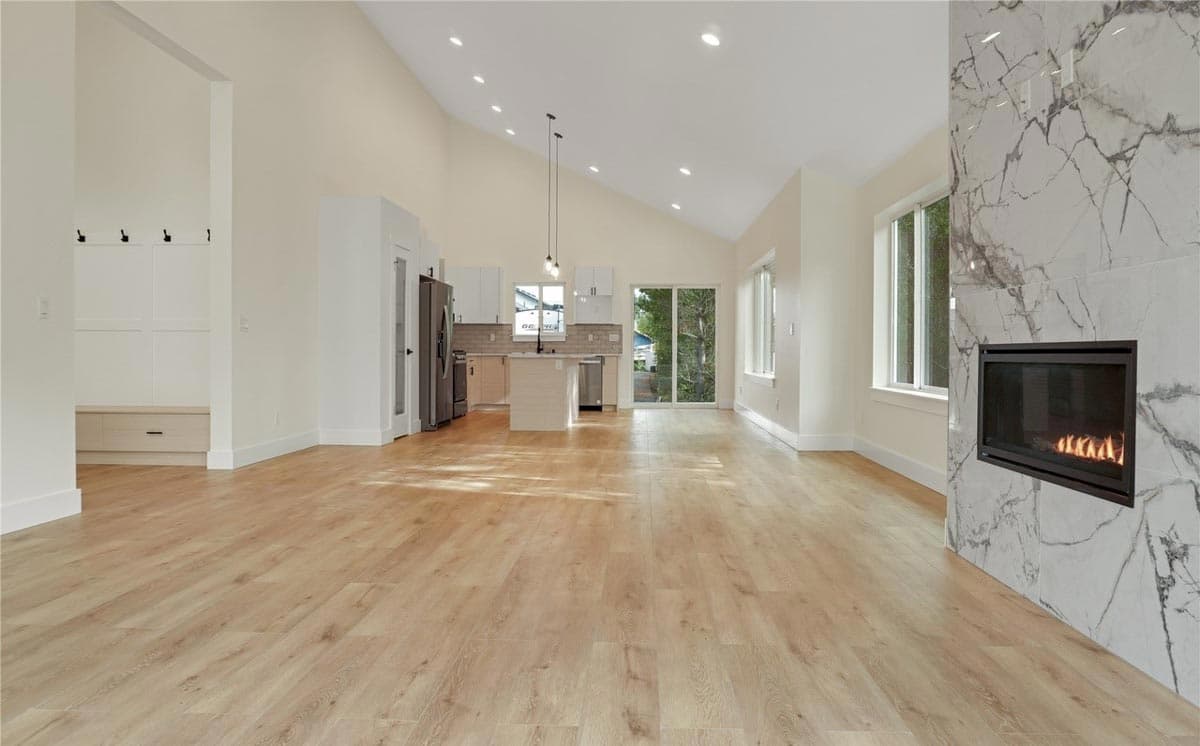

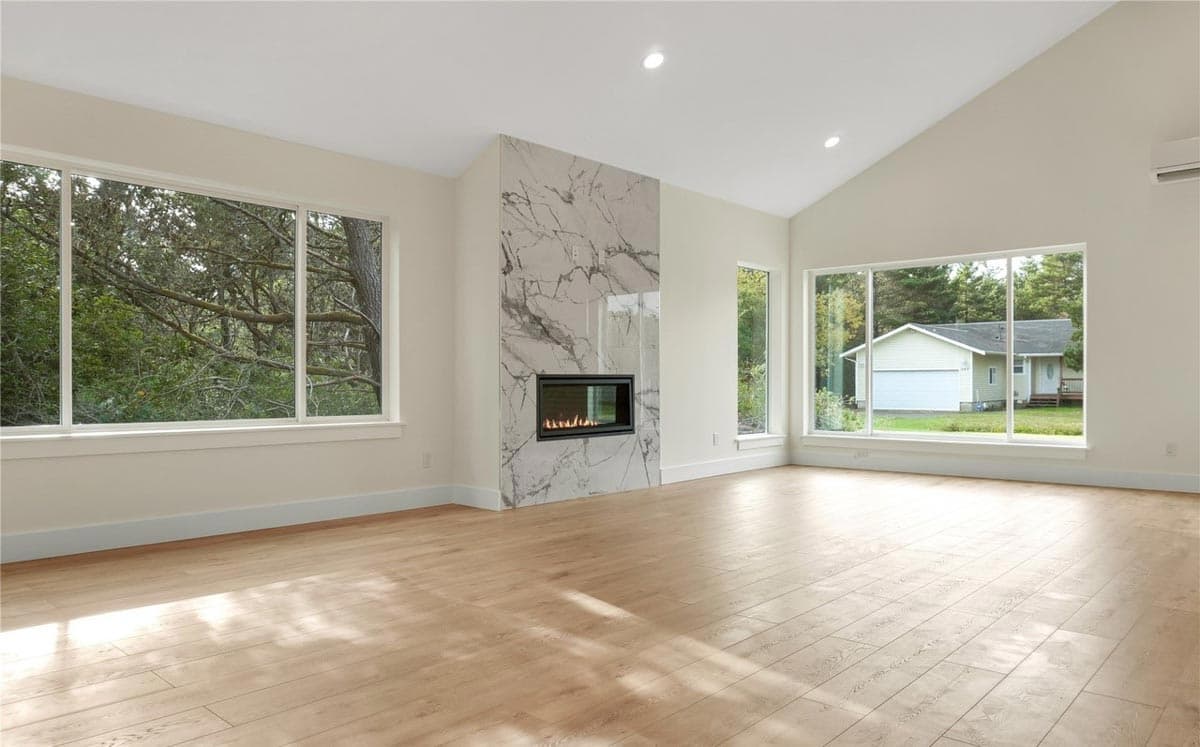

  • The open living spaces line the right side of the home, complete with a vaulted ceiling to make the areas feel even larger.

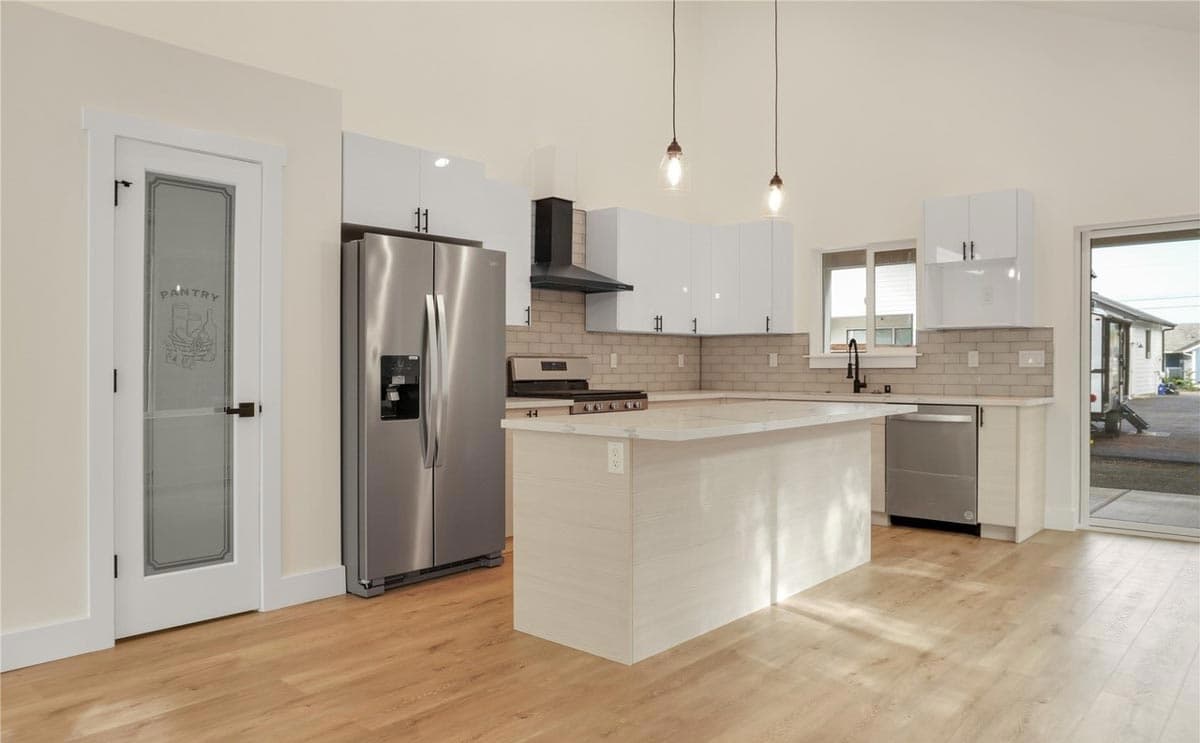

  • A prep island with a breakfast bar grounds the kitchen and a pantry closet resides nearby.

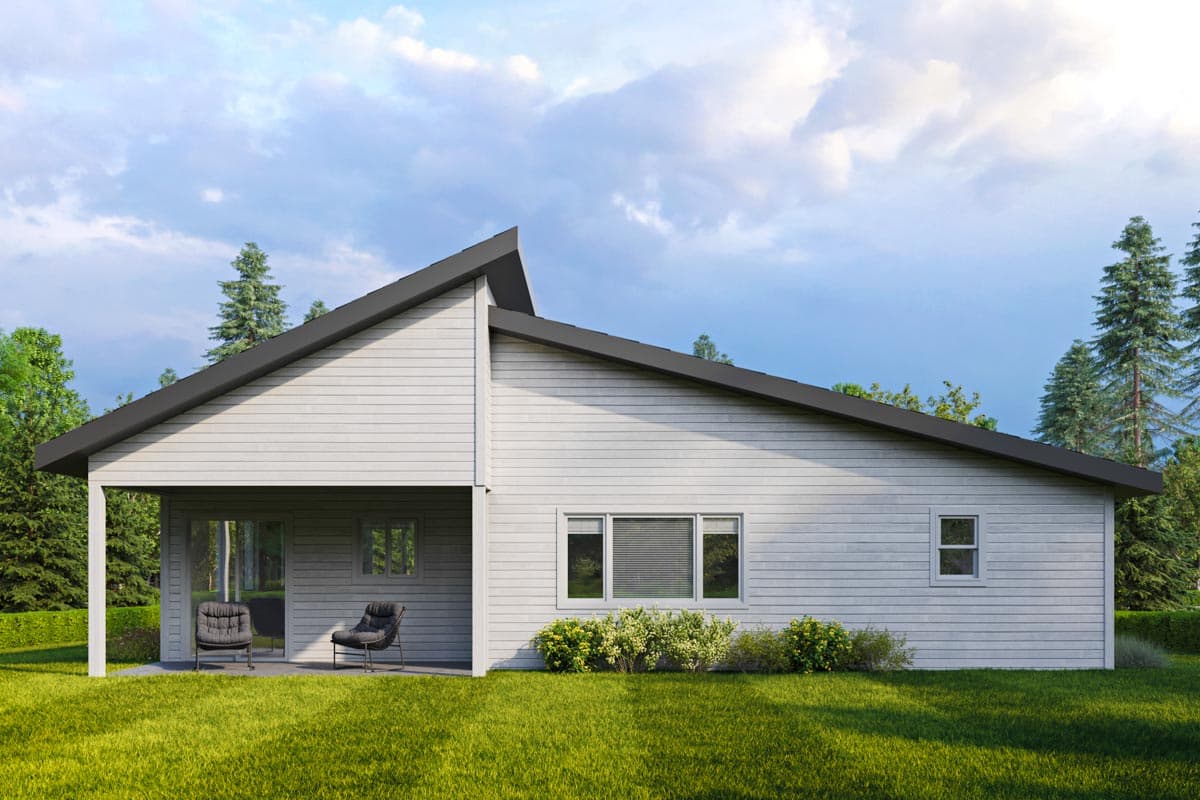

  • Discover three bedrooms nestled around the laundry room, including the master suite that provides a door to the covered patio and 4-fixture bathroom with a dual-sink vanity.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

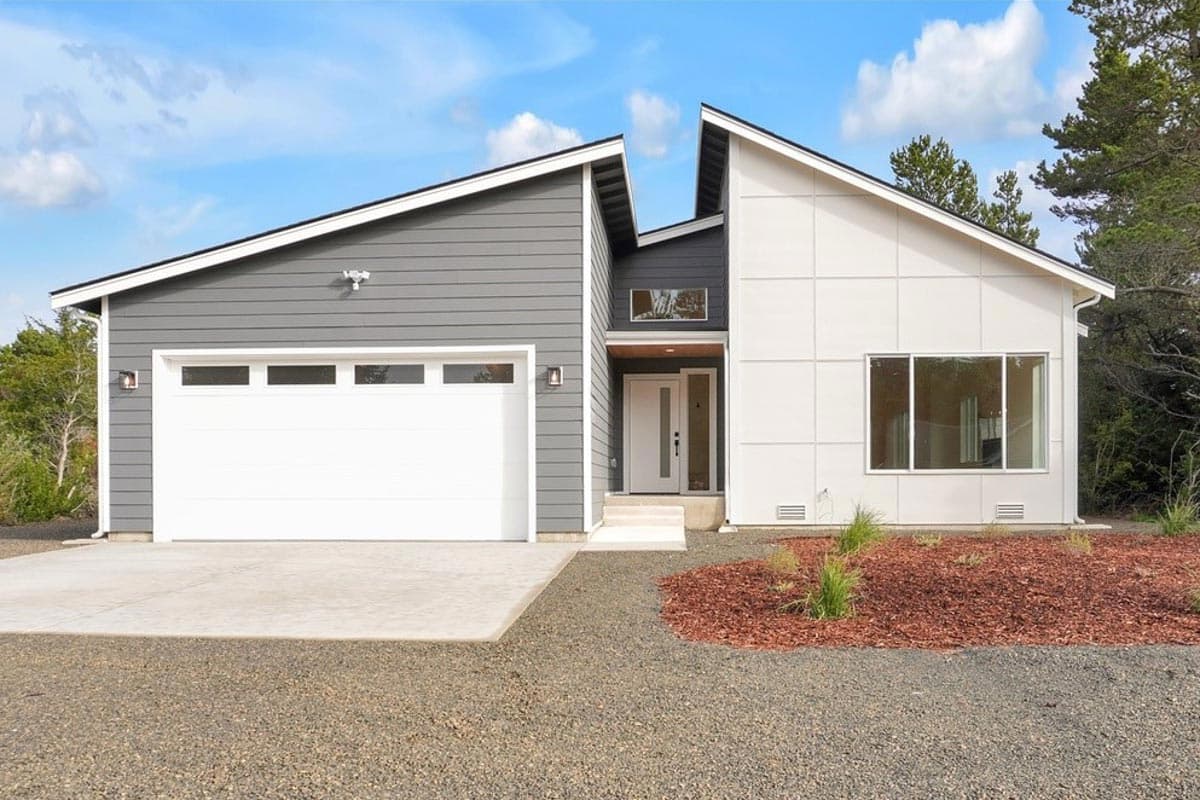

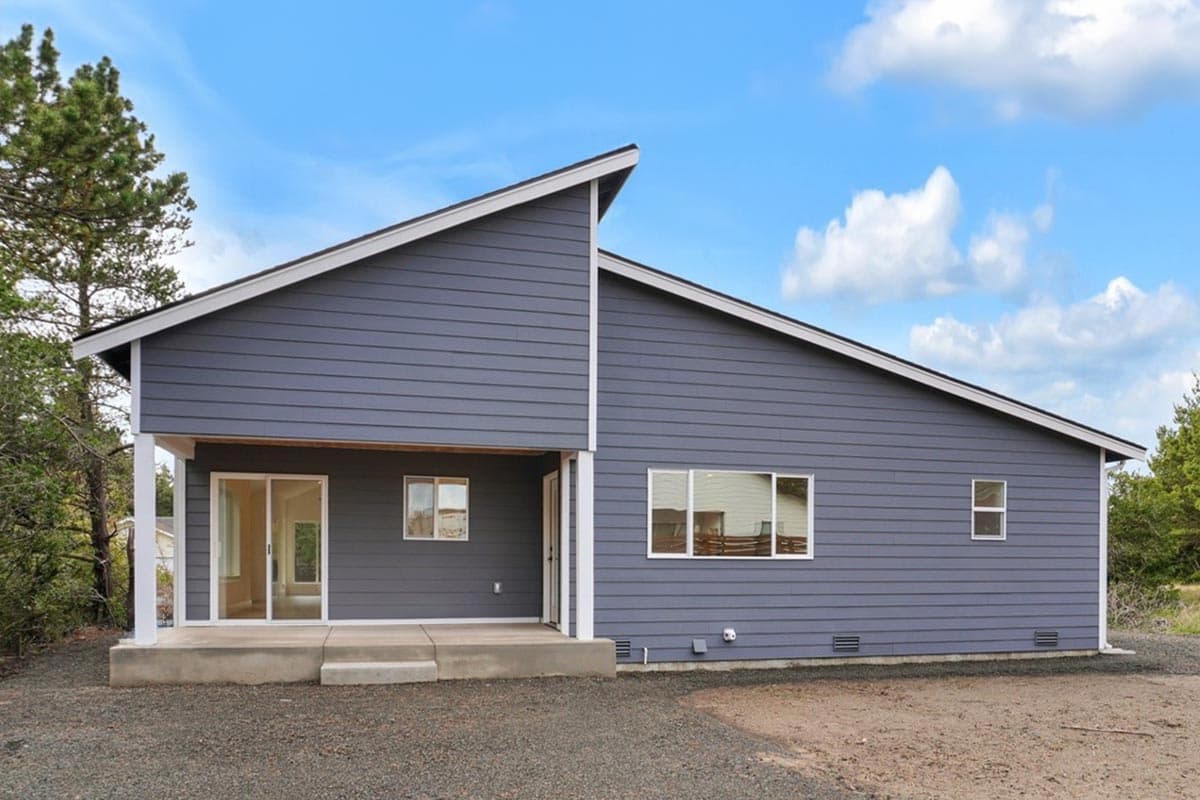

build gallery item - Modern House Plan 666207RAF Comes to Life in Washington

Modern House Plan 666207RAF Comes to Life in Washington

21

Photos

What's Included
  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,756 sq. ft.

1st Floor

1,756 sq. ft.

Porch, Front

33 sq. ft.

Covered Patio

148 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 8"

Depth

59' 9"

Max Ridge Height

19' 10"

Garage

Type

Attached

Area

546 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

5.5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Northwest

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Photo Gallery
