Plan 23812JD

Modern Prairie House Plan for a Side-Sloping Lot

Heated S.F.

3,984

Beds

4 - 5

Baths

4.5

Stories

Cars

Photos

Floor Plan

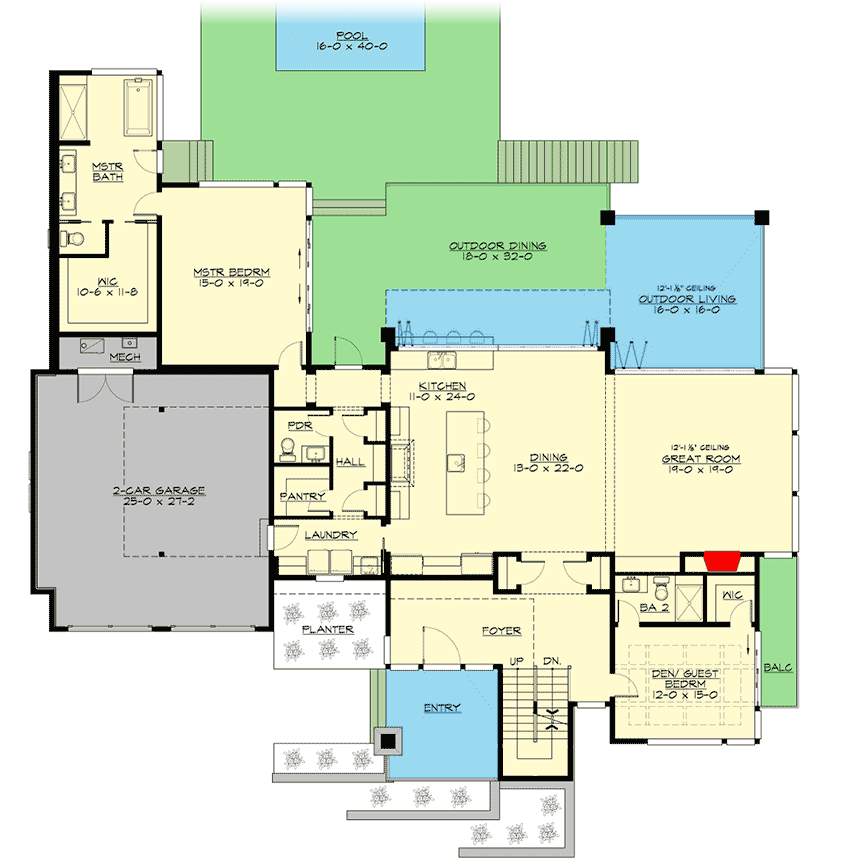

Main Level

2nd Floor

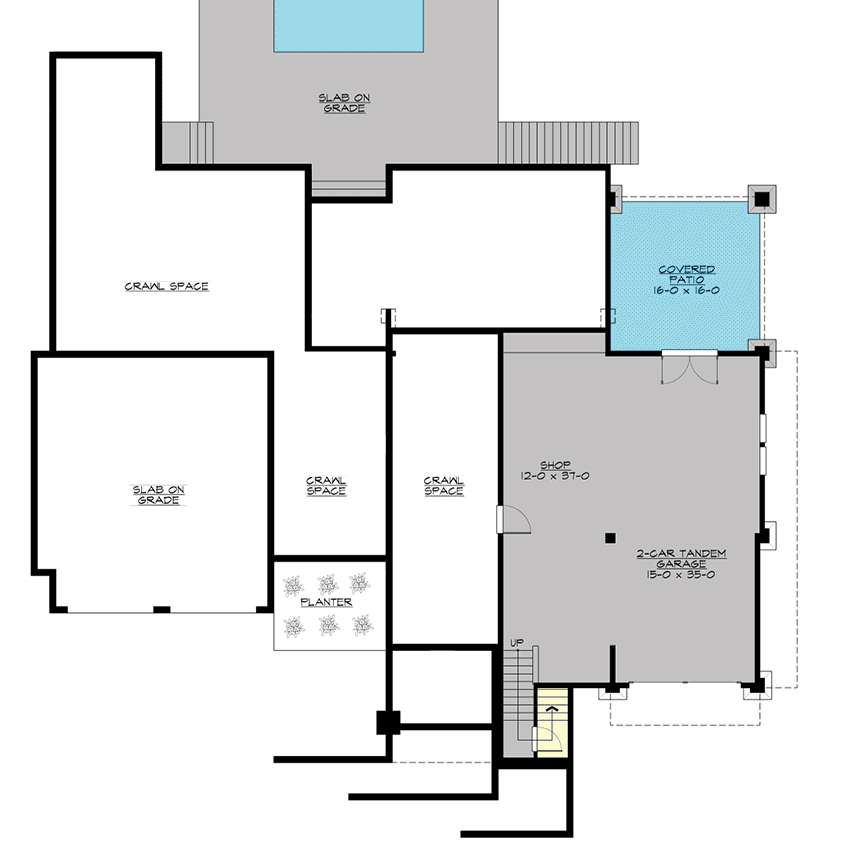

Lower Level

Plan Details

A multitude of windows and retractable sliding doors give this modern prairie house plan a light and airy interior, while maximizing outdoor living. The low-pitched roof includes deep overhangs supported by exposed rafters.
The main level is comprised of the shared living spaces in an open floor plan. Two retractable walls extend the living space to the covered porch and beyond to a deck.
The privately situated master bedroom boasts a master bath with a standalone tub, commode room, and a large walk-in closet. A guest bedroom, or den, occupies the opposite side of the home and includes a private balcony.

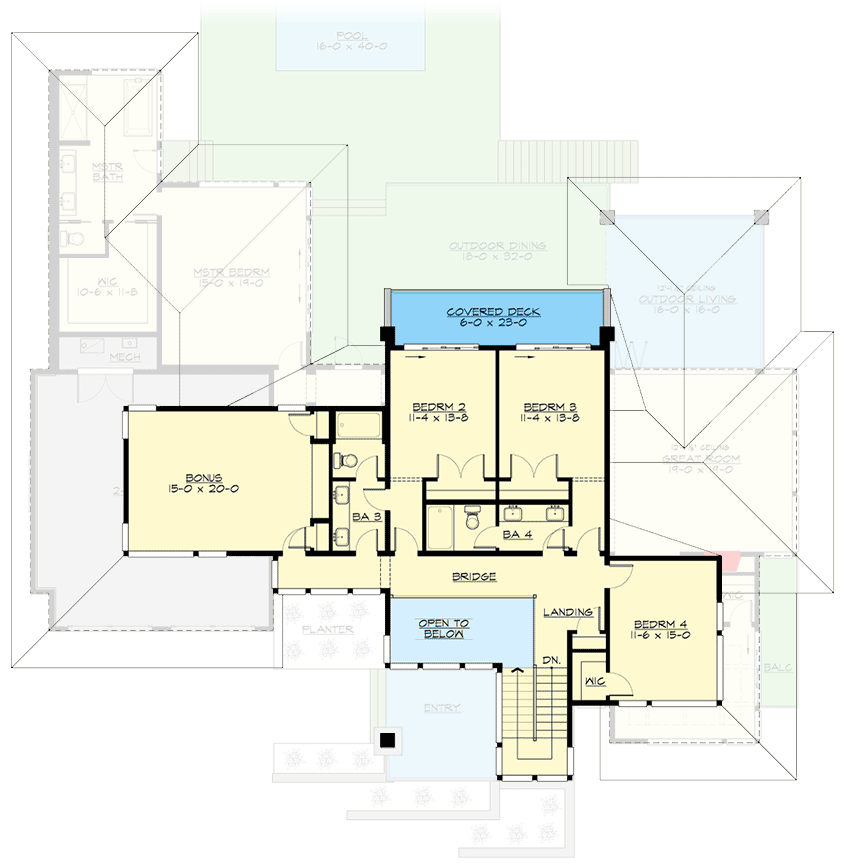

Three bedrooms on the second level share two compartmentalized full baths, and a covered deck is accessible from two of the bedrooms. A sizable bonus room rests above the garage.
A 2-car garage on the main level leads to the laundry room and a hall with coat closets and a powder bath. The lower level features a 2-car tandem garage, along with a generous workshop for the hobbyist.
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

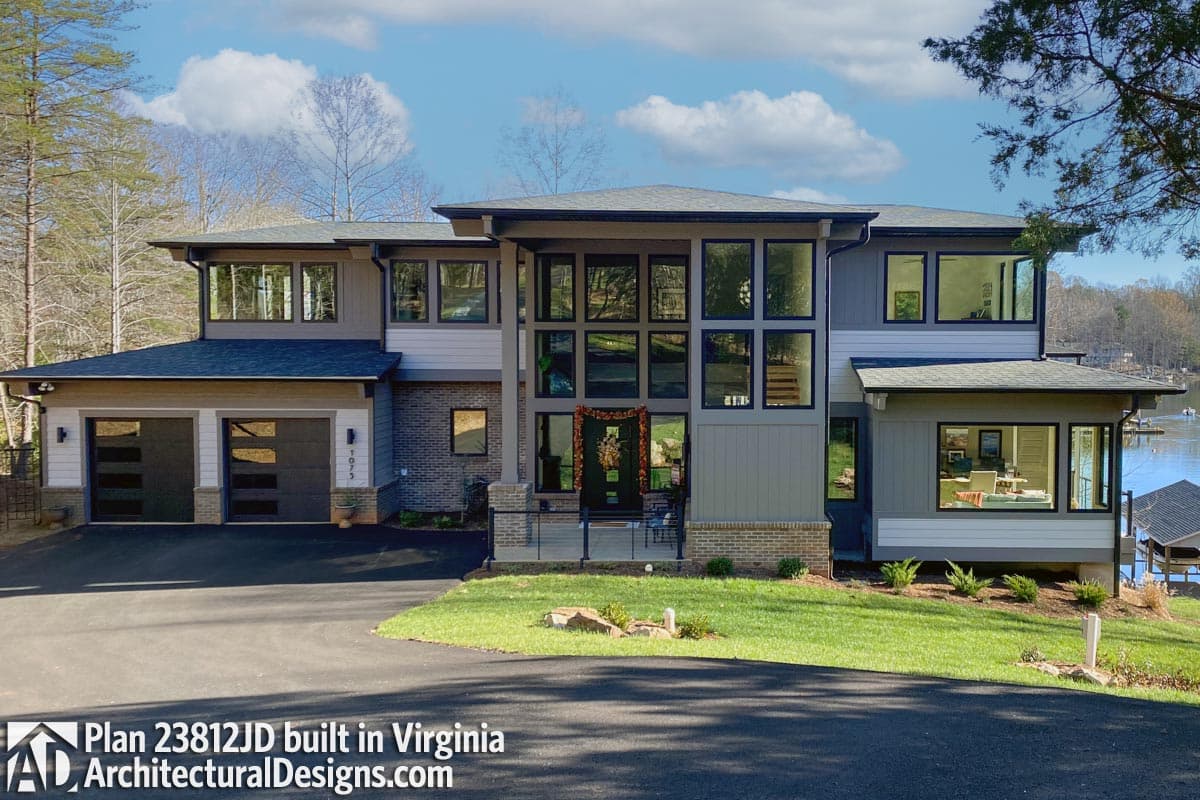

Modern House Plan 23812JD Comes to Life in Virginia

Photos

What's Included

Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

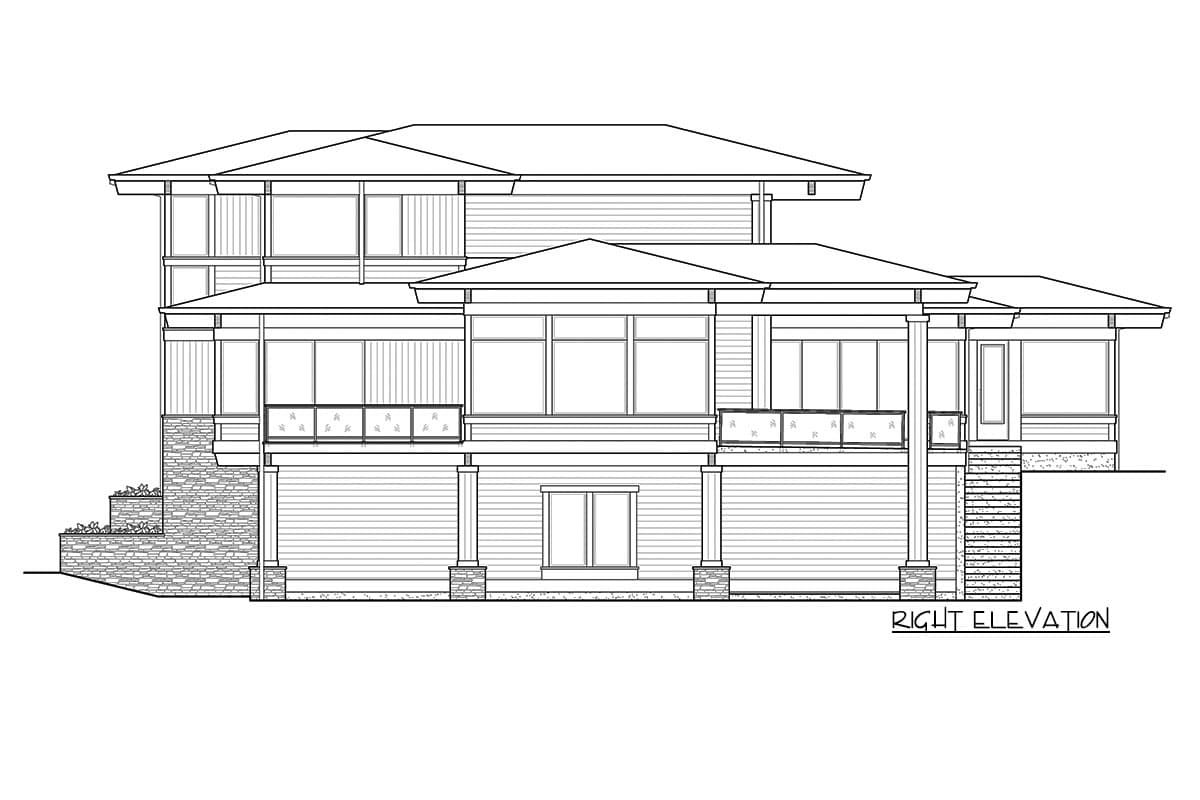

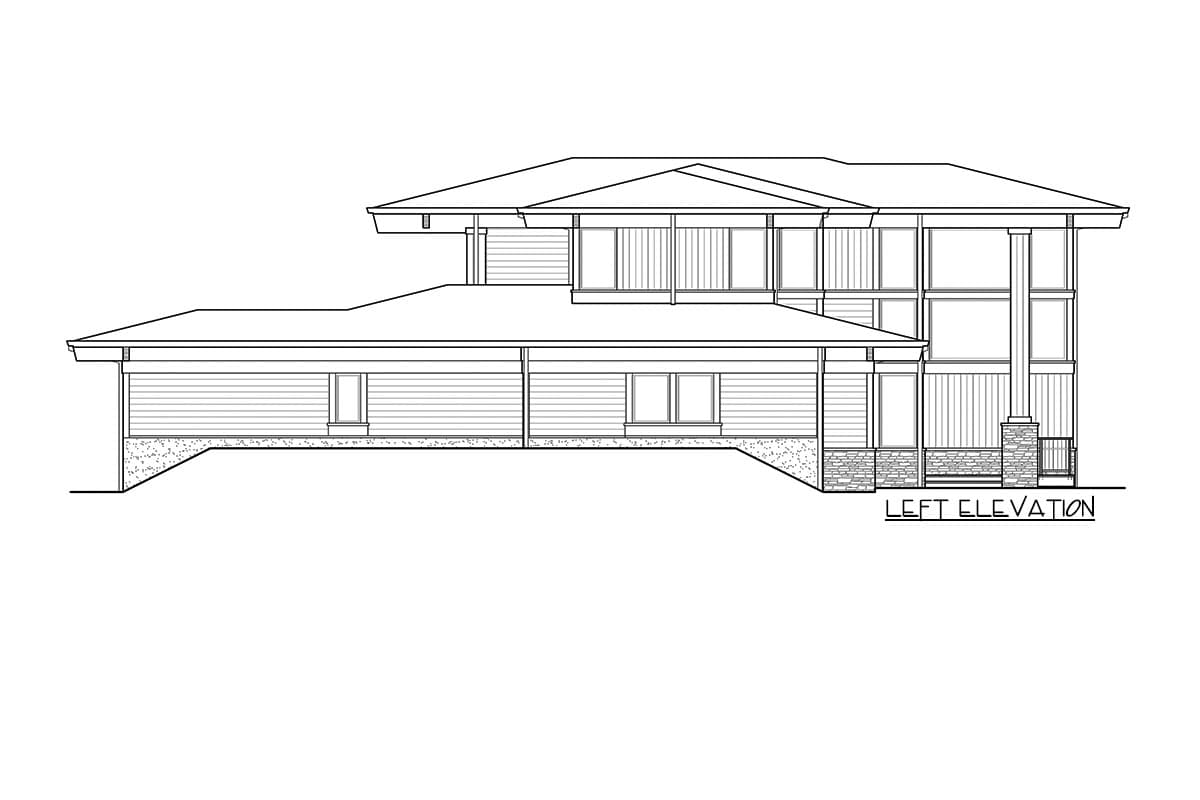

Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
