Plan 83924JW

Modern Split-Bed Country Home Plan - 2248 Sq Ft - Architectural Designs

Heated S.F.

2,248

Beds

Baths

Stories

Cars

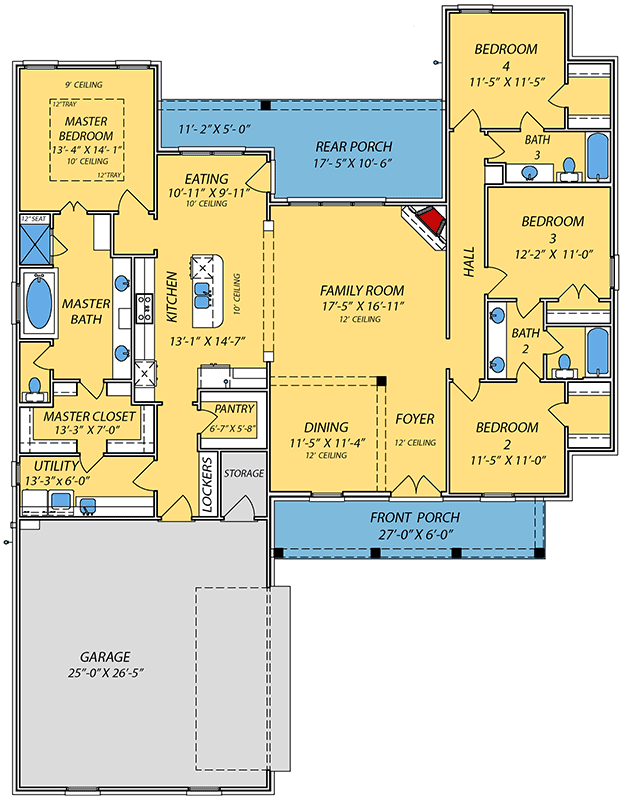

Floor Plan

Main Level

Plan Details

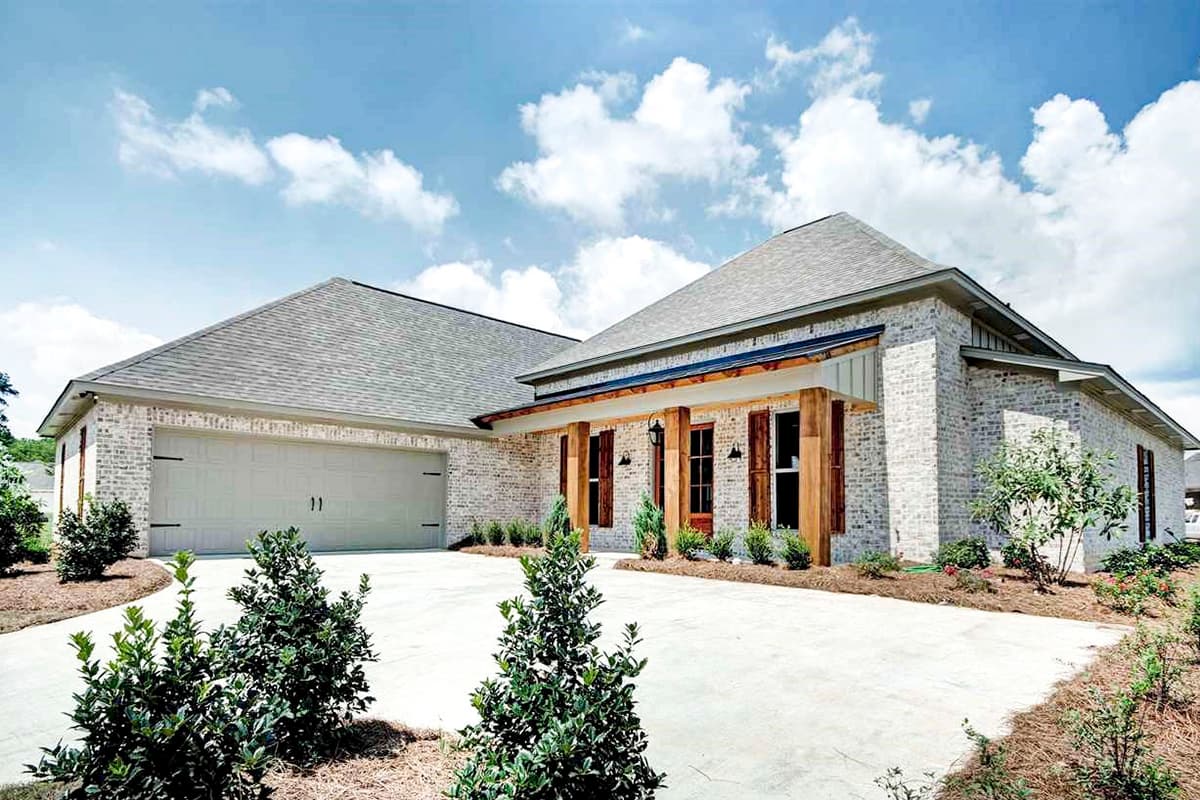

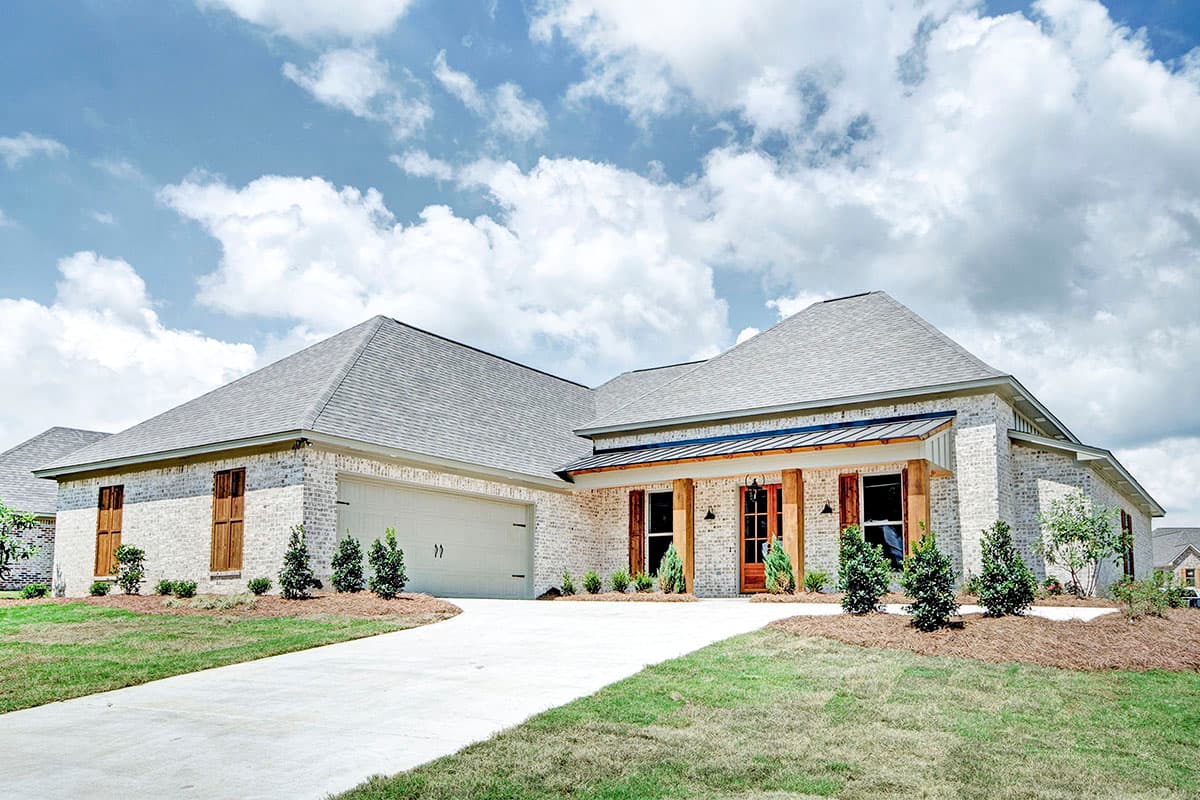

This appealing country-inspired 4-bedroom home plan features an inviting covered front porch with a metal roof and a 2-car garage.

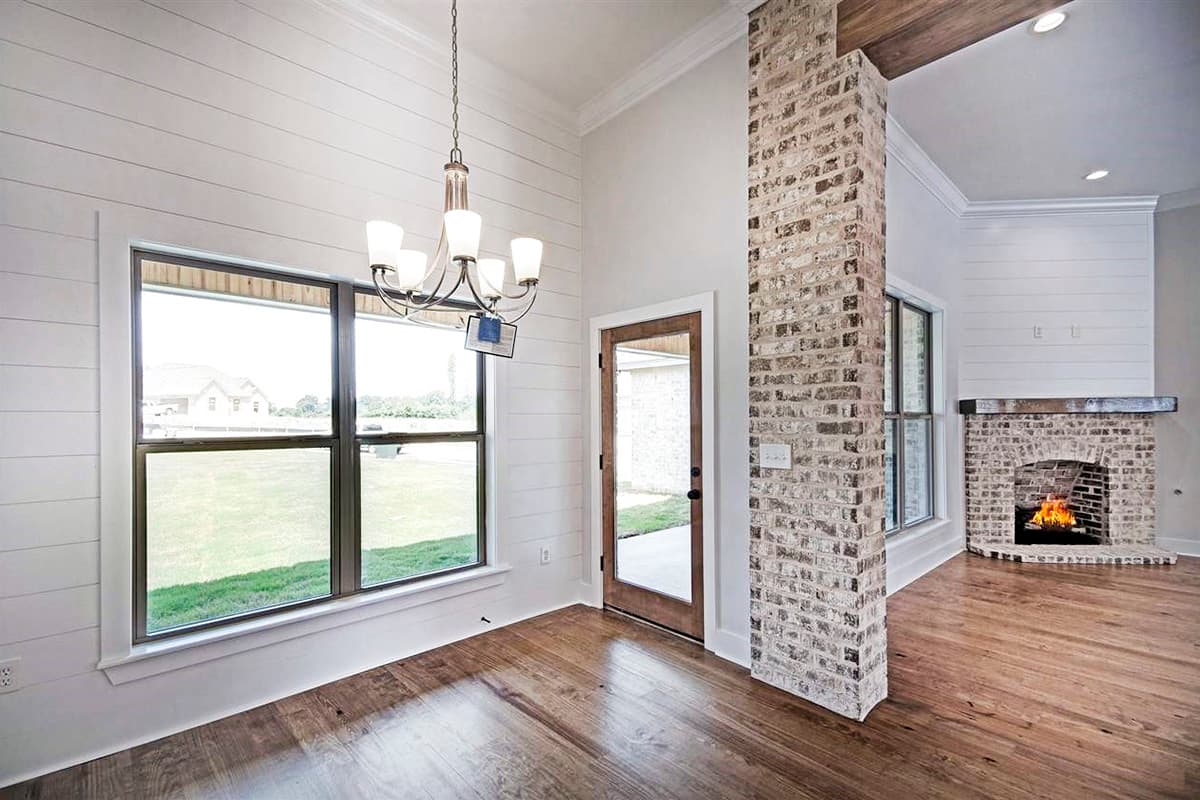

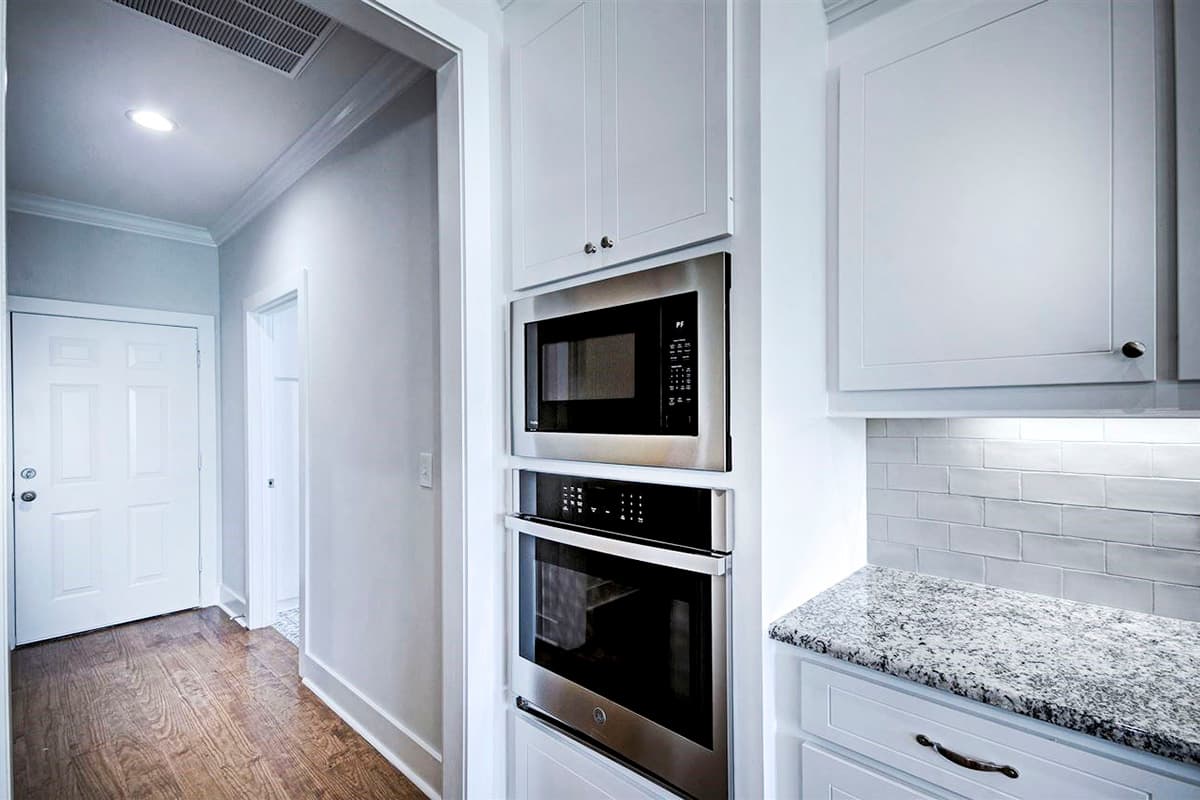

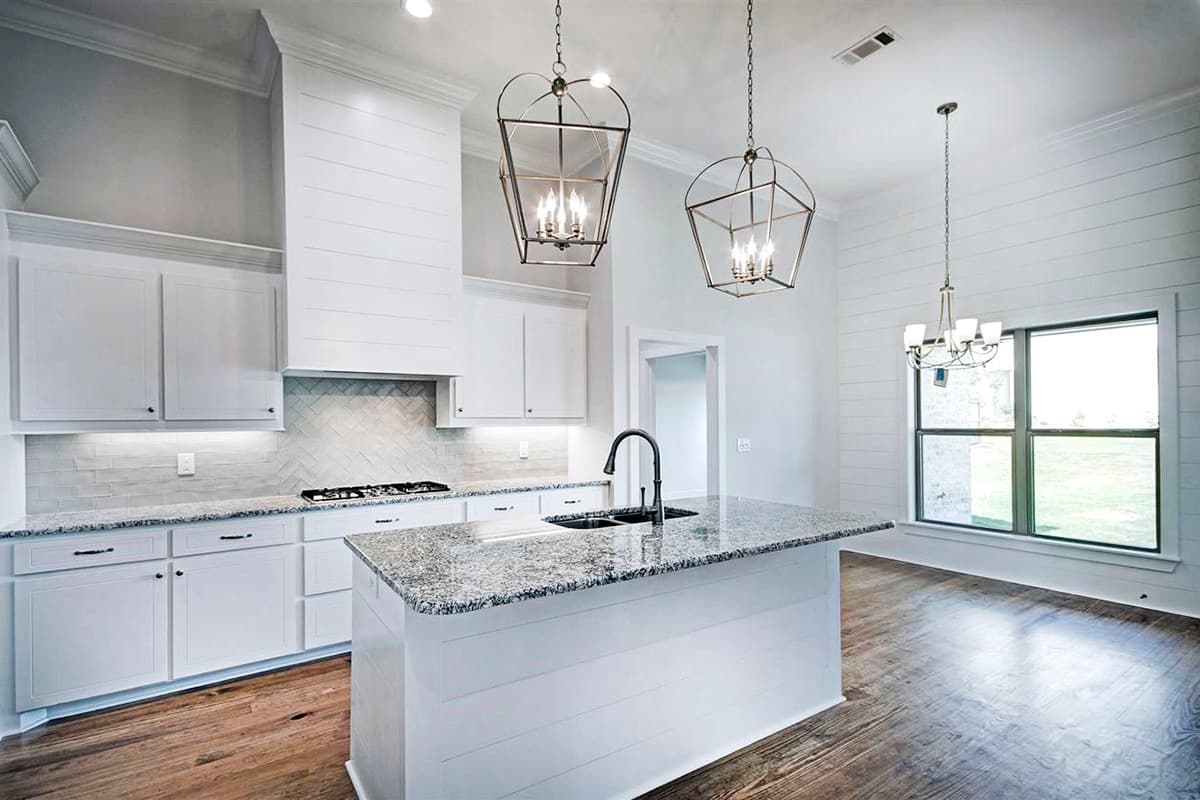

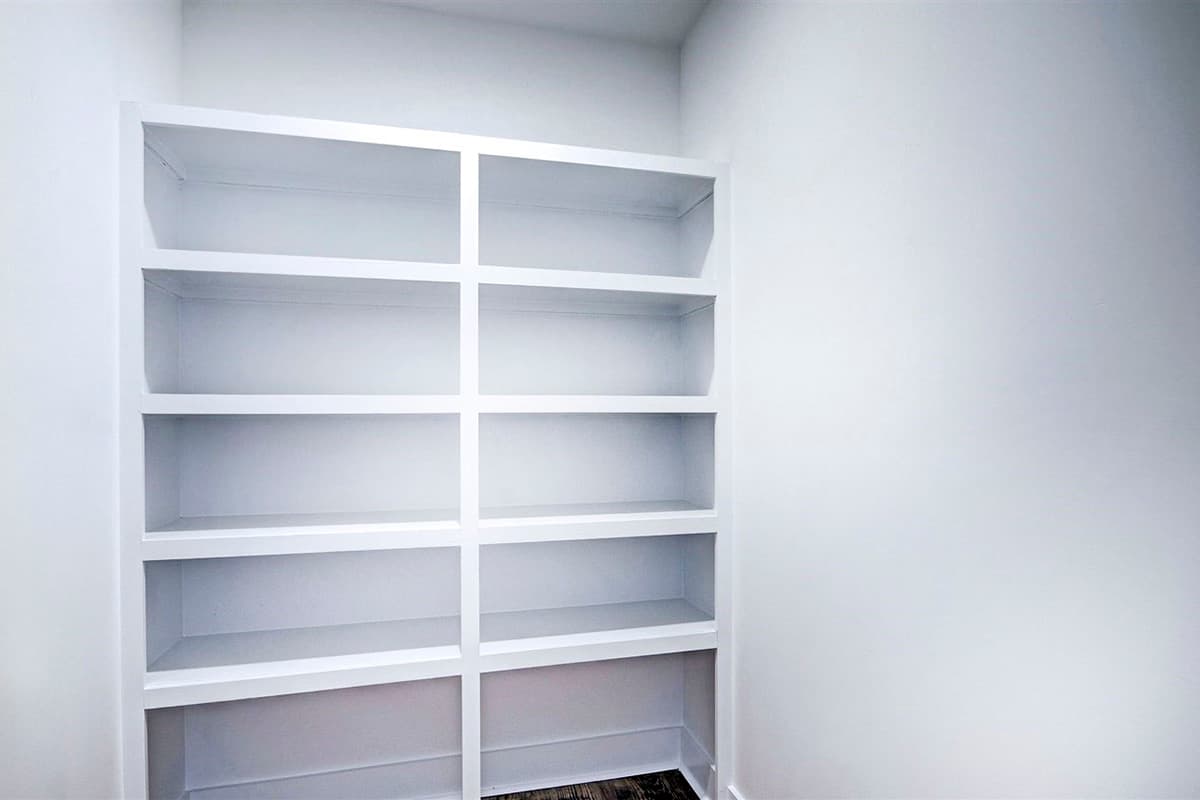

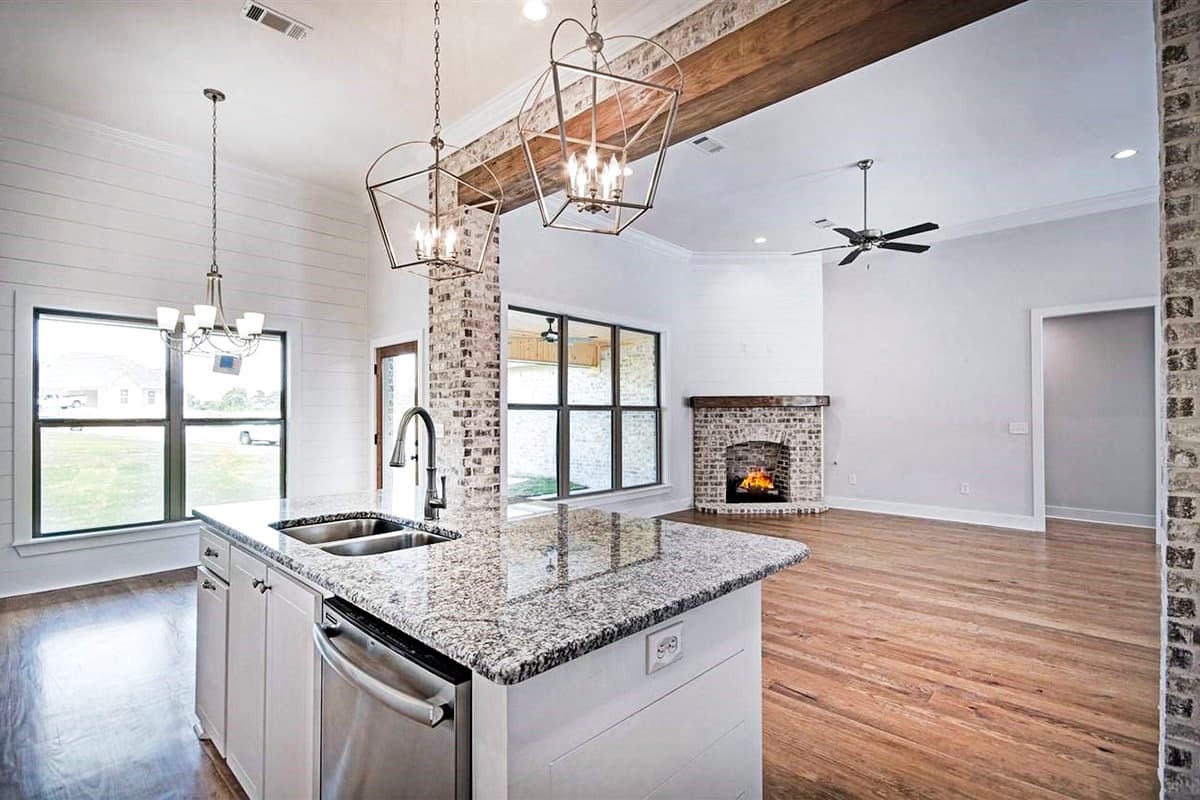

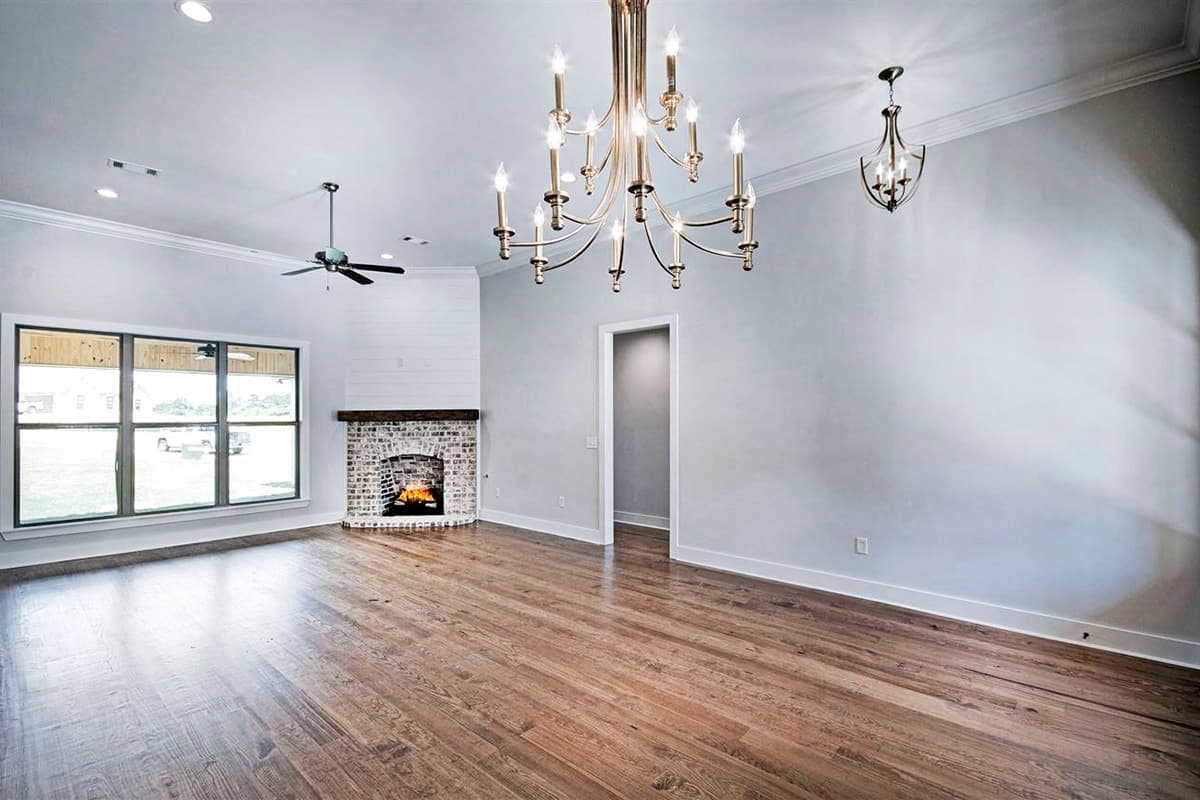

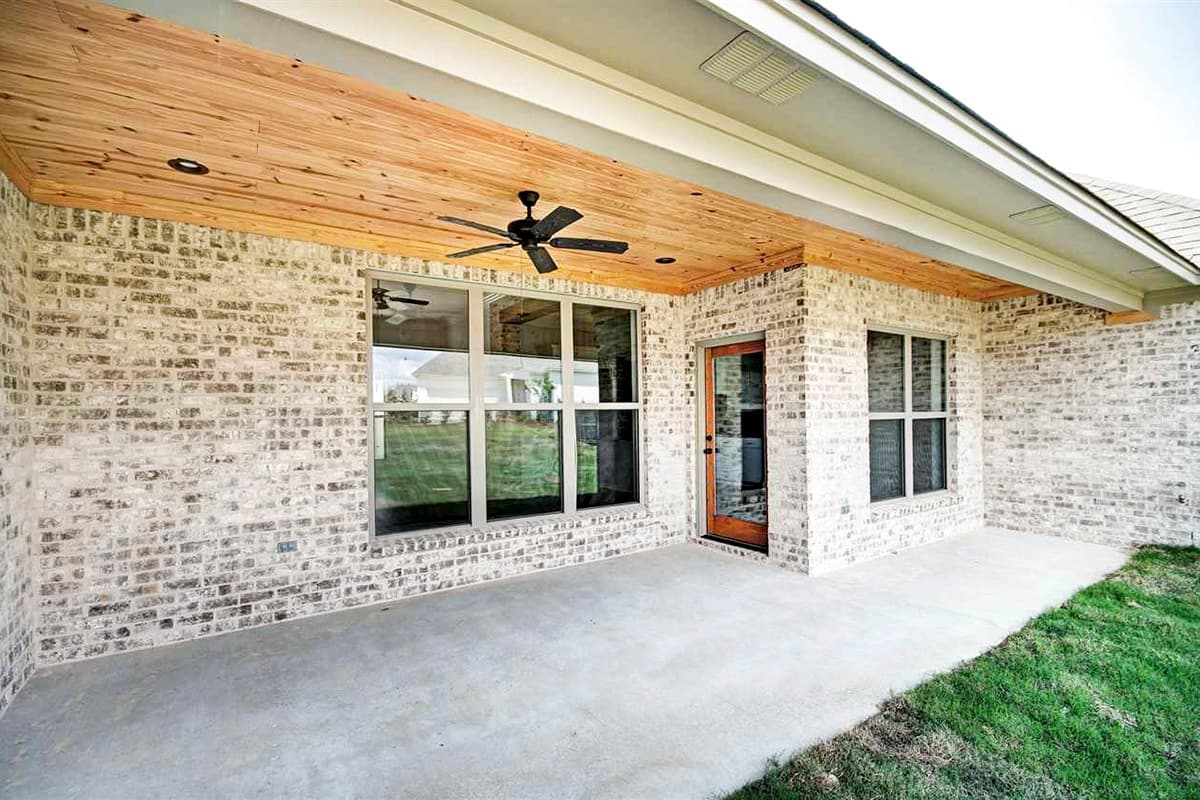

Inside, a spacious family room with a fireplace welcomes you. Designed for efficiency and convenience, the well-appointed kitchen features a breakfast bar and a walk-in pantry. An airy breakfast nook opens to a large rear porch.

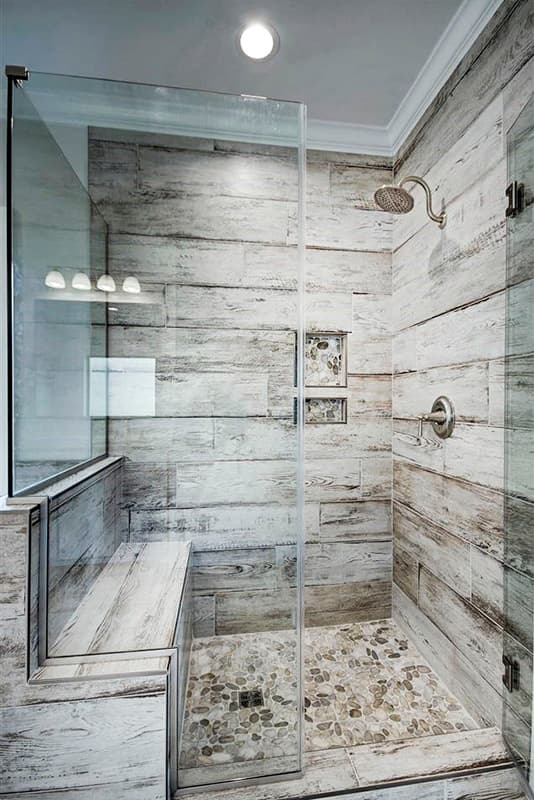

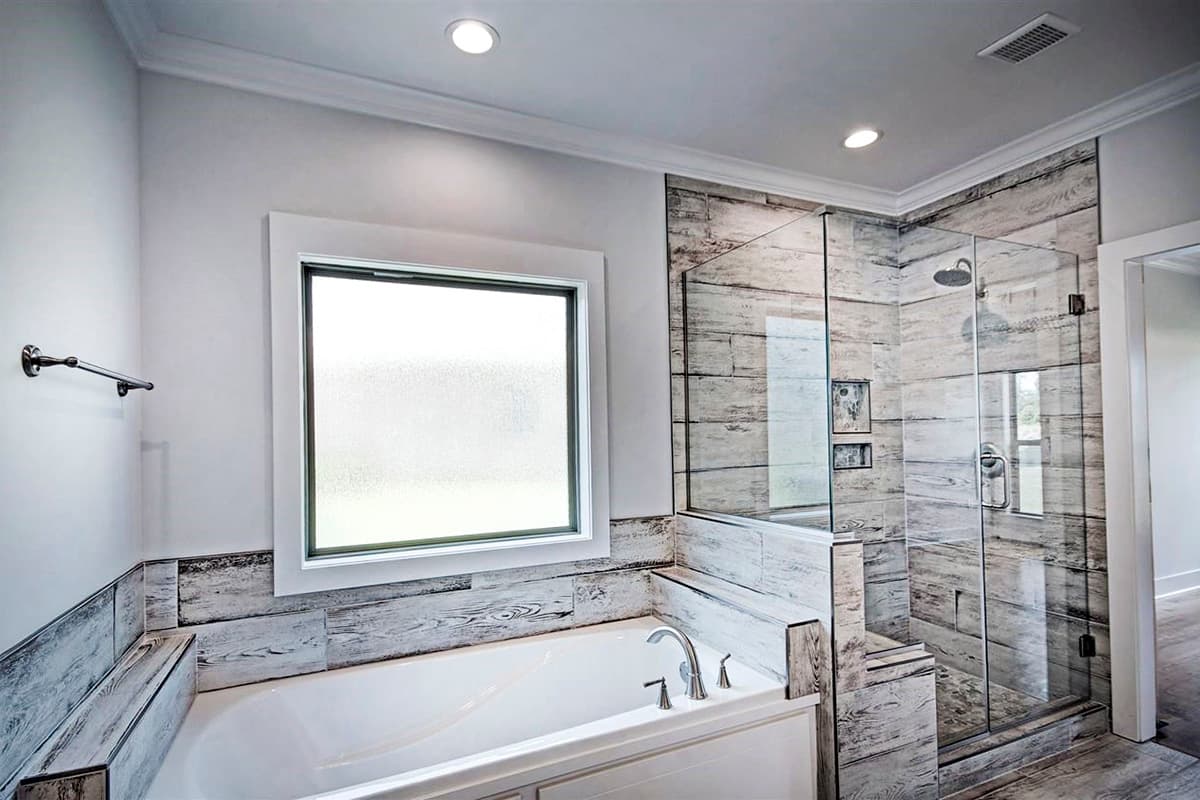

In your private master suite, you’ll find an elegant tray ceiling, a 5-piece bath with a walk-in shower, and a generously sized master closet with laundry access.

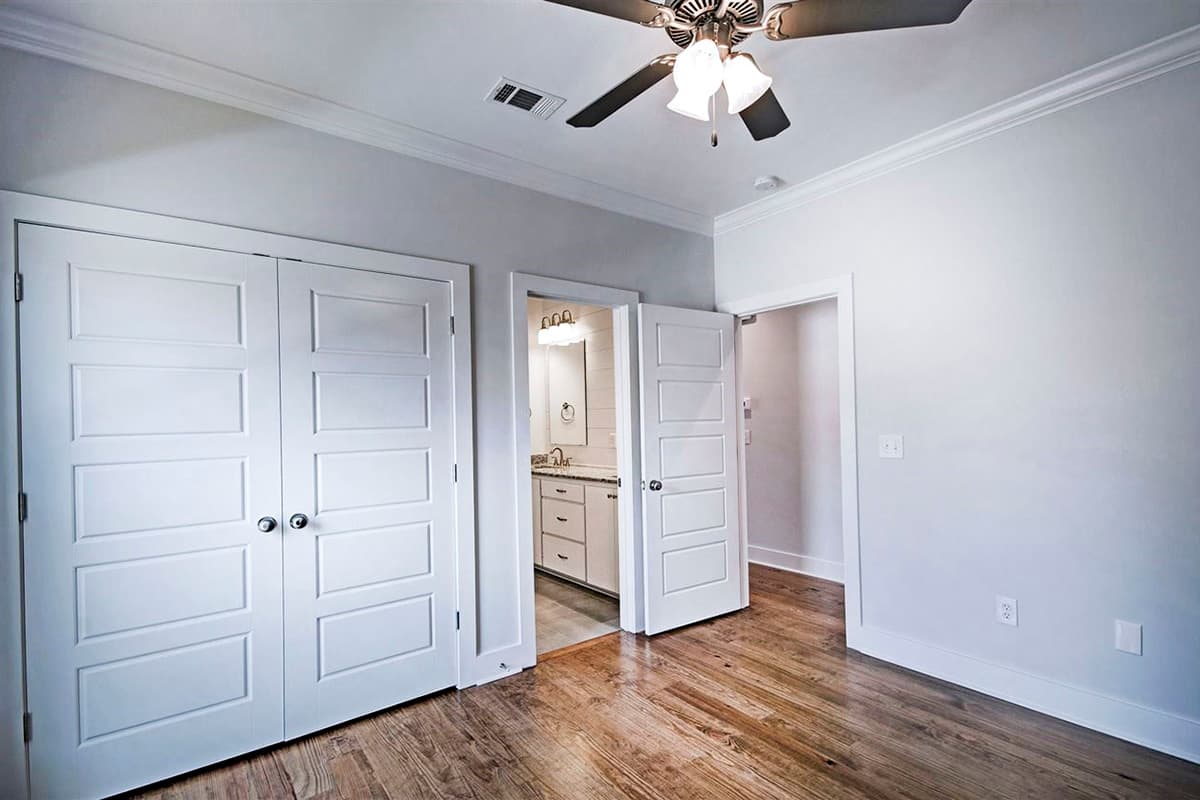

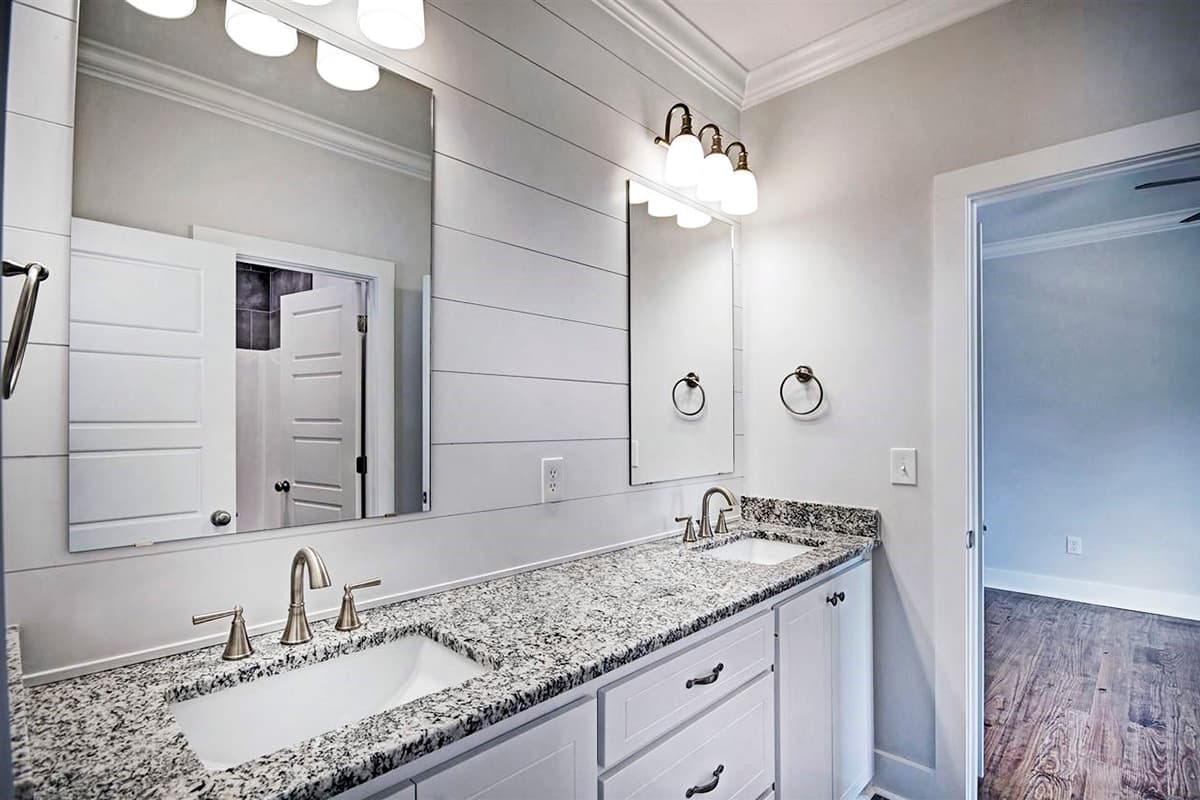

On the opposite side of the home, bedrooms 2 and 3 share a Jack-and-Jill bath and a 4th bedroom with its own on-suite.
Related Plan: Get a similar version in reverse with house plan 83908JW (2,144 sq. ft.)

What's Included

Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
