Plan 623178DJ
Modern-Style Carriage House Plan with 2 Beds and a Large Home Office
Heated S.F.
1,422
Beds
2
Baths
1.5
Stories
2
Cars
2
Tour
Floor Plan

Plan 623178DJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 623178DJ

1-800-854-7852

1-262-521-4596

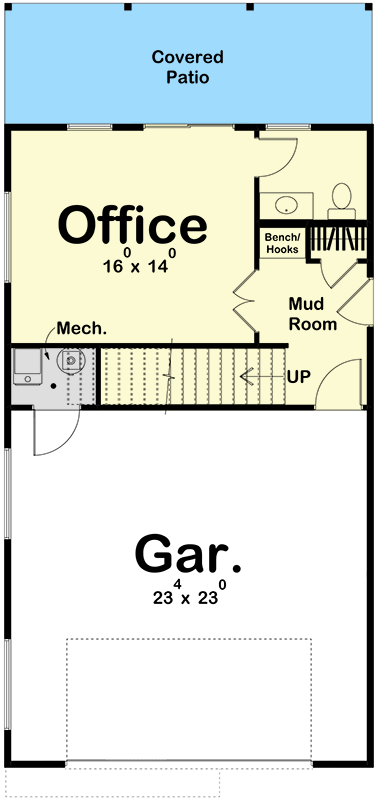

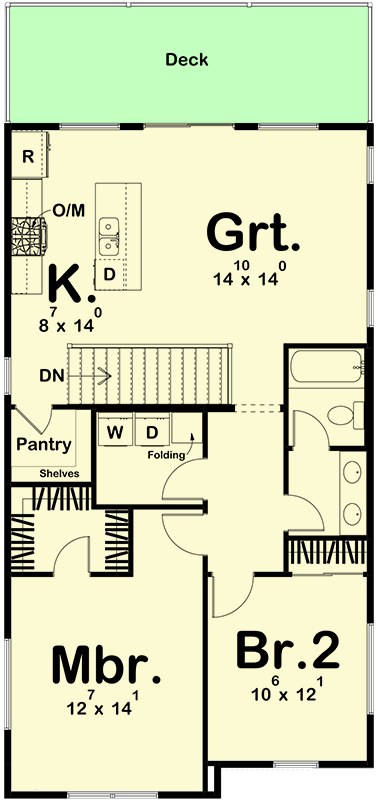

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This modern carriage house plan gives you 1,422 square feet of heated living space - including 2 beds and 1.5 baths - and 560 square feet of parking for two vehicles.
  • The ground level has a large office in back with sliding door access to the covered patio as well as a half bath and mudroom. There's room for mechanicals tucked in the back of the garage portion.
  • Upstairs, two bedrooms are in the front of the home with laundry and bathroom with two vanities convenient to both of them.
  • The great room and kitchen are open to each other and have sliding door access to a roomy deck.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,422 sq. ft.

1st Floor

425 sq. ft.

2nd Floor

997 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

50' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

560 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

3 on 12

Architectural Style

Carriage

Contemporary

Modern

New American

Northwest

Special Features

Butler Walk-in Pantry

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Plan Collections
