Plan 777008MTL
Mountain Cottage Plan with Large Utility Room
Heated S.F.
1,186
Beds
3
Baths
2
Stories
1
Cars
1
Floor Plan

Plan 777008MTL

Main Level
slide image 0

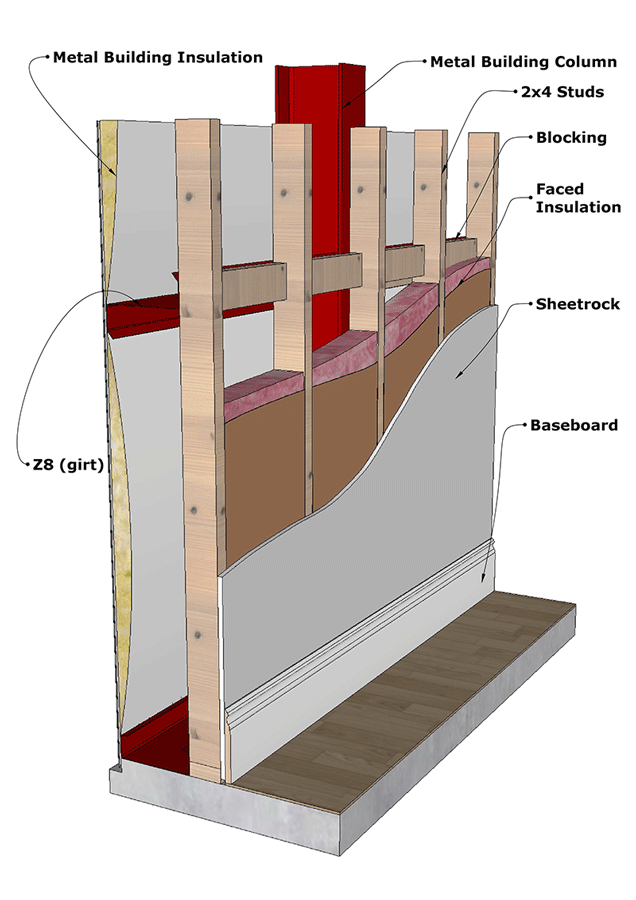

Wall Framing Section
slide image 1

Plan 777008MTL

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Wall Framing Section
floor plan image Wall Framing Section
Plan Details
  • A blend of horizontal and vertical siding wrap the exterior of this Mountain Cottage home plan.
  • The heart of the home sits to the left of the front entry and features an eating bar at the island, while the great room to the right delivers two large windows that overlook the front landscape.
  • Three bedrooms line the rear, including the primary bedroom that includes a walk-in closet and a 5-fixture bathroom with access to the laundry room.
  • The spacious laundry room doubles as a mudroom with quick access to the kitchen.
  • Extra space in the 1-car garage can be used for parking motorcycles, golf cart, a project car, storage or as a hobby workshop.
  • This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind.  A PEMB is the most commonly used structure when building a barndominium.  A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it the Options menu.
What's Included
  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof Plan
  • Elevations with necessary sections
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,186 sq. ft.

1st Floor

1,186 sq. ft.

Porch, Combined

38 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

53' 6"

Depth

45' 0"

Garage

Type

Attached

Area

452 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Contemporary

Cottage

Mountain

New American

Vacation

Special Features

Bedrooms - Clustered

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor
