Plan 18263BE
Mountain Cottage With In-Law Suite
Heated S.F.
2,007
Beds
2 - 3
Baths
3
Stories
1
Cars
2
Floor Plan

Plan 18263BE

Main Level
slide image 0
2nd Floor
slide image 1

Plan 18263BE

1-800-854-7852

1-262-521-4596

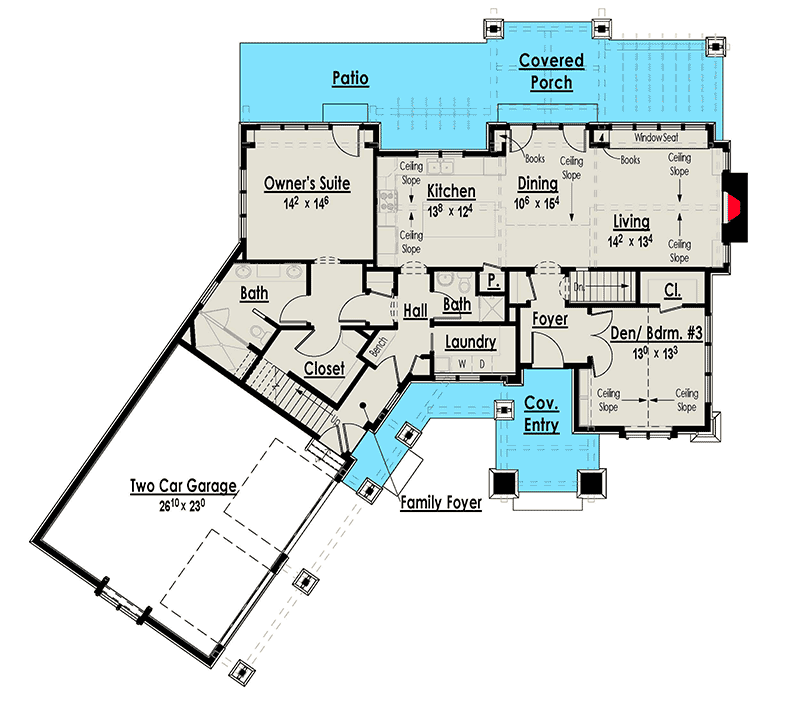

Main Level
floor plan image Main Level

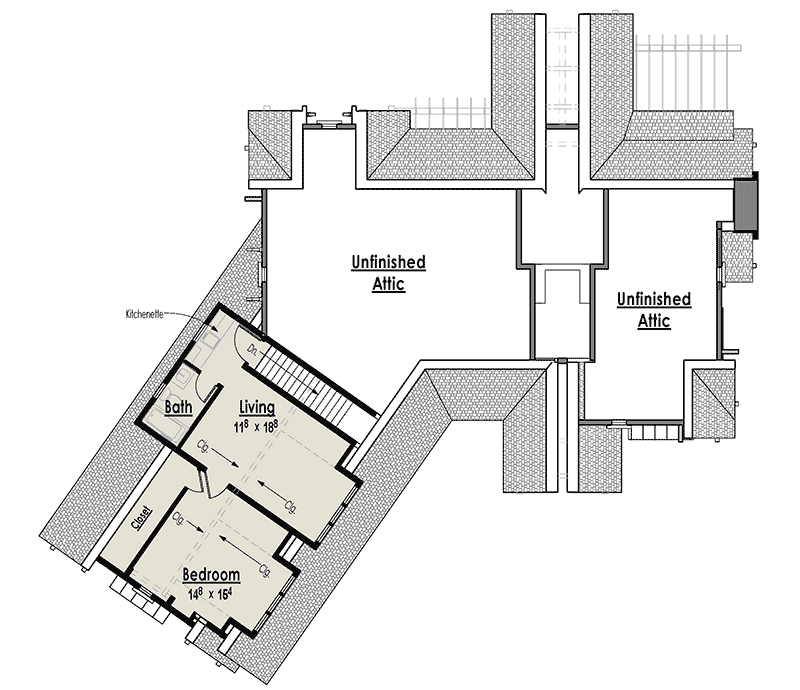

2nd Floor
floor plan image 2nd Floor
Plan Details

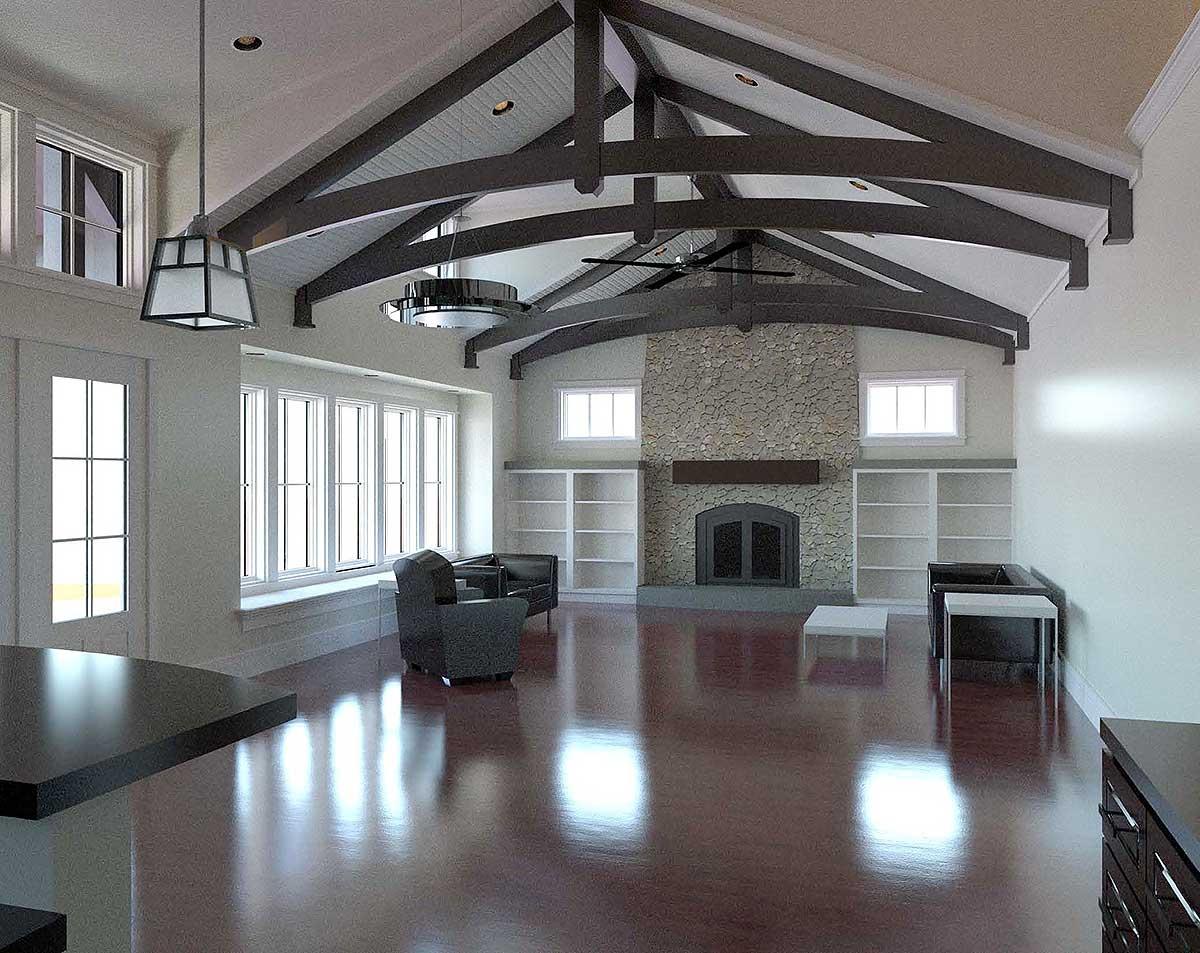

  • The vaulted spaces - living room, dining room, and bedroom 3 - add comfortable volume to nicely proportioned room sizes.
  • Abundant windows maximize views and natural light.
  • The kitchen is designed for both efficiency and aesthetics.
  • In the owners' suite, windows on two sides bring in extra light.
  • The handsome master bath has an extra spacious shower.
  • The second floor is designed for an entire guest suite complete with living room!
  • The roof has a 10 on 12 main pitch and 3 on 12 secondary pitch.
  • Related Plans: Get unfinished bonus space above the garage with house plan 18264BE (1,687 sq. ft.). Get a first floor guest suite with house plan 18248BE (2,221 sq. ft.). Get a front-facing garage with house plan 18268BE (2,355 sq. ft.).
  • BUILD RESTRICTION: These plans cannot be sold or built in NY state.
What's Included
  • General Notes and Design Criteria
  • Perspective Views
  • Foundation Plan
  • Floor Plans
  • Elevations
  • Cross Sections
  • Door and Window Schedules
  • Roof Plan and Room Finish Schedule
  • Electrical Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,007 sq. ft.

1st Floor

1,487 sq. ft.

2nd Floor

520 sq. ft.

Porch, Front

227 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

79' 3"

Depth

71' 6"

Max Ridge Height

24' 8"

Garage

Type

Attached

Area

656 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick and Truss

Architectural Style

Cottage

Craftsman

Mountain

Northwest

Rustic

Special Features

Angled Garage

Bedrooms - Split

Flex Room

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor
