Plan 444080GDN
Mountain Craftsman Home Plan with Main-level Owner's Suite
Heated S.F.
4,284
Beds
4 - 6
Baths
4.5 - 5.5
Stories
1-2
Cars
3
Floor Plan

Plan 444080GDN

Main Level
slide image 0
Optionally Finished Bonus Room
slide image 1
Finished Lower Level
slide image 2

Plan 444080GDN

1-800-854-7852

1-262-521-4596

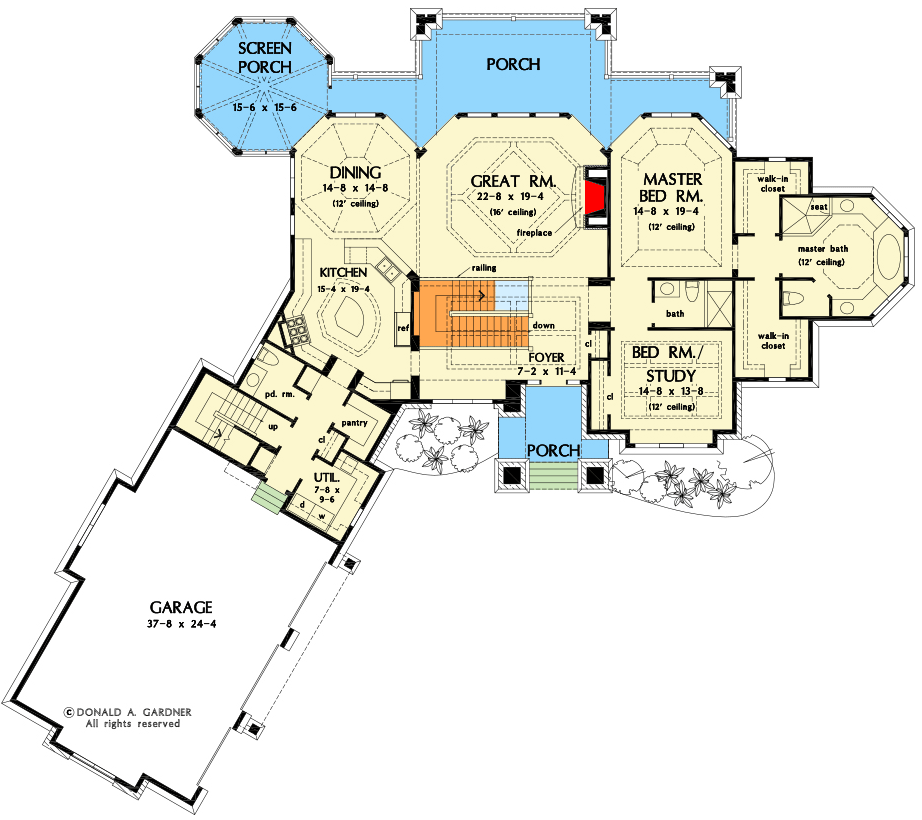

Main Level
floor plan image Main Level

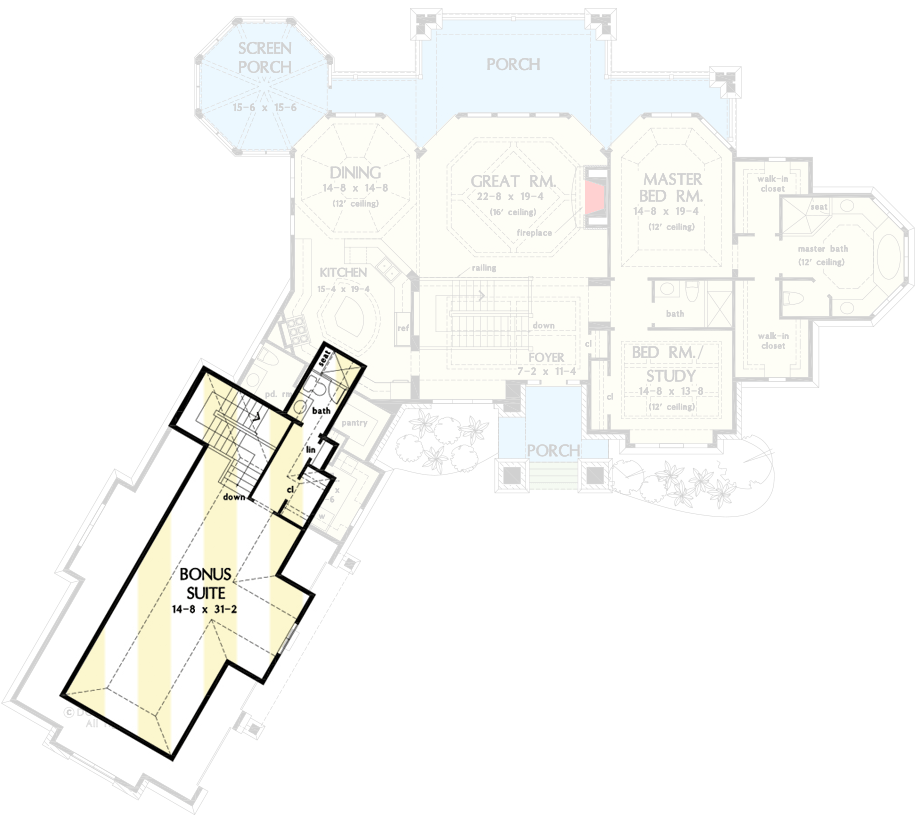

Optionally Finished Bonus Room
floor plan image Optionally Finished Bonus Room

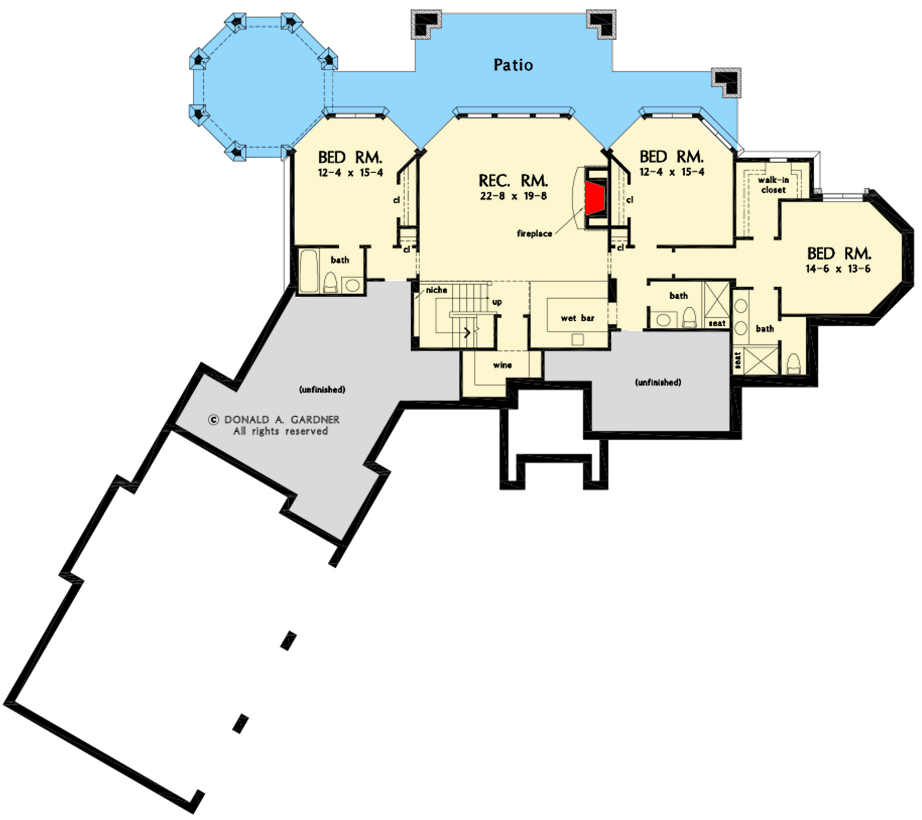

Finished Lower Level
floor plan image Finished Lower Level
Plan Details

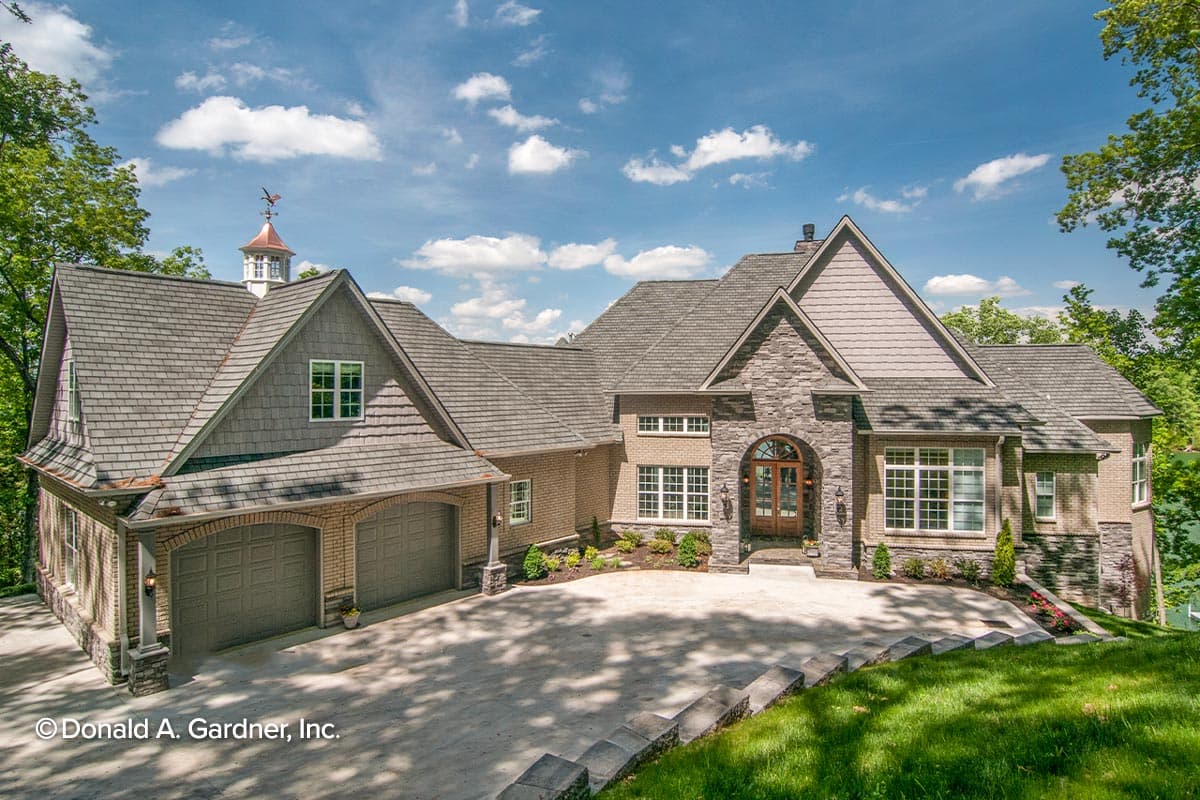

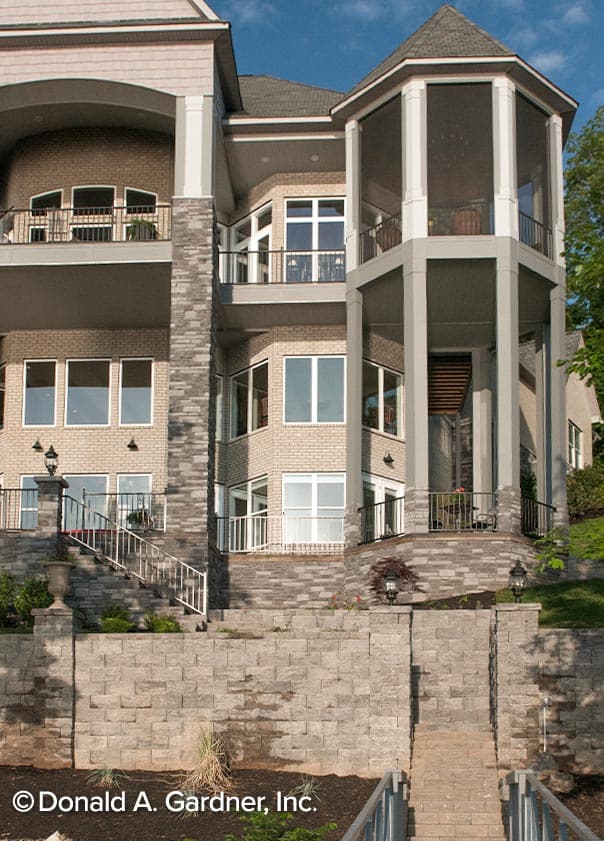

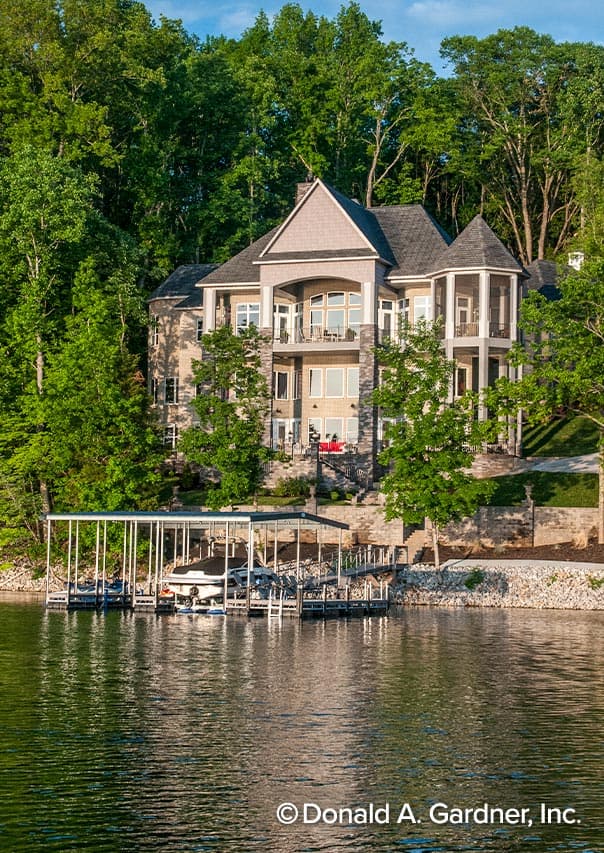

  • A mixture of stone and shake lends an earthy feel that allows this Mountain Craftsman home plan to blend with the surrounding landscape.

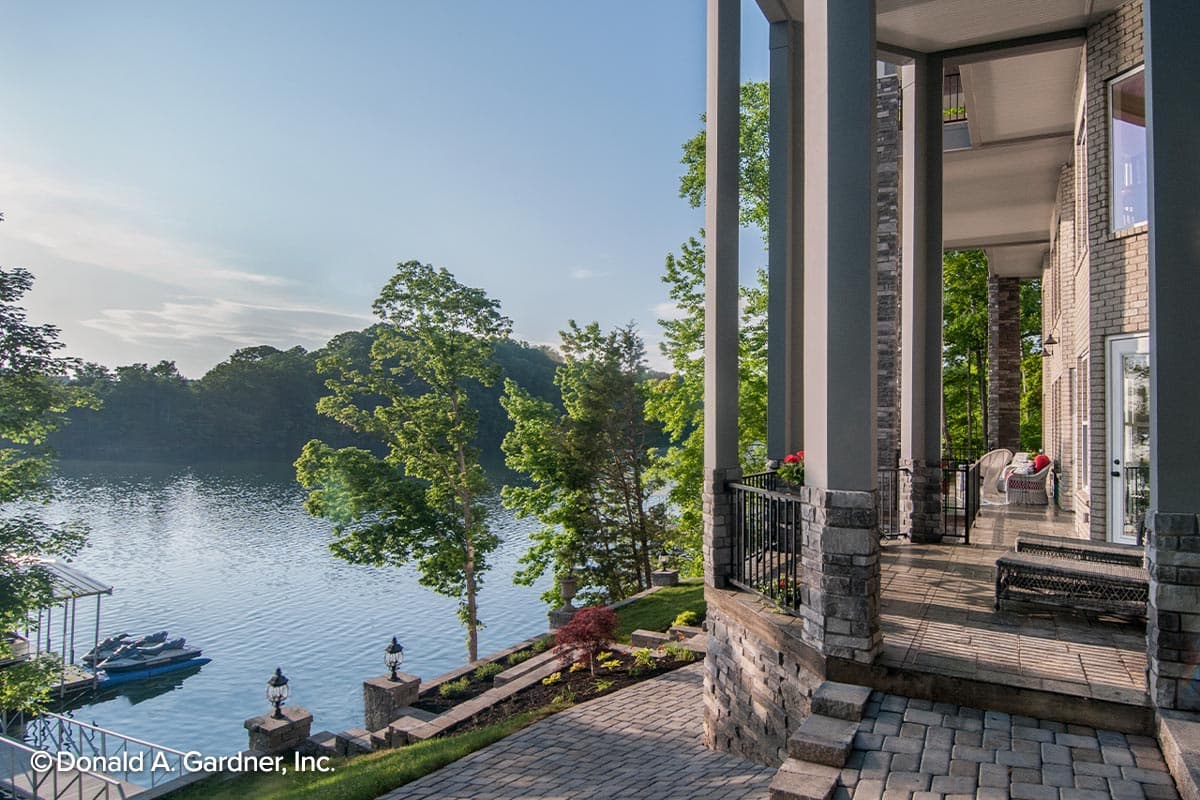

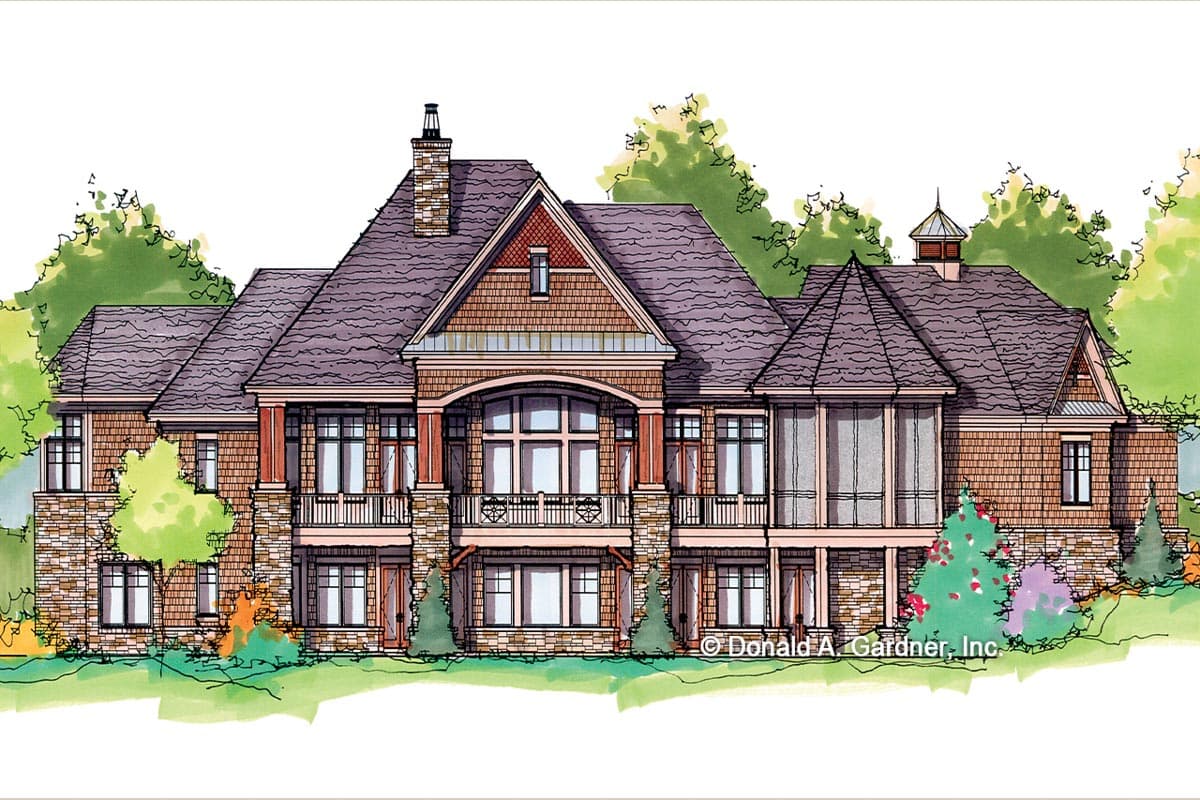

  • A series of bay windows on the rear of the home plan maximizes views from every room.

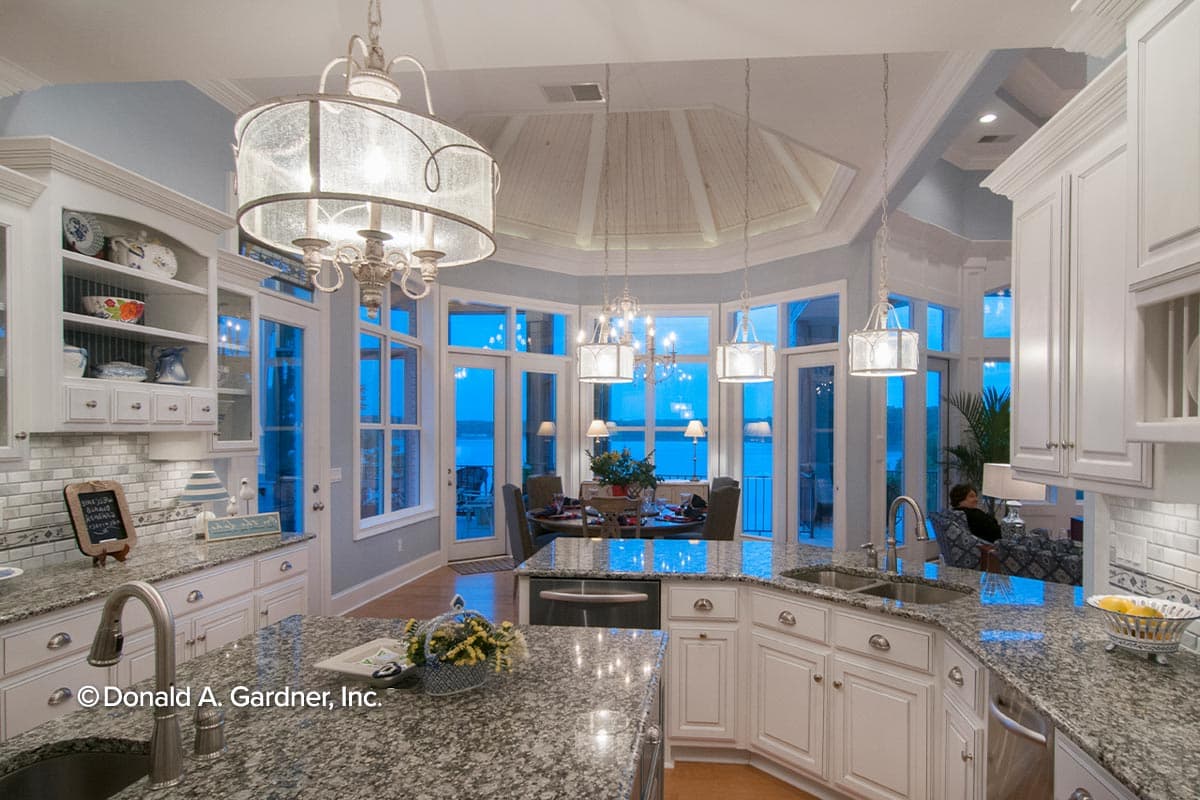

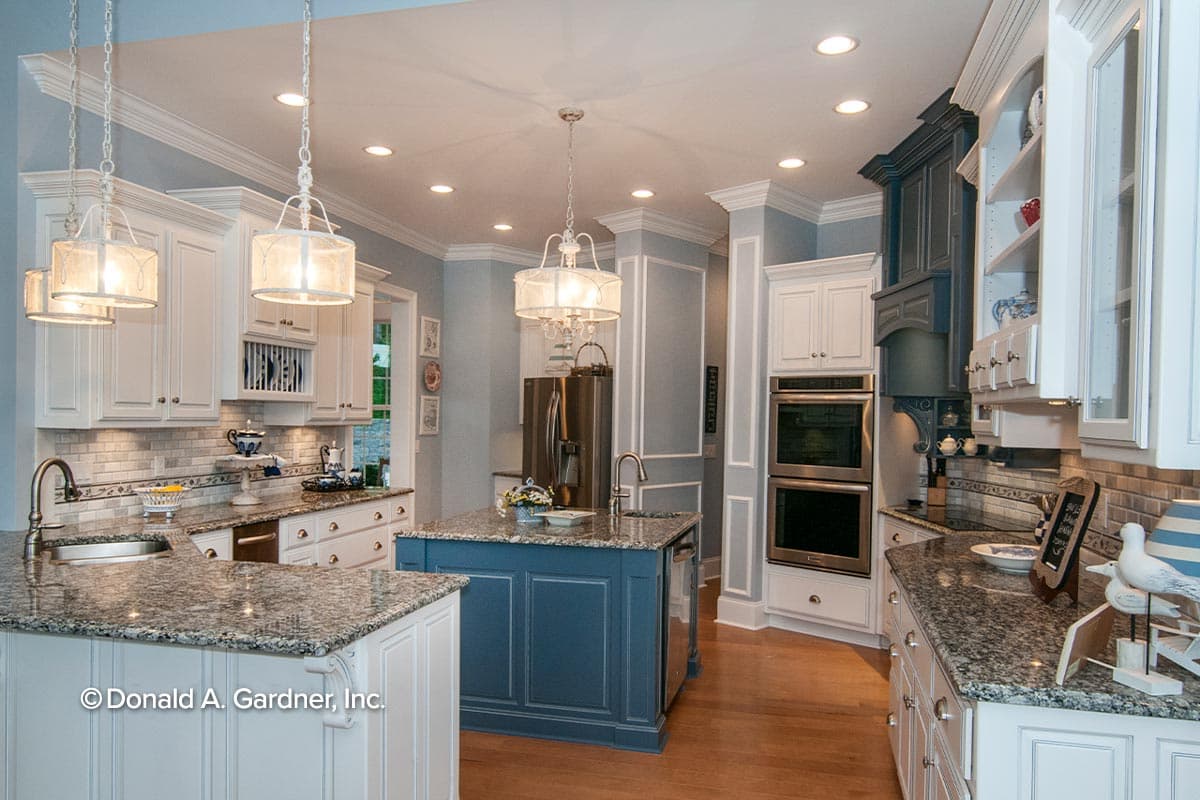

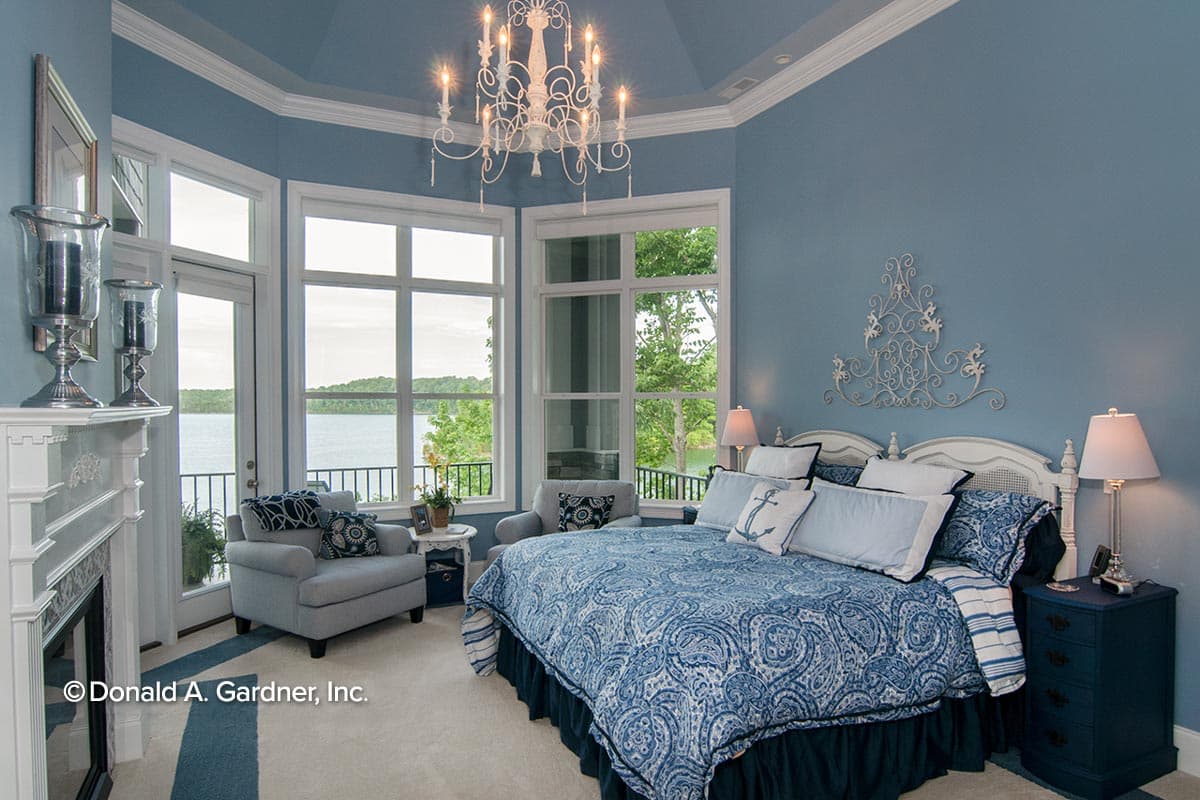

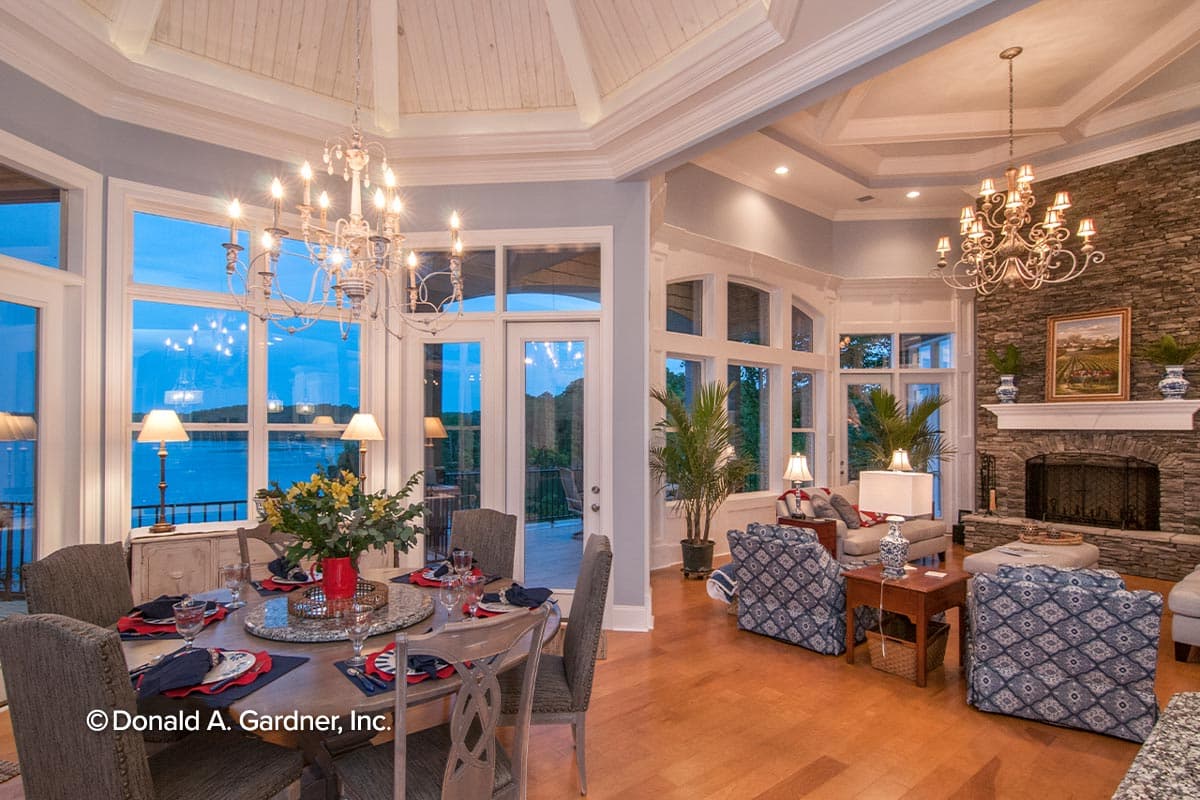

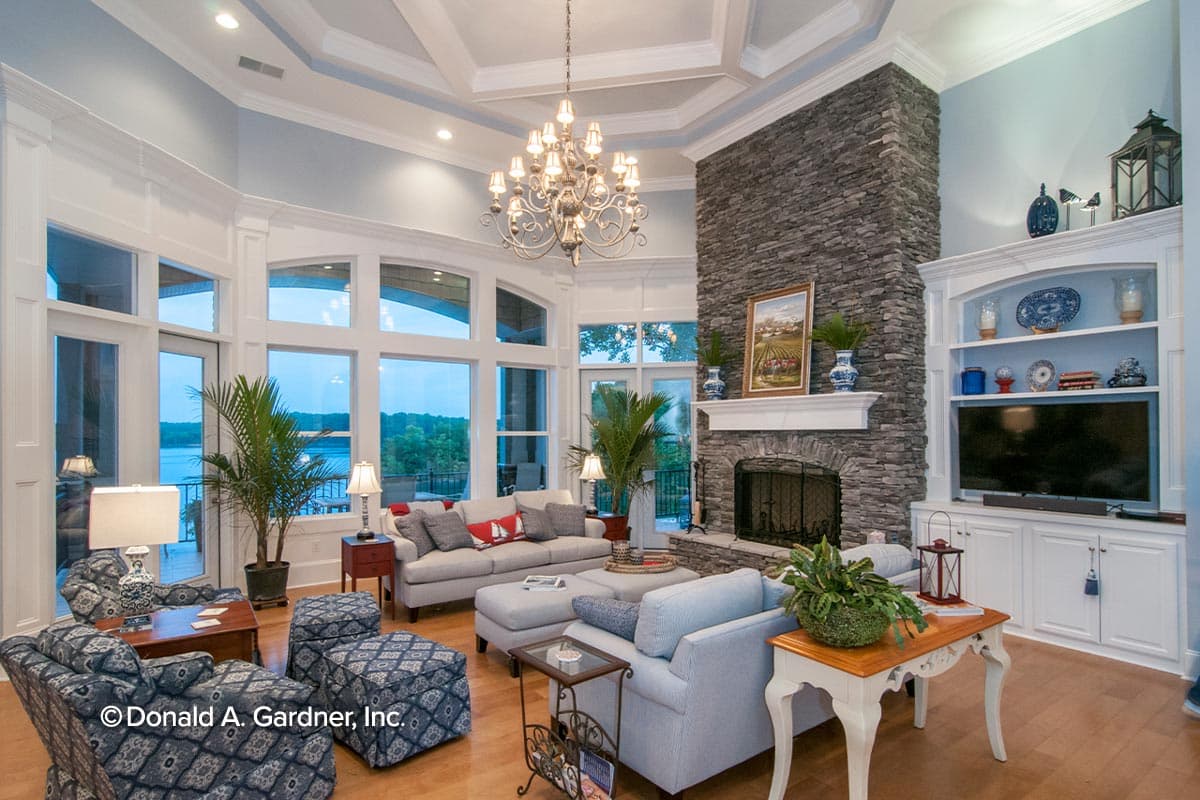

  • The main level features a spacious great room, octagonal dining room, an oversized gourmet kitchen, a bedroom/study, and an oversized owner's suite with spectacular master bath.
  • Above the 3-car garage, an 824 sq ft bonus room lends a flexible space for the family to enjoy.

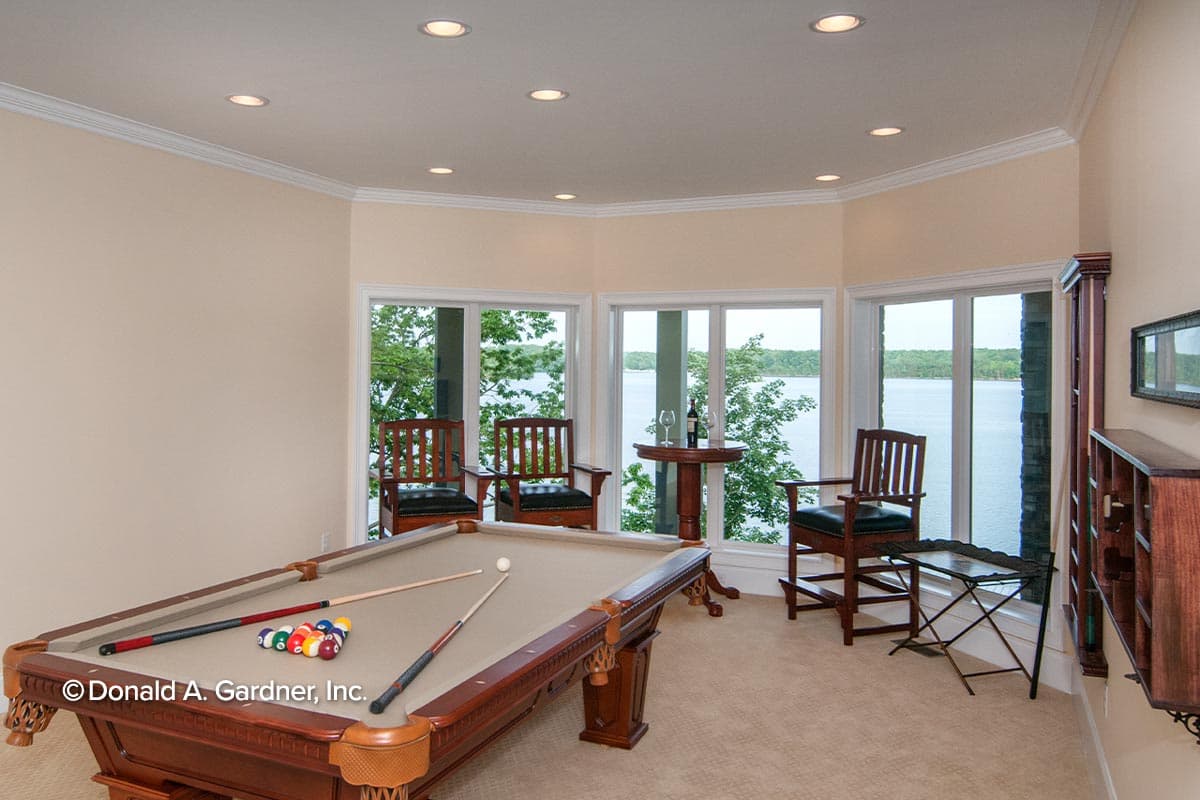

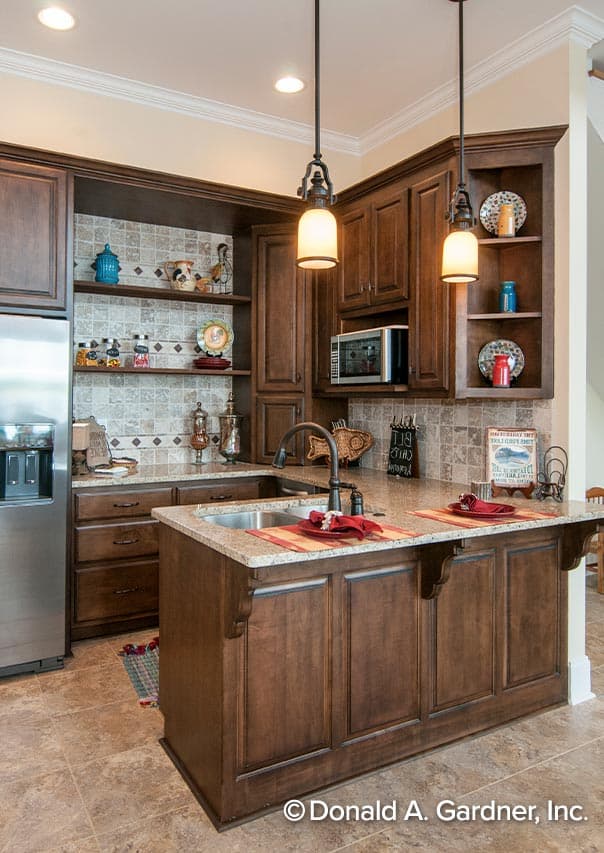

  • A generous rec room with a fireplace and wet bar can be found on the lower level, along with 3 bedroom suites.
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,284 sq. ft.

Lower Level

1,825 sq. ft.

1st Floor

2,459 sq. ft.

Bonus

824 sq. ft.

Porch, Front

106 sq. ft.

Porch, Rear

460 sq. ft.

Screened Porch

230 sq. ft.

Covered Patio

690 sq. ft.

Storage

871 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

4 or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

109' 4"

Depth

96' 10"

Max Ridge Height

46' 5"

Garage

Type

Attached

Area

1019 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

15 on 12

Secondary Pitch

11 on 12

Framing Type

Stick

Architectural Style

Craftsman

Mountain

Rustic

Special Features

Angled Garage

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Game/Rec Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Wet Bar

Plan Collections

Home Office

Photo Gallery

Sloping Lot

Square Footage Breakdown

Total Heated Area

4,284 sq. ft.

Lower Level

1,825 sq. ft.

1st Floor

2,459 sq. ft.

Bonus

824 sq. ft.

Porch, Front

106 sq. ft.

Porch, Rear

460 sq. ft.

Screened Porch

230 sq. ft.

Covered Patio

690 sq. ft.

Storage

871 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

4 or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

109' 4"

Depth

96' 10"

Max Ridge Height

46' 5"

Garage

Type

Attached

Area

1019 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

15 on 12

Secondary Pitch

11 on 12

Framing Type

Stick

Architectural Style

Craftsman

Mountain

Rustic

Special Features

Angled Garage

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Game/Rec Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Wet Bar

Plan Collections

Home Office

Photo Gallery

Sloping Lot
